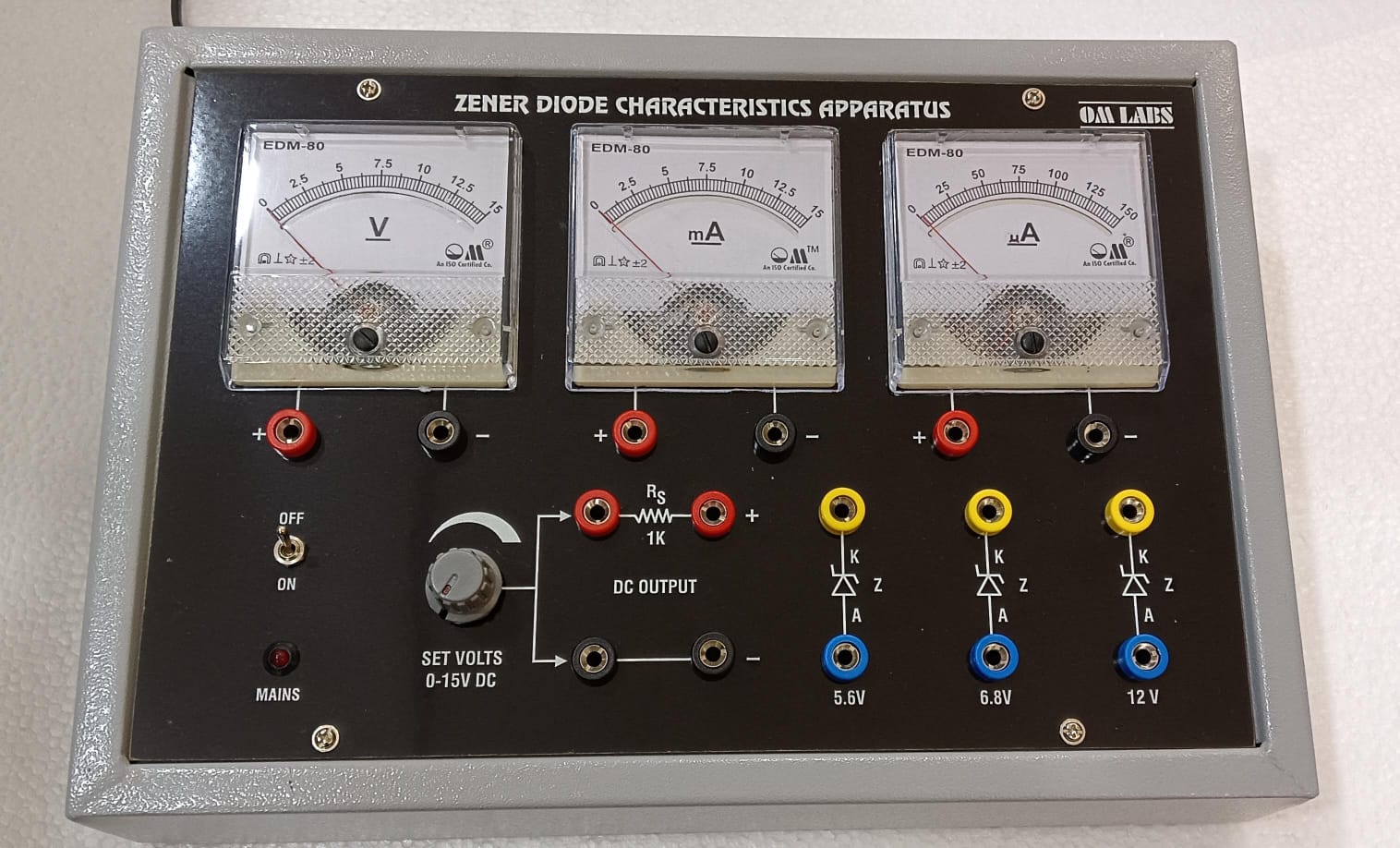

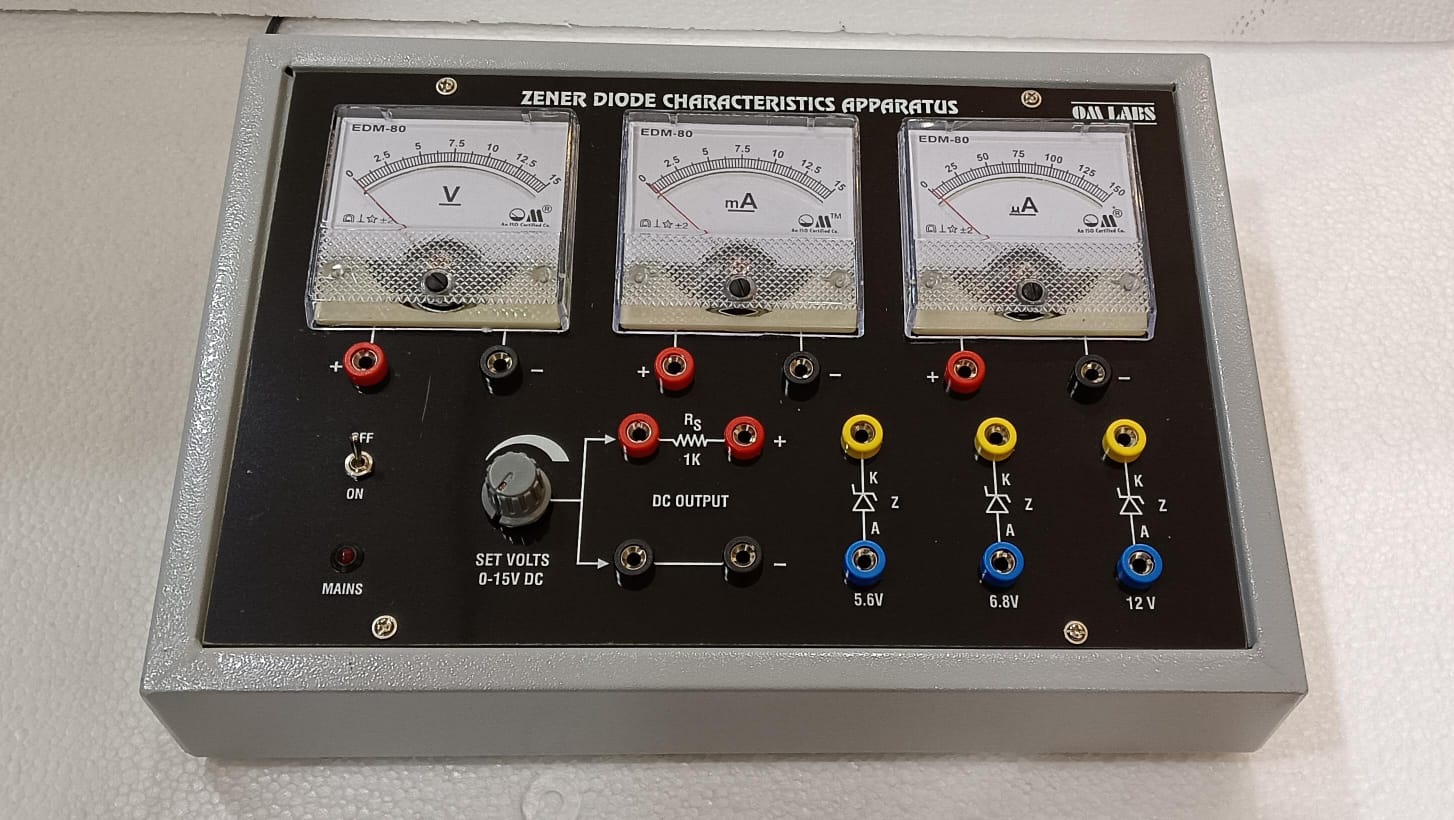

SPECIFICATION: Zener Diode Characteristics Apparatus has been designed to study the Forward & Reverse Bias characteristics of Zener Diode.
- The Instrument comprises of the following built in Parts:
- One Continuously variable DC regulated power supply of 0-15v with output brought out at 4mm sockets.
- Three meters to measure voltage & current are mounted on front panel & connections brought out at 4mm Socket.
- One series Resistance & three Zener Diodes (5.6, 6.8, 12V) has been provided on front panel with connections brought out at 4mm Sockets.
-
Dimensions:33 x 24 x 7cm Approx.
-
Weight:1.9kg Approx.
-
Packing: Card Board Box
- HSN CODE: 8541
-
GST: General Standard 18%
- CATAGORIES: Electronics
-
BRAND: OM LABS
| Weight |
3.0 kg
|
| Dimensions |
13 × 27 × 35 cm |
