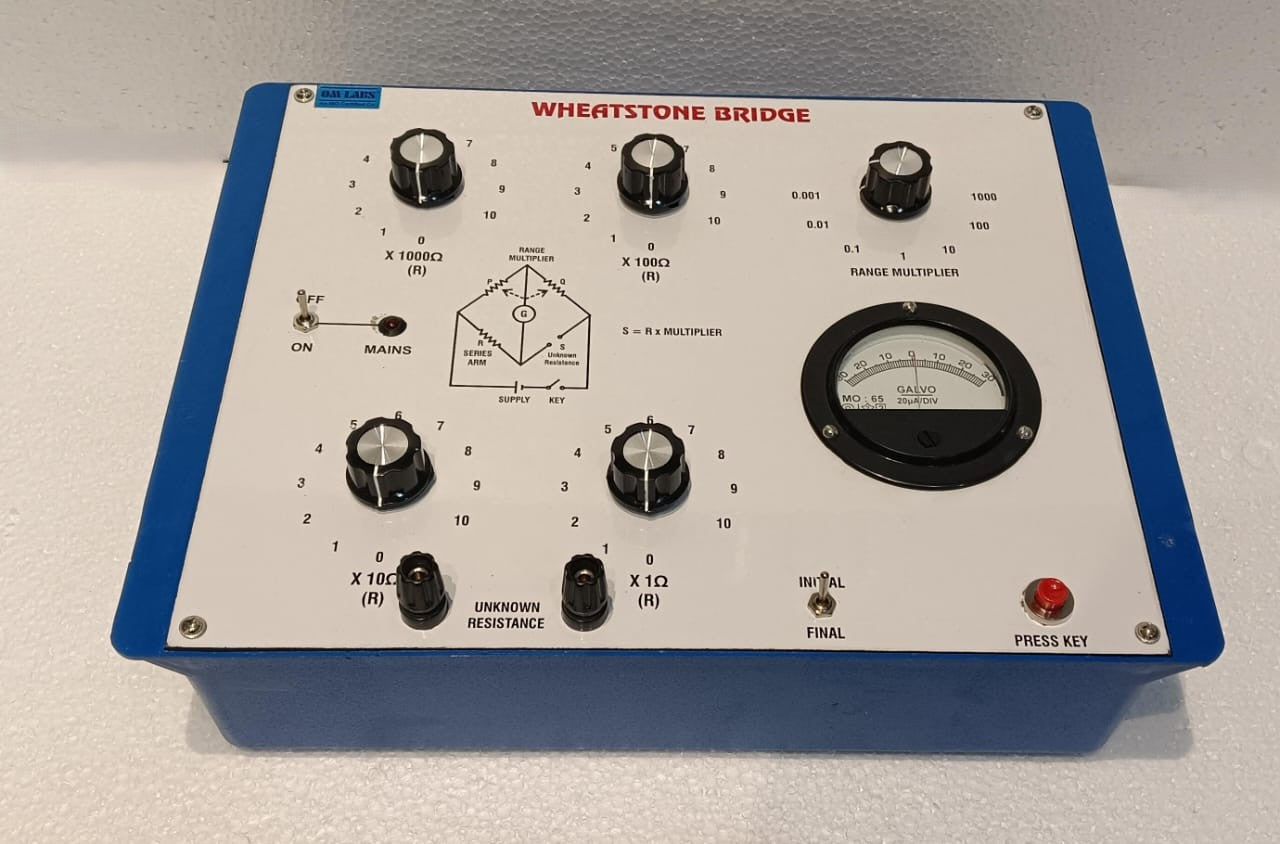

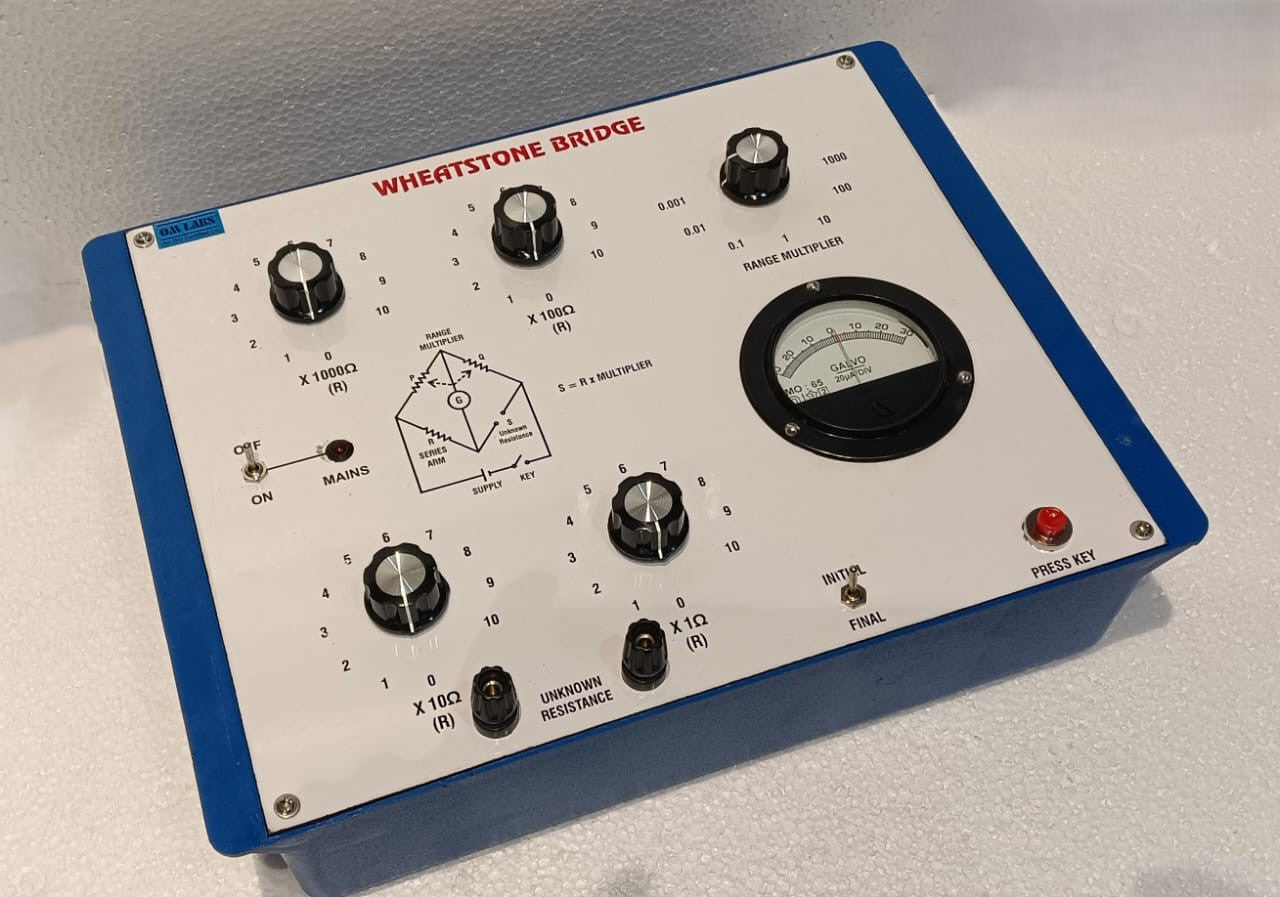

Specification: Wheatstone Bridge Trainer / Measurement Box
-
Galvanometer:
- Type: Moving coil type
- Sensitivity: 20 µA/div (marked as GALVO)
- Center-zero indicator for detecting null balance
-
Range Multipliers:
- Settings: 0.001, 0.01, 0.1, 1, 10, 100, 1000
-
Resistance Decade Switches:
- X 1 Ω (0–10 Ω)
- X 10 Ω (0–100 Ω)
- X 100 Ω (0–1000 Ω)
- X 1000 Ω (0–2000 Ω)
- Each controlled via rotary knobs (step of 1 per knob position)
-
Switches:
-
Power Switch: ON/OFF toggle
-
Initial/Final Switch: Used for measurements cycle
-
Push Button: "PRESS KEY" to activate the bridge for reading
-
Circuit Diagram:
- Printed on the panel for reference
- Shows the Wheatstone bridge configuration with arms labeled R1, R2, R3, and unknown resistor Rx
-
Unknown Resistance Terminals:
- Clearly marked terminals to connect the resistor to be measured
- Dimensions:33 x25 x8cm
- Weight: 1.320kg
-
Packing: Card Board Box
- HSN CODE: 9023
-
GST: General Standard 18%
- Box Dimensions: 35 x27 x12.5cm
- Weight: 1.640kg
-
BRAND: OM LABS
