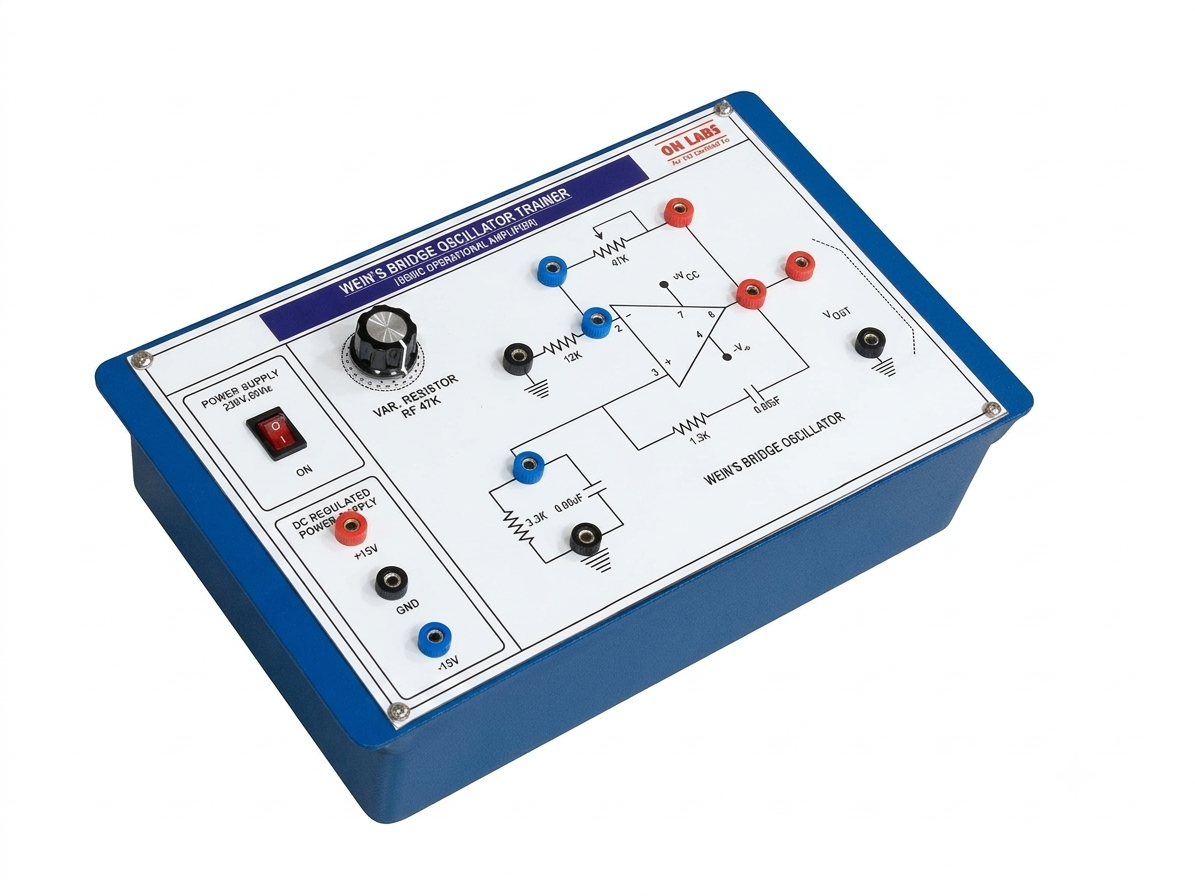

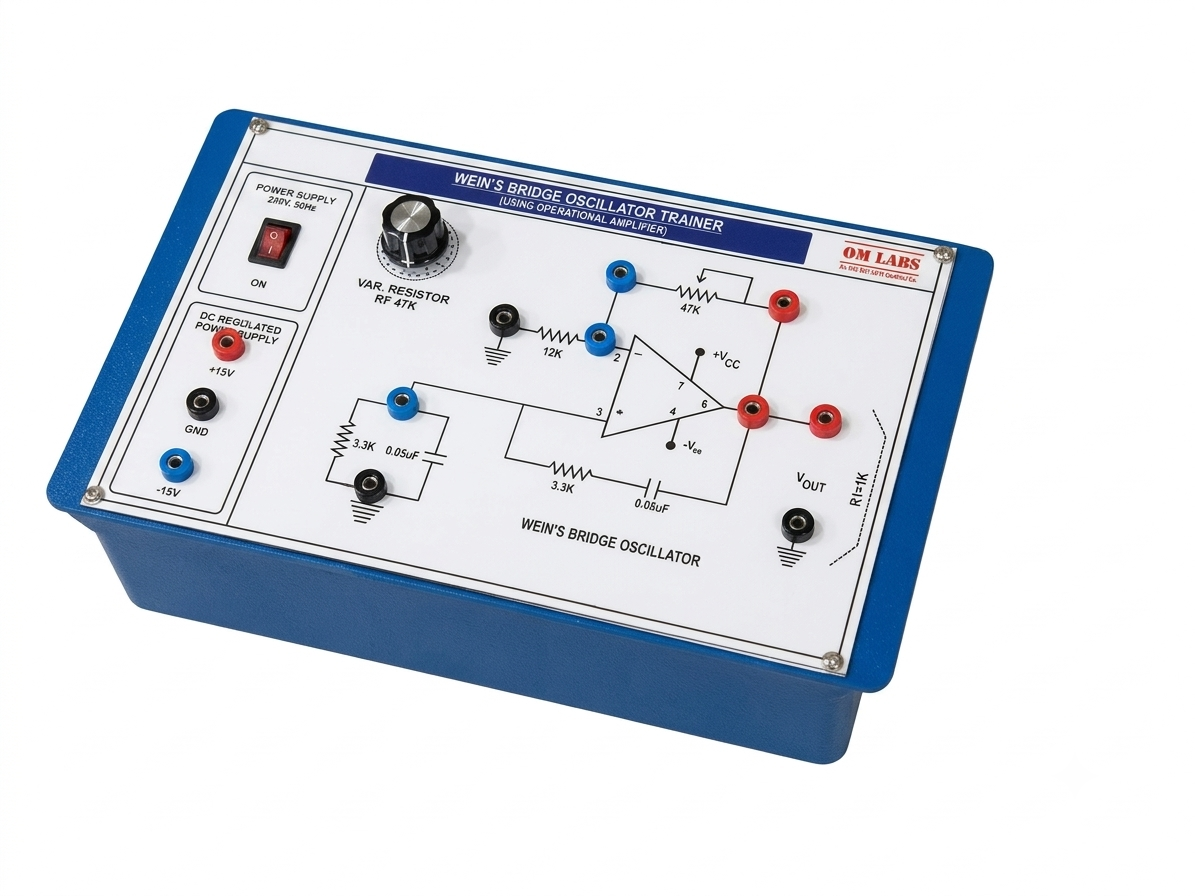

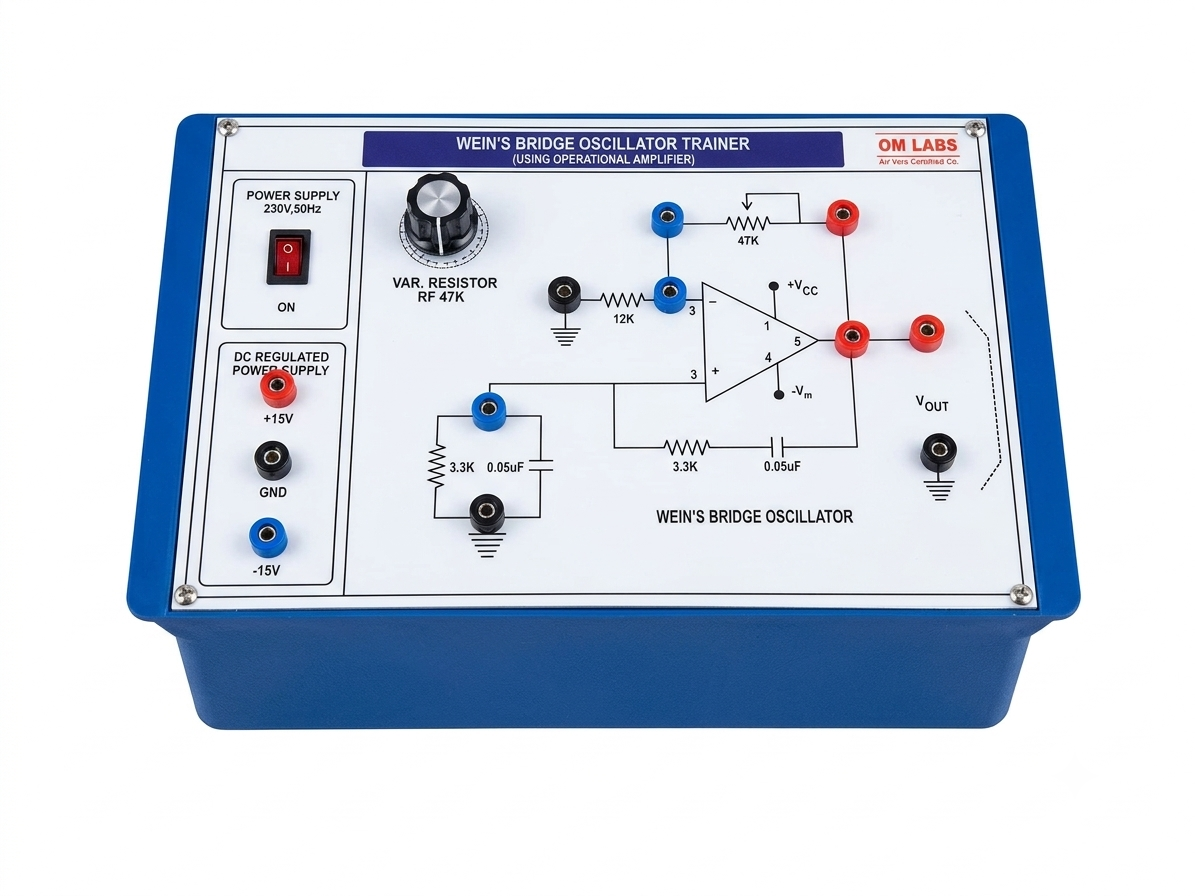

Wein Bridge Oscillator Trainer (Using Operational Amplifier)

Specification:

Product Name: Wein Bridge Oscillator Trainer  (Using Operational Amplifier)

Application: Study and demonstration of Wien Bridge oscillator using operational amplifier
Op-Amp: IC 741
Power Supply: 230V AC, 50 Hz
DC Supply: Regulated ±15V DC
Oscillator Network: Wien Bridge RC network
Resistors: 10KΩ and 3.3KΩ
Capacitors: 0.05 µF
Feedback Resistor: Variable RF, 47KΩ
Output: V out terminal provided
Input / Output Terminals: Color-coded banana terminals
Ground: Common GND terminals provided
Power Control: ON/OFF switch
Material: Front Panel Metal, Large Plastic Box
Construction: Sturdy trainer panel with blue protective enclosure
Experiment: Generation and study of sinusoidal oscillations using Wien Bridge network
Educational Use: B.Sc., Diploma and Engineering Electronics/Physics laboratories
Trainer Type: Ready-to-use laboratory trainer

• Dimensions: 32 X19.5 X8.3cm.
• Weight:1.180kg
• Packing: Card Board Box
• HSN CODE: 8541
• Box Dimensions:34.5 x 23 x13cm
• Weight: 1.440 kg
• GST: General Standard 18%
• CATAGORIES: ELECTRONIC APPARATUS
• BRAND: OM LABS
