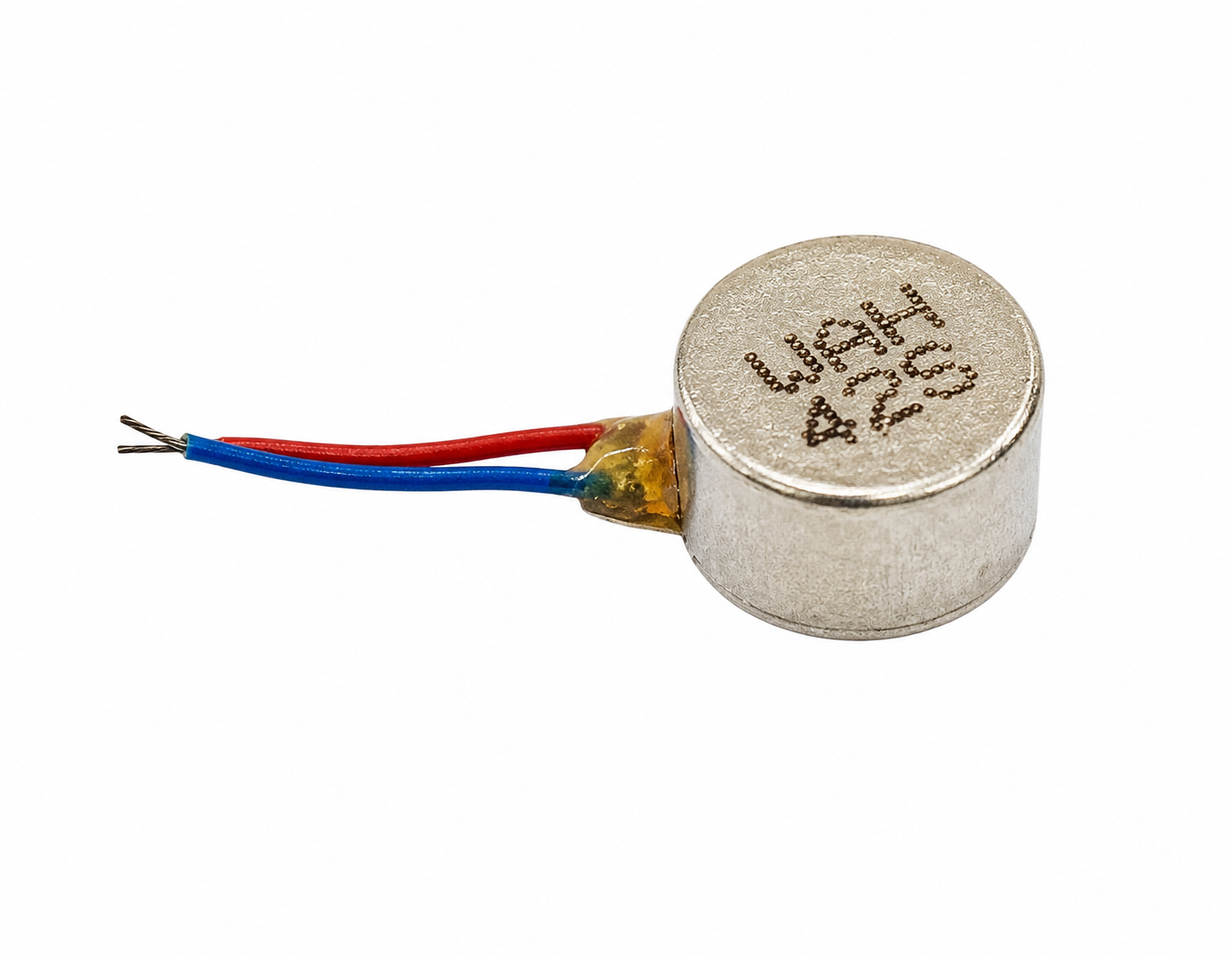

MINI VIBRATING MOTOR 3.6V

Specification:

The 3.6V Vibrating Motor is a compact DC motor with an eccentric rotating mass (ERM) designed to generate vibration for haptic feedback, alerts, and motion applications. It is widely used in DIY electronics, robotics, wearable devices, mobile gadgets, alarms, toys, and Arduino or microcontroller-based projects. Its small size, low power consumption, and reliable performance make it an ideal choice for creating vibration effects in embedded systems.

Technical Specifications

·         Product Name: Mini Vibrating Motor 3.6V

·         Motor Type: DC Eccentric Rotating Mass (ERM) Vibrating Motor

·         Rated Voltage: 3.6V DC

·         Operating Voltage: 2.0V – 4.0V DC

·         Rated Current: 60–100 mA (typical)

·         Starting Voltage: Approx. 2.0V DC

·         Rotation Speed: Up to 10,000–12,000 RPM (no load, typical)

·         Vibration Method: Off Centre eccentric weight

·         Shaft Type: Pre-mounted eccentric metal weight

·         Connection: Two-wire leads

·         Motor Diameter : 10–12 mm (varies by model)

·         Motor Length: 15–25 mm (varies by model)

·         Weight: 3g

·         Direction of Rotation: Clockwise/Counter clockwise (depends on polarity)

·         Operating Temperature: -10°C to +60°C

·         Mounting: Adhesive, clamp, or bracket mounting
