Specifications:

Ø   Power Supply Section

·         Input Supply: 220–230 V AC, 50 Hz

·         Built-in DC Supply:

o  0–12 V DC (regulated)

o  Current capacity: ~150–250 mA

·      Control: Variable voltage using potentiometer knob

Ø   Measuring Instruments

·         Voltmeter: Range: 0–12 V DC (or dual range 3V / 15V), Type: Analog panel meter

·         Ammeter: Range: 0–15 mA to 0–100 mA, Type: Analog panel meter

Ø   Circuit & Components Section

·         Resistive Network: Fixed resistors (typically 1W–2W rating), Variable resistor (rheostat/potentiometer)

·         Load Resistance (RL): Provided on panel for testing Thevenin equivalent

·         Equivalent Circuit Section: Separate terminals for Thevenin equivalent verification

·         Sockets:2mm or 4mm color-coded banana sockets for connections

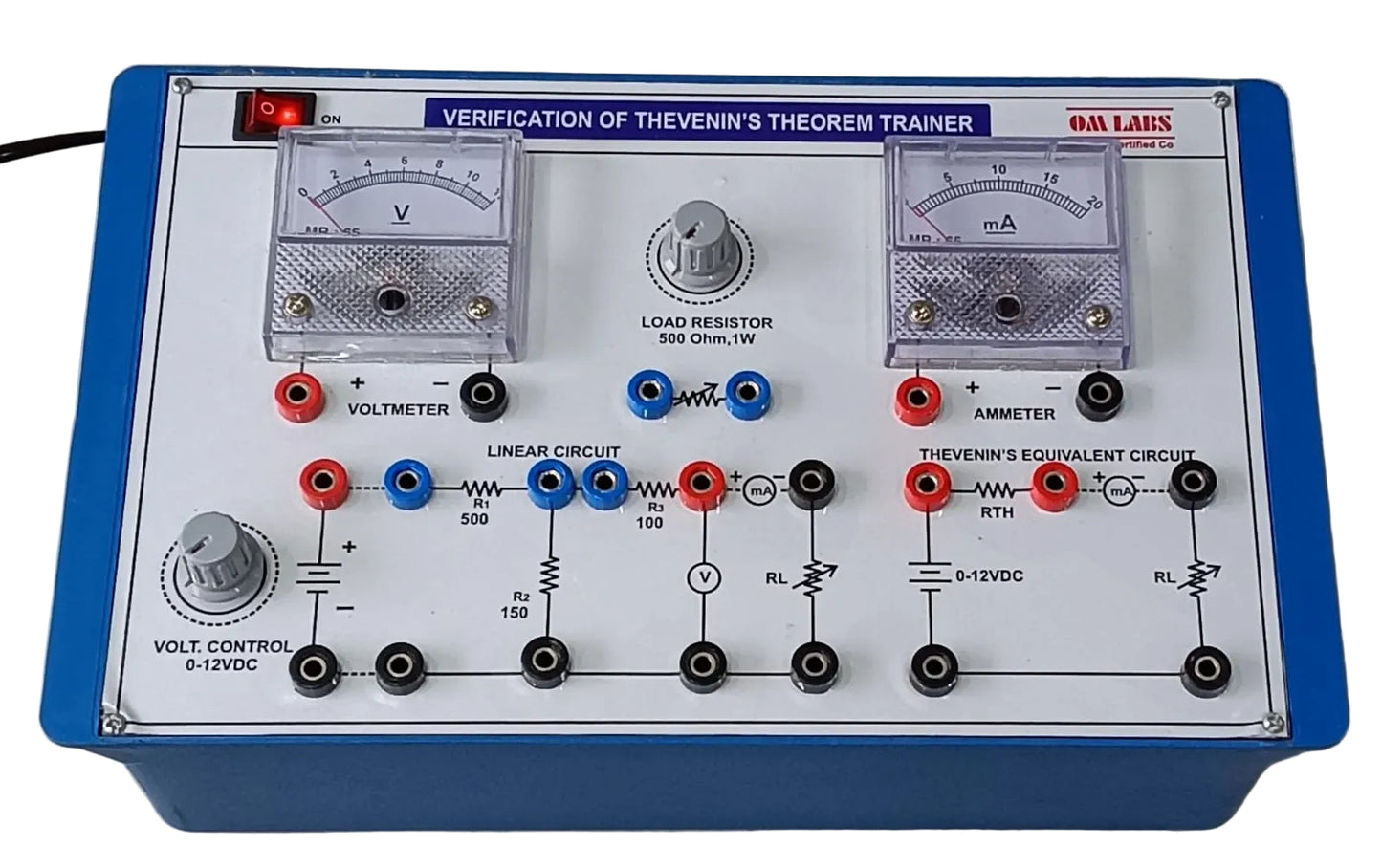

Ø   Functional Blocks on Panel

·         Linear network circuit

·         Thevenin equivalent circuit section

·         Load resistor section

·         Test points for voltage/current measurement

Ø   Accessories:

·         Patch cords

·         Instruction manual

• Dimensions: 31 X 24 X 13 cm
• Weight: 1.5 kg Approx.
• HSN Code: 9031
• GST: General Standard 18%
• Brand: OM LABS
