Verification of KCL & KVL (Kirchhoff’s Law)

SPECIFICATIONS:

KCL & KVL Apparatus has been designed to calculate the value of current flowing through different branches of the circuit. In simple circuits, the resistance and potential difference are calculated with the helps of ohms law but in actual practice complicated circuits which contain a large number of resistances along with several sources of E.M.F. in such cases the effective resistance and the E.M.F can not be calculated easily from ohm’s law . In order to solve this networks, Kirchhoff gave two laws which are known as Kirchhoff’s Laws.

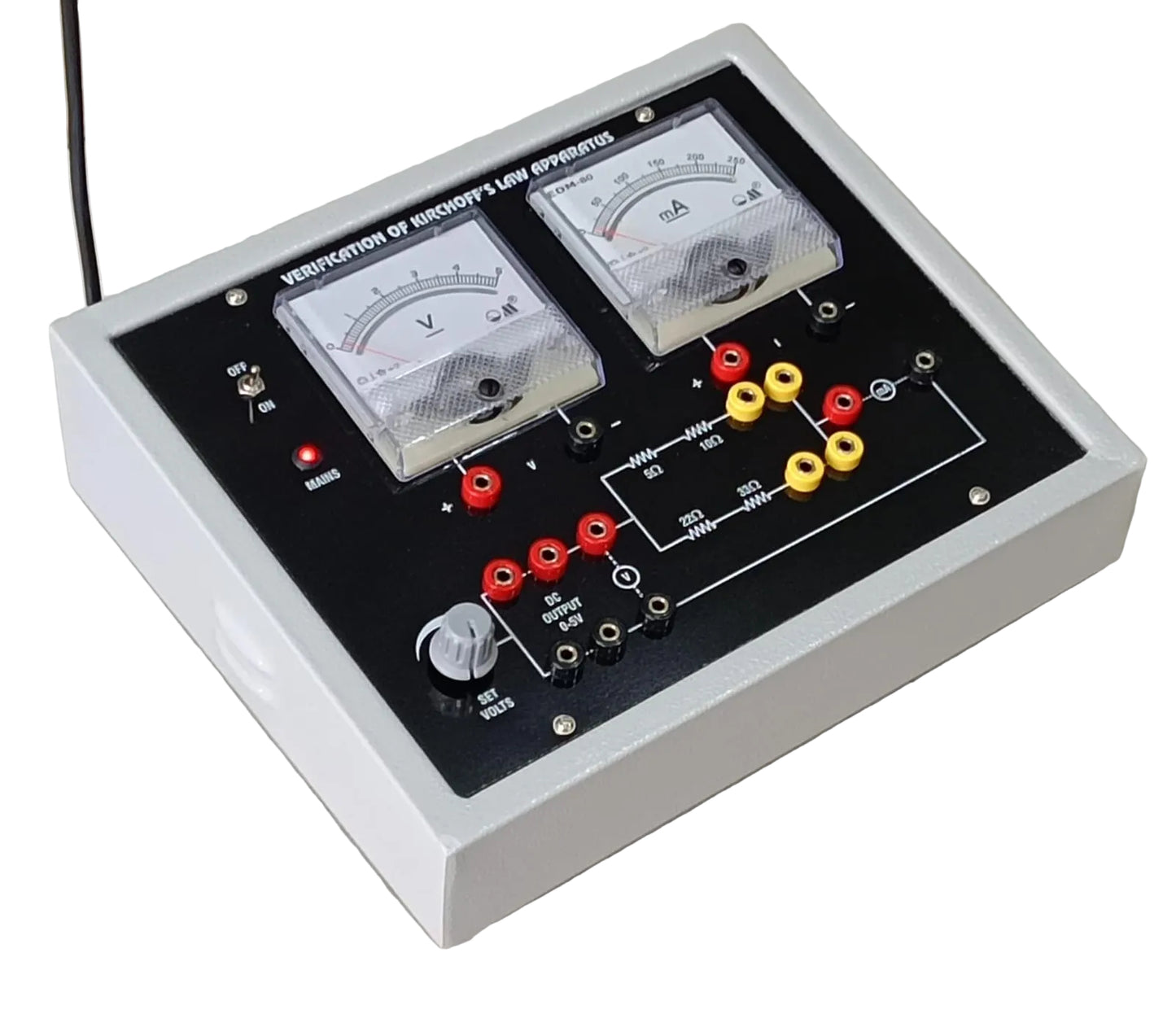

This Instrument comprises of the following built in parts:

• DC Regulated power supply of 0-5V.
• Four type of wire wound resistances, each of 5watt (5Ω, 10Ω, 22Ω, 33Ω) are mounted behind the front panel.

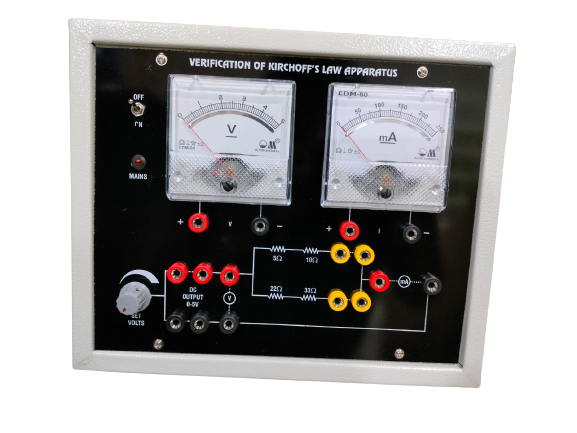

• Circuit for Kirchhoff laws is printed on front panel.
• Two round meters are mounted on front panel to measure corresponding voltage and current.
• Box: Metal
• Packing: Corrugated Box
• Dimensions: 29 cm X 25.5 cm X 11 cm Approx.
• Weight: 1.9 Approx.
• Brand: OM LABS
• GST: General Standard 18%
• HSN CODE: 8541 First Law: According to Kirchhoff’s first law . “The algebraic sum of the various currents meeting at a junction in a closed electric circuit is zero.
