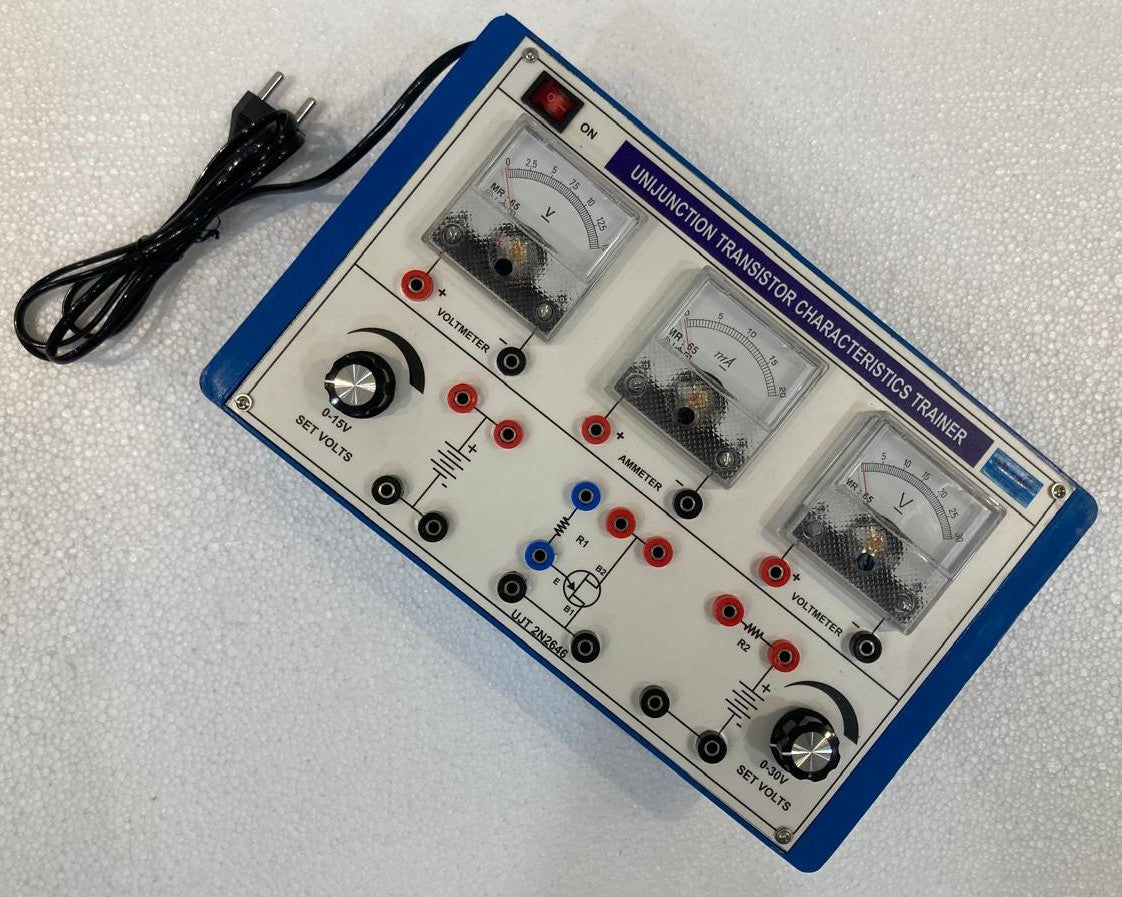

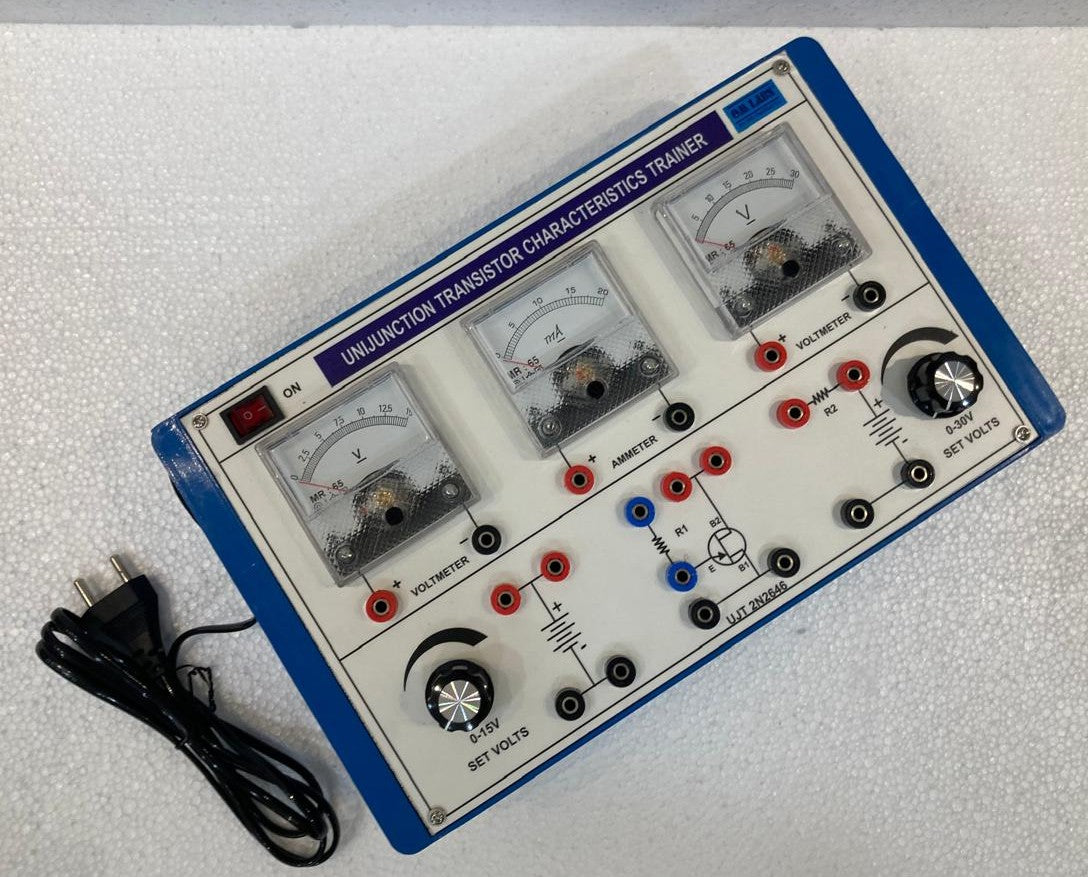

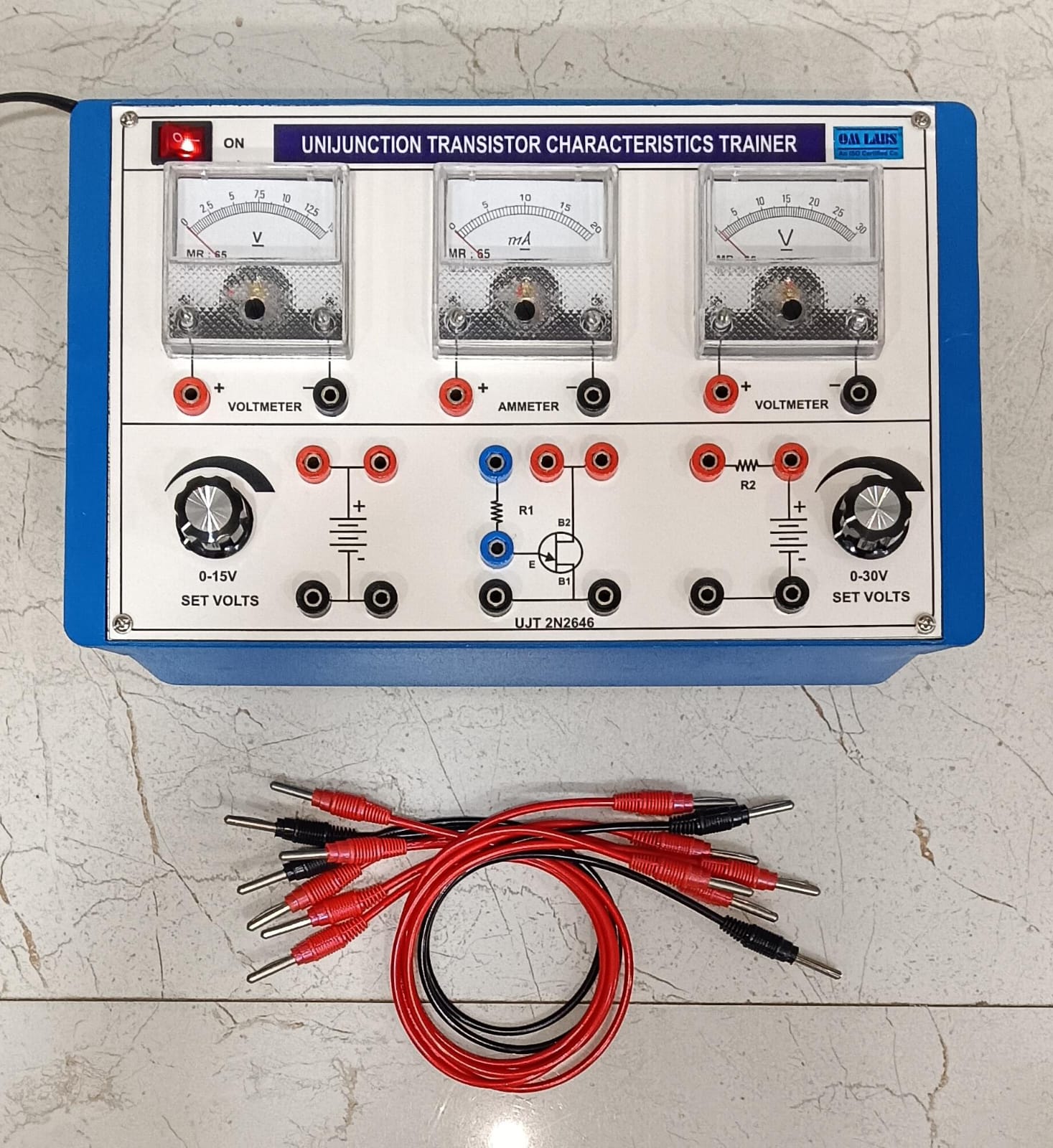

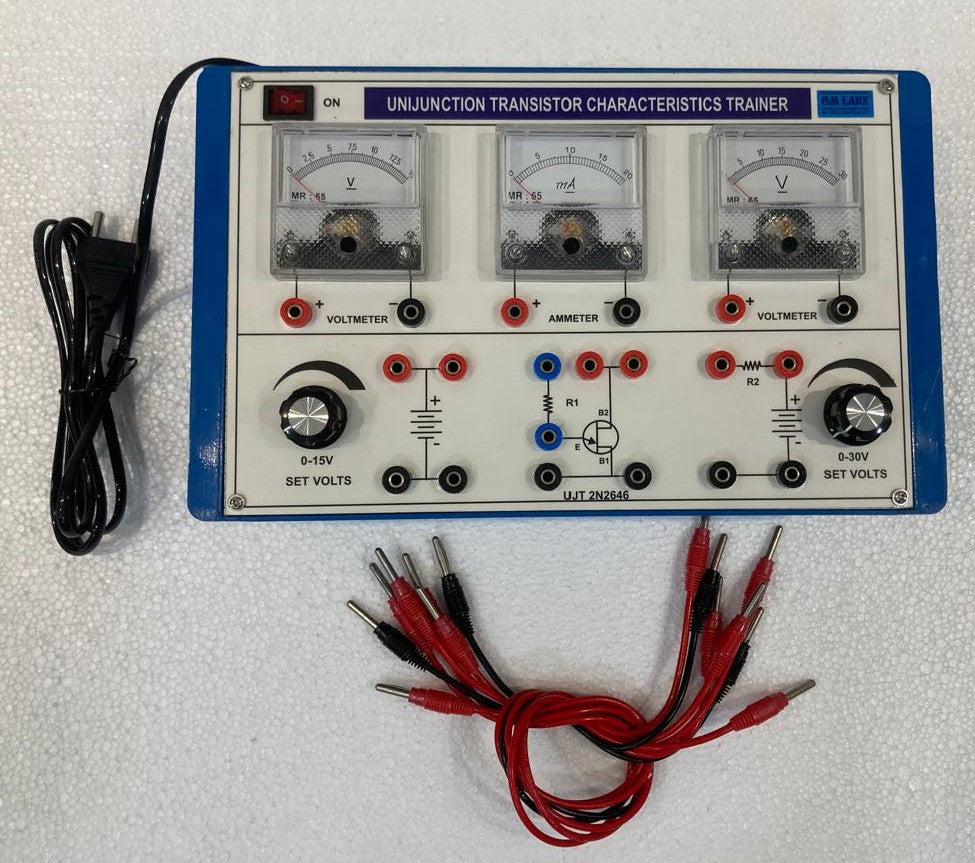

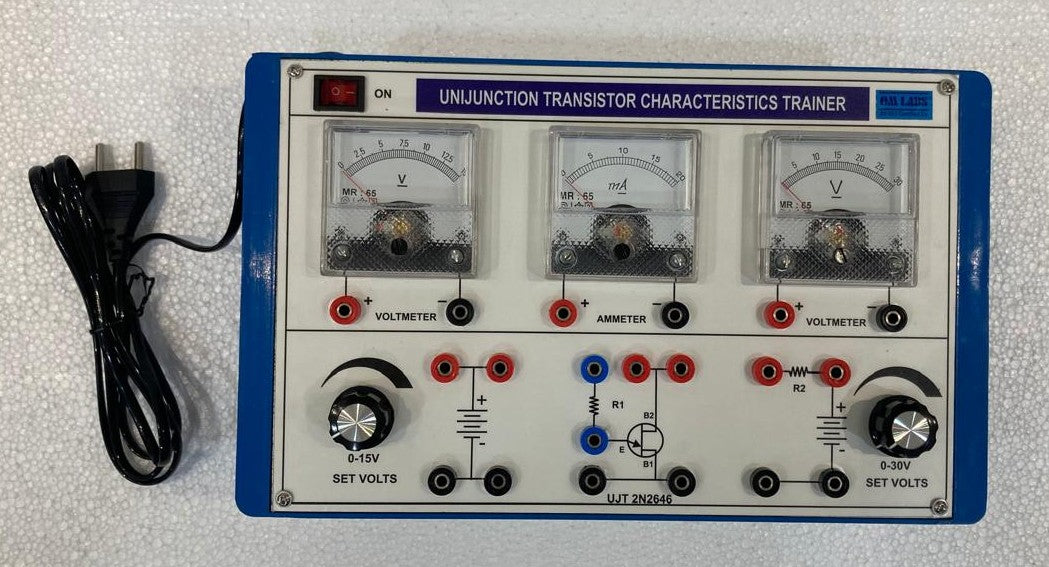

UJT Characteristics Apparatus (Analog Meters)

UJT Characteristics Apparatus (Analog Meters)

DISPATCHED WITHIN 1-5 Days
24 HOURS RETURN/EXCHANGE POLICY6
Rs. 3,850.00
Rs. 5,500.00 Rs. 3,850.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-584
Tags: Analog Electronics Trainer , Analog Meter UJT Apparatus , Educational Laboratory Equipment , Science Laboratory Instrument , UJT Characteristics Apparatus , UJT Characteristics Apparatus (Analog Meters) , UJT Trainer Kit
View full details

Specification:

Product Name: UJT Characteristics Apparatus (Analog Meters)

Experiment: Study of Emitter and Negative Resistance Characteristics of Unijunction Transistor (UJT)

Device Used: Unijunction Transistor (UJT)

Power Supply Input: 230 V AC ±10%, 50 Hz

DC Power Supply: Built-in Regulated Variable DC Supply

Meters: Built-in Analog Panel Meters

Measurement Type: Analog Voltage and Current Measurement

Control Knobs: Independent Variable Voltage Controls

Front Panel: Printed Aluminum / Polycarbonate Panel with Circuit Diagram

Accessories Supplied: 4 mm Patch Cords, Power Cable, User Manual



Applications

  • UJT Emitter Characteristics Study
  • Negative Resistance Characteristics Experiment
  • Electronics Laboratory Practical
  • Semiconductor Device Experiments
  • Physics Laboratory Demonstrations
  • Engineering and Polytechnic Practical Training


  • Dimensions:32 x 19.5 x 8cm .
  • Weight:1.620 kg
  • Packing: Card Board Box
  • HSN CODE: 8541
  • Box Dimensions:34 x 23.5 x12.5cm &
  • Weight: 1.820 kg
  • GST: General Standard 18%
  • CATAGORIES: Electronics
  • BRAND: OM LABS


Weight

3.0 kg

Dimensions 15.6 × 26.5 × 37 cm
