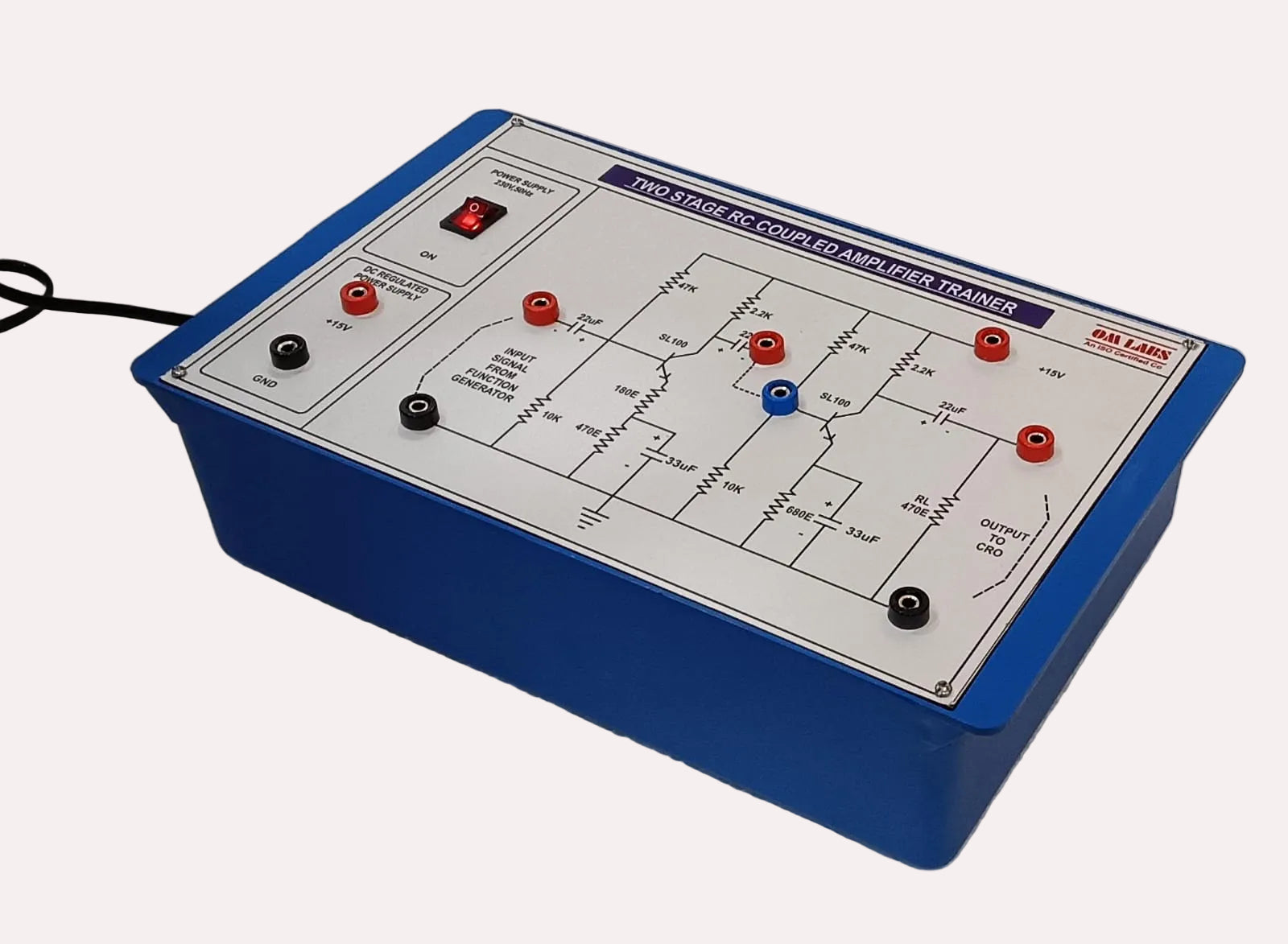

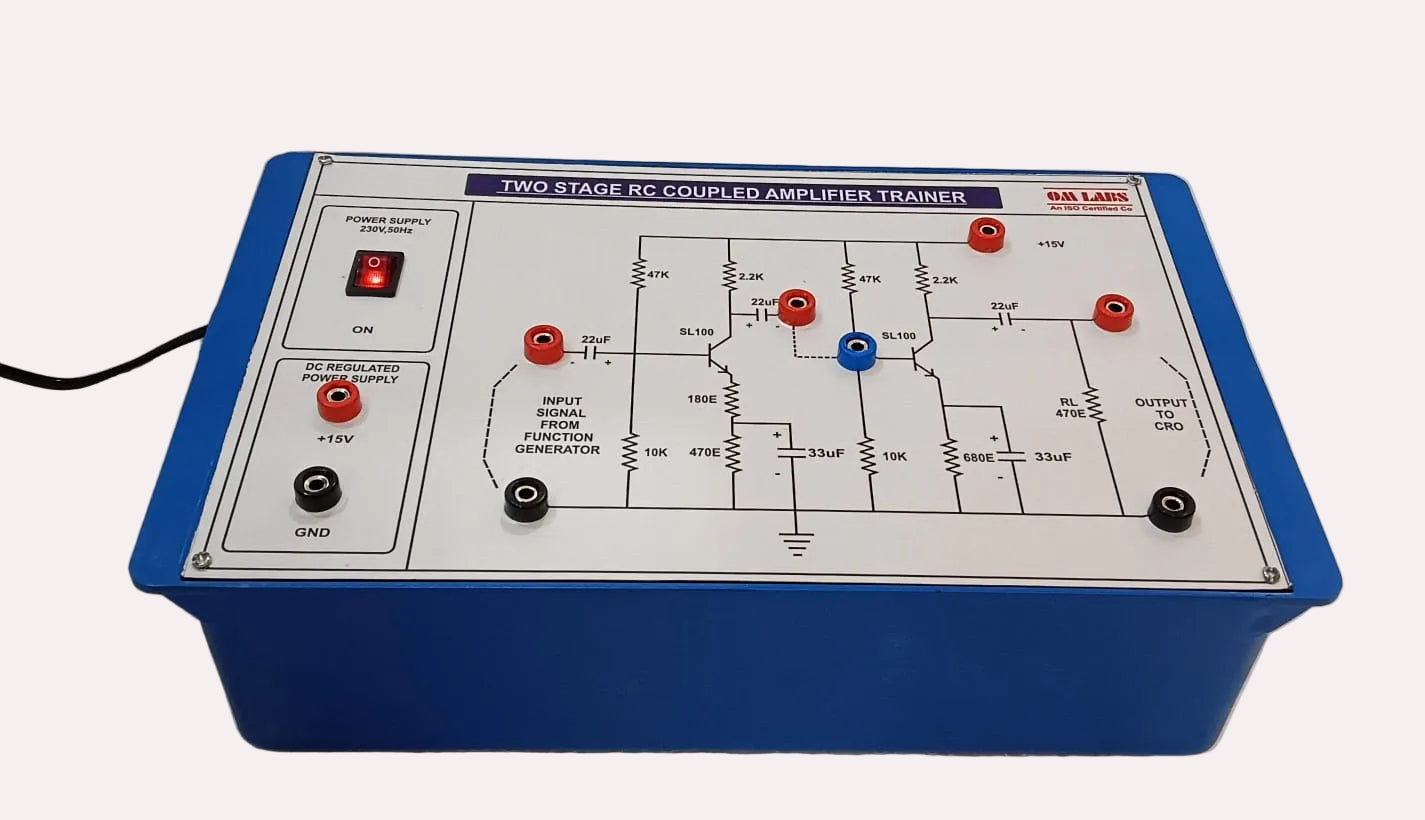

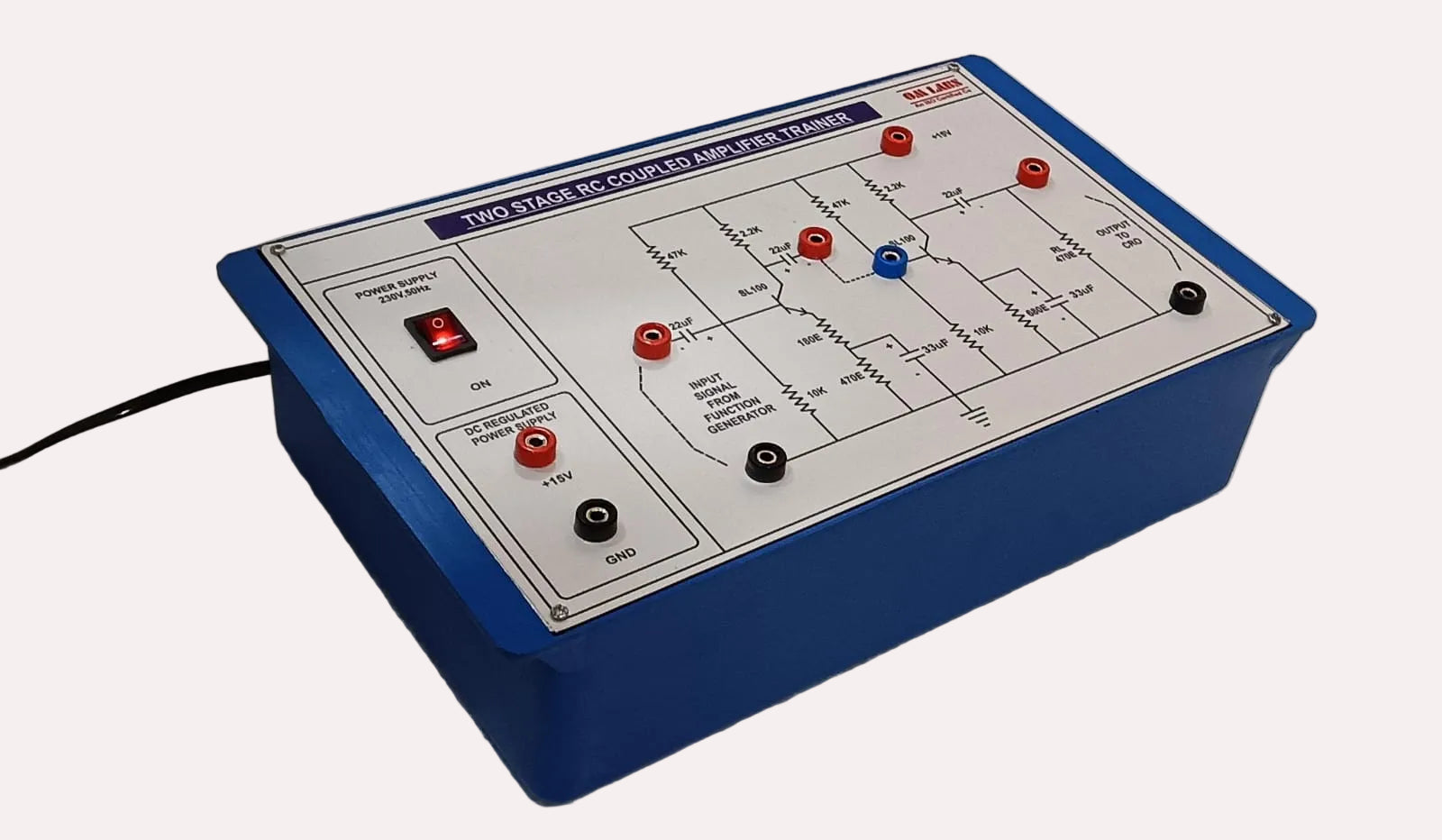

RC COUPLED AMPLIFIER TWO STAGE TRAINER

Specification:

Product Name: Two Stage RC Coupled Amplifier Trainer

Type: Two-Stage Transistor RC-Coupled Amplifier

No. of Stages: 2

Transistor: SL100, Silicon NPN Transistor

Coupling: RC (Resistance-Capacitance) Coupling

Power Supply: 230 V AC, 50 Hz

DC Supply: Regulated +15 V DC

Input: Input Signal from Function Generator

Output: Output to CRO

Biasing Resistors: 47 kΩ and 10 kΩ per stage

Collector Resistors: 2.2 kΩ

Emitter Resistors: 180 Ω + 470 Ω (Stage-1); 680 Ω (Stage-2)

Coupling Capacitors: 22 µF

Emitter Bypass Capacitors: 33 µF

Load Resistance: 470 Ω

Input/output Connections: 4 mm Banana Terminals

Power Indicator: LED ON/OFF Indicator

Experiments: To Obtain the frequency response of CE Amplifier with self bias configuration

Apparatus : RC TRANSISTOR AMPLIFIER TRAINER

Accessories Provide: Patch Cords & Instructions Manual

Application: B.Sc., B.Tech., Engineering & Electronics Laboratory

• Dimensions: 32 x 19.5 x 8cm.
• Weight:1.045kg
• Packing: Card Board Box
• Box Dimensions:34.5 x 23 x12.5cm
• Weight: 1.340 kg
• GST: General Standard 18%
• HSN CODE: 9031
• CATAGORIES: ELECTRONIC APPARATUS
• BRAND: OM LABS
