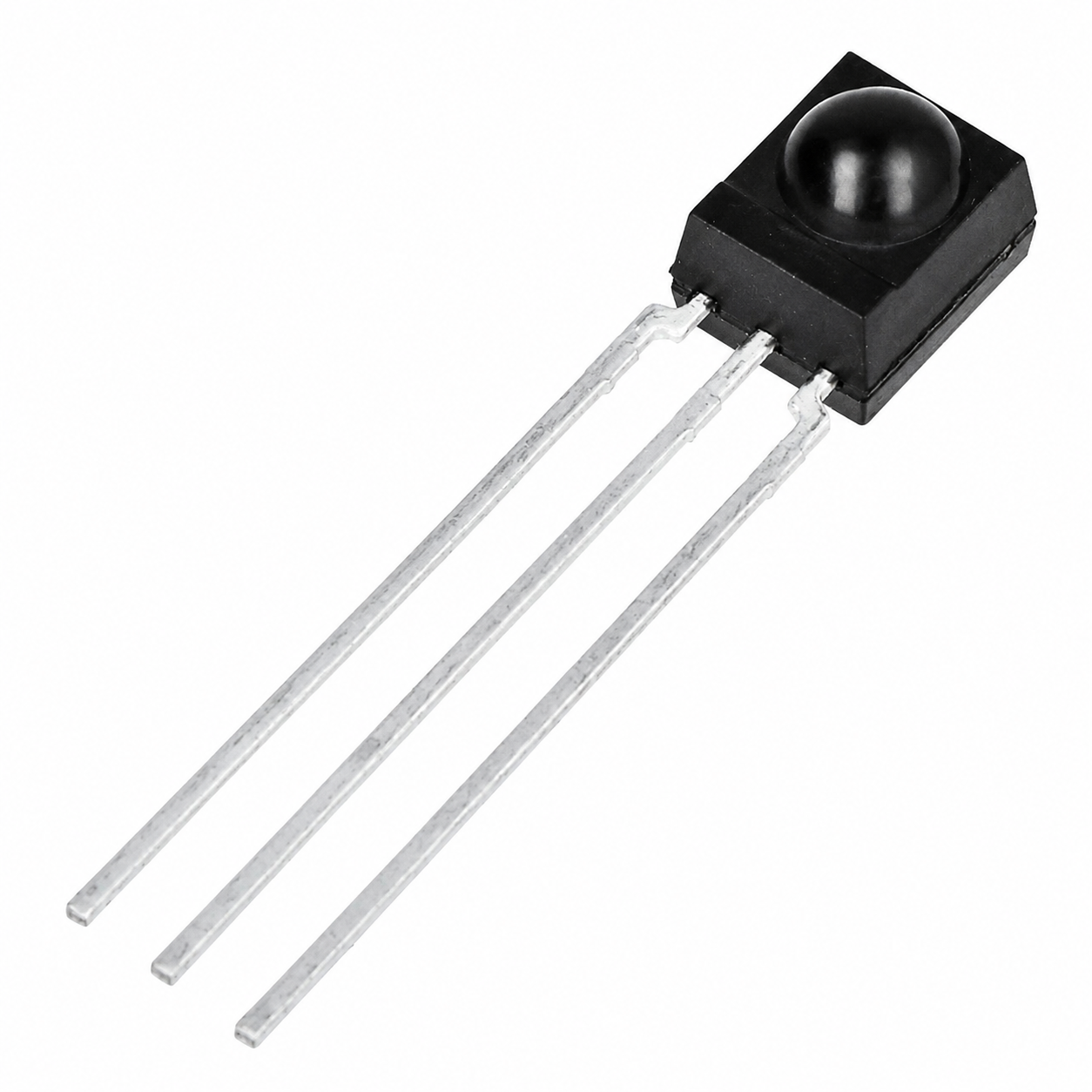

TSOP4838 IR Receiver Sensor Module (38kHz) with IR Transmitter LED

Specification: The TSOP4838 is a miniaturized infrared receiver module designed for remote control systems and high-speed data transmission. In a laboratory setting, it is commonly used for prototyping wireless communication links, testing optical signal processing, or developing non-contact sensing interfaces.

Technical Specifications:
* Carrier Frequency: 38 kHz
* Supply Voltage Range: 2.5V to 5.5V
* Current Consumption: 0.35 mA (typical)
* Transmission Distance: Up to 45 meters (depending on emitter)
* Output Active Low: Yes
* Direct TTL/CMOS compatibility: Yes
* Shielding: Internal metal shielding against EMI interference
* Operating Temperature: -25°C to +85°C
* Output Impedance: 700 Ω

Dimension: 40x0.5x0.5mm
Weight: 0.50 gm
