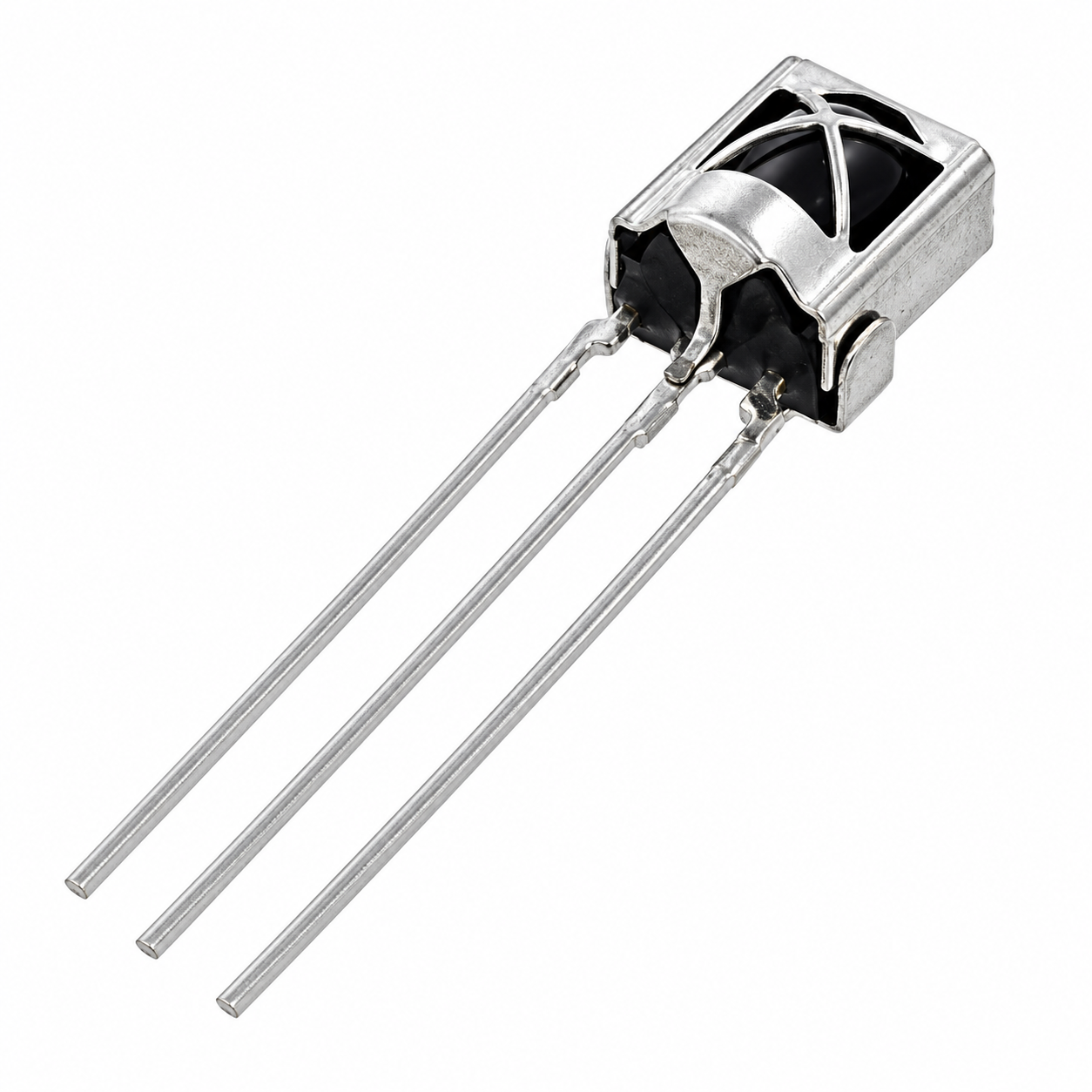

TSOP1838 IR Receiver Module

TSOP1838 IR Receiver Module

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 7.50
Rs. 15.00 Rs. 7.50
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31052/1
Tags: Arduino IR Receiver , AVR IR Module , Development Board & Electronics , DIY Electronics , Electronic Components , Embedded Systems , ESP32 IR Receiver , Home Automation Sensor , Infrared Detection Module , Infrared Receiver Sensor , IR Receiver , IR Receiver Module , IR Remote Sensor , Raspberry Pi IR Sensor , Remote Control Decoder , Remote Control Receiver , Robotics and IoT , Robotics Sensor , TSOP1838 , TSOP1838 Sensor , Wireless Remote Receiver
View full details

Specification: The TSOP1838 is a miniaturized infrared receiver module designed for remote control systems and short-range wireless data transmission. In a laboratory setting, it is commonly used for prototyping optical communication circuits, motion sensing projects, and debugging IR-based remote signaling protocols.

Technical Specifications:
* Center Frequency: 38 kHz
* Operating Voltage: 2.7V to 5.5V DC
* Peak Wavelength: 950 nm
* Reception Distance: Up to 10–15 meters (depending on transmitter intensity)
* Output Active Level: Active Low (TTL/CMOS compatible)
* Shielding: Internal metal shield for immunity against electromagnetic interference
* Viewing Angle: 45 degrees
* Package: SIP-3 (Single In-line Package)

  • Dimension: 5x28x5mm
  • Weight: 0.16gm
  • Package (Dimension): 8.5x6.5x1.5cm
  • Package (Weight): 9 gm

(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)



Weight

0.055 kg

Dimensions 3.5 × 8 × 10 cm
