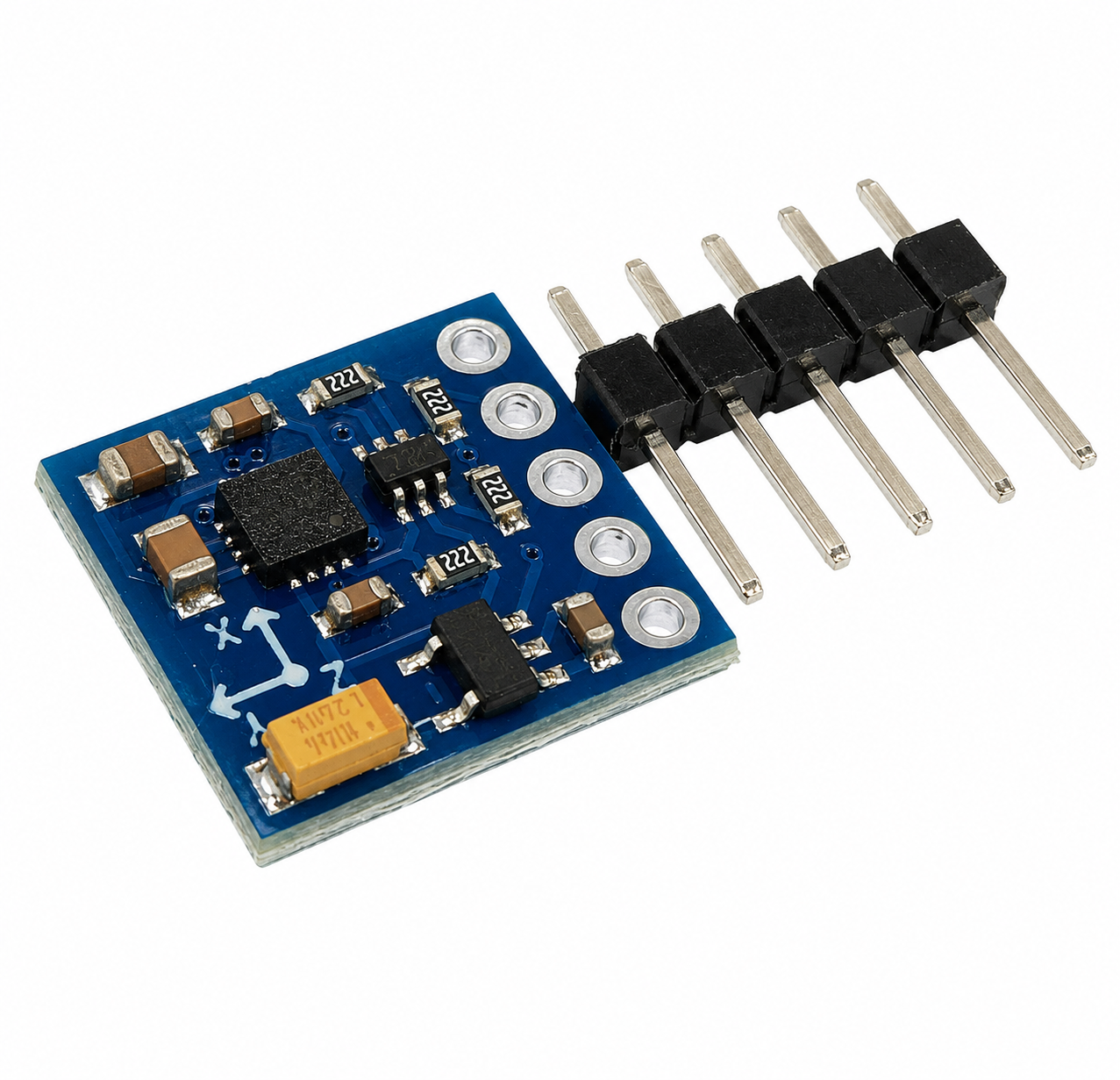

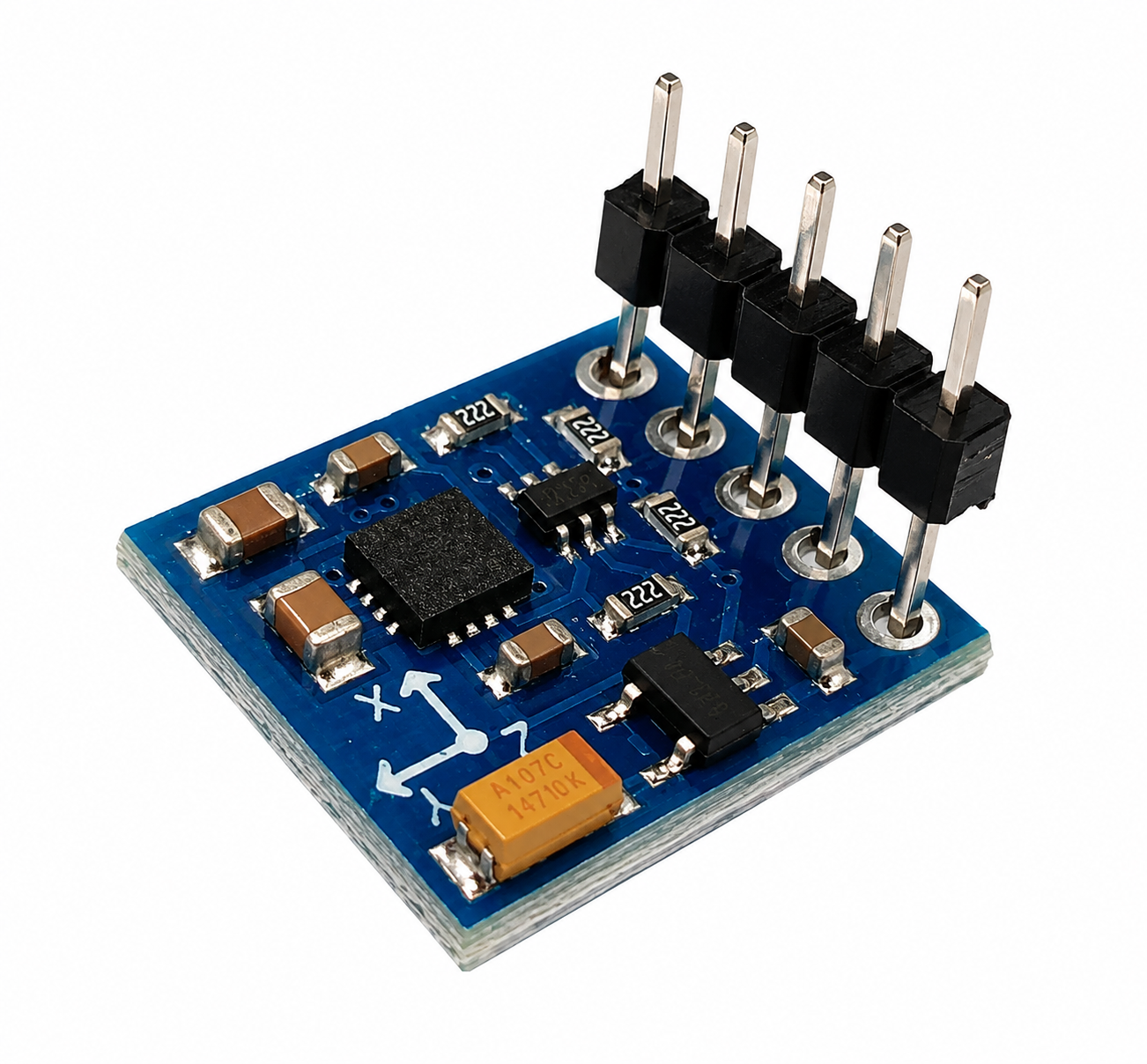

TRIPLE AXIS MAGNETOMETER GY-271 (HMC5883)

Specification:

The GY-271 is a breakout board featuring the Honeywell HMC5883L triple-axis digital compass, designed for high-precision magnetic field sensing. It is widely used in laboratory settings for robotic navigation, orientation tracking, and geological surveying due to its high-resolution magnetic flux density measurement capabilities.

Technical Specifications:
* Sensor: Honeywell HMC5883L
* Interface: I2C digital interface
* Supply Voltage: 3.3V – 5V
* Measurement Range: ±8 Gauss
* Resolution: 12-bit ADC
* Operating Temperature: -30°C to +85°C
* Typical Accuracy: 1° to 2° heading accuracy
* Integrated Low-Dropout Regulator (LDO)
* Data Output Rate: Up to 160 Hz

·         Dimensions: 1.5x 1.5 cm

·         Module Weight: 2gm

·         Package: 6x6x1cm
