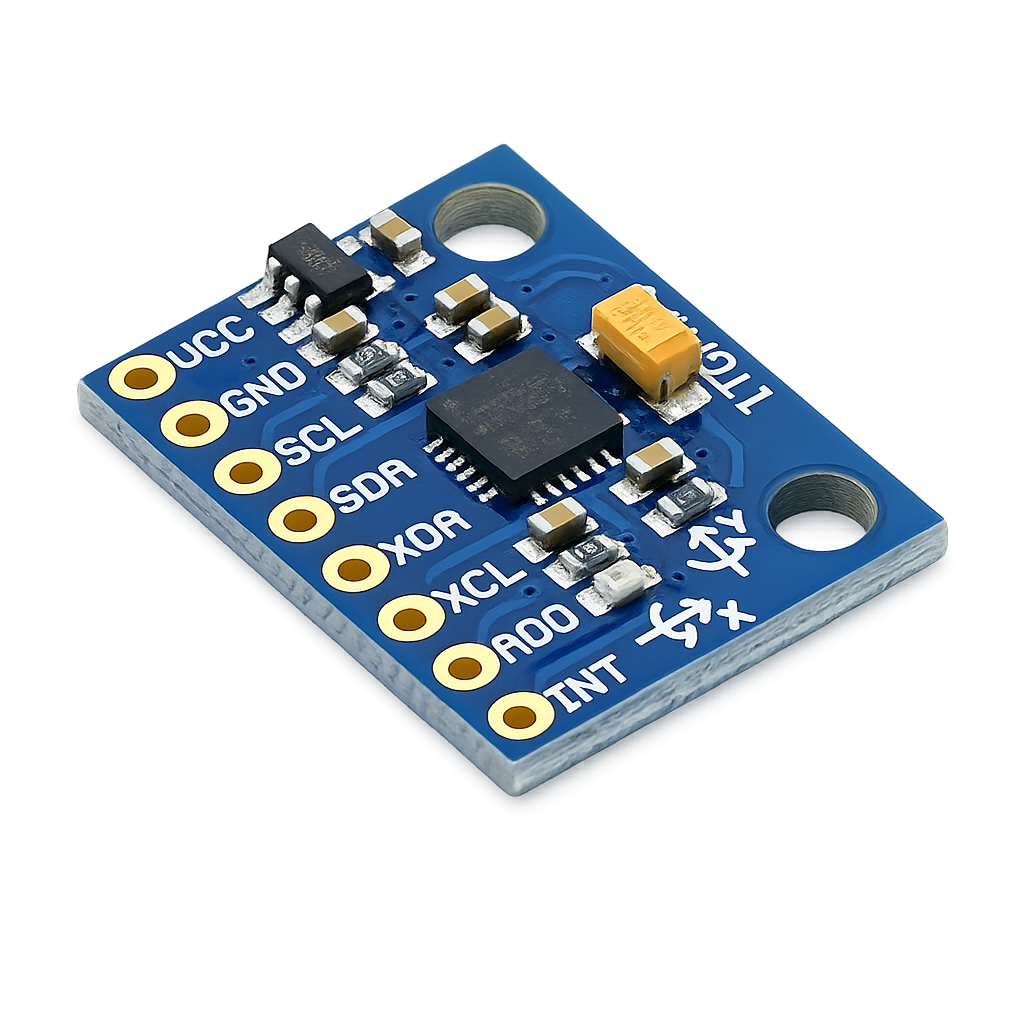

Specification: The MPU-6050 is a popular Micro-Electro-Mechanical System (MEMS) device that integrates a 3-axis accelerometer and a 3-axis gyroscope into a single chip. In a laboratory setting, it is primarily used for motion tracking, orientation sensing, and stabilization projects in robotics, vibration analysis, and human-computer interaction research.
Technical Specifications:
* Tri-axis angular rate sensor (gyro) with sensitivity up to 131 LSBs/dps
* Tri-axis accelerometer with programmable full-scale range of ±2g, ±4g, ±8g, and ±16g
* Digital-output MotionFusion data for all 6 axes
* 16-bit analog-to-digital converters (ADCs) for digitizing outputs
* I2C serial interface (up to 400kHz)
* Operating voltage: 3.3V to 5V
* Built-in temperature sensor with digital output
* Programmable interrupt support for gesture recognition
(The dimensions and weight mentioned in the additional information section are of the product with box/packaging.)
| Weight |
0.01 kg |
|---|---|
| Dimensions | 2 × 3 × 4 cm |
