To measure the diameter of a given wire and thickness of a given sheet using screw gauge. (Superior)

To measure the diameter of a given wire and thickness of a given sheet using screw gauge. (Superior)

DISPATCH WITHIN 1-5 DAYS
EXCHANGE / RETURN POLICY 24 HOURS
Rs. 420.00
Rs. 600.00 Rs. 420.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-11002/S
Tags: how to calculate the thickness of sheet , how to measure the thickness of thin wire , how to measure thickness of given wire using screw gauge , physics , types of screw gauge , video on screw gauge
View full details

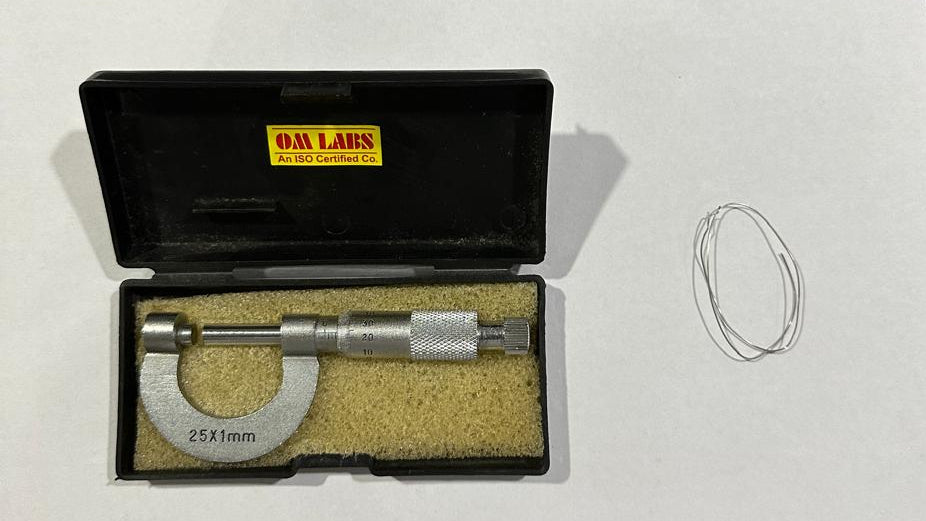

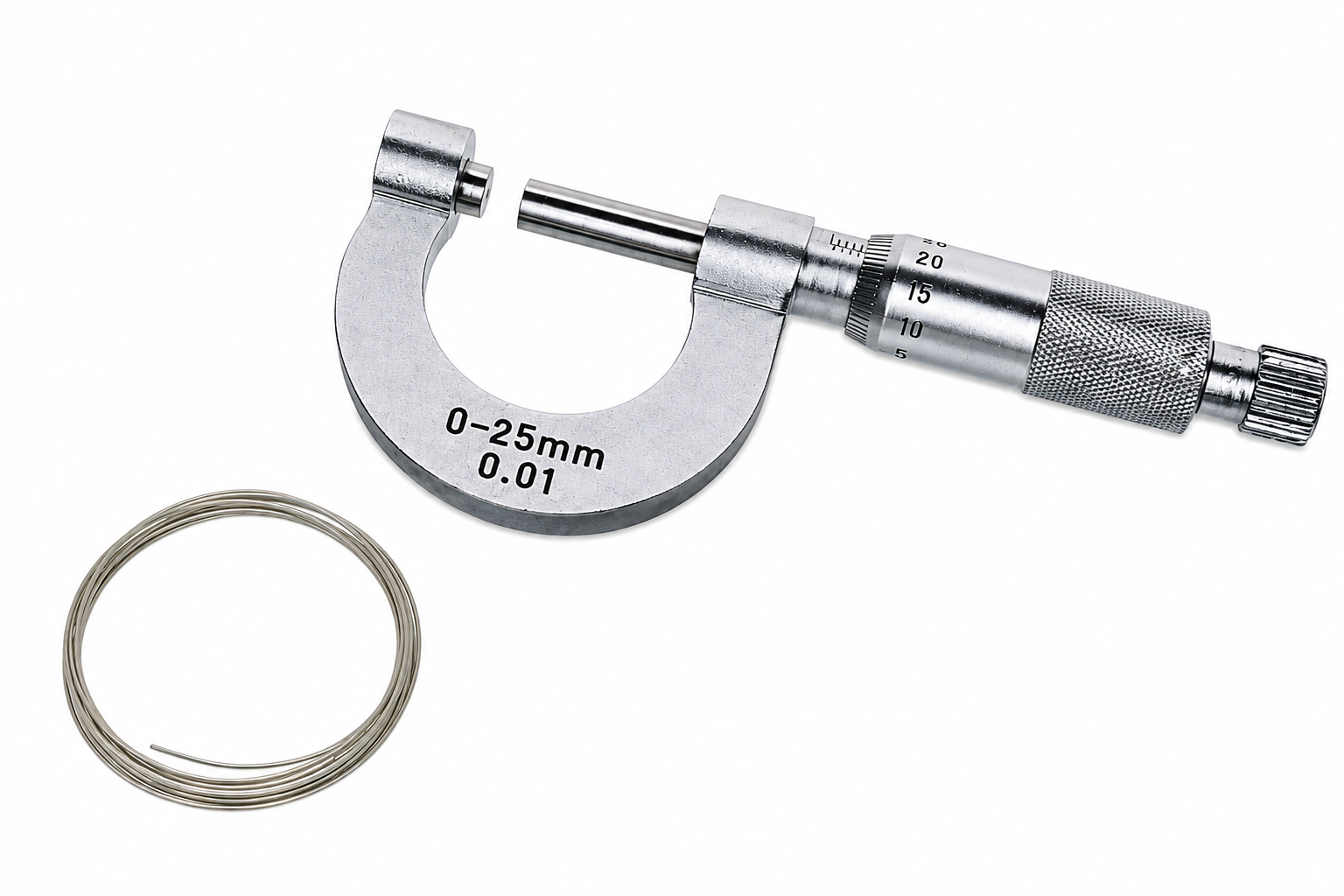

APPARATUS SUPPLIED WITH THIS EXPERIMENT

1.SCREW GAUGE (S.S. ROD TYPE)

2. A PIECE OF WIRE

A screw gauge, or micrometer screw gauge, is a precision measurement instrument used to determine the thickness or diameter of thin objects with high accuracy. It operates on the principle of a screw, where small rotations of the thimble are converted into precise linear movements of the spindle, making it ideal for measuring wires and thin metallic sheets.

Technical Specifications:
* Measuring range: 0-25 mm
* Least count: 0.01 mm
* Accuracy: ±0.005 mm
* Spindle diameter: 6.35 mm
* Thimble and sleeve finish: Satin chrome
* Frame type: Drop-forged S.S. rod with baked enamel finIsh





Weight

0.205 kg

Dimensions 5 cm × 9.5 cm × 20 cm cm
