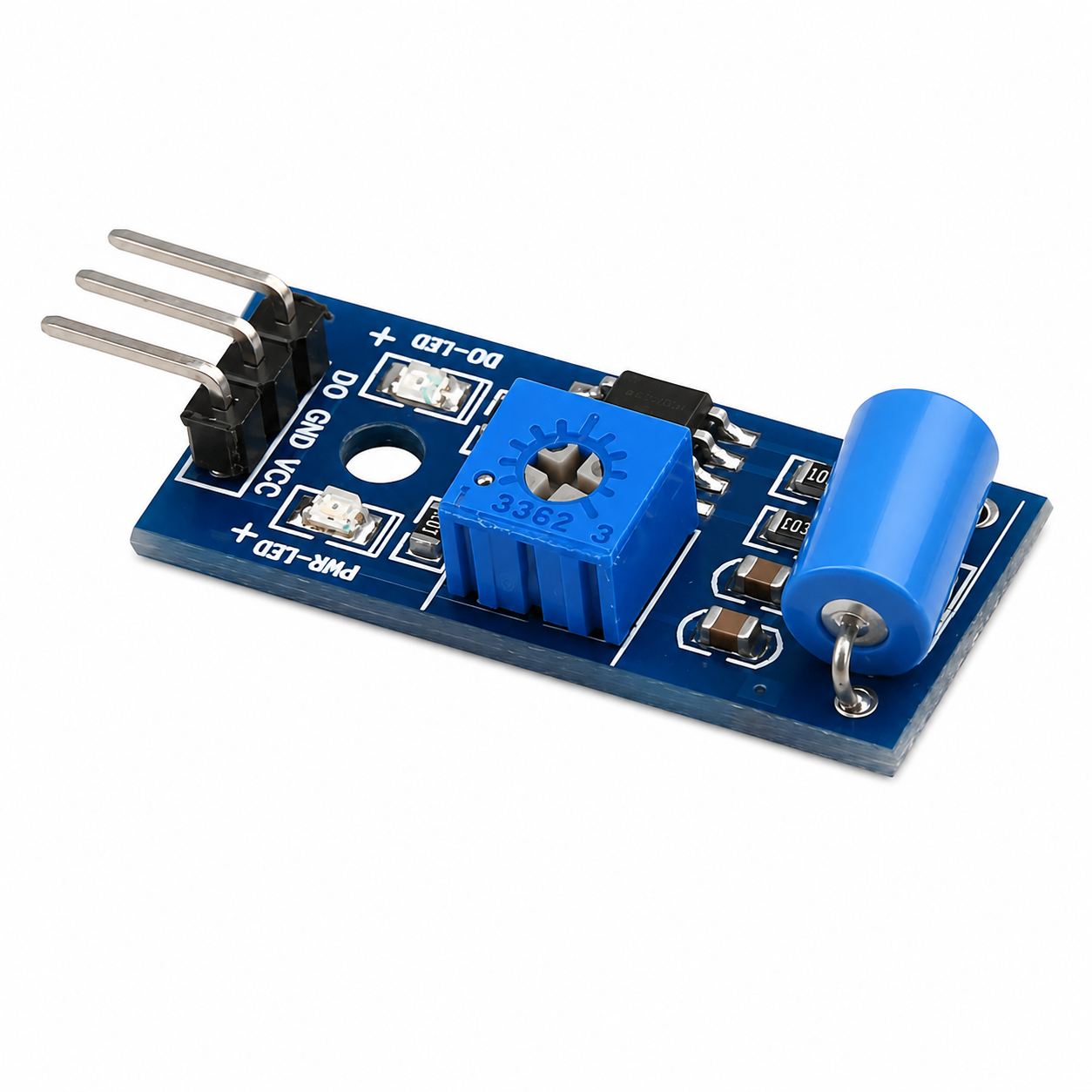

SW420 Vibration Sensor Module for Arduino & Motion Detection

SW420 Vibration Sensor Module for Arduino & Motion Detection

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 55.00
Rs. 78.00 Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31085
Tags: Anti-Theft Sensor , Arduino Sensor Module , Arduino Vibration Sensor , DIY Electronics , Electronic Sensor Module , Embedded Systems , Impact Detection Sensor , IoT Sensor , Knock Sensor Module , LM393 Vibration Sensor , Motion Detection Sensor , Robotics Sensor , Security Alarm Sensor , Shock Sensor Module , Smart Automation , SW-420 Sensor Module , SW420 Vibration Sensor , Vibration Detection Sensor , Vibration Sensor Module , Vibration Switch Module
View full details

Specification: The SW-420 is a non-directional vibration sensor module designed to detect mechanical shocks and tremors based on the movement of an internal spring-loaded contact. In a laboratory or research setting, it is primarily used for monitoring equipment stability, detecting tampering, or triggering automated data logging when vibrations exceed a calibrated threshold.

Technical Specifications:
* Operating Voltage: 3.3V to 5V DC
* Output Type: Digital (High/Low) via LM393 Comparator
* Sensitivity: Adjustable via onboard precision potentiometer
* Output Interface: TTL level signal compatible with Arduino/Microcontrollers
* Current Consumption: <15mA
* Detection Angle: 360-degree omnidirectional
* Indicator: Onboard power and trigger status LEDs
* Mounting: Pre-drilled M3 mounting hole

Dimension:32*14mm
Package: 9x6x1cm
Weight: 4gm

Weight

0.043 kg

Dimensions 6 × 6 × 6 cm
