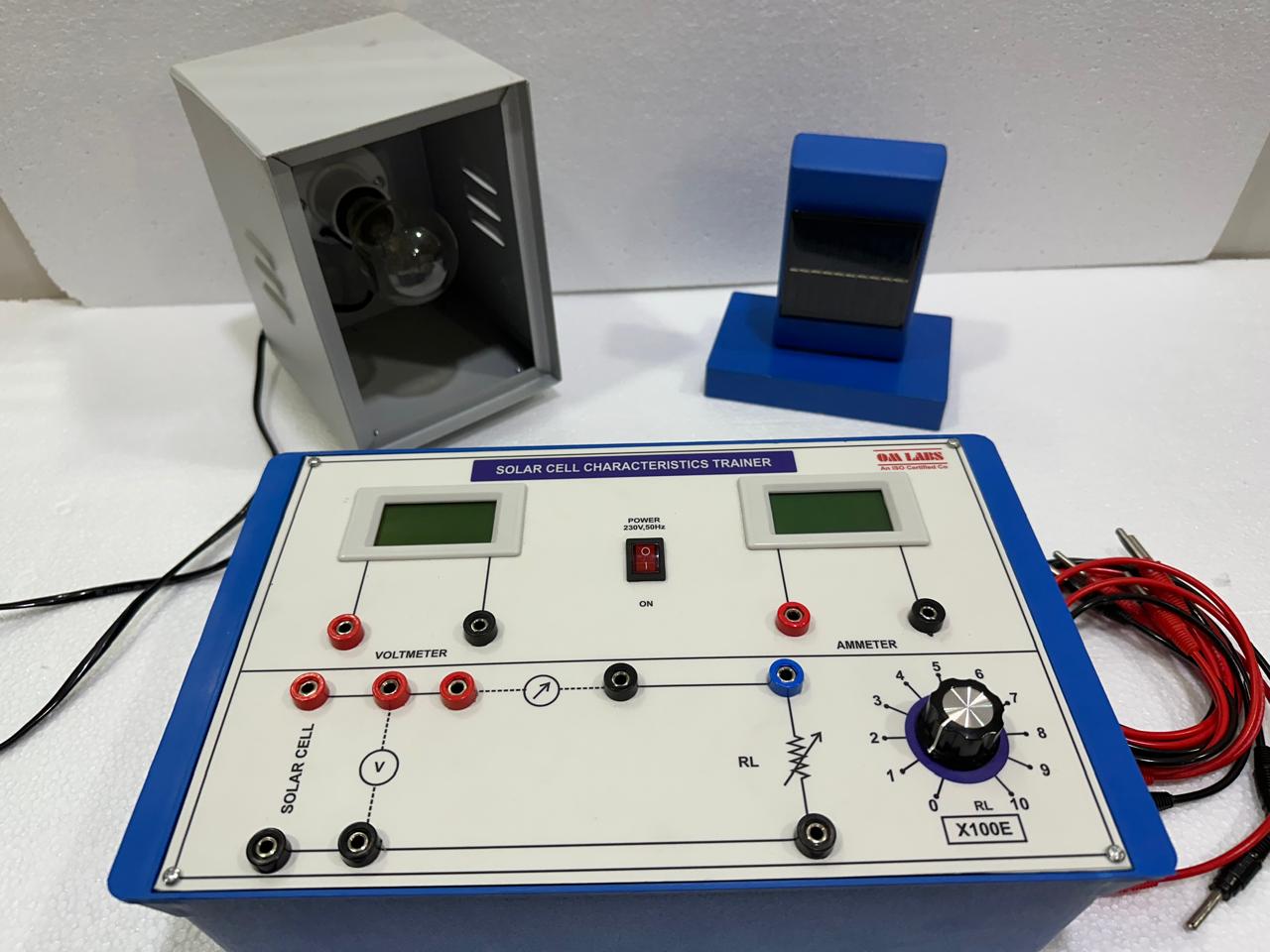

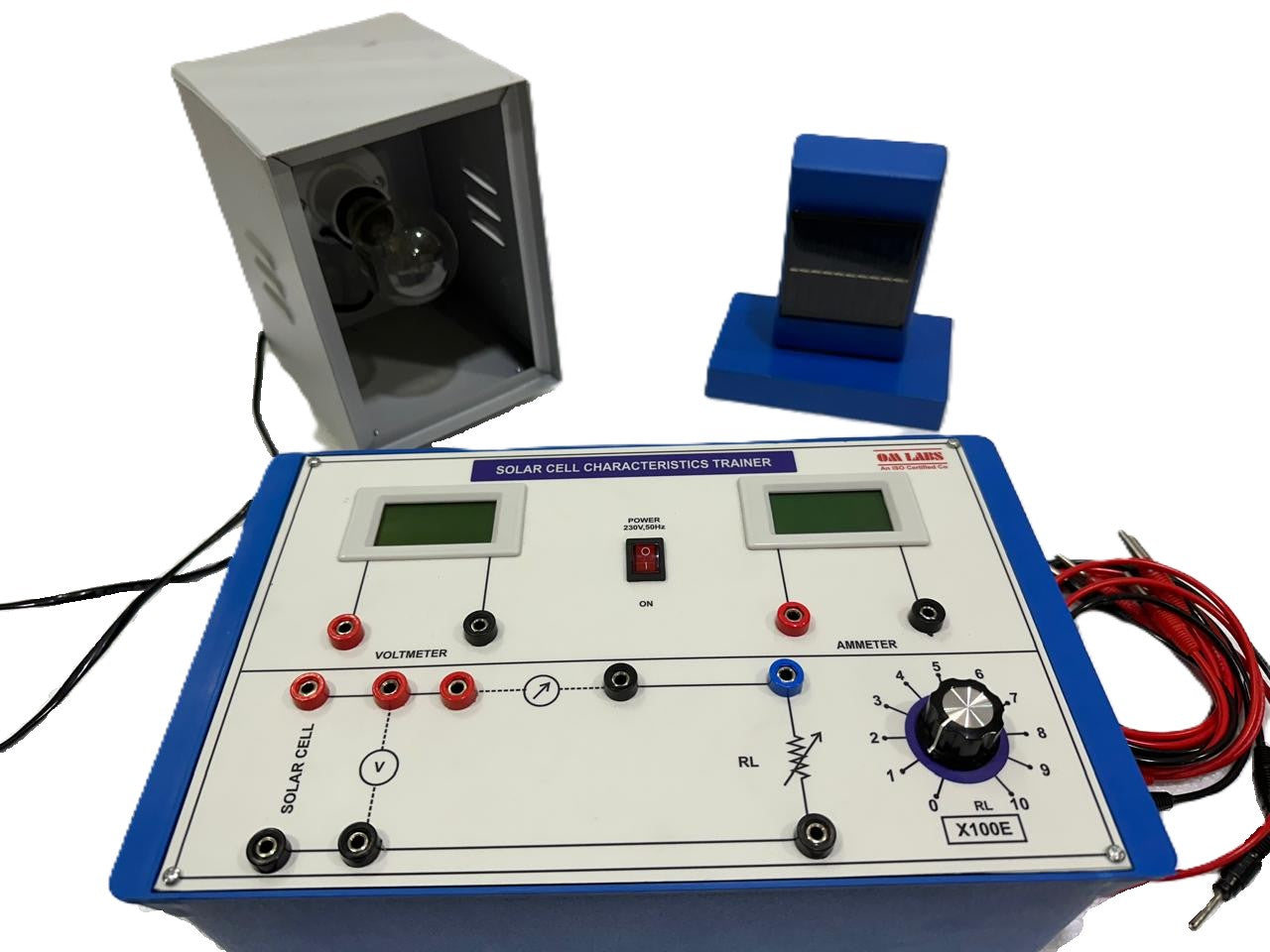

Solar Cell Characteristics Trainer with light source Complete Setup | 2 Digital Meter

Specification:

Ø  Product Name: Solar Cell Characteristics Trainer

Ø  Main Trainer Unit

o   Digital Voltmeter Display

o   Digital Ammeter Display

o   Built-in Variable Load (RL) Control Knob

o   Solar Cell Connection Terminals

o   Power ON/OFF Switch

o   Banana Socket Terminals for external connections

o   Heavy duty metal cabinet

Ø  Solar Cell Module

o  Photovoltaic solar cell panel

o  Mounted on separate base

o  Used as input energy source for experiment

Ø  Light Source Unit

o  High intensity incandescent lamp

o  Enclosed lamp housing

o  Provides controlled illumination to the solar cell

Ø  Measuring Instruments

o   Digital Voltmeter: Measures solar cell output voltage

o   Digital Ammeter: Measures solar cell current

Ø  Terminals & Connections: 4mm banana type sockets

Ø  Power Requirement: 230V AC ±10%, 50 Hz

Ø  Accessories:

o   Connection leads

o   Solar cell module

o   Lamp/light source unit

o   Instruction manual

Ø  Experiments:

o    Used in engineering and physics laboratories

o    Study of V-I characteristics of a solar cell

o    Analysis of open circuit voltage, short circuit current, and power characteristics

• Product Dimensions & Weight

  • Apparatus: Dimensions 32 × 19.5 × 8 Cm | Weight: 1.220 kg
  • Packing: Cardboard Box
  • Packed Apparatus: Dimensions 34 × 23.5 × 13.5 Cm | Weight:1.440 kg
  • Packed Accessories: Dimensions 28.5 × 17 × 15.5 Cm | Weight:1.080 kg
  • Overall Packing Dimensions: 35 × 23.5 × 28.5 Cm
  • Total Gross Weight: 2.500 kg
  • GST: 18%
  • Categories: Educational Electronics Instrument & Apparatus
  • Brand: OM LABS
