Specification:

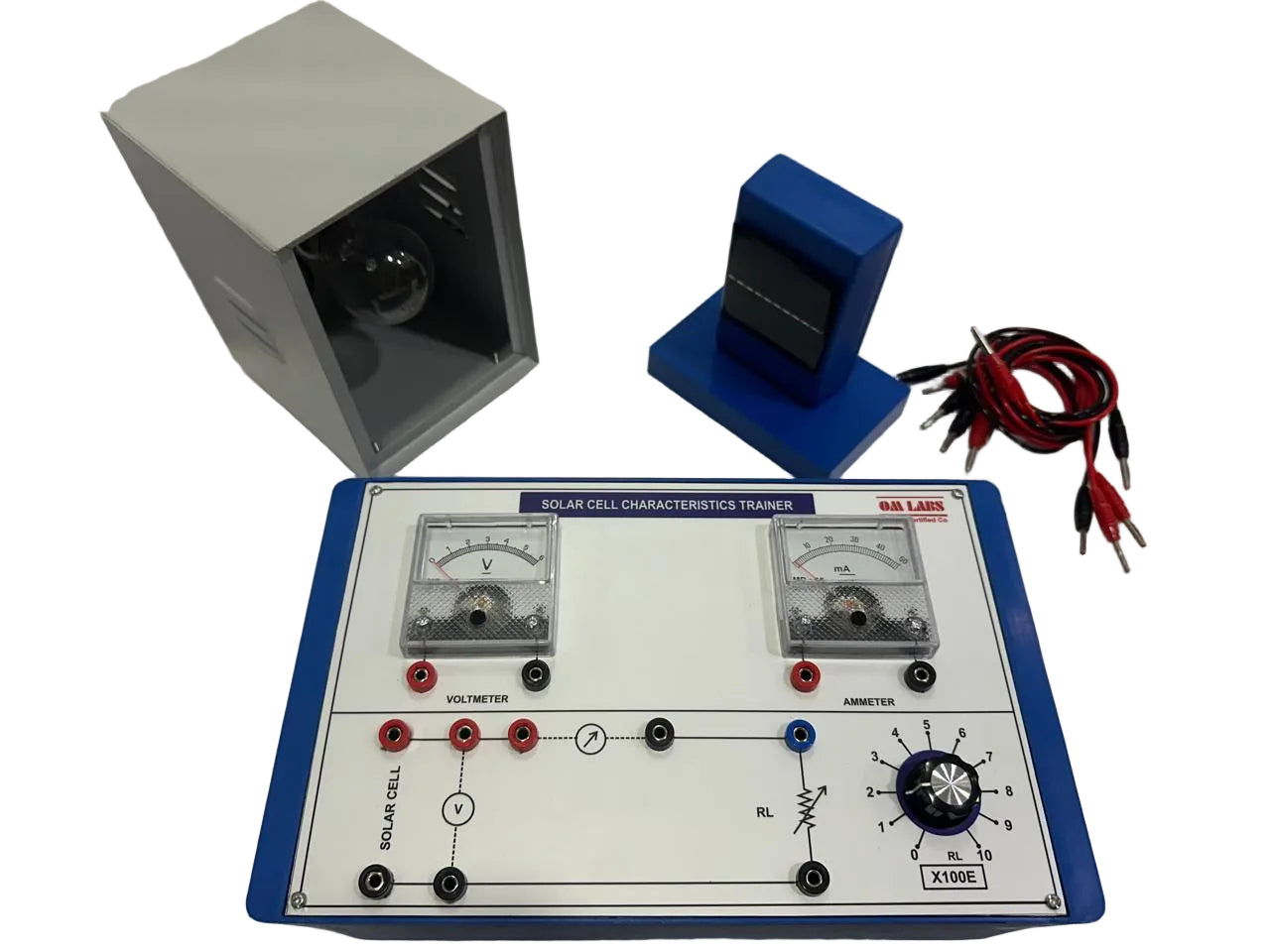

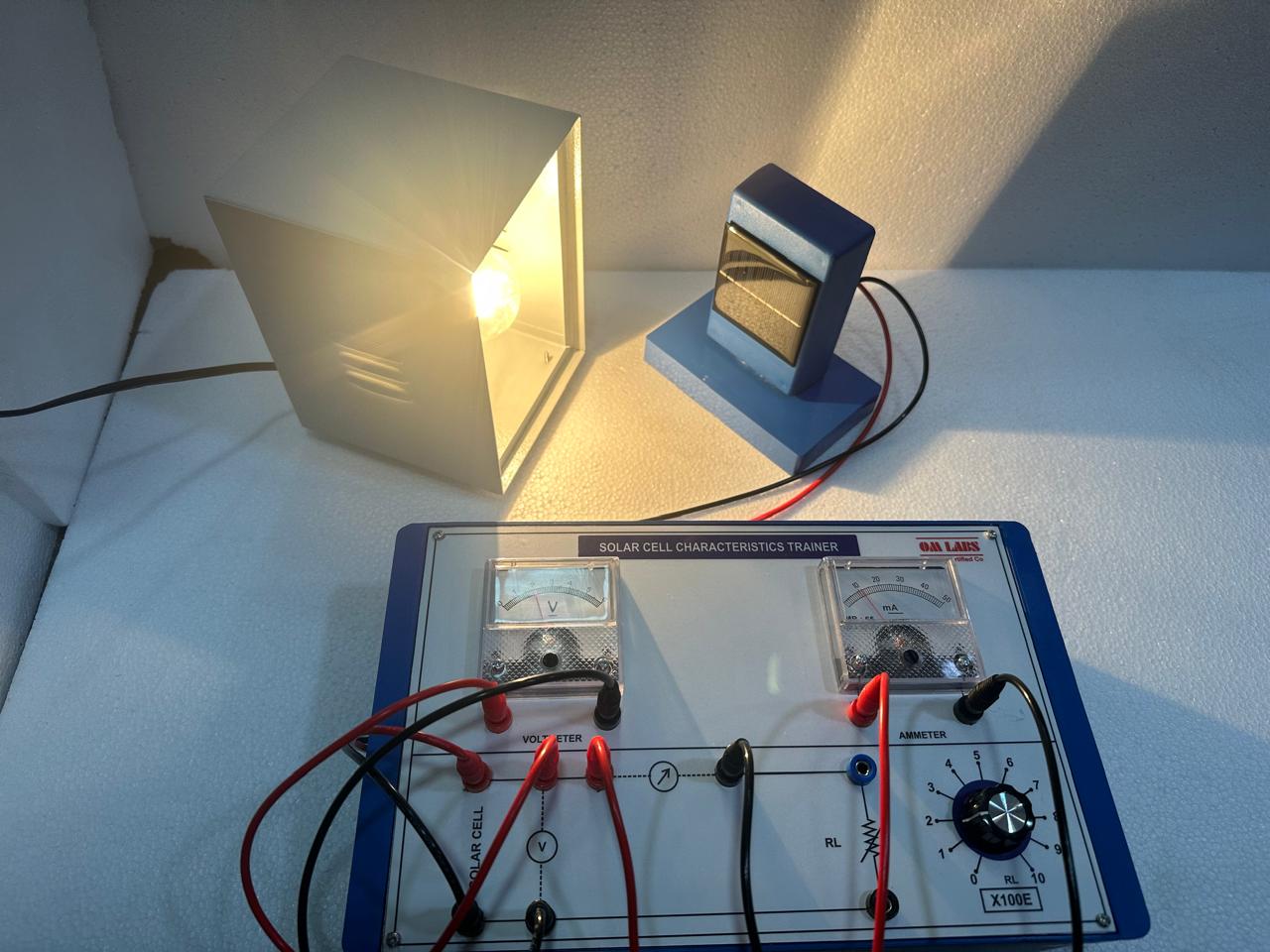

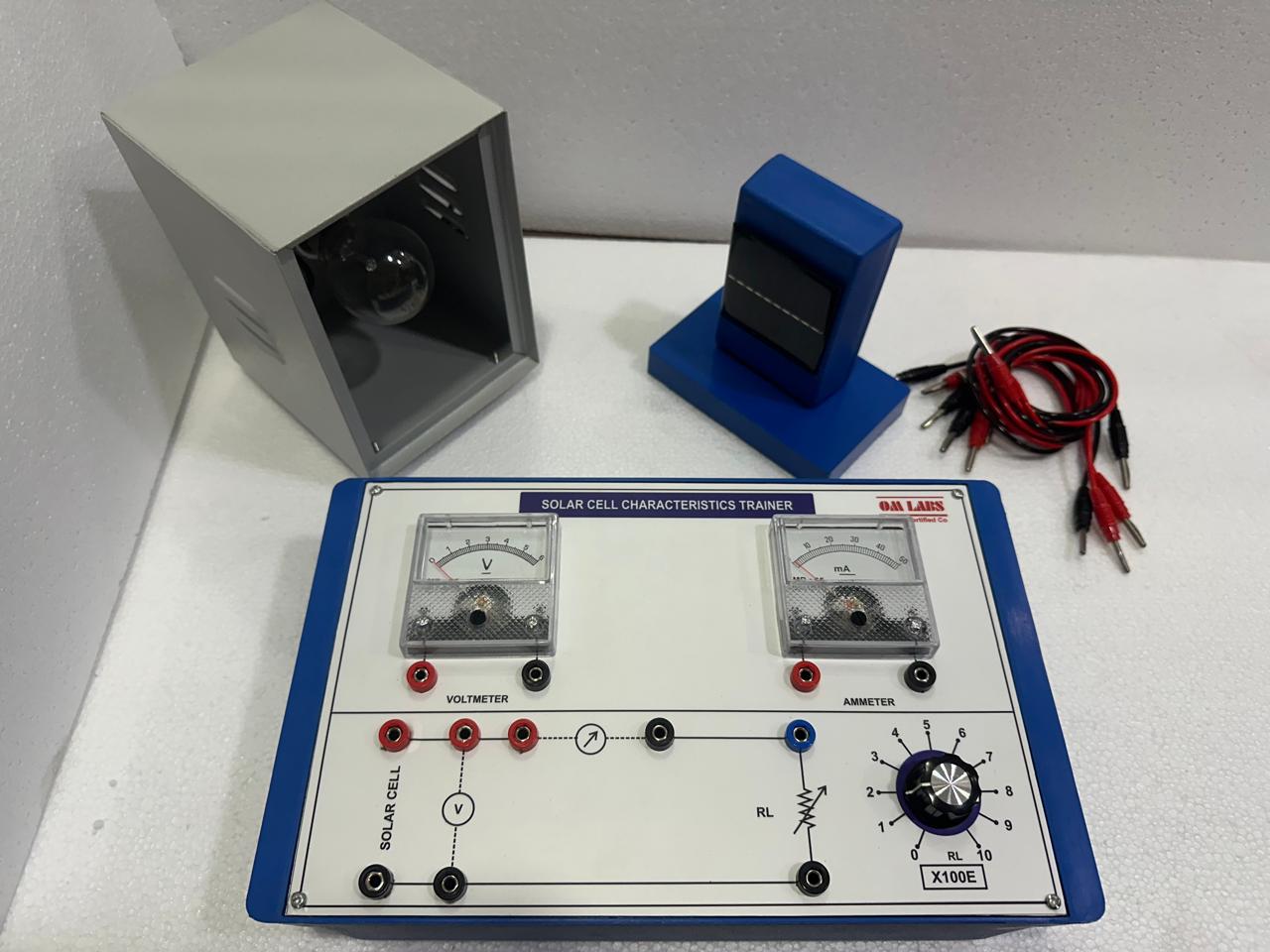

Ø Product Name: Solar Cell Characteristics Trainer
Ø Main Trainer Unit
o Voltmeter: 0-5V DC
o Ammeter : 0-50mA DC
o Built-in Variable Load (RL) Control Knob
o Solar Cell Connection Terminals
o Power ON/OFF Switch
o Banana Socket Terminals for external connections
o Heavy duty metal cabinet
Ø Solar Cell Module
o Photovoltaic solar cell panel
o Mounted on separate base
o Used as input energy source for experiment
Ø Light Source Unit
o High intensity incandescent lamp
o Enclosed lamp housing
o Provides controlled illumination to the solar cell
Ø Measuring Instruments
o Voltmeter: Measures solar cell output voltage
o Ammeter: Measures solar cell current
Ø Terminals & Connections: 4mm banana type sockets
Ø Power Requirement: 230V AC ±10%, 50 Hz
Ø Accessories:
o Connection leads
o Solar cell module
o Lamp/light source unit
o Instruction manual
Ø Experiments:
o Used in engineering and physics laboratories
o Study of V-I characteristics of a solar cell
o Analysis of open circuit voltage, short circuit current, and power characteristics
| Weight |
6.0 kg |
|---|---|
| Dimensions | 16 × 43 × 45 cm |
