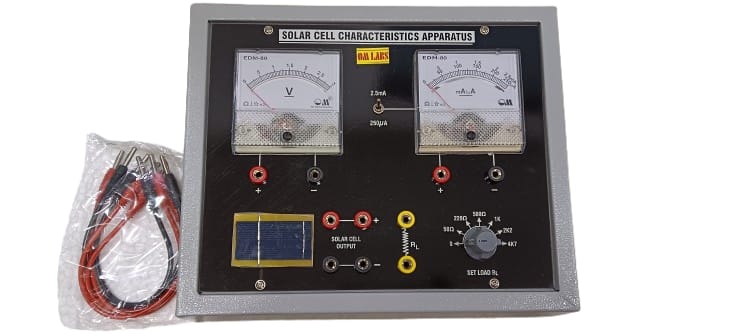

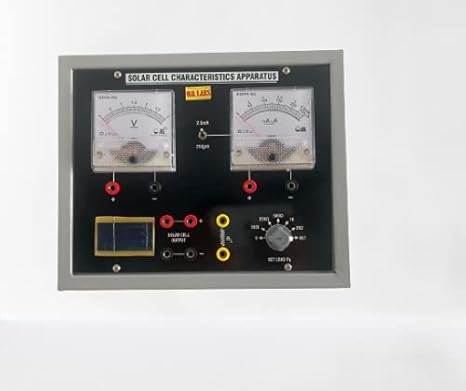

Solar Cell CH. Apparatus Trainer - 2 Square Meter

SPECIFICATION: The setup allows you to analyze key characteristics of a solar cell by measuring parameters like the short-circuit current (ISC), open-circuit voltage (VOC), and the corresponding fill factor (FF) and efficiency (η). The influence of the diode saturation current density on these parameters is also important: it can lower VOC, reduce FF, and ultimately decrease the overall efficiency of the solar cell. With the proper equipment and control over the testing conditions (such as light intensity), you can effectively measure and analyze the performance of solar cells under various conditions.
LEARNING: Study of V-I Characteristics of Solar Cell
TECHNICAL: 2 Square Meters

• Volt meter 0- 3V DC.
• Ammeter 0- 250mA DC

Study of V-I Characteristics of Solar Cell

• Dimensions: 35 x 25 x 11cm Approx.
• Weight: 1450gm Approx.
• Packing: Card Board Box
• HSN CODE: 8541
• GST: General Standard 18%
• CATAGORIES: Electronics
• BRAND: OM LABS
