Simple Electrical Circuit Board

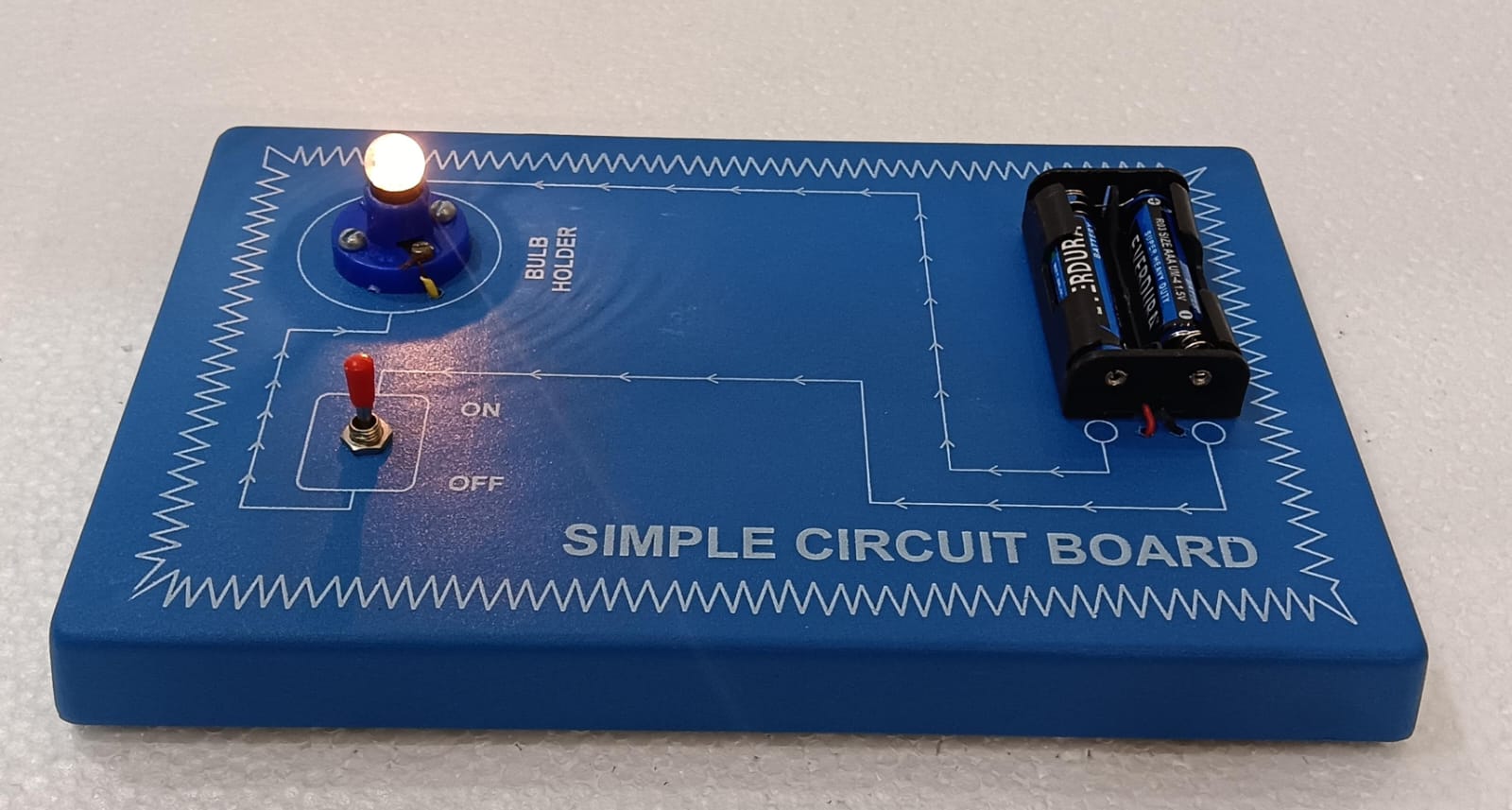

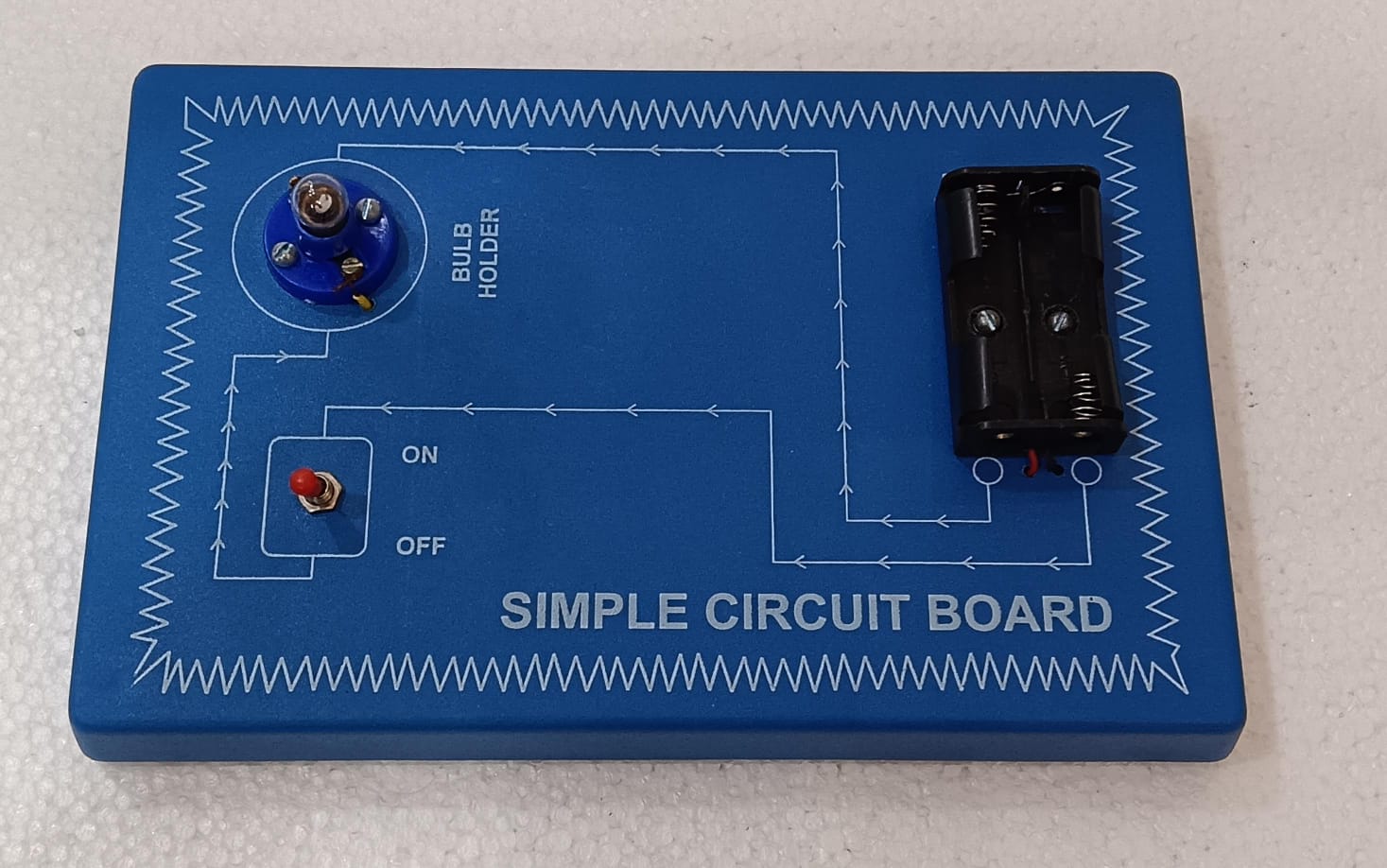

SPECIFICATION: A simple circuit on a plastic base board that works with a battery typically includes basic components like a battery, switch, and light bulb (or other devices). The circuit is built on a plastic board, which has copper traces that connect the components.

• How it works:
• Battery: It acts as the power source, providing electrical energy to the circuit. The battery has a positive and a negative terminal.
• Switch: The switch is used to turn the circuit on or off.
• Light Bulb : The power from the battery flows through the components, such as a light bulb, to make it work.

When the switch is turned on, the electrical current from the battery flows through the circuit and powers the light bulb or other connected devices. When the switch is turned off, the circuit is broken, and the device stops working.

This is a very basic and simple circuit that runs on a plastic base board and is powered by a battery.

• Dimensions:22.5 x 15 x 05cm Approx.
• Weight: 370 gm Approx.
• Packing: Card Board Box
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Physics
• BRAND: OM LABS
