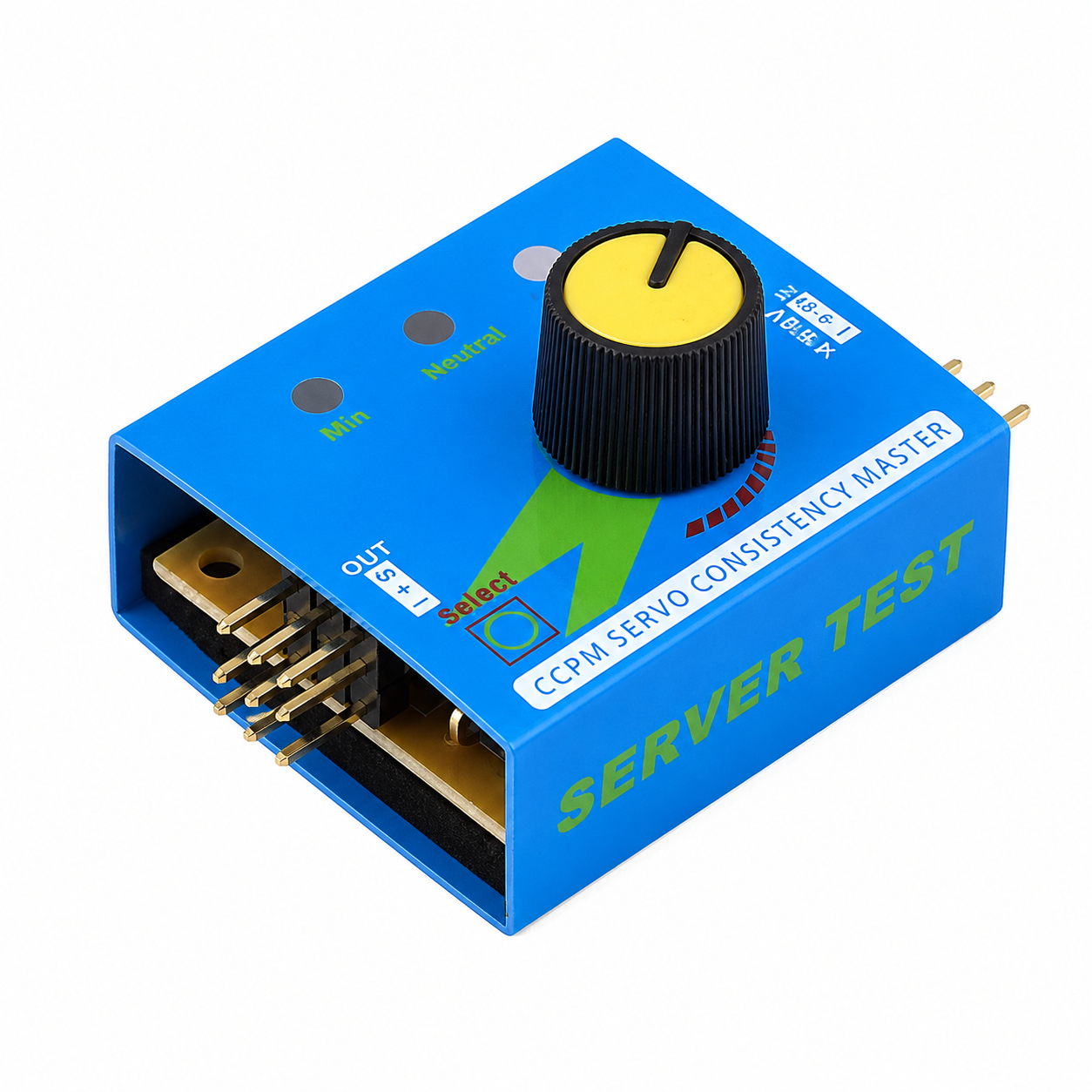

3 CHANNEL TESTER OF SERVO MOTOR

Specification: The 3-channel servo motor tester is a precision diagnostic tool used to simultaneously verify the functionality, centering, and range of motion of up to three electronic servo motors. It is frequently employed in robotics labs, automation research, and educational settings to perform rapid quality control checks and verify signal synchronization without requiring a microcontroller or transmitter.

Technical Specifications:
* Output capacity: 3-channel simultaneous control
* Input voltage: 4.8V – 6.0V DC
* Control modes: Manual (potentiometer), Neutral (automatic centering), and Automatic (wiper/sweep mode)
* Signal type: PWM (Pulse Width Modulation)
* Compatibility: Compatible with standard analog and digital servos
* Connector type: Universal JR/Futaba style 3-pin headers
* Indicator: LED power status indicator
Dimension: 46 × 32 × 17 mm
WEIGHT:8 GM
PACKAGE :10*7*2.5cm
