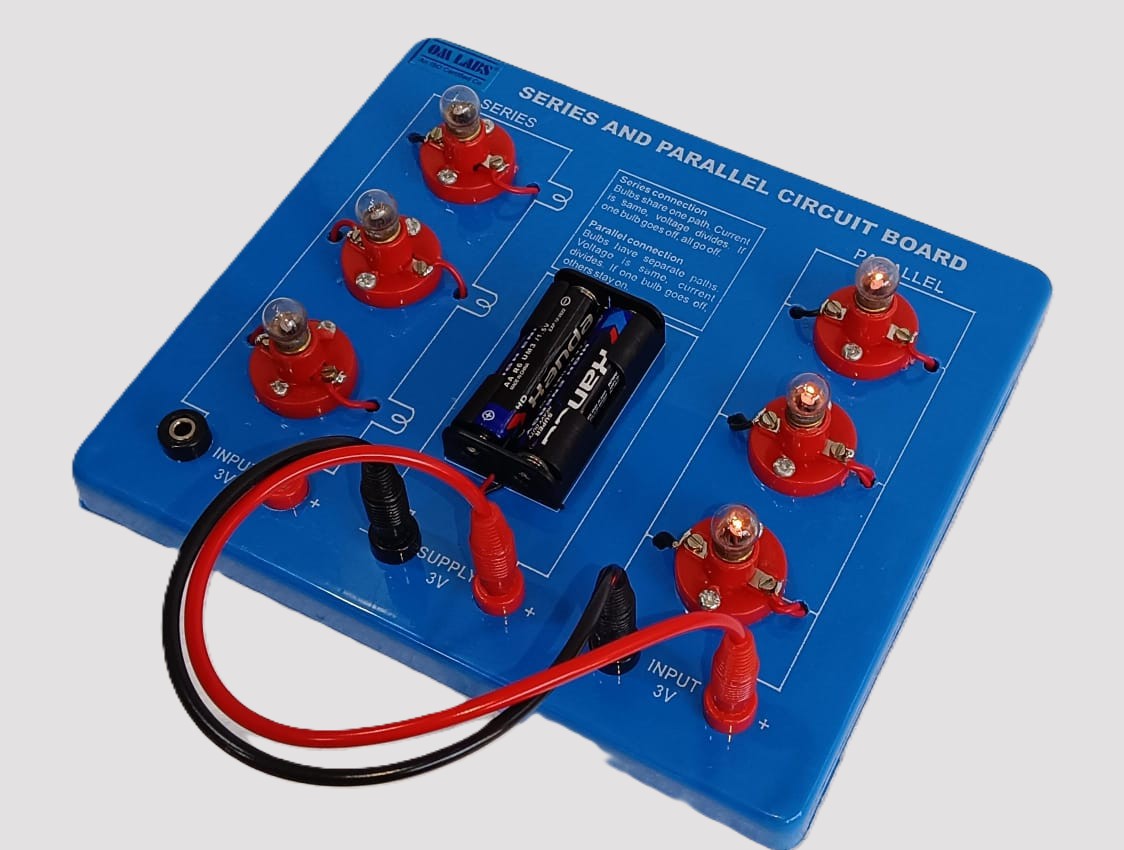

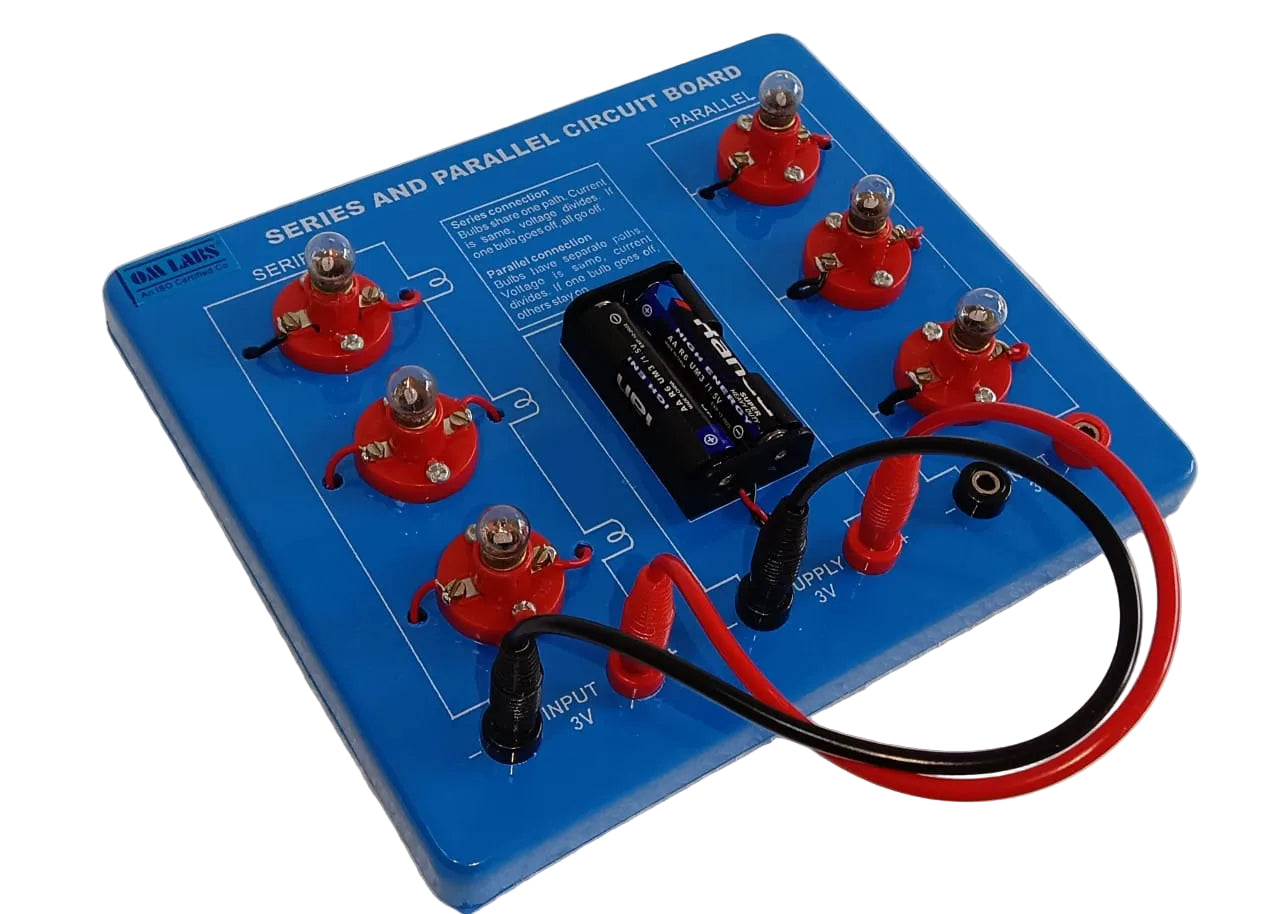

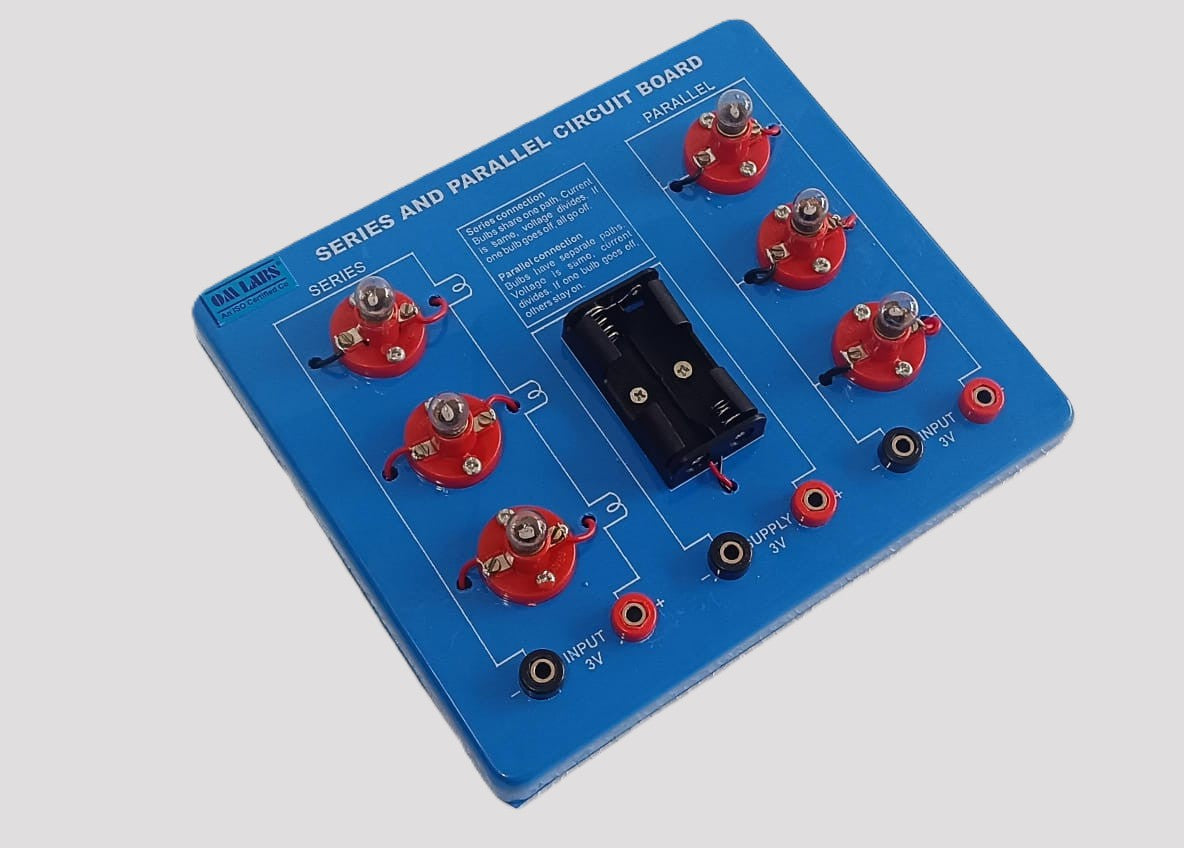

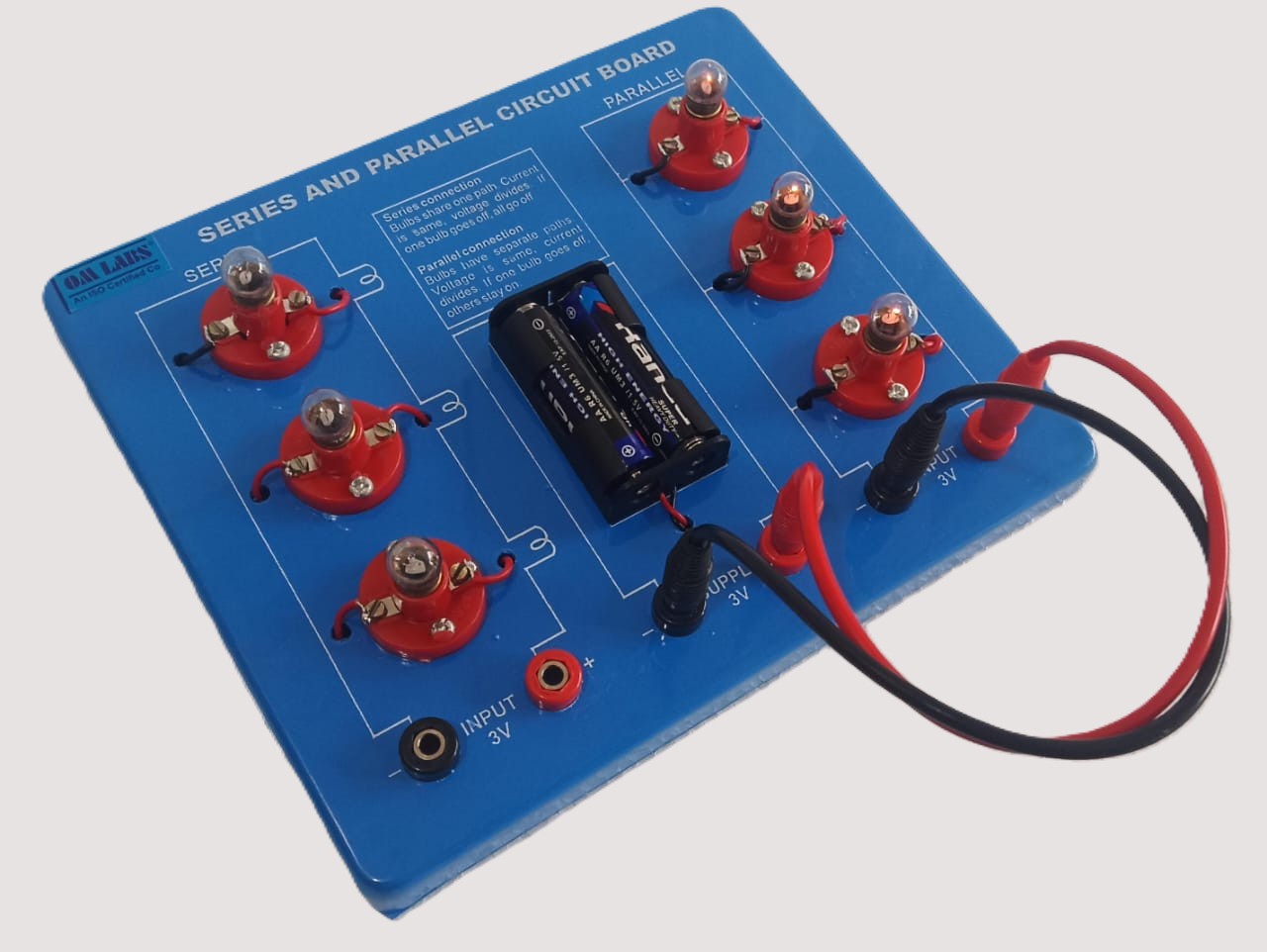

Series And Parallel Circuit on Board

Specification:

An educational tool used to demonstrate and compare the behavior of electrical components in series and parallel configurations. It includes bulb holders, connecting terminals, and a power supply section.

Component

Ø  Bulbs:- 6 small incandescent bulbs mounted on the board (3 for series circuit, 3 for parallel circuit).

Ø  Terminals:- Screw terminals for easy wire connections. Each bulb has two terminals.

Ø  Battery Holder:- 2-slot (+ and -) battery holder (3V total). Powers the circuit.

Ø  Input / Output Terminals:- Clearly labeled terminals for input voltage (3V) and output connections.

Ø  Wiring-: Red and Black Connecting Lead

Ø  Base Material:-laminated board plastic with printed circuit diagrams.

 Uses:

·         School physics lab demonstrations

·         Electronics training for beginners

·         STEM kits and DIY learning

·         Understanding real-life applications of electrical circuits

• Dimensions:20 x 17 x 05cm
• Weight:230 gm
• Packing: Card Board Box
• Packing (Dimension & Weight):23x17.5x5cm, 370gm
• HSN CODE: 9023
• GST: General Standard 18%
• CATAGORIES: Physics Model
• BRAND: OM LABS
