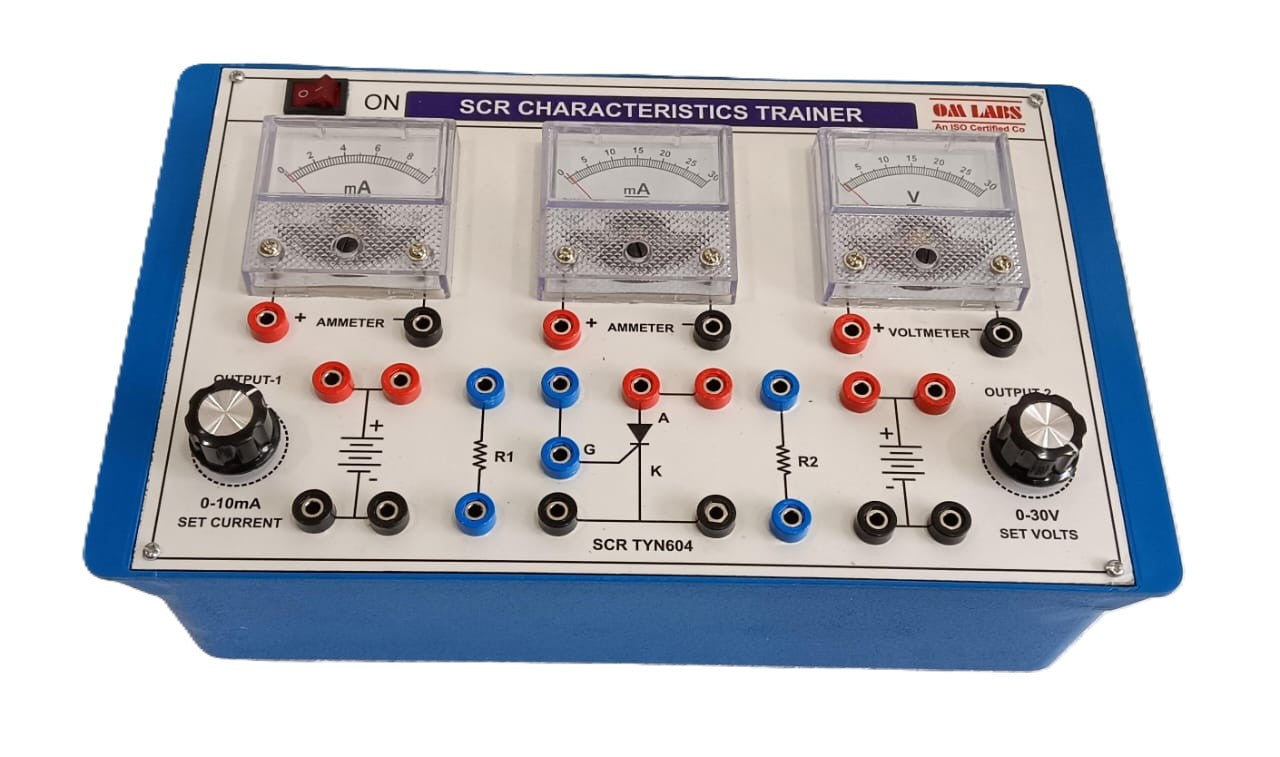

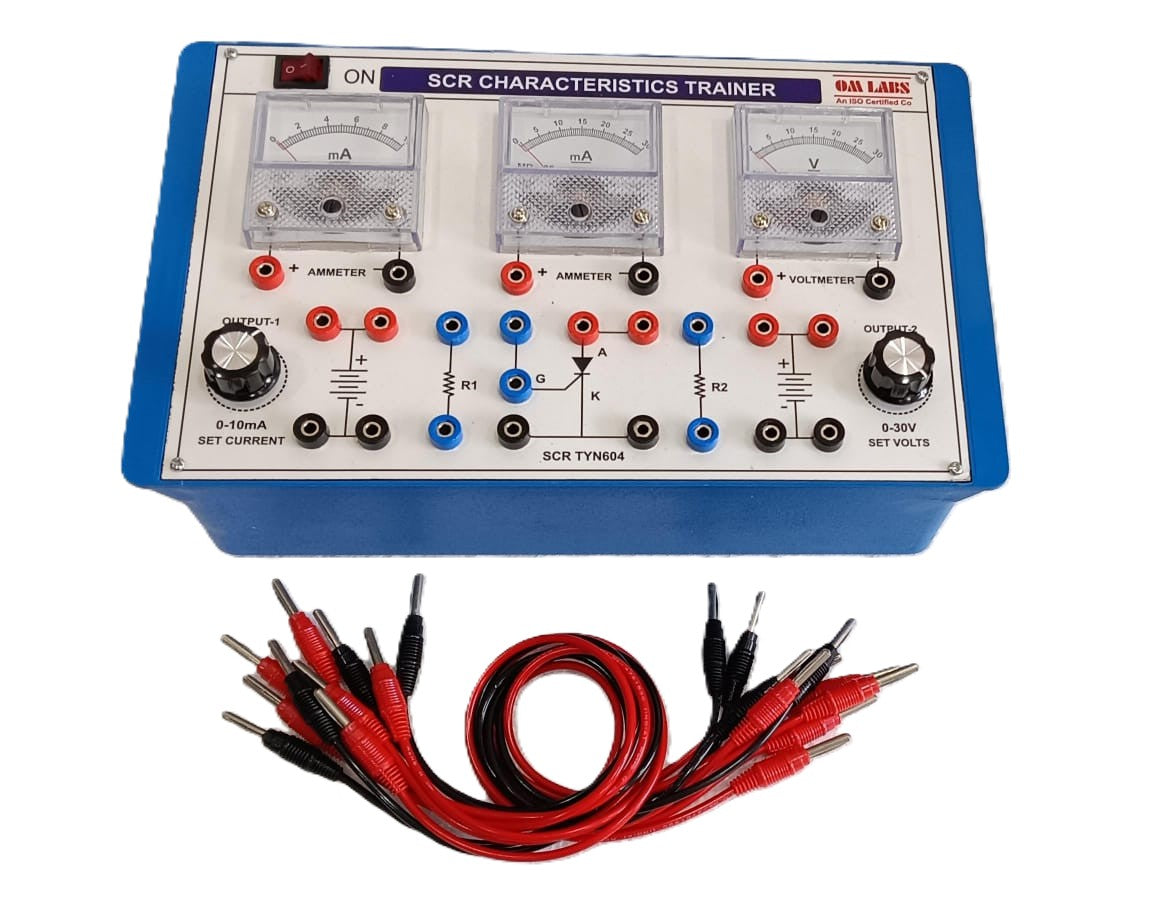

SCR Characteristics Trainer

Specification: SCR Characteristics Trainer — a lab instrument used for to Study the VI Characteristics of SCR & Determine the break over voltage, on state resistance holding current and latching current and latching current.

SCR: Silicon Controlled Rectifier (SCR) also called the Thyristors is one of the most widely used semi controlled switching device. It has a P-N-P-N Structure and 3 terminals-anode (A), Cathode (K),and Gate (G)

Ø  Power Supply: 230V ±10%, 50Hz AC

Ø  DC Output 1: 0–10 mA (for gate current control)

Ø  DC Output 2: 0–30 V (for anode-to-cathode voltage supply)

Ø  Instruments: 2Analog Ammeters (0–10 mA, 0–100 mA) and 1 Voltmeter (0–30 V)

Ø  Load Resistors: R1 and R2 fixed resistors for limiting current

Ø  Device Under Test (DUT):SCR — Model TYN604

Ø  Experiments:

Ø  Forward Characteristics of SCR (Anode to Cathode voltage vs current).

Ø  Gate Trigger Characteristics (Gate current vs anode voltage).

Ø  Holding and Latching Current Measurement.

• Dimensions: 34 x 23 x 12 cm Approx.
• Weight: 1.5 KG Approx.
• Packing : Card Board Box.
• HSN Code: 9031
• GST: General Standard 18%
• CATAGORIES: Electronics Instrument
• Brand: OM LABS
