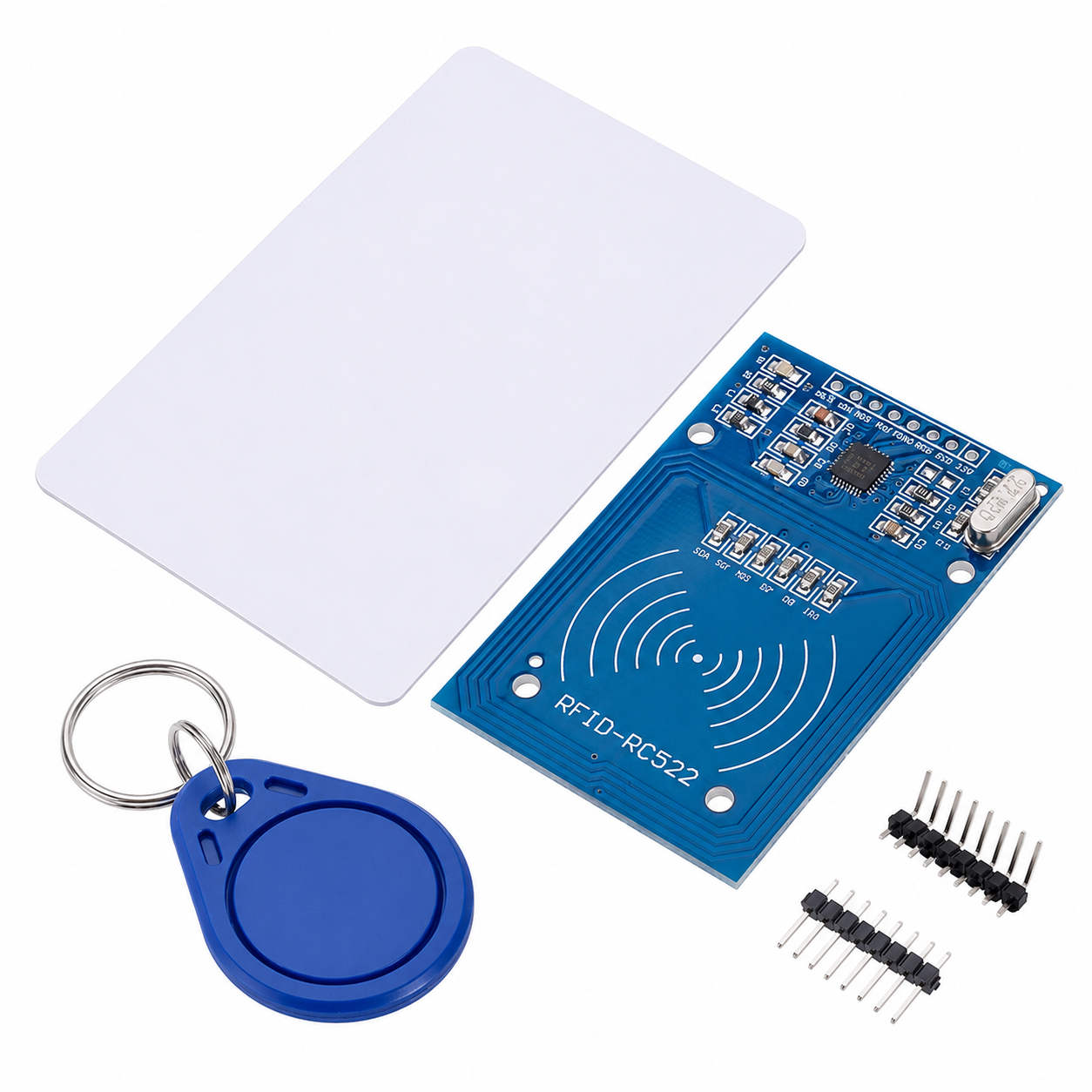

RFID READER- TAGS (MFRC522)

Specification: The MFRC522 is a highly integrated RFID reader/writer module that operates on the 13.56 MHz frequency band. In a laboratory setting, it is primarily used for rapid prototyping of automated inventory tracking systems, secure access control for equipment cabinets, and contactless identification of experimental samples.

Technical Specifications:
* Operating Frequency: 13.56 MHz
* Supply Voltage: 2.5V – 3.3V
* Operating Current: 13–26mA
* Interface: SPI, I2C, UART
* Protocol: ISO/IEC 14443A (Mifare)
* Read Range: 0mm – 50mm (dependent on tag antenna)
* Operating Temperature: -20°C to +85°C
* Dimensions: 40mm x 60mm

Package: 11.5x7.5cm, Weight: 17gm
