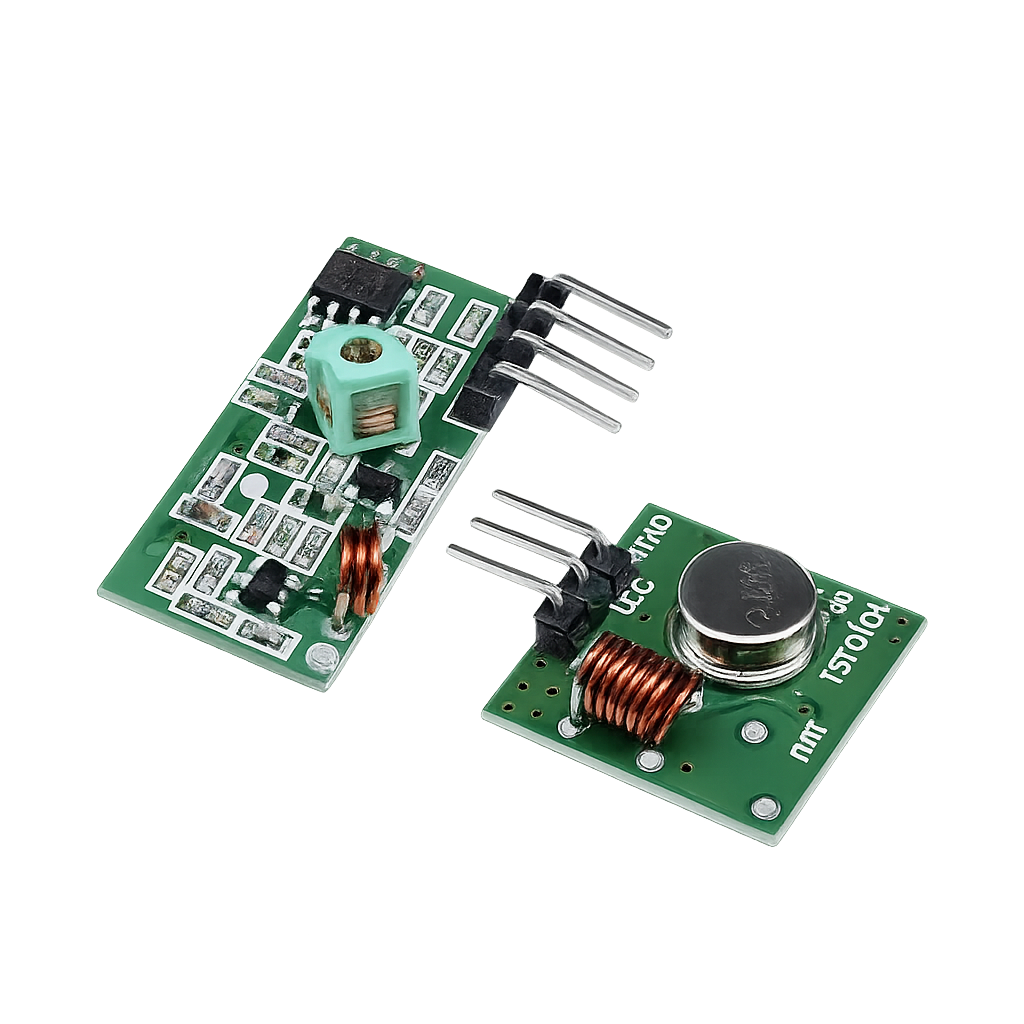

RF MODULES Tx & Rx 315 MHz

Specification: These RF modules consist of a paired 315 MHz transmitter and receiver set designed for short-range wireless data communication. In laboratory settings, they are primarily used for rapid prototyping of wireless sensor networks, remote switching, and educational projects requiring low-power, low-bandwidth data transmission between microcontrollers.

Technical Specifications:
* Operating Frequency: 315 MHz
* Modulation: ASK (Amplitude Shift Keying)
* Data Rate: 2 Kbps to 10 Kbps
* Operating Voltage (Tx): 3V – 12V DC
* Operating Voltage (Rx): 5V DC
* Receiver Sensitivity: -105 dBm
* Transmission Range: 20m – 200m (environment dependent)
* Interface: TTL Level (serial data)
* Transmitter Output Power: 10mW – 16mW

  Package Dimension: 5x3x2cm Weight: 4gm
