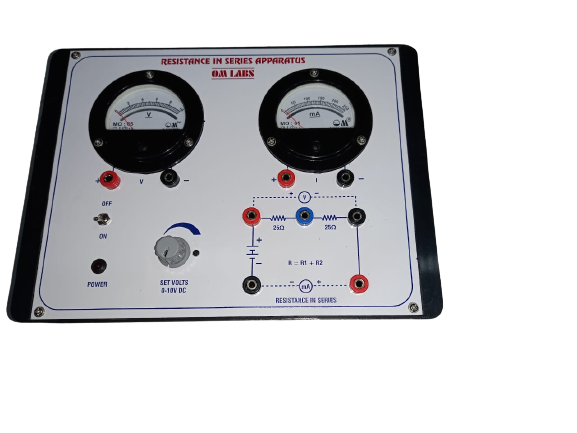

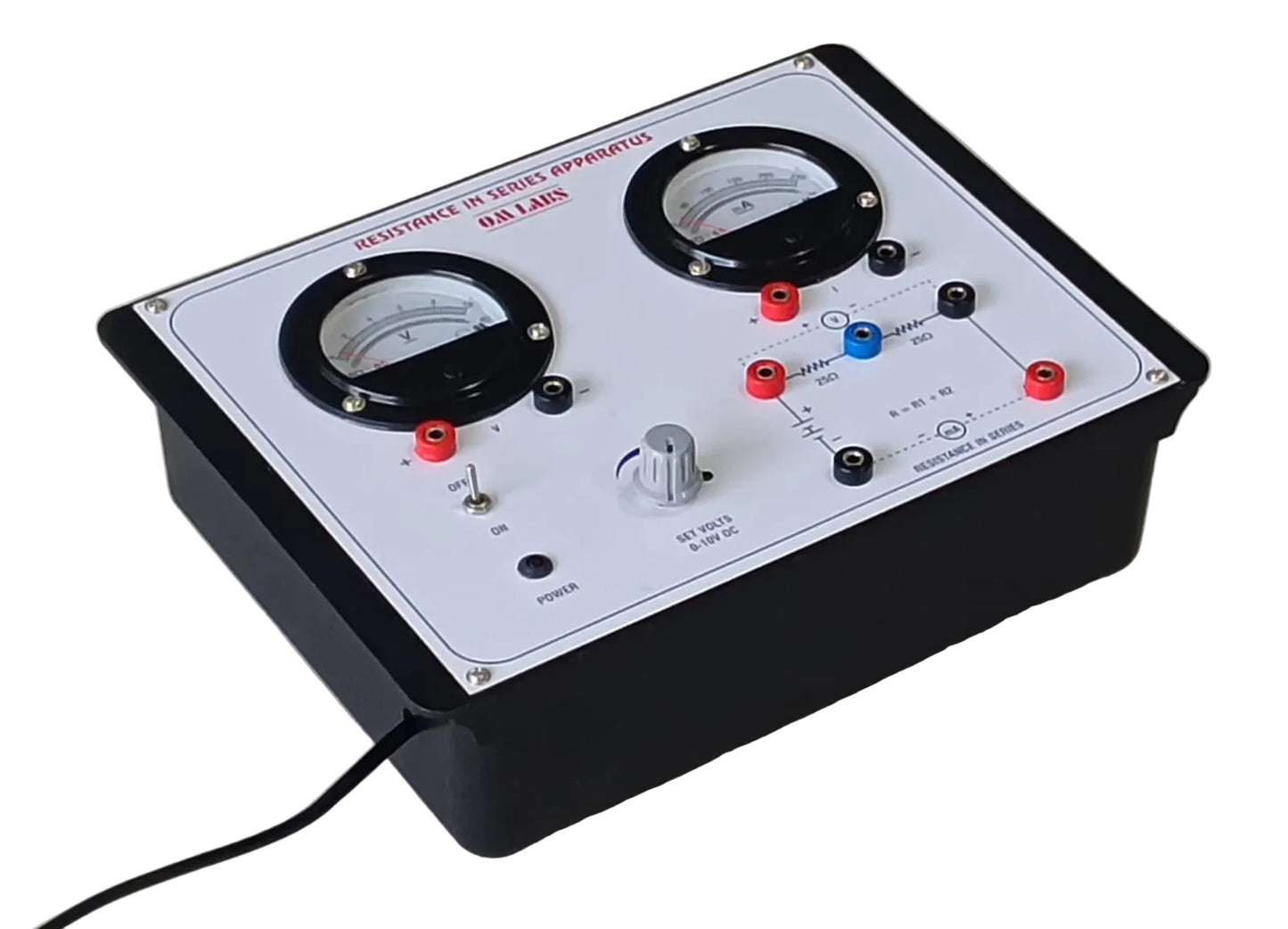

Resistance in Series With Power Supply

Specifications:

Resistance in series has been designed to check the effect on the value of two or more than two resistances connected in series. When resistance is connected in series current through all the resistance remain same but potential difference across each resistance will differ.

This Instrument comprises of the following in built parts:

• Two resistances (25Ω, 25Ω) are connected in series and sockets fitted on junction to measure the voltage across the resistances in case of series circuit.
• Voltmeter 10V and current meter of 250mA range are mounted on front panel to measure the voltage and current.
• Box: Plastic Box
• Packing: Corrugated Box
• Dimensions: 29 cm X 22 cm X 11.5 cm Approx.
• Weight:1.5 kg
• Brand: OM LABS
• GST: General Standard 18%
• HSN CODE: 8541
