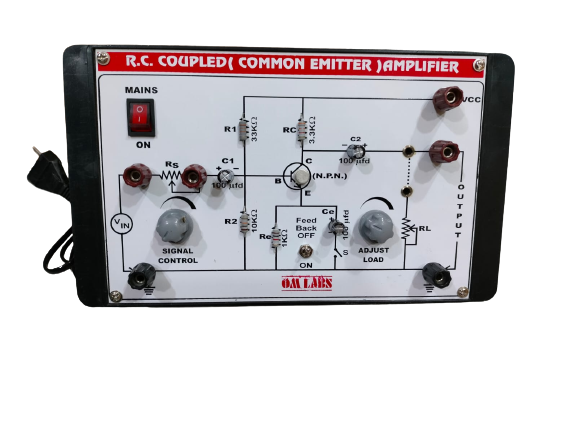

RC Coupled Transistor Amplifier (Single Stage)

Specifications:

An RC Coupled amplifier is a type of electronic amplifier that uses a resistor capacitor (R C) network to couple that output of one stage of amplifier to the input of the next stage. The capacitor blocks on DC Voltage, while allowing AC signals to pass through. It is widely used as voltage amplifier.

This Device comprises of:

• A light on/off switch on the front panel.
• A amplitude control knob is also given on the panel.
• Two input terminals of each input voltage (V_IN) and output voltage (V_O) given on the board.
• There is a network of resistors and capacitors are used in the circuits.
• NPN Transistor with common emitter configuration is used.

V_CC - DC Voltage Supplied to Collector

C₁- Input Coupling Capacitor

R₁ and R₂ -Voltage Divider Bais Network

R_C - Collector Resistance

R_E - Provides Thermal Stabilization

R_L - Load Resistance

C₂ - Output Coupling Capacitor

C_E - Emitter by pass Capacitor

R_L - Load Resistance

• Box: Plastic
• Packing: Corrugated Box
• Weight: 100 gm Approx.
• Dimensions: 17 cm X 27 cm X 12 cm Approx.
• Brand: OM LABS
• GST: General Standard 18%
• HSN CODE: 9031
