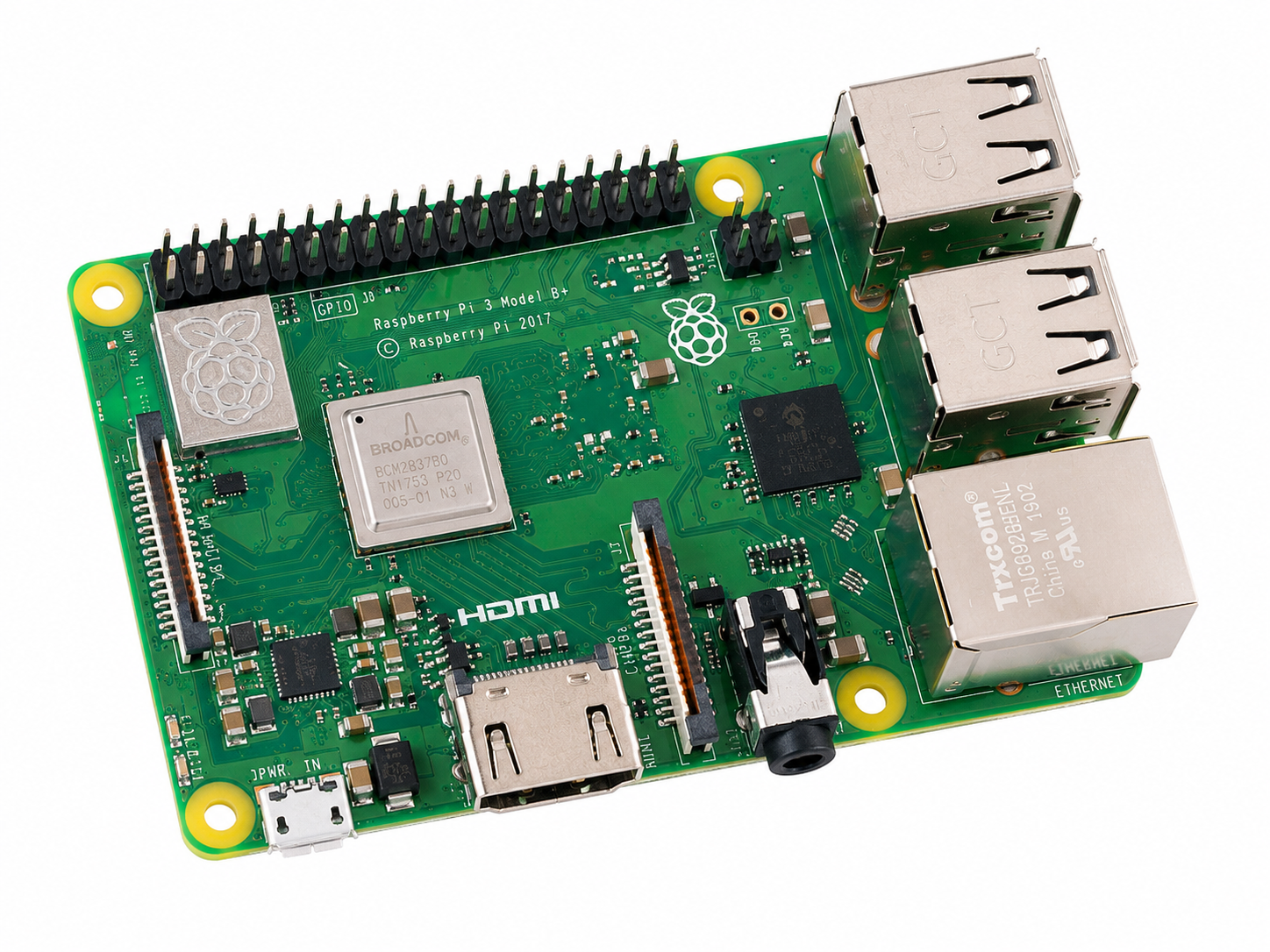

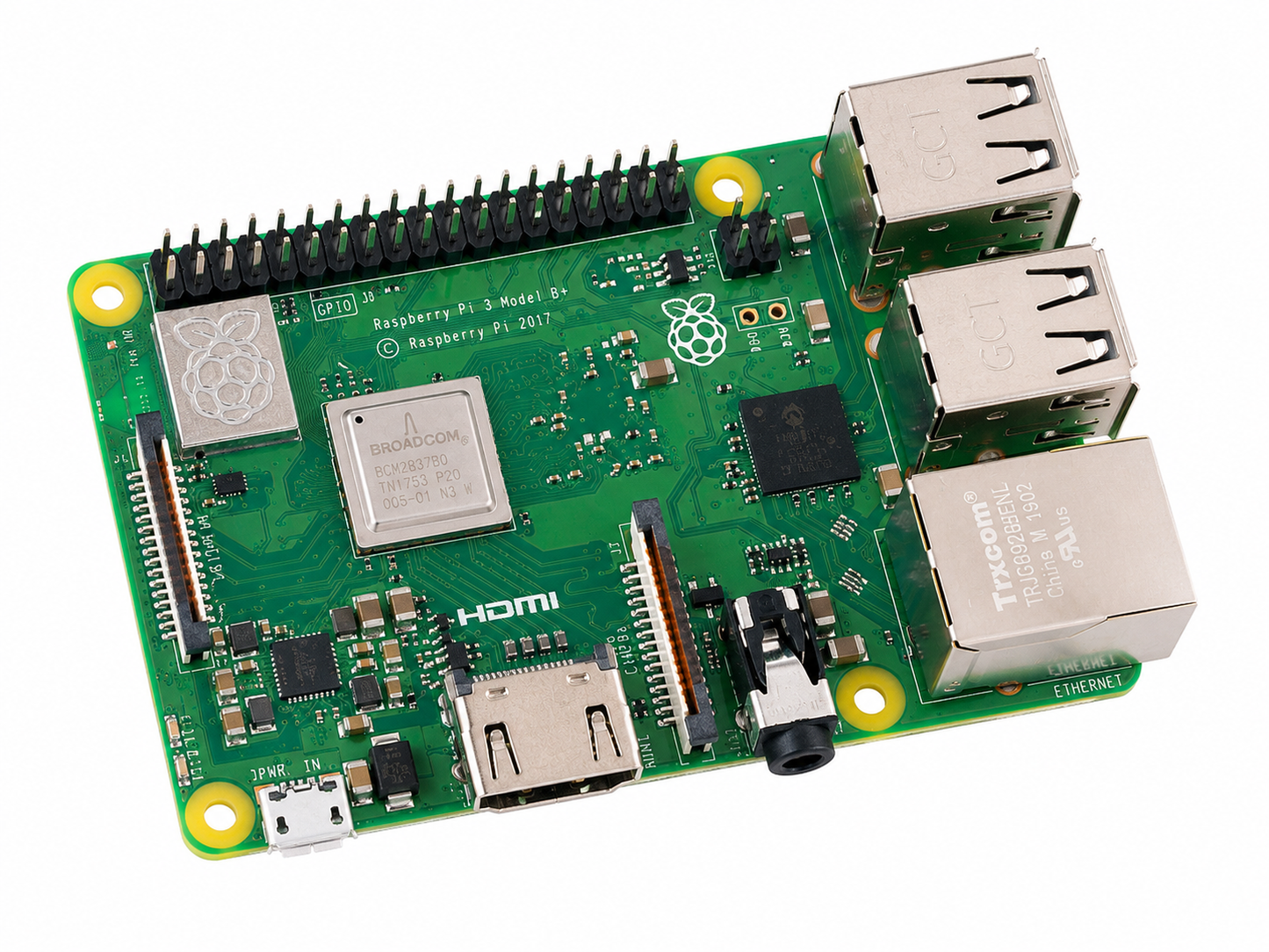

Raspberry Pi 3 Model B+

The Raspberry Pi 3 Model B+ is the final, refined revision of the third-generation Pi series. Upgraded with a 1.4GHz 64-bit quad-core processor, it delivers faster performance while maintaining the exact physical footprint of its predecessors. The B+ excels in networking, featuring dual-band Wi-Fi, Bluetooth 4.2/BLE, and faster Gigabit Ethernet. It also introduces Power-over-Ethernet (PoE) support, making it an incredibly reliable and versatile single-board computer for IoT development, server deployment, and custom electronics projects.

Technical Specifications

Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz

Memory: 1GB LPDDR2 SDRAM

Wireless: 2.4GHz & 5GHz IEEE 802.11.b/g/n/ac Wi-Fi, Bluetooth 4.2, BLE

Ethernet: Gigabit Ethernet over USB 2.0 (up to 300 Mbps)

USB: 4 x USB 2.0 ports

Video & Audio: Full-size HDMI, 4-pole stereo/composite video port

Camera & Display: MIPI CSI camera port, MIPI DSI display port

Expansion: Extended 40-pin GPIO header

Storage: MicroSD card slot

Power Input: 5V/2.5A DC via Micro-USB, PoE-enabled (requires separate PoE HAT)
