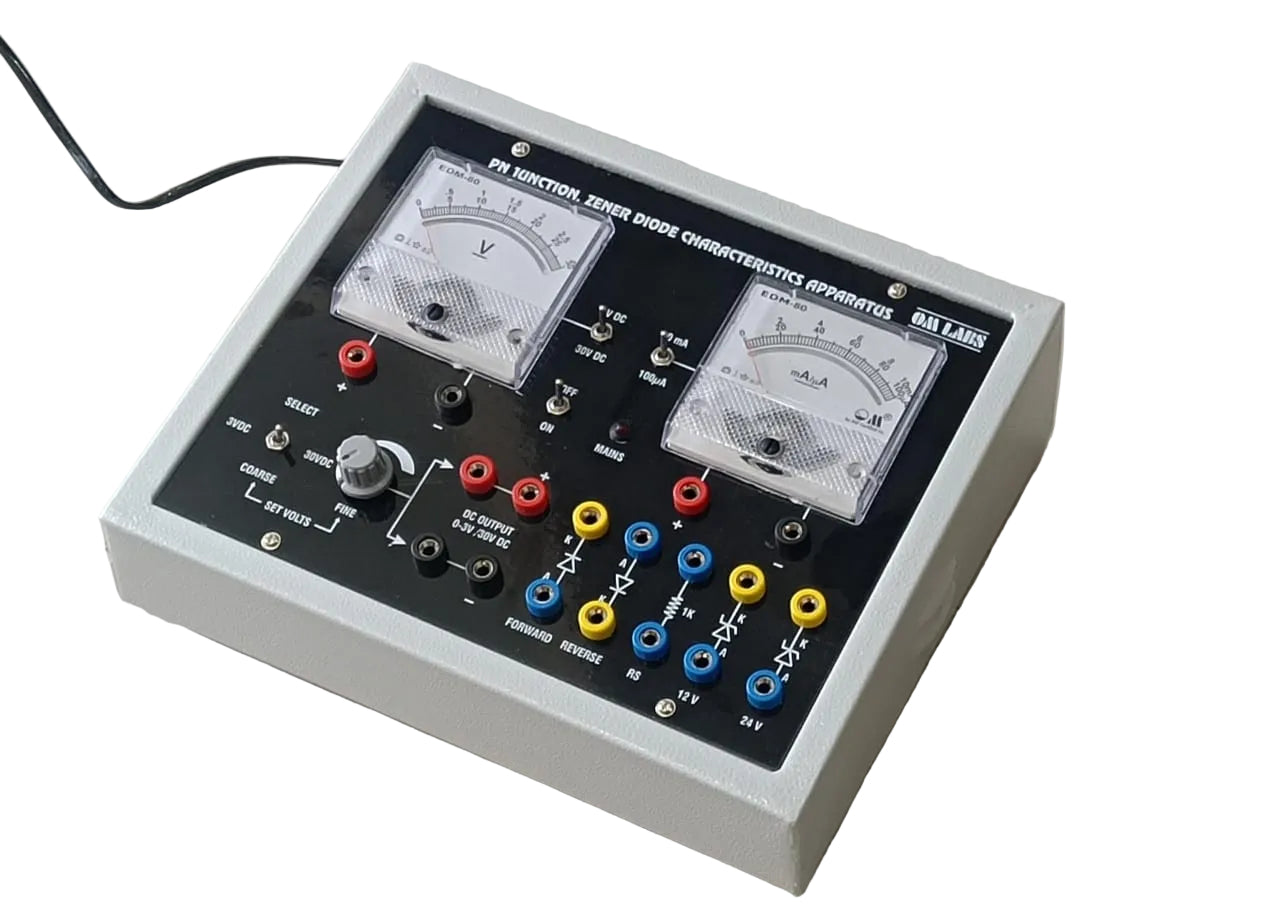

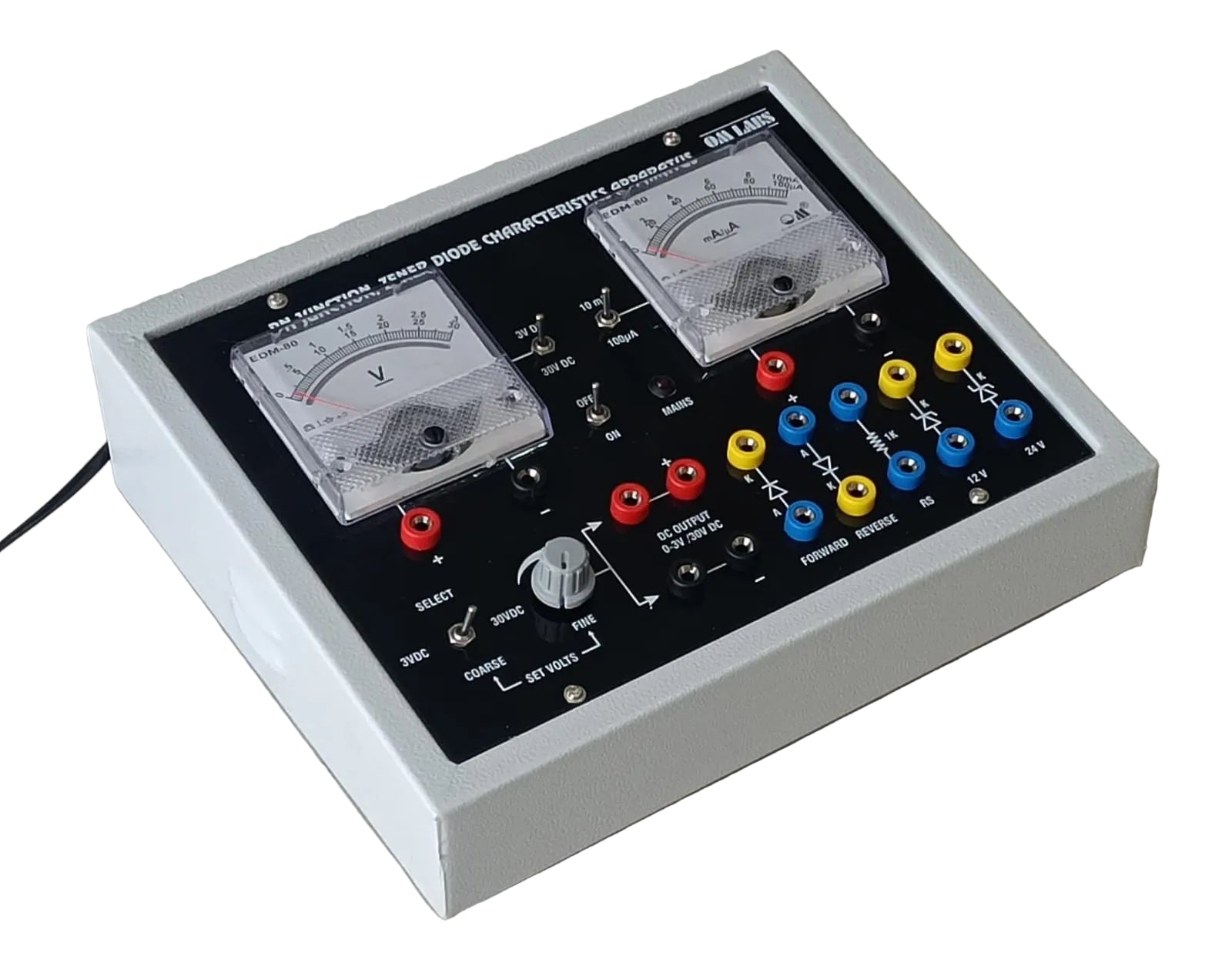

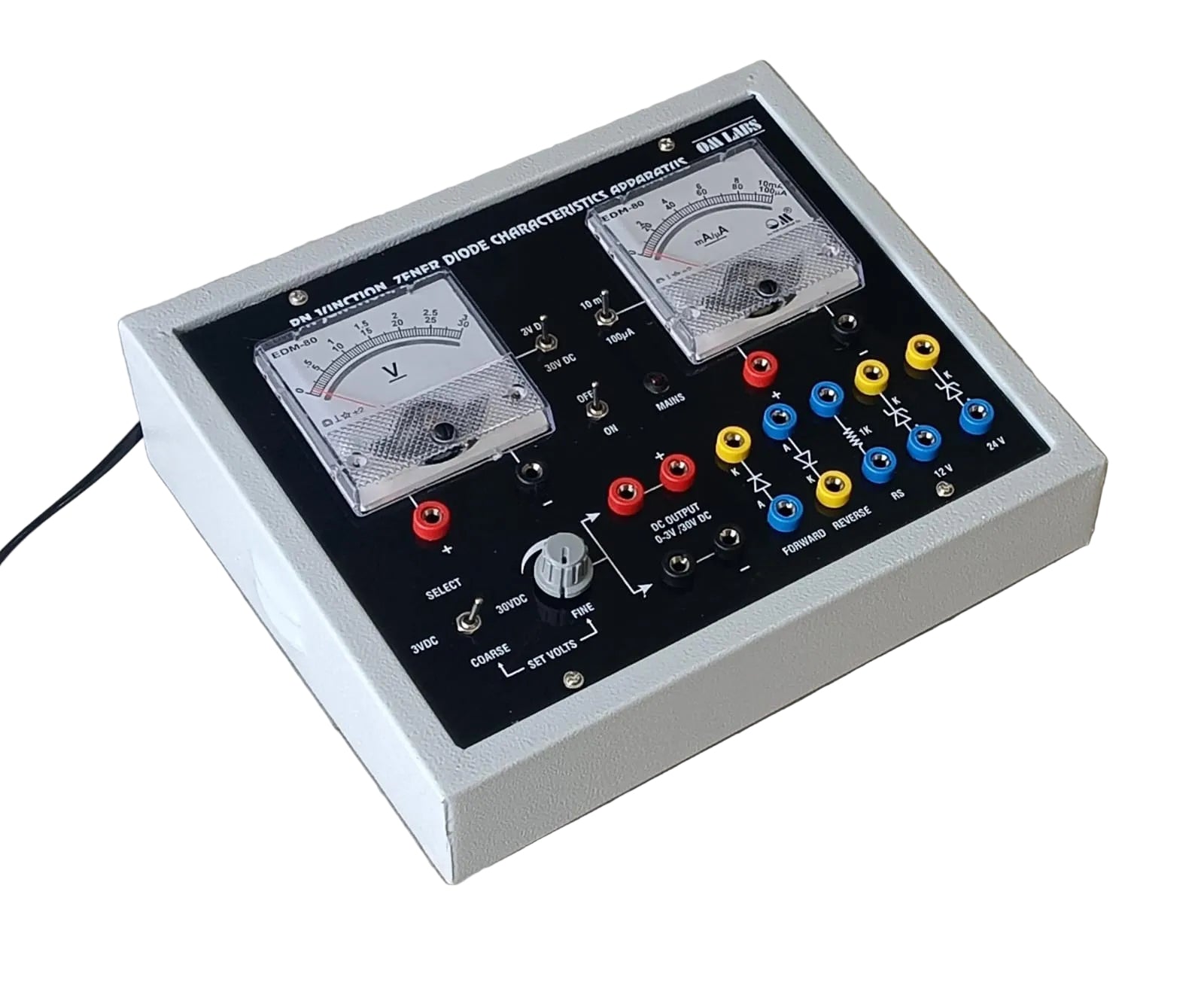

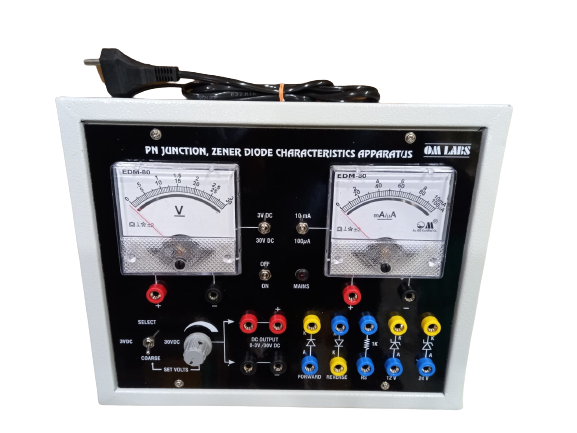

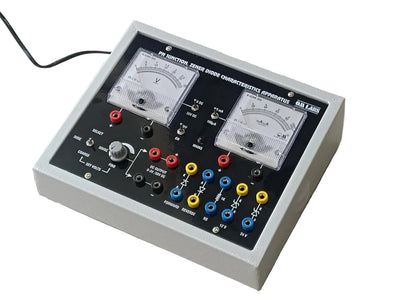

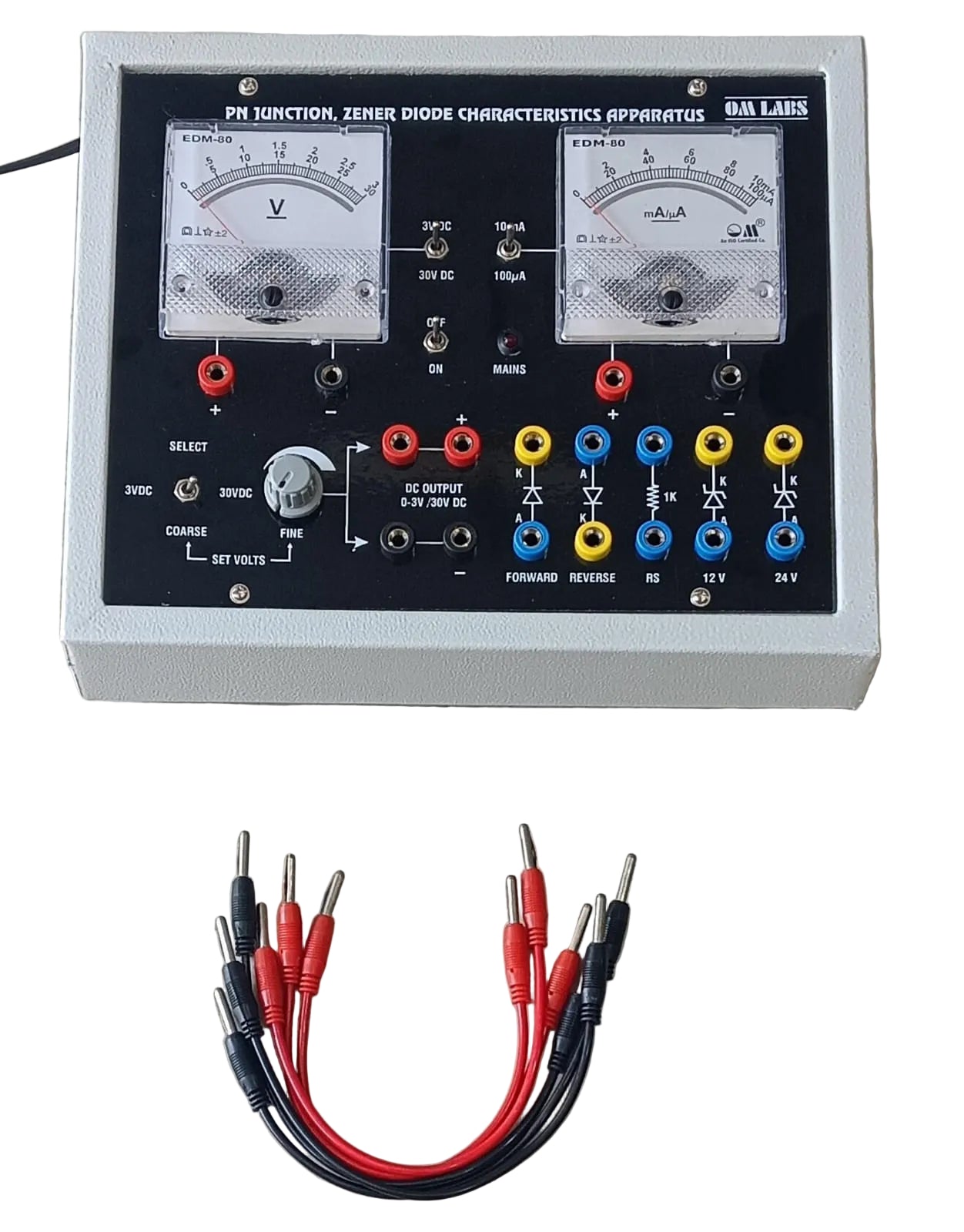

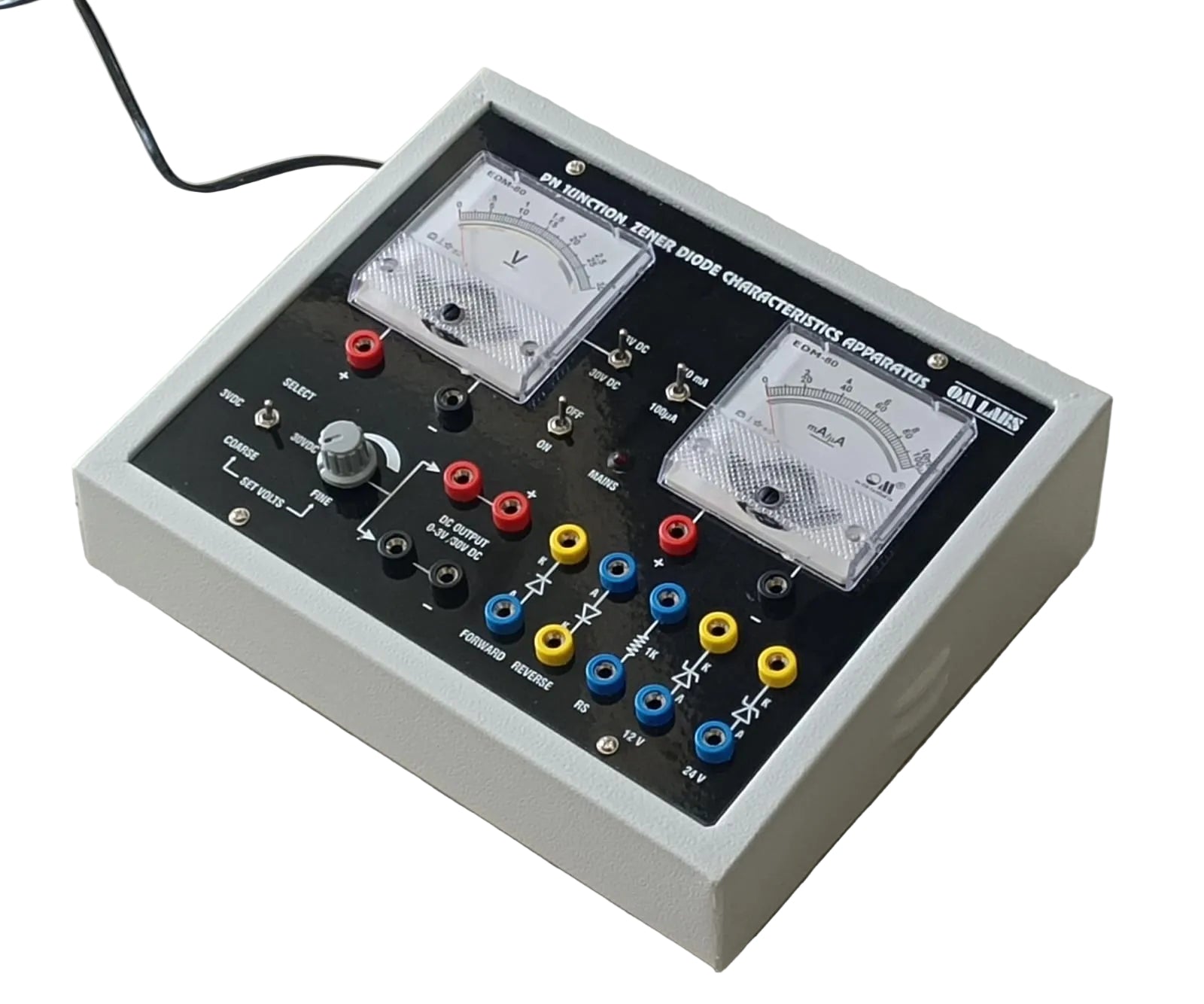

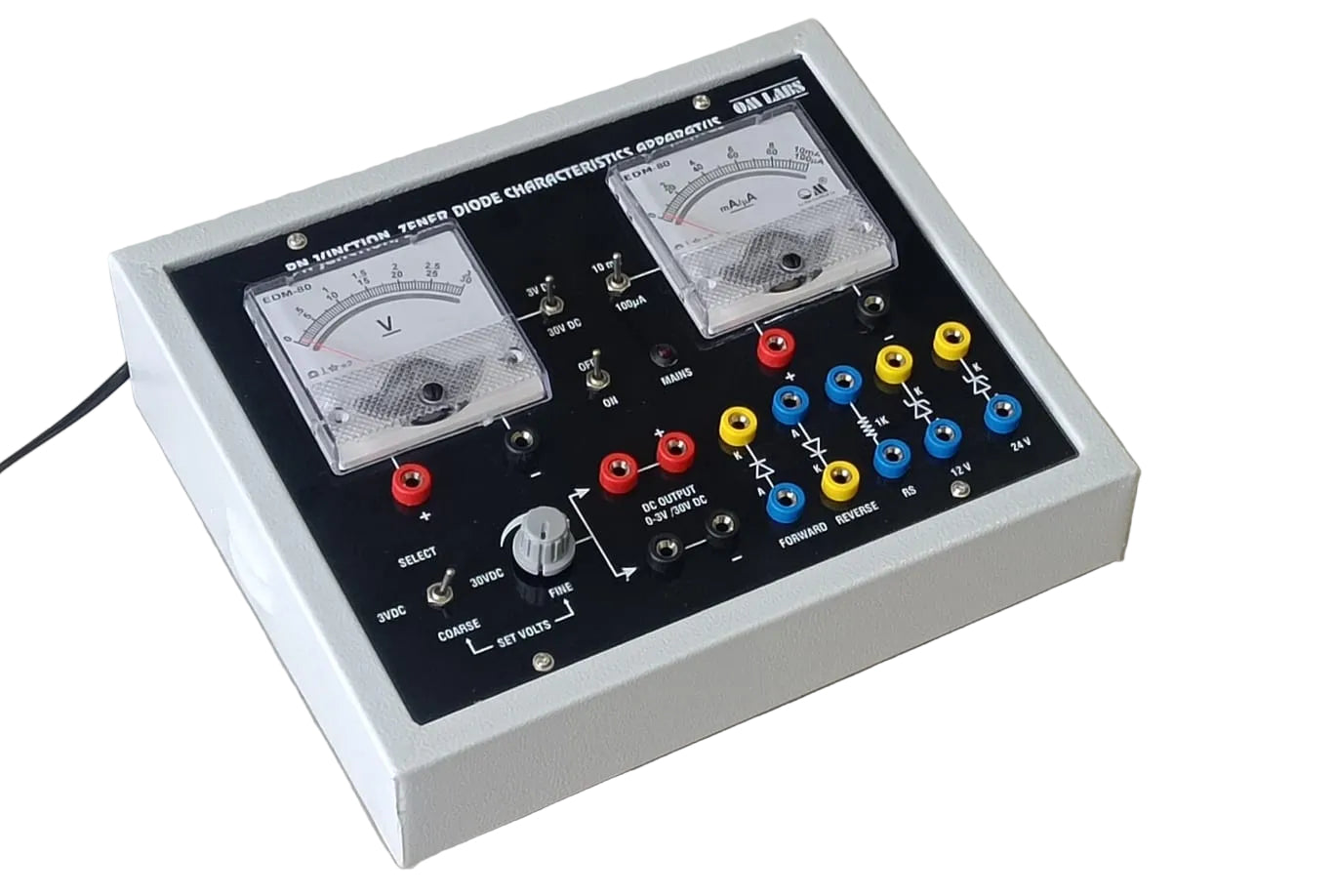

PN/ZENER Diode Combined Characteristics Apparatus

Specifications:

PN Junction/Zener Diode Characteristics Apparatus has been designed to study the forward and reverse characteristics of PN Junction Diode, forward/reverse & voltage stabilization characteristics of Zener diode and forward characteristics of PN Junction.

This Instrument comprises of the following built in parts:

• Two continuously variable DC regulated power supplies of 0-3V and 0-30V
• Two dual range meters to measure voltage & current are mounted on front panel and connection brought out on sockets.
• Two PN Junction diode (IN-34) Zener diode is mounted on the front panel and connections brought out on sockets
• Two selector switches (SPDT) as mounted on front panel for selection of dual range meters.
• Body: Metal
• Packing: Corrugated Box
• Weight: 1.9 kg Approx.
• Dimensions: 29 cm X 25 cm X 11 cm Approx.
• HSN Code: 8541
• GST: General Standard 18%
• Brand: OM LABS
