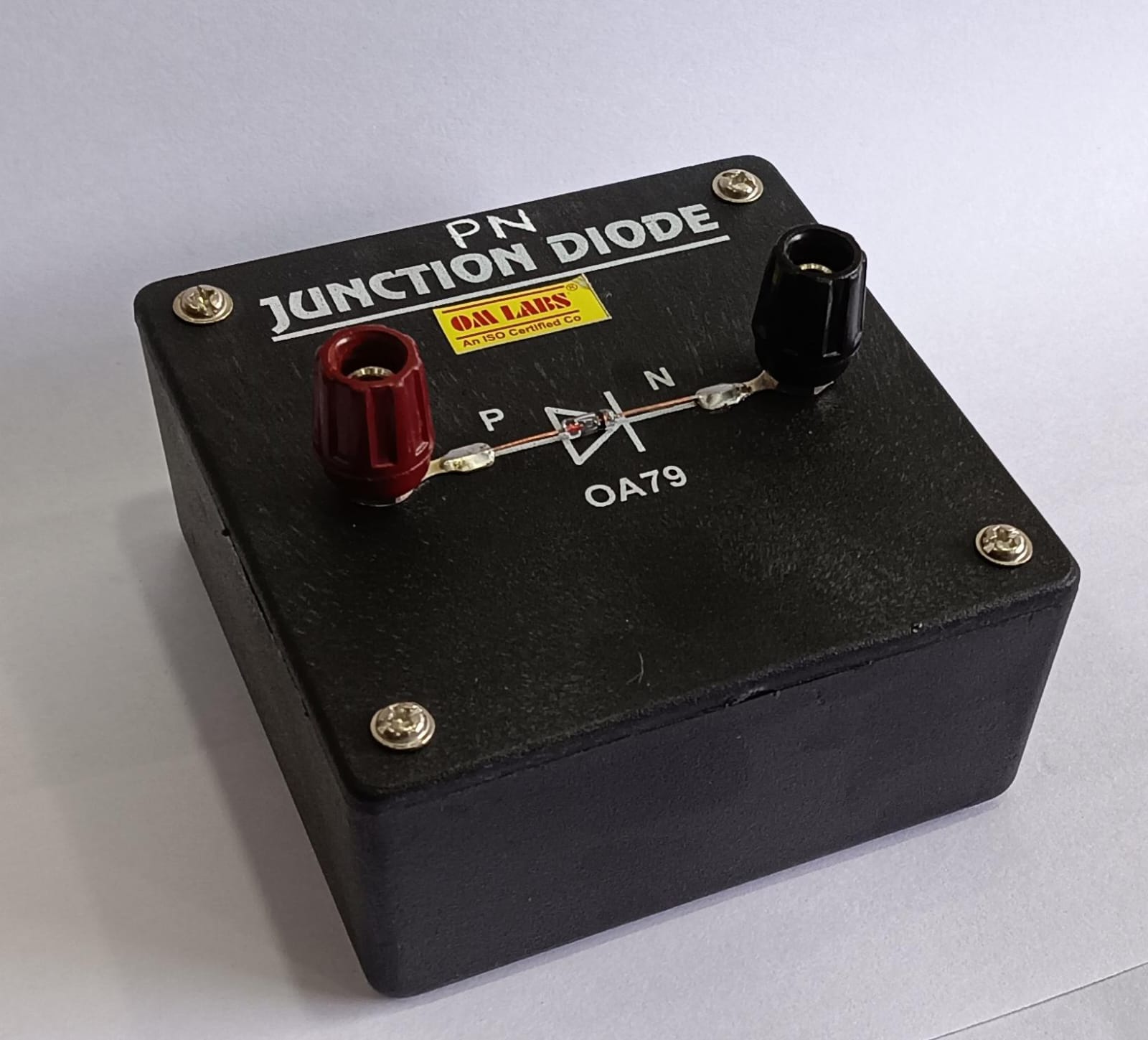

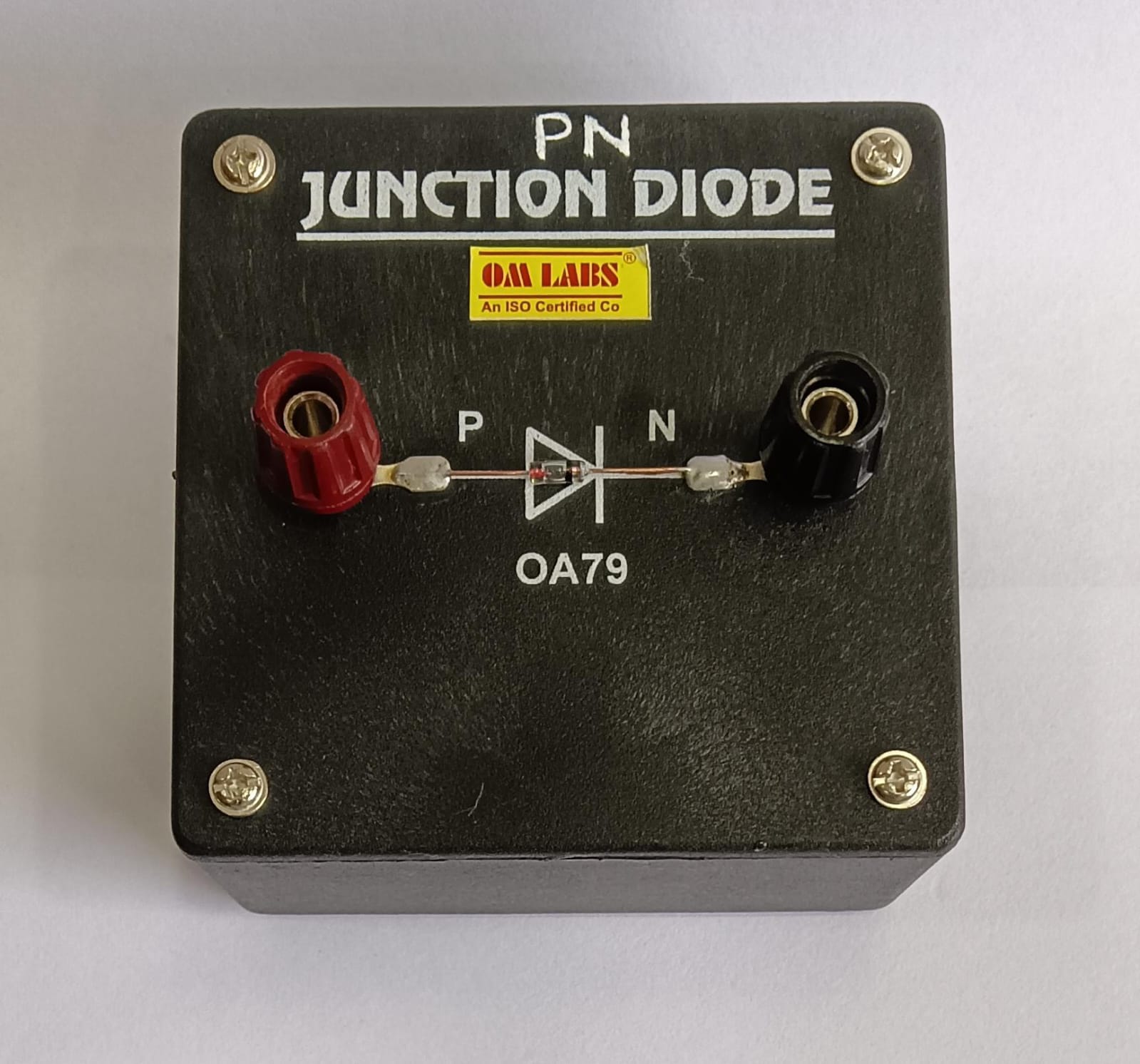

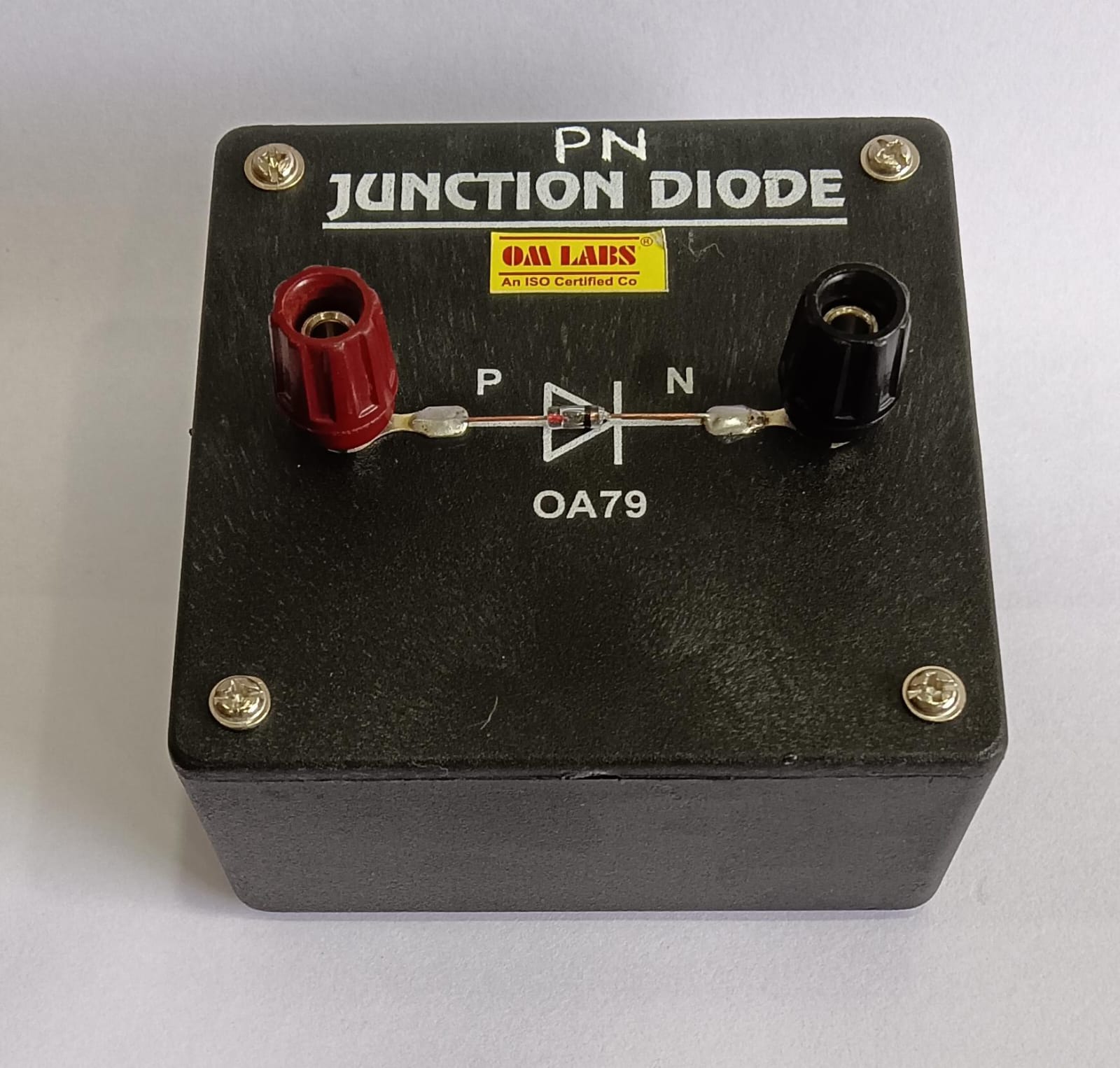

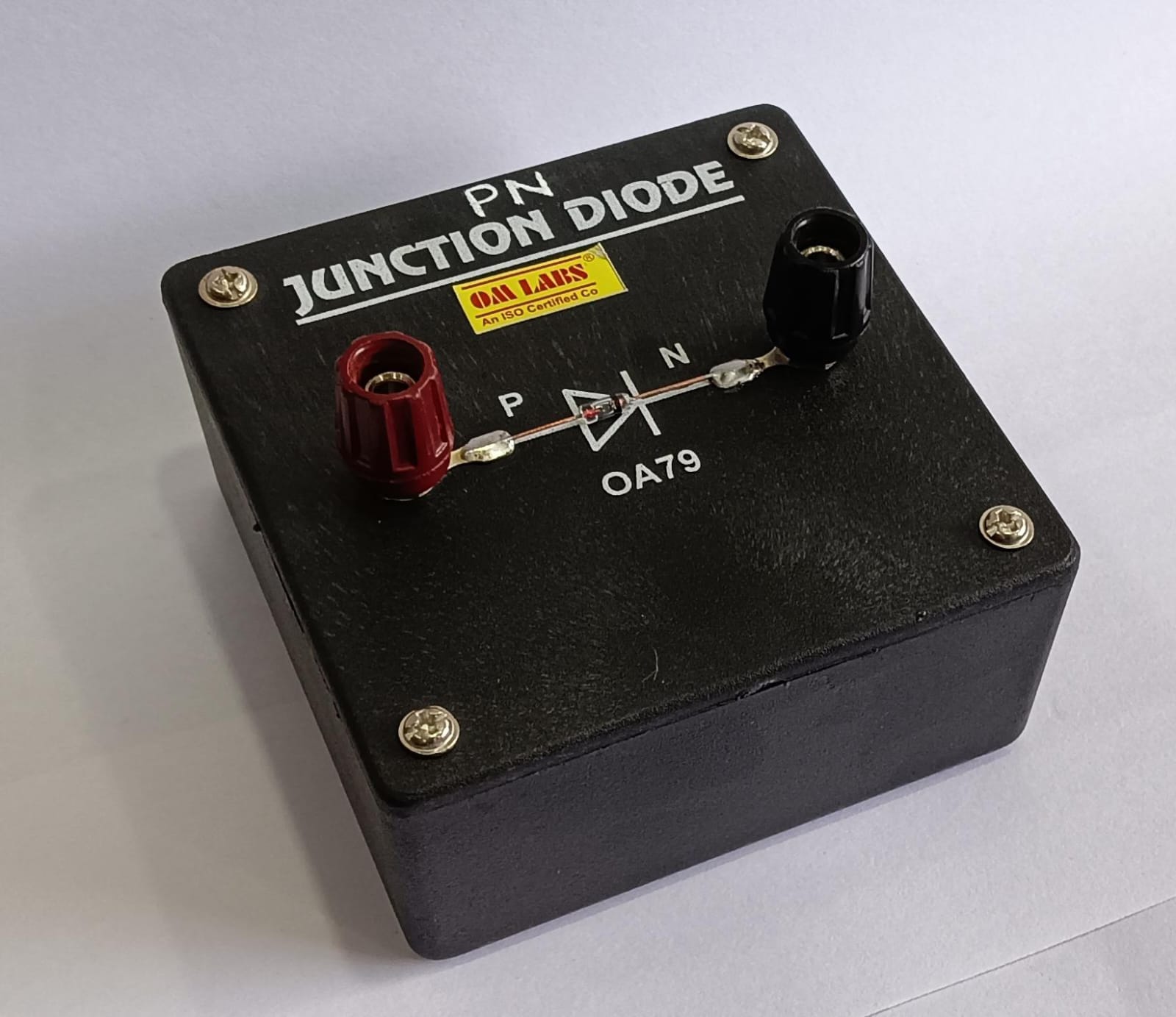

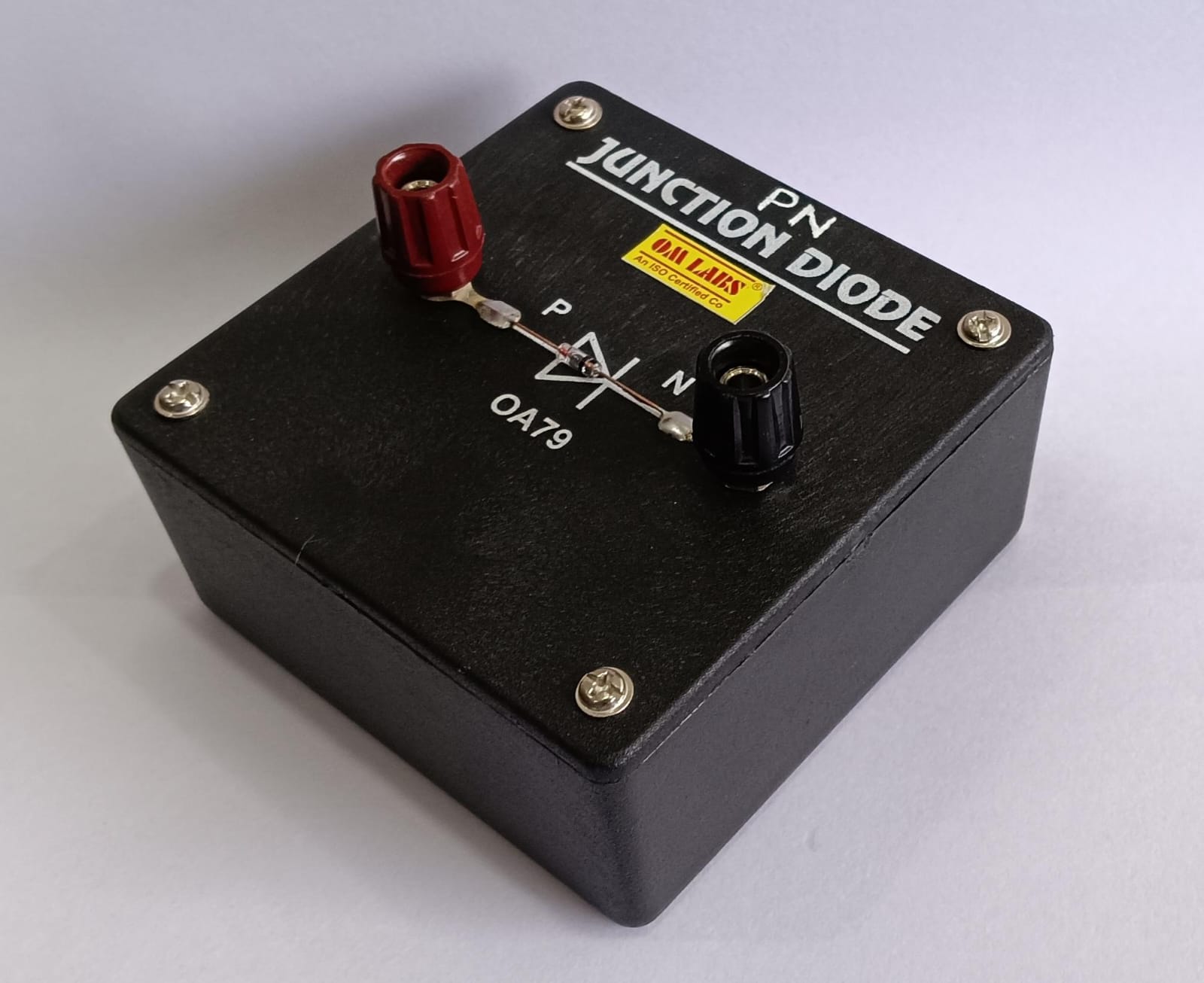

PN Junction Diode on Board

PN Junction Diode on Board

DISPATCHED WITHIN 1-5 DAYS.
24 HOURS RETURN/EXCHANGE POLICY
Rs. 150.00
Rs. 200.00 Rs. 150.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-544
Tags: Capacitance Board , Capacitance on Board , Diode on Board , Educational Kit , electronics , Junction Diode on Board , loose-components , physics-lab , PN Junction Diode on Board , Resistor Board , Resistor On Board , Resistor On Board 10 KΩ/1 Watt
View full details

Specification:

Ø  Product Name: PN Junction Diode Trainer / Module

Ø  Diode Type: OA79 Germanium Diode

Ø  Terminal Type: Banana Socket Terminals

Ø  Polarity Marking: P (Positive) and N (Negative)

Ø  Mounting: Enclosed Educational Demonstration Box

Ø  Body Material: Plastic

Ø  Colour: Black

Ø  Application: Electronics Lab Experiments & Educational Demonstration

Ø  Suitable For: Physics and Electronics Practical Labs

Ø  Connection Type: External Wire Connection via Terminals

Ø  Usage: Study of PN Junction Diode Characteristics and Forward/Reverse Biasing

Ø  Features:

o   Compact and durable design

o   Clearly marked terminals

o Easy laboratory connections

  • Dimensions: 10 x 10 x 8cm Approx.
  • Weight: 100gm Approx.
  • Packing: Card Board Box
  • HSN CODE: 9023
  • GST: General Standard 18%
  • CATAGORIES: Electronics
  • BRAND: OM LABS



Weight

1.0 kg

Dimensions 10 × 12 × 12 cm
