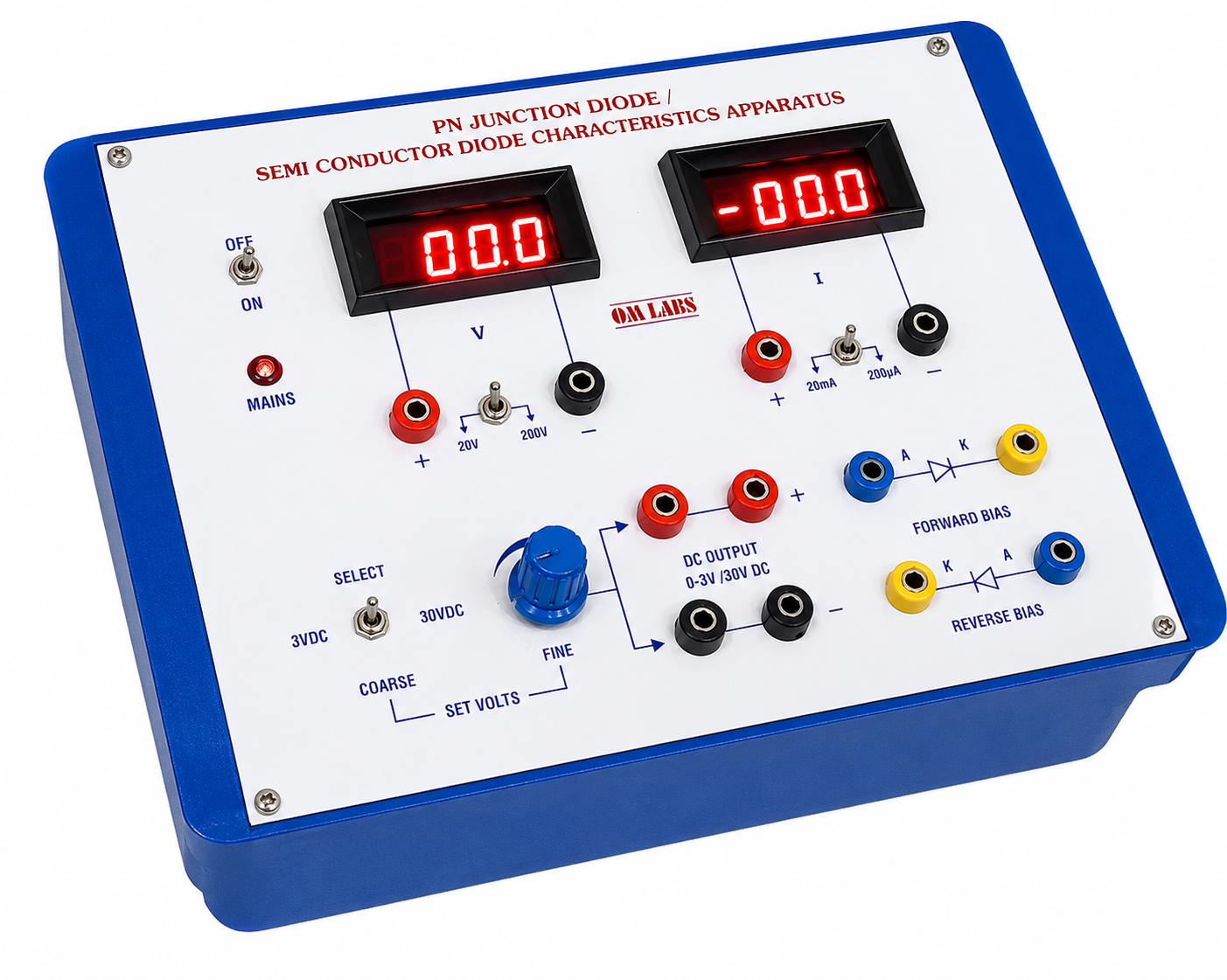

PN Junction diode Characteristics Apparatus (2 Digital Meters & Plastic Box)

Specification:

Product Name: PN Junction Diode Characteristics Apparatus

Model Type: Digital (2 Digital Meters)

Experiment: Study of Forward and Reverse Characteristics of PN Junction Diode

Display: Two Digital LED Displays

Voltmeter: Built-in Digital DC Voltmeter

Ammeter: Built-in Digital DC Ammeter

Power Supply: Built-in Regulated DC Power Supply

Measurement Capability: Forward Voltage, Forward Current, Reverse Voltage, Reverse Leakage Current

Diode Mounting: Easy-access test terminals / socket

Controls: Power ON/OFF switch and voltage control knob

Applications: Physics, Electronics, and Engineering Laboratory Experiments

Suitable For: Schools, Colleges, Universities, Technical Institutes, Polytechnic Labs

Key Features

• Designed to study forward and reverse V-I characteristics of a PN junction diode.
• Built-in dual digital meters for simultaneous voltage and current measurement.
• Rugged ABS plastic enclosure with compact design.
• Smooth variable regulated DC output.
• High-accuracy digital display for precise observations.
• Clearly marked controls and terminals for easy operation.
• Built-in safety fuse and overload protection.
• Ideal for physics, electronics, and engineering laboratory practical.
• Reliable, durable, and suitable for continuous educational use.
• Ready-to-use apparatus for classroom demonstrations and laboratory experiments.

       Dimension: 28 X 20 X 8cm Approx.

• Weight: 1405 kg Approx.
• HSN Code: 8541
• GST: General Standard 18%
• Brand: OM LABS
• Package Box : 29x 21.5x12cm
• Package Weight: 1636gm
