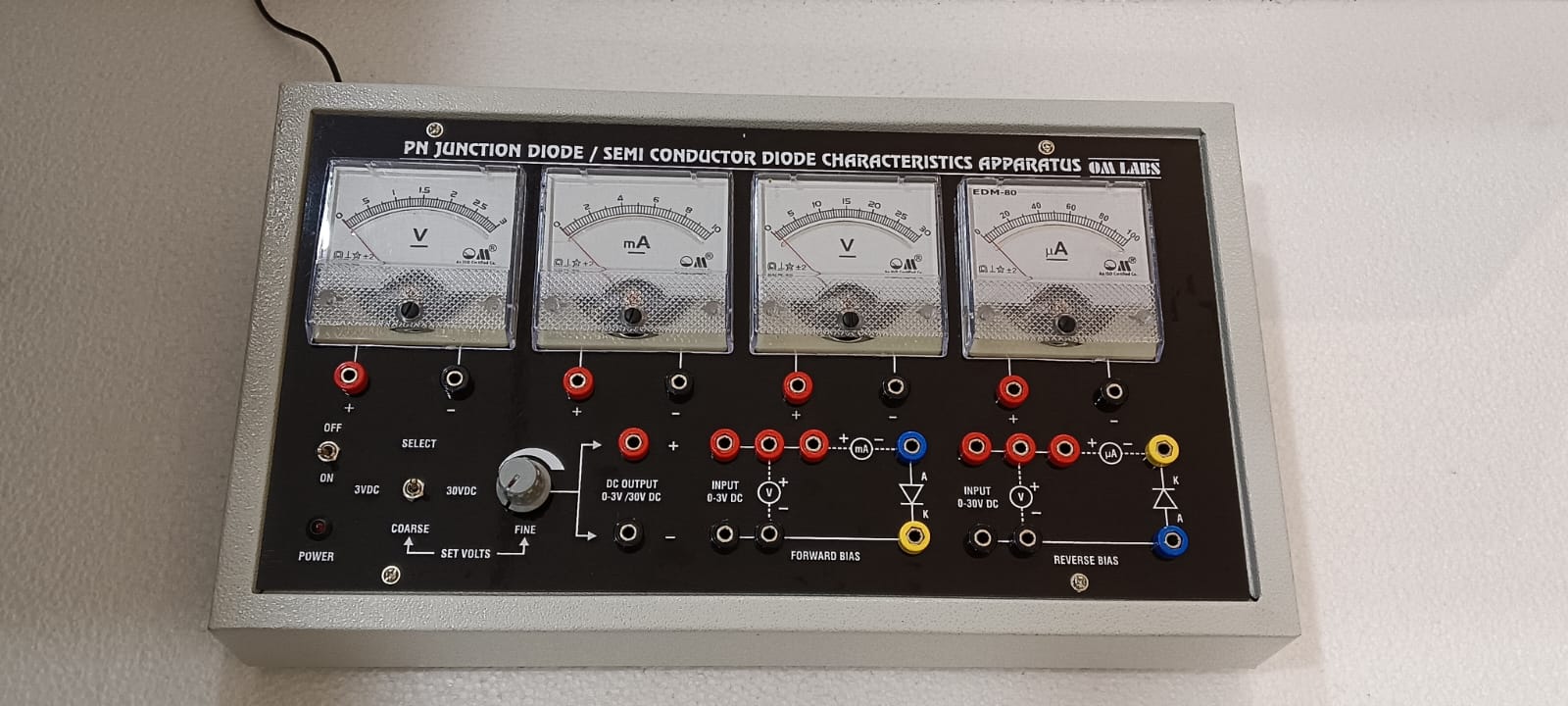

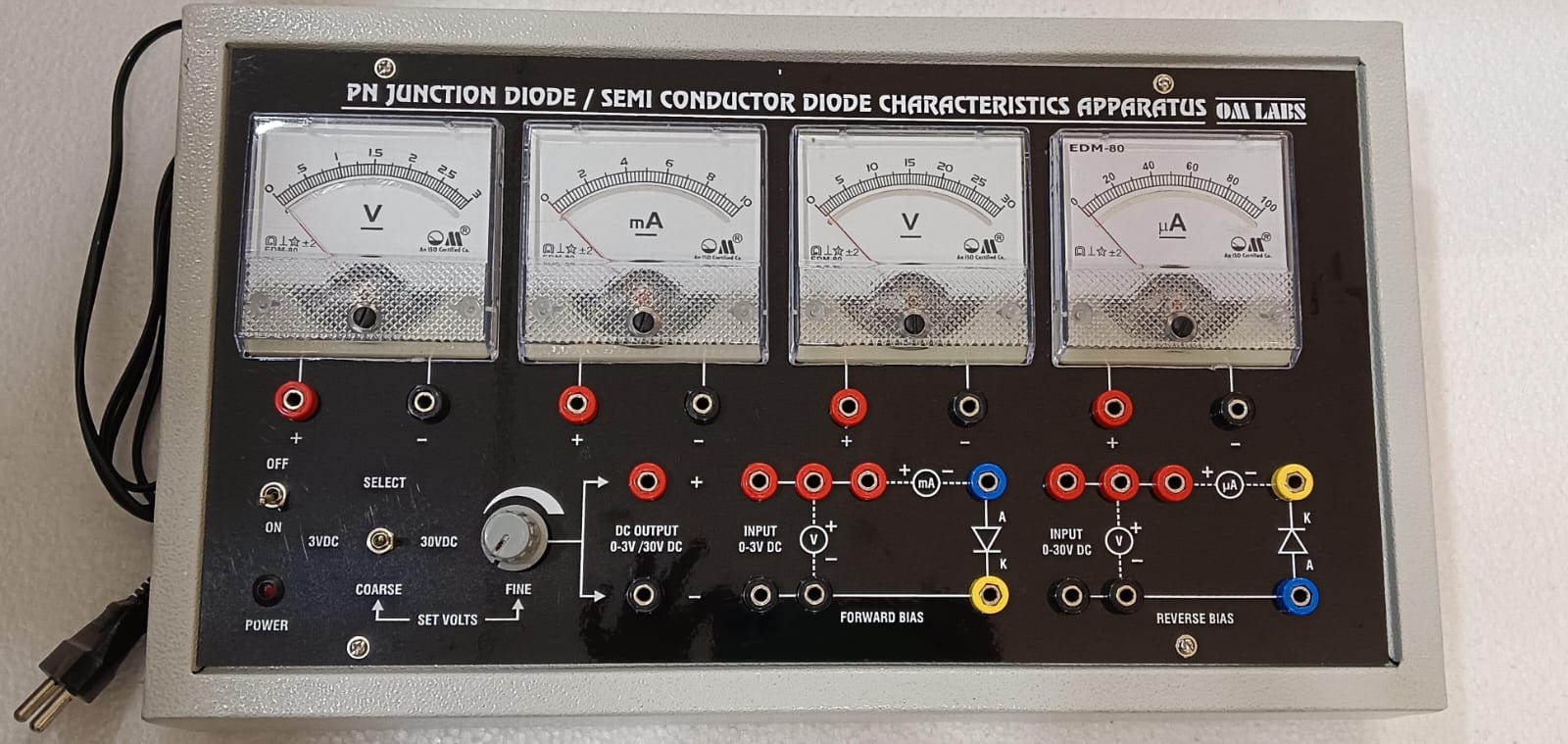

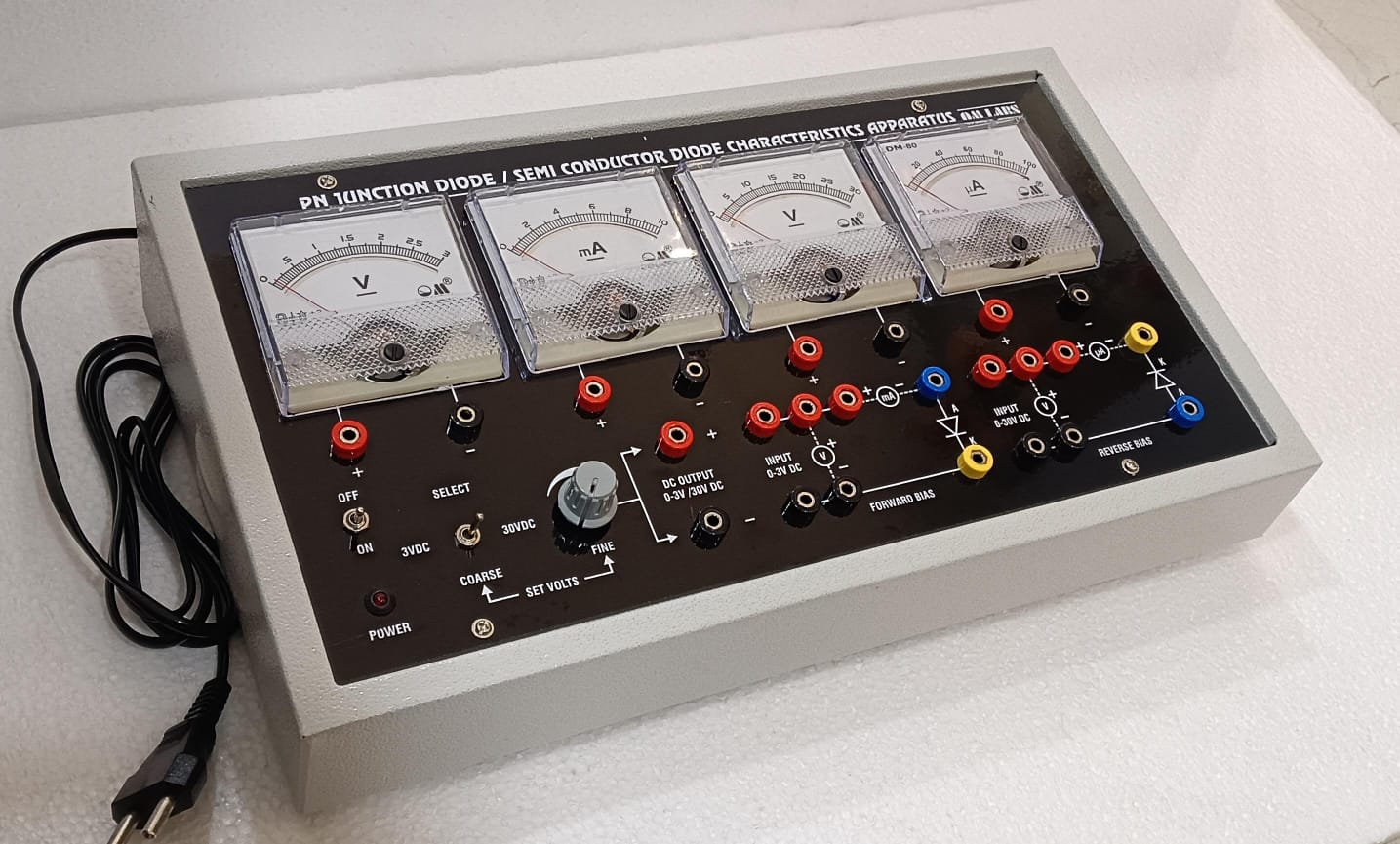

SPECIFICATION: PN Junction Diode Characteristics Apparatus has designed to Plot the Forward & Reverse bias Characteristics of PN Junction Diode.
Two Continuously Variable DC Regulated Power Supplies Of 0-3v & 0-30v.
Input Voltage: 230v+10%AC,50 Hz
Load Regulation: +2%
Line Regulation: +05%
Ripple: Less than 3Mv R.M.S.
Four Range Meters to measure voltage & current and range can be selected using SPDT Switches are provided on the Front panel with connections brought out on sockets/terminals.
Two PN Junction Diode are mounted inside the cabinet with connections brought out on sockets to plot the forward & reverse bias characteristics.
