PN Junction diode Ch. App. (4 Digital Meters & outside wire connection)

SPECIFICATION: A diode is a unidirectional semiconductor device, i. e, it permits the current to flow through only in one direction. When the p side is connected to the positive terminal and n side to the negative terminal, the diode will be forward biased. In forward bias the diode offers low resistance to the current. In a diode, only a few tenths of a voltmeter (0.7vV for silicon) of forward bias is required for appreciable current flow. In the forward biased condition the current should be limited within the specified value by using a series resistance, known as current limiting resistor. A high current may burn off the diode. The reverse diode current is very small, usually in the range of microamperes. In such situation the series resistance may be removed.

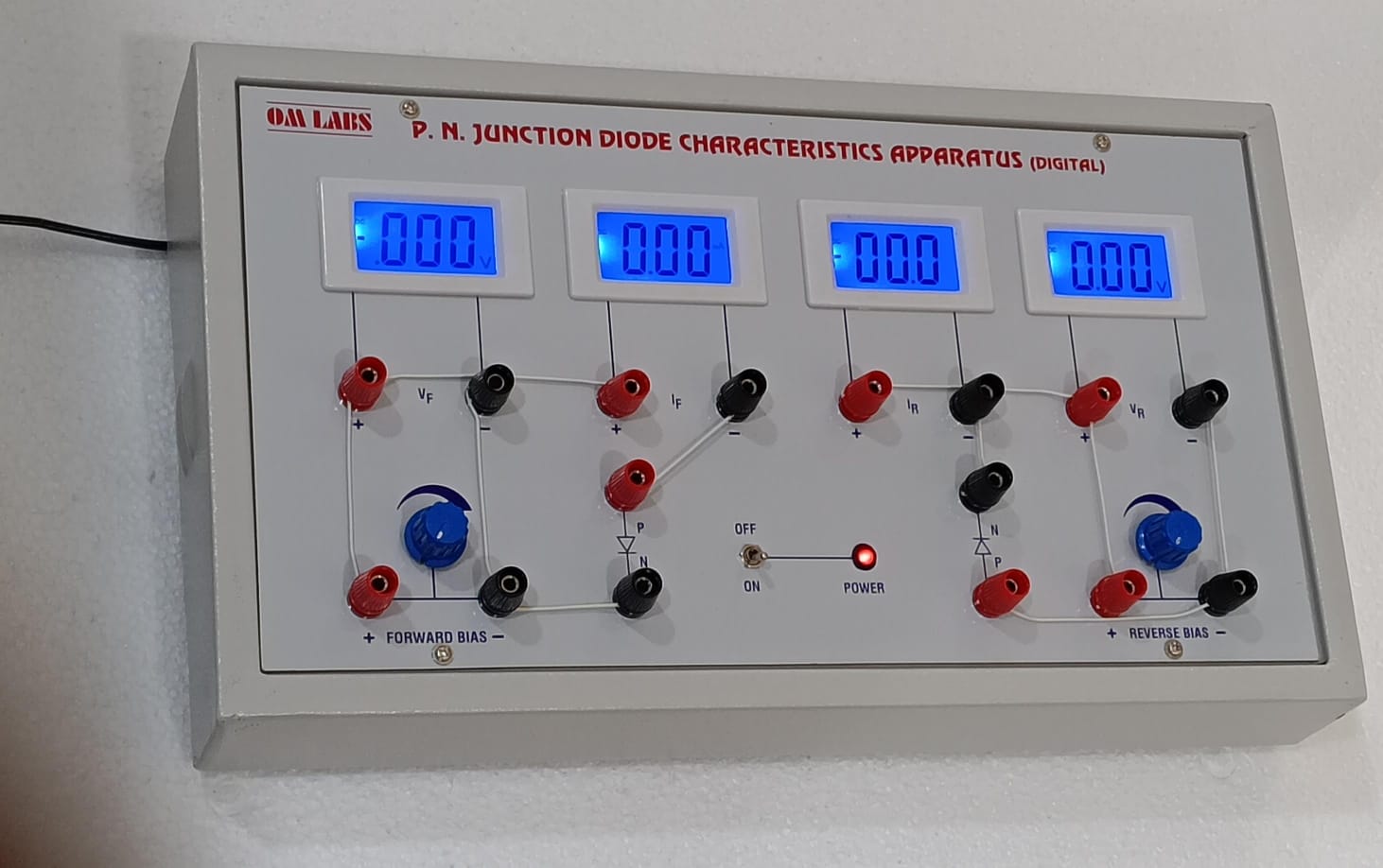

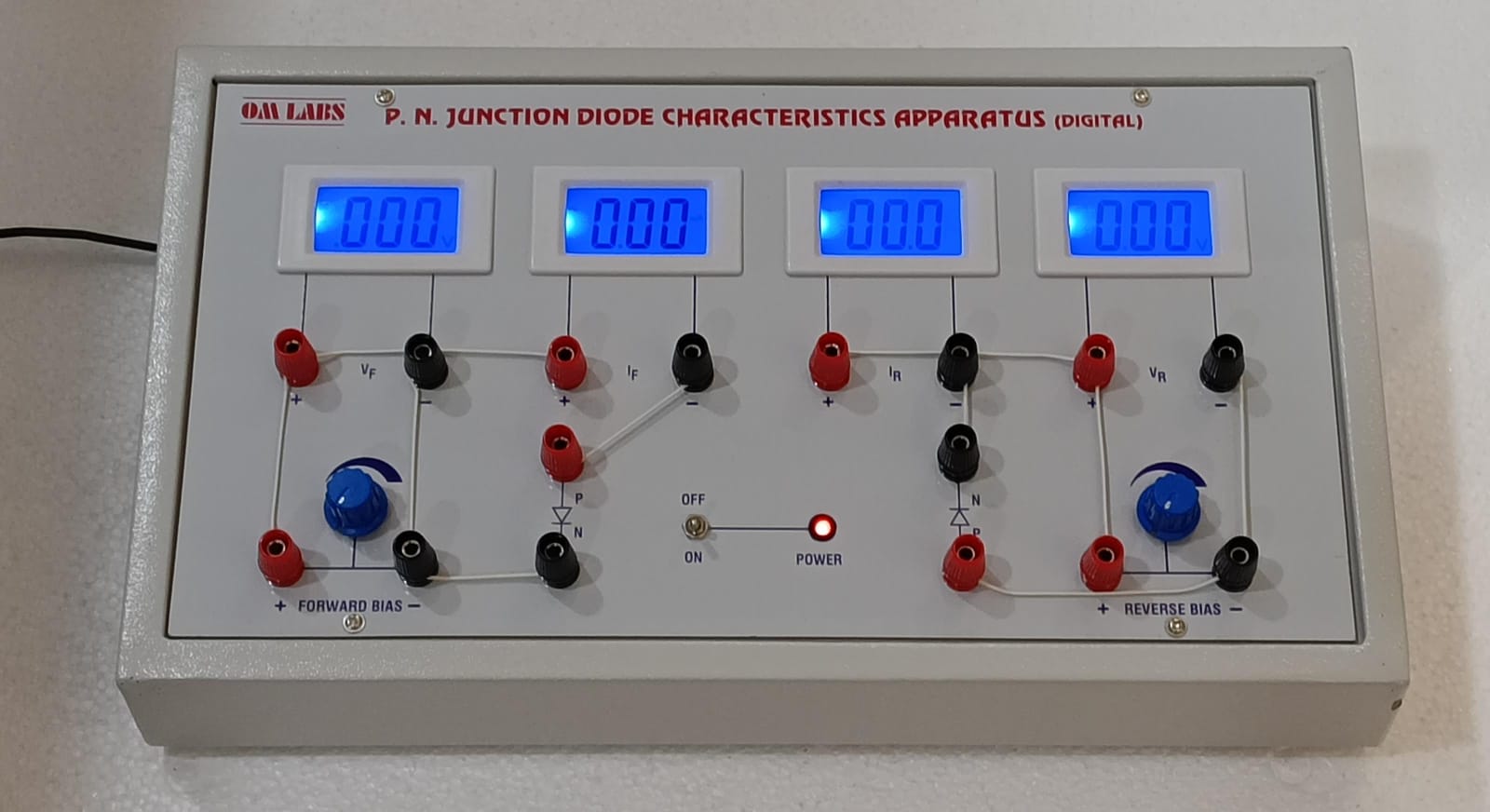

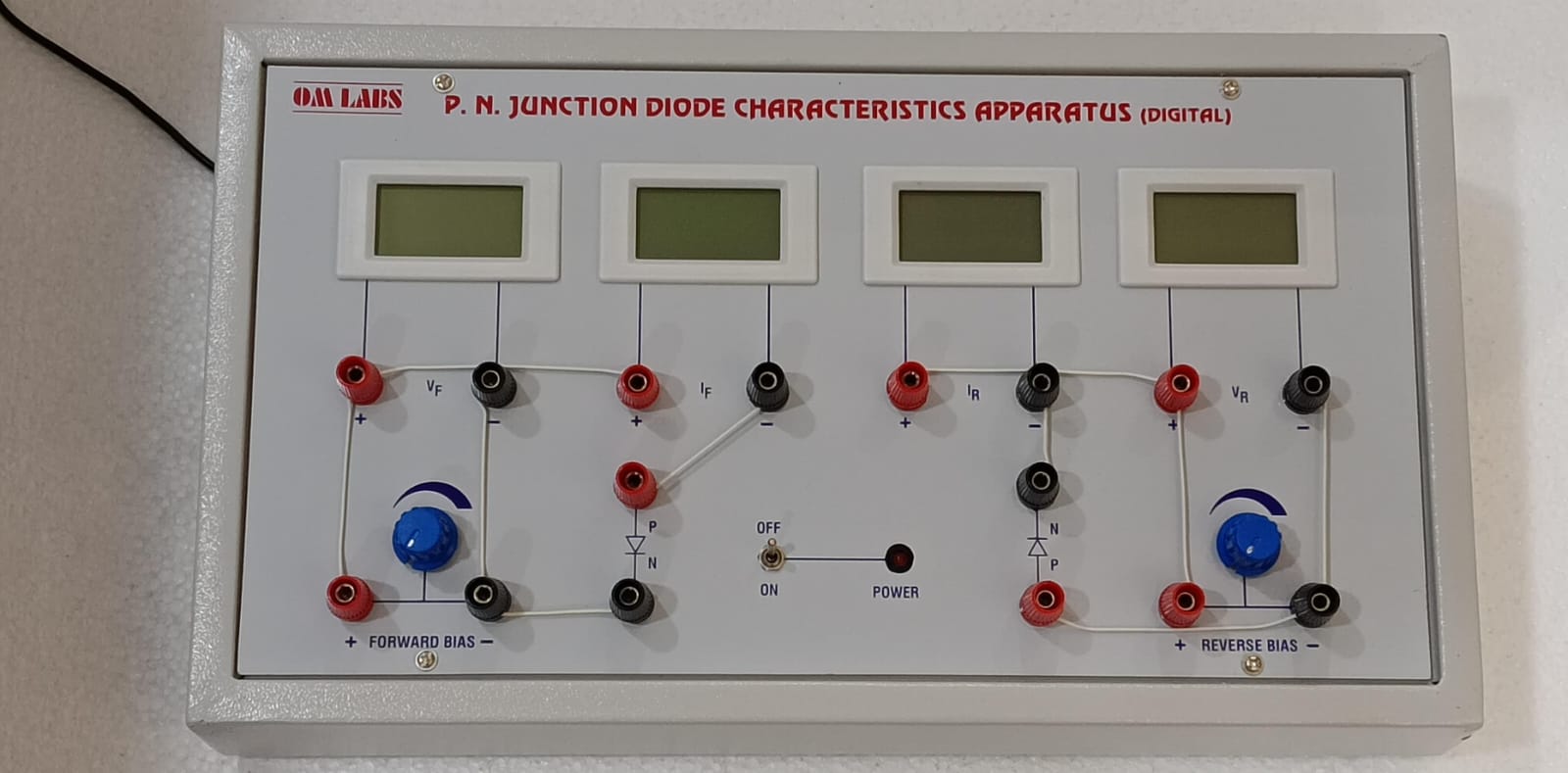

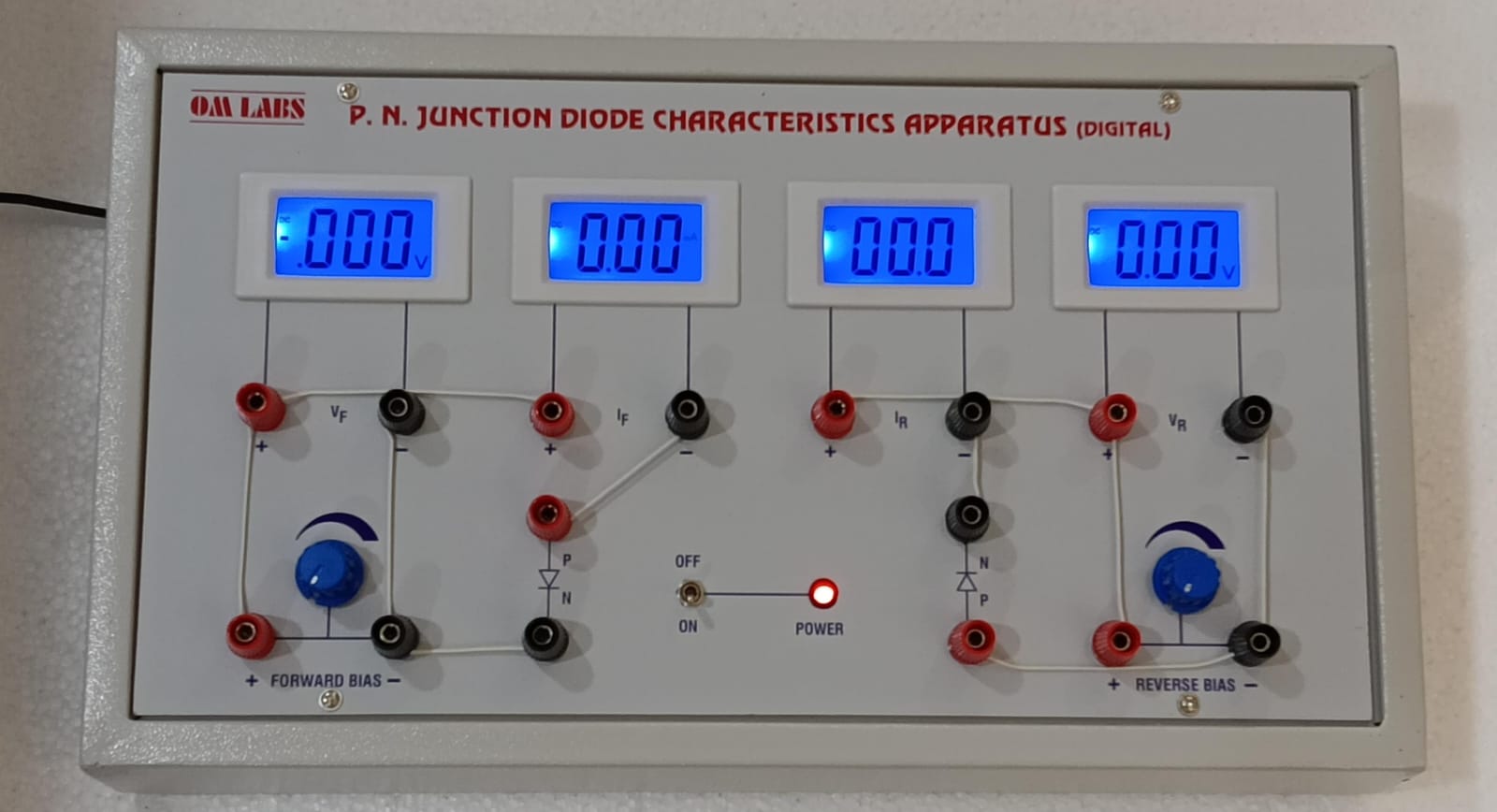

• P N Junction/ Semi-Conductor Diode Characteristics Apparatus is used for doing the practical of PN Junction Diode in Forward & Reverse Bias
• This Instruments comprises: Four Digital meters for Observations of Volt & Current Two Variable
• Regulated Power supplies of 0-30V & 3V, 10mA DC/100uA DC with Coarse & fine Knob Two
• PN Diodes are placed inside the cabinet for forward & reverse Bias practical

• Dimensions:42 x 25 x 12cm Approx.
• Weight: 2.5kg Approx.
• Packing: Card Board Box
• HSN CODE: 8541
• GST: General Standard 18%
• CATAGORIES: Electronics
• BRAND: OM LABS
