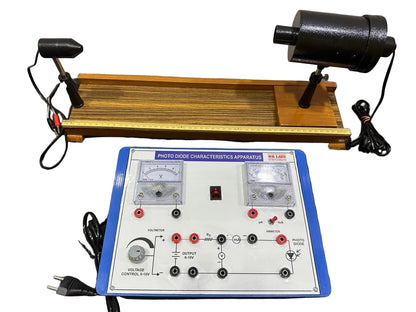

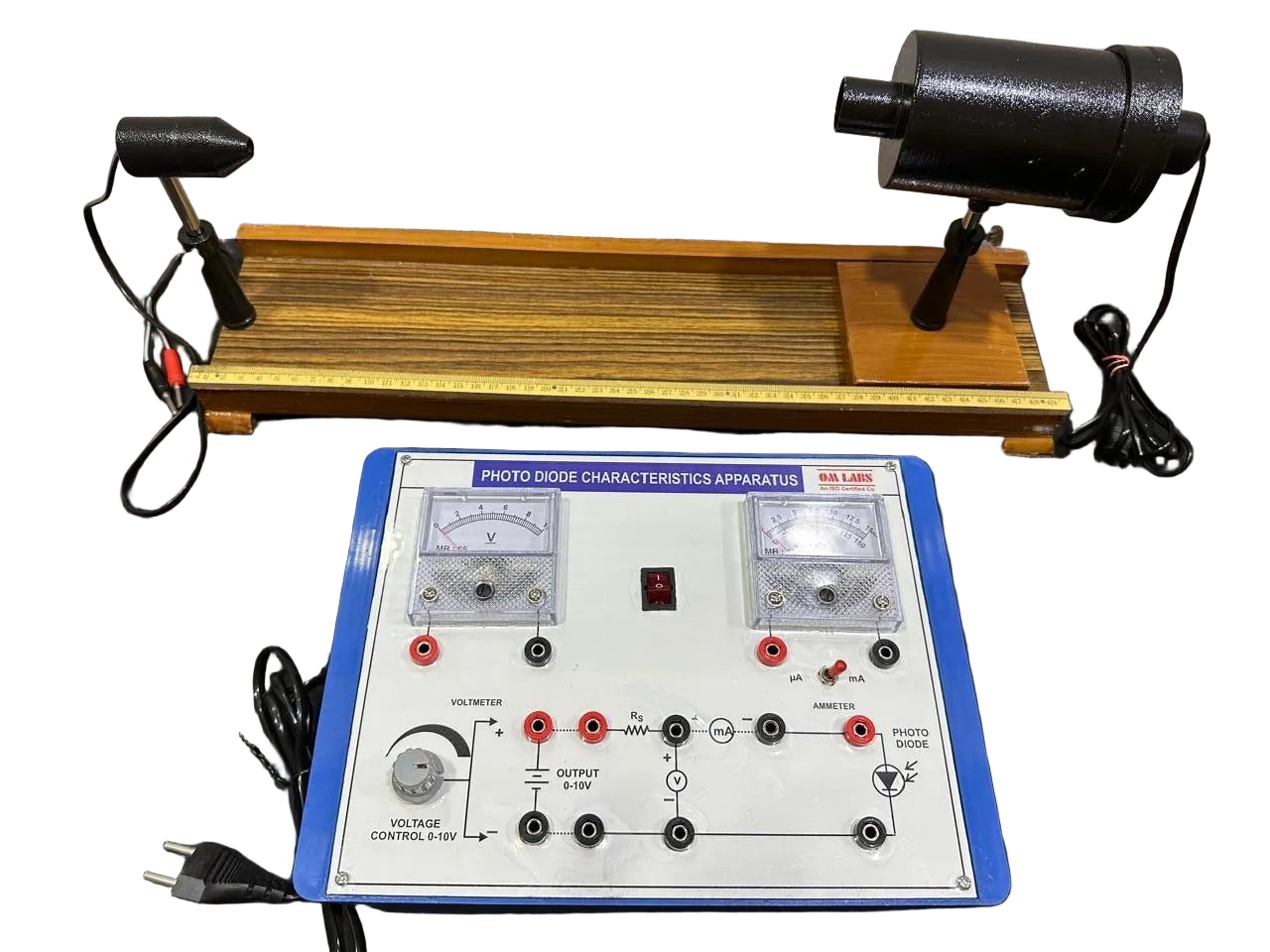

Photo diode Characteristics Apparatus with light source Analog Meters

Specification:

Ø  Product Name: Photo Diode Characteristics Apparatus

Ø  Experiment: To study the V-I characteristics of a Photodiode under different light intensities and verify its working in photoconductive mode.

Ø  Main Components:

o  Built-in DC Power Supply (0–10V)

o  Voltmeter for voltage measurement

o  Micro Ammeter / Milli Ammeter for current measurement

o  Photodiode mounted on holder

o  Movable light source (lamp) with optical bench

o  Distance scale for light intensity variation

o  Connecting terminals and patch cords

o  On/Off power switch

Ø Accessories

o   Patch cords

o   Power cable

o   Instruction manual

Ø  Applications

o   Physics laboratory experiments

o   Study of photoelectric effect

o   Electronics and semiconductor studies

o  Engineering and science colleges

Product Dimensions & Weight

• Apparatus: Dimensions 28 × 20.5 × 8 Cm | Weight: 1.280 kg
• Accessories: Dimensions 50 × 12.5 × 4 Cm | Weight: 1.660 kg
• Packing: Cardboard Box
• Packed Apparatus: Dimensions 29 × 24 × 12 Cm | Weight:1.500 kg
• Packed Accessories: Dimensions 69 × 18.5 × 13 Cm | Weight:1.940 kg
• Overall Packing Dimensions: 69 × 23 × 27 Cm
• Total Gross Weight: 3.440 kg
• GST: 18%
• Category: Educational Electronics Instrument & Apparatus
• Brand: OM LABS
