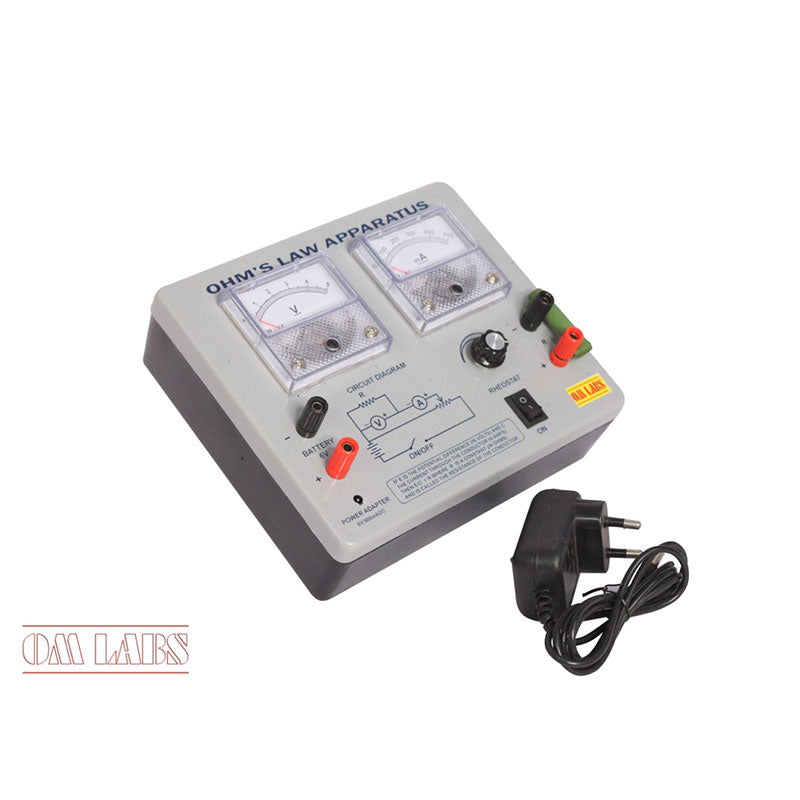

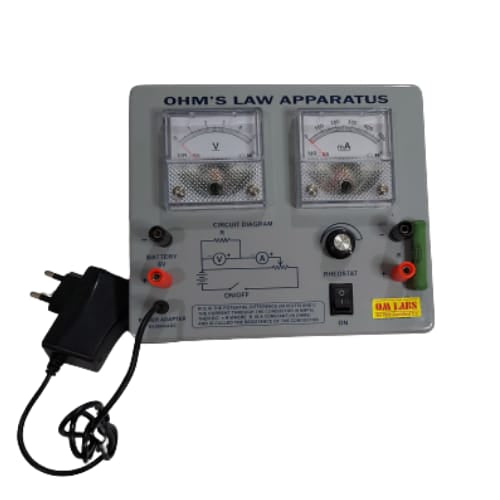

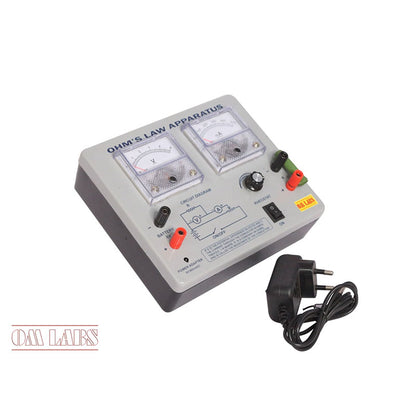

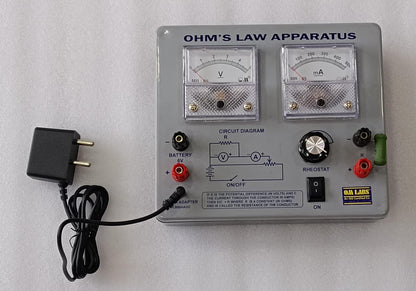

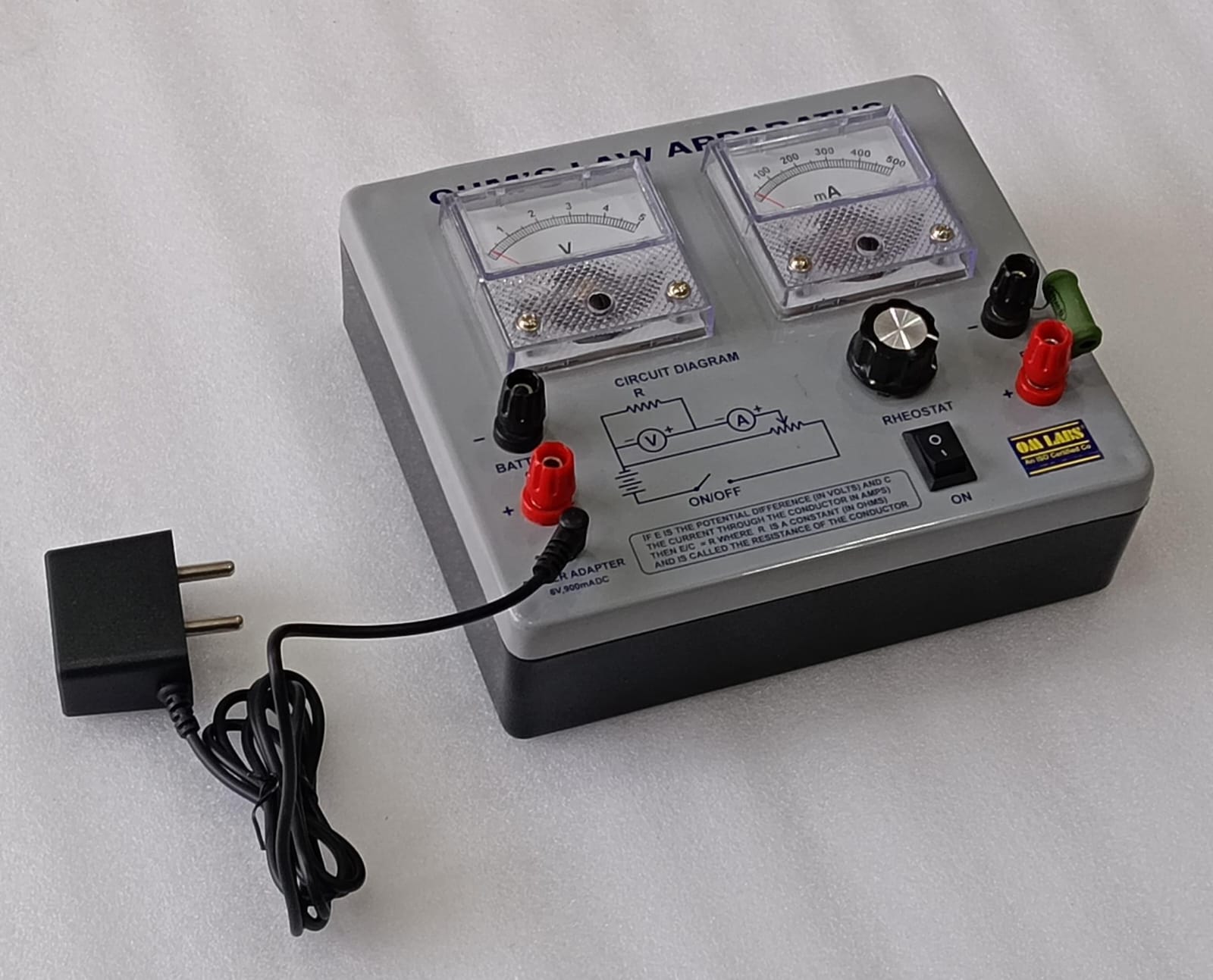

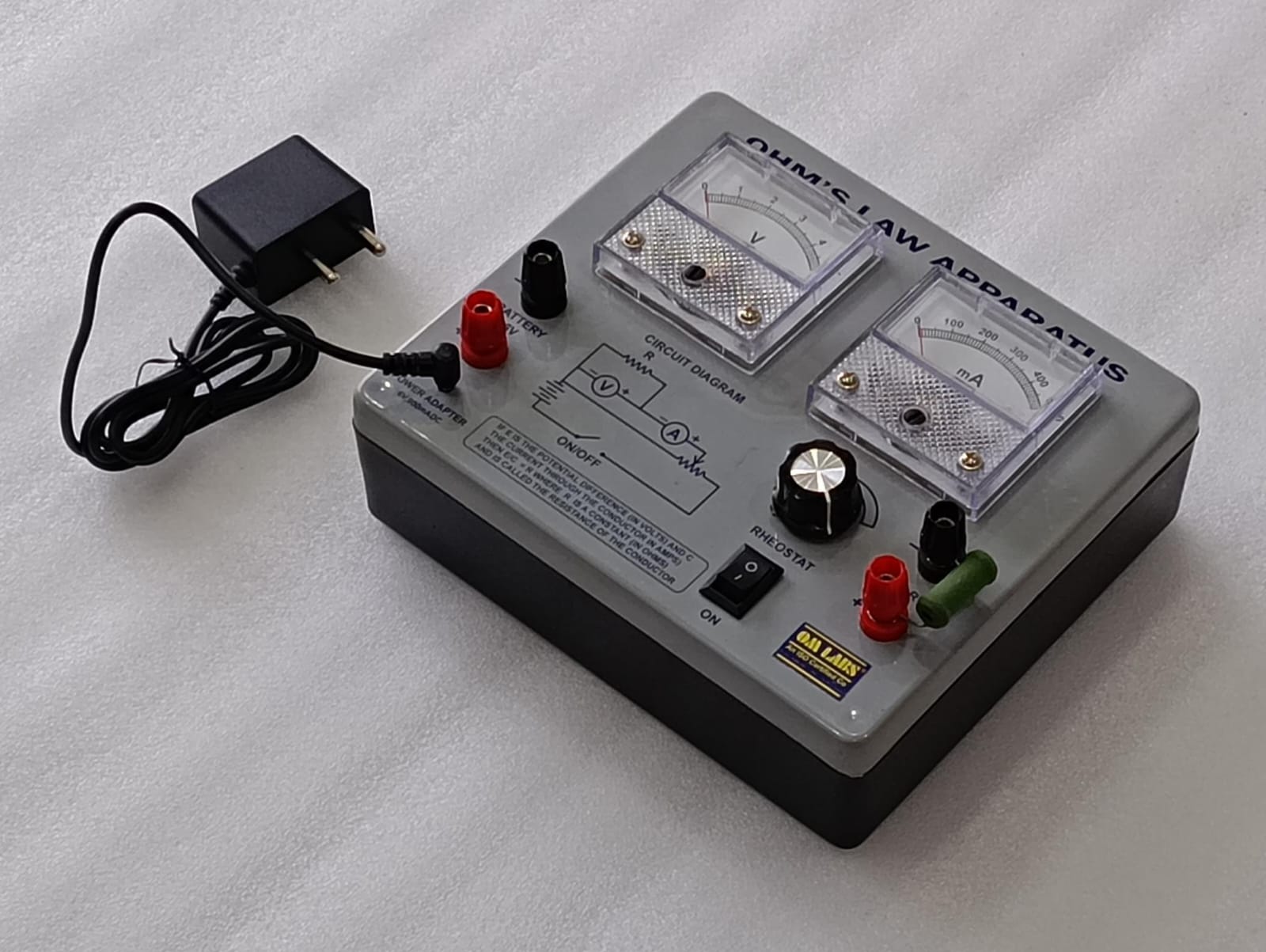

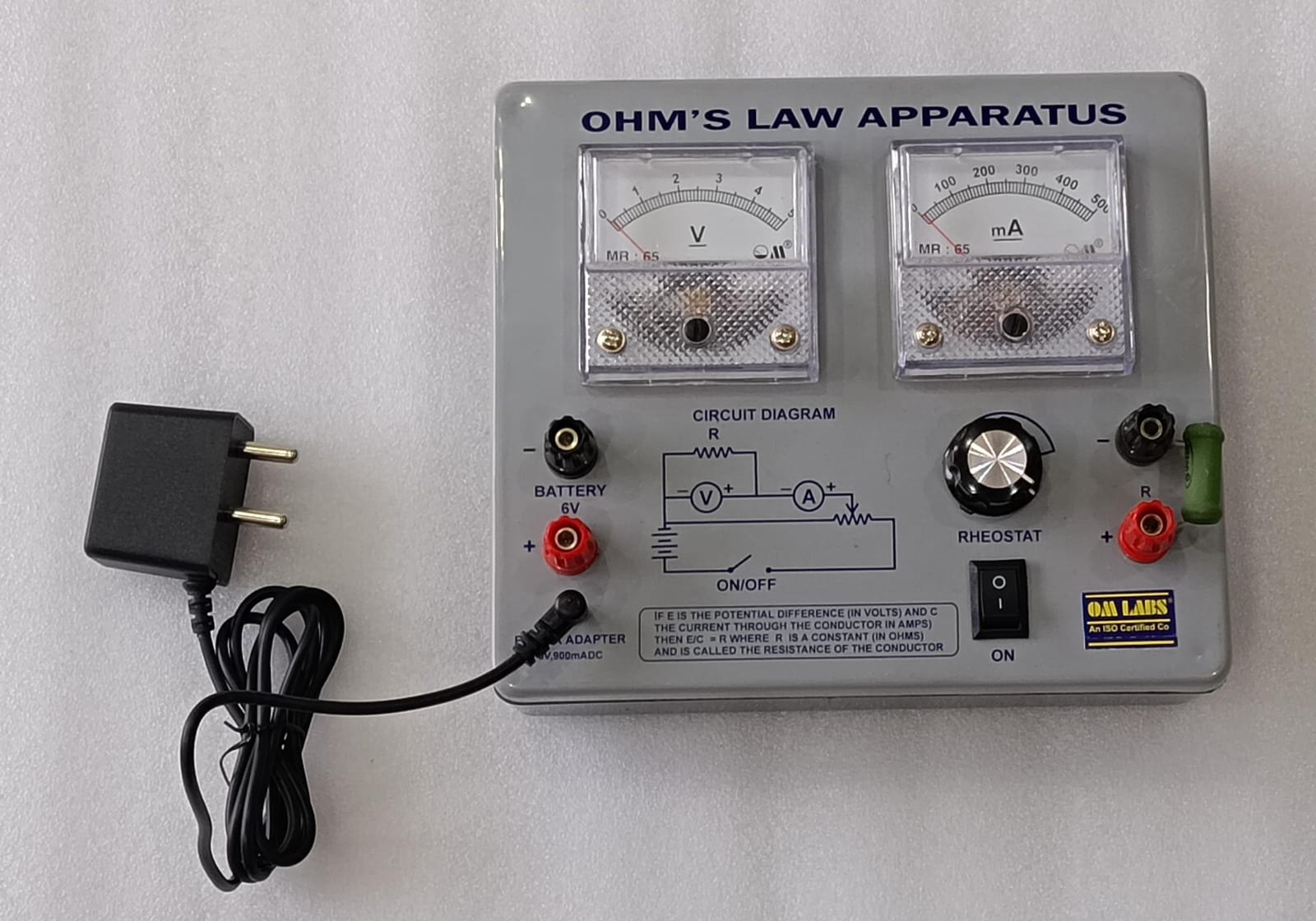

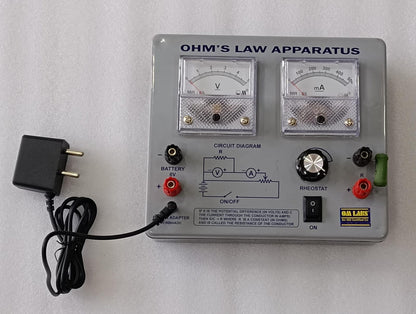

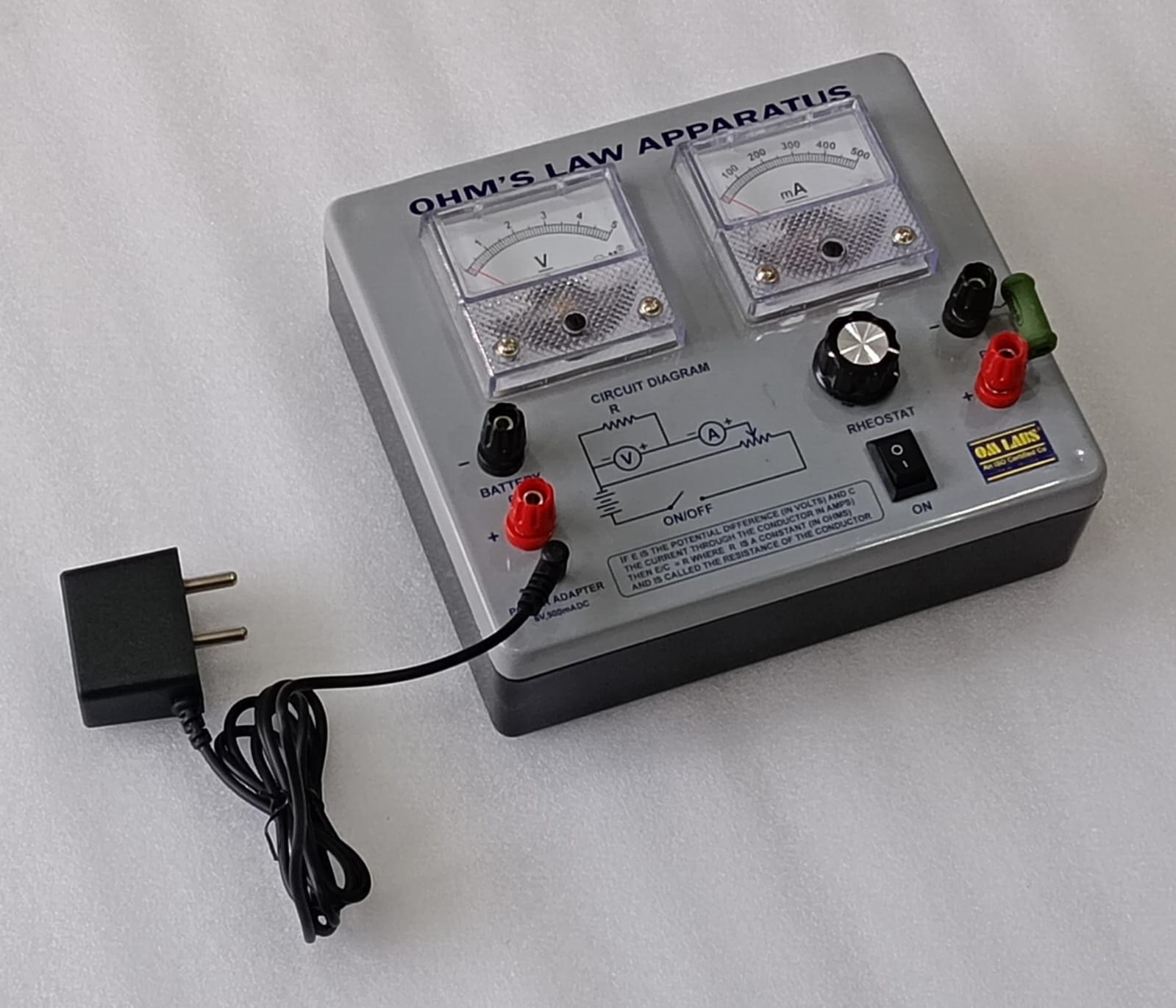

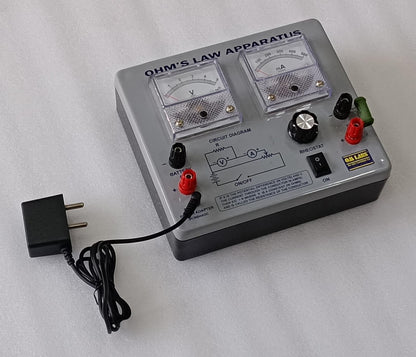

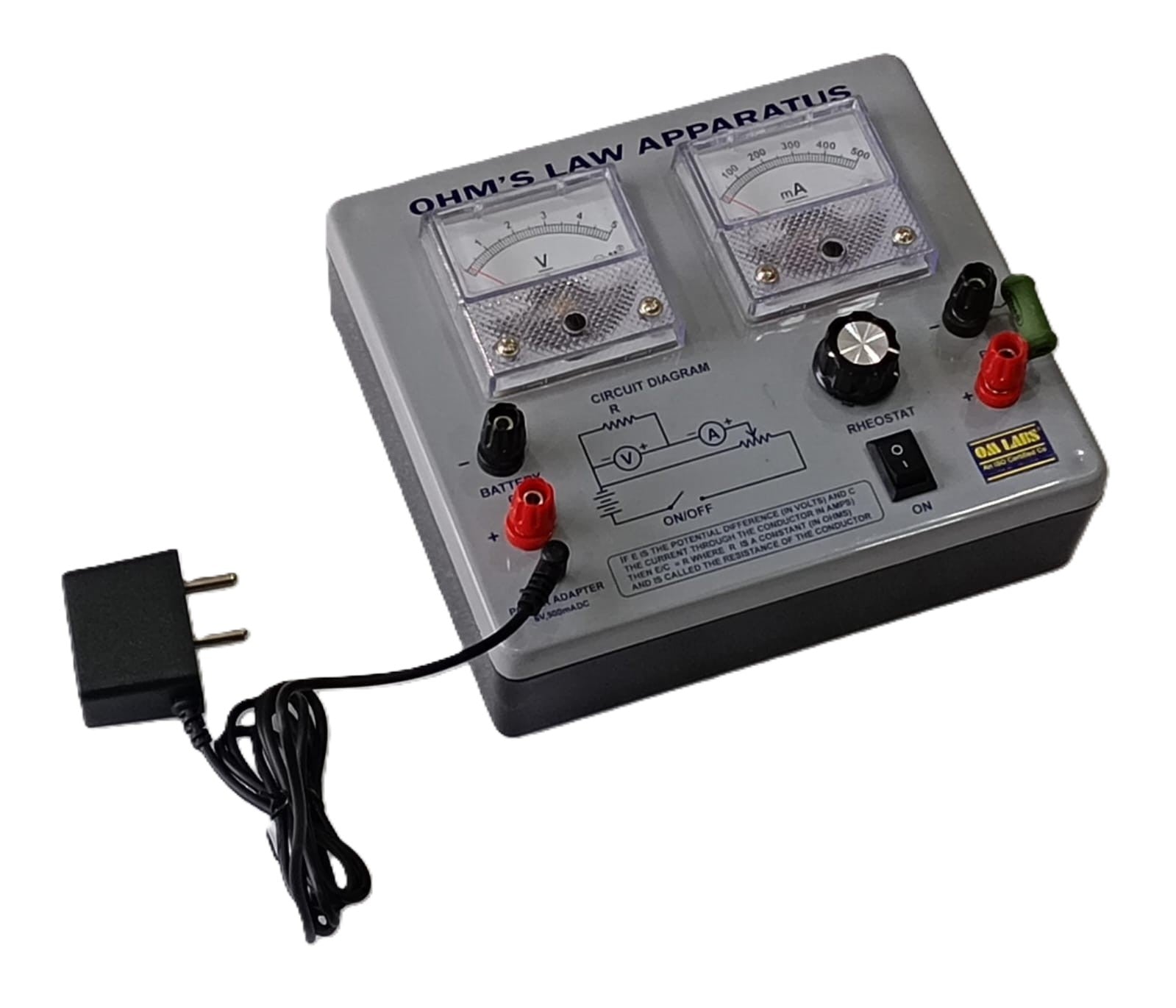

Ohm’s Law Apparatus With Adapter

Specification :

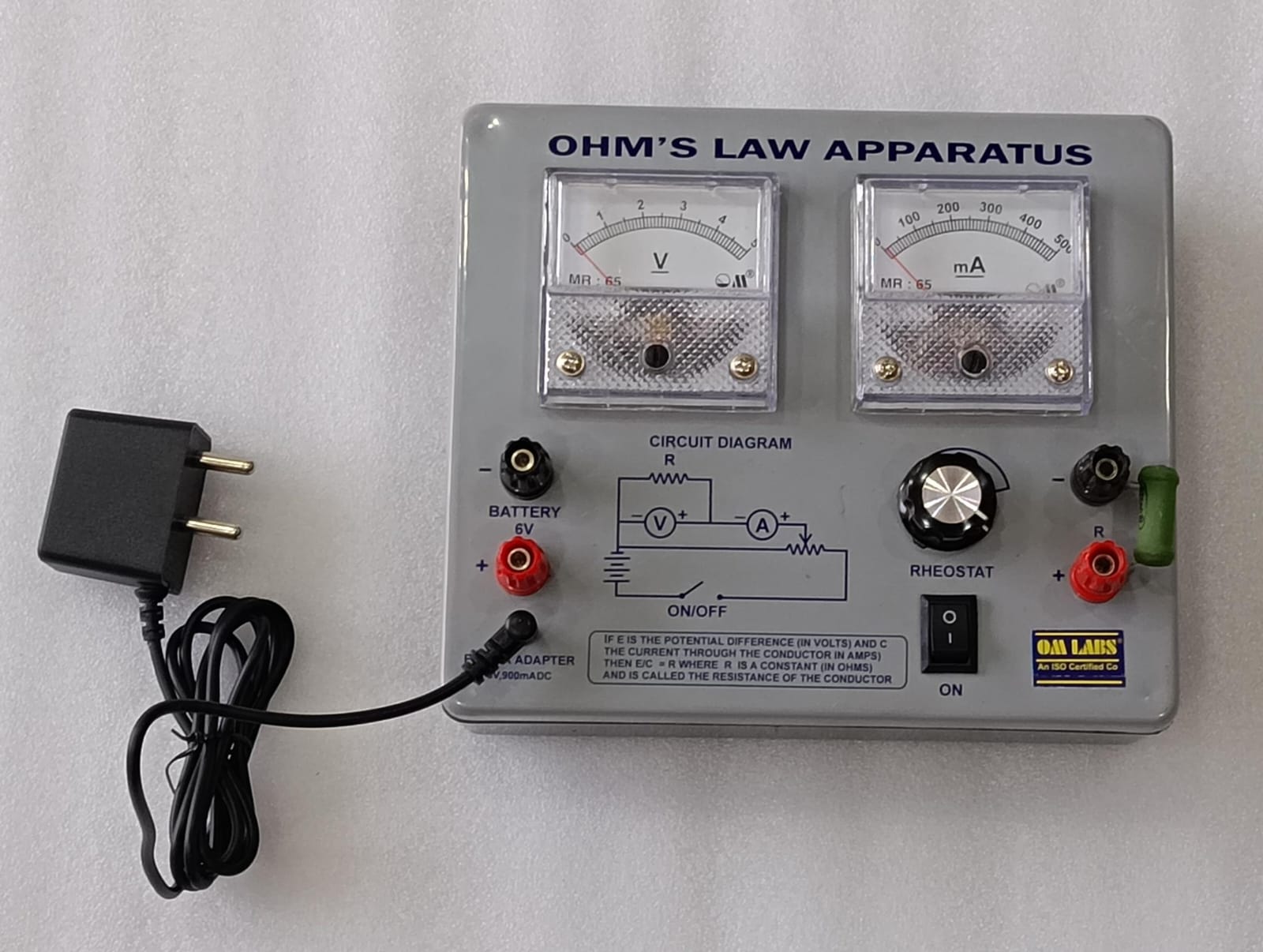

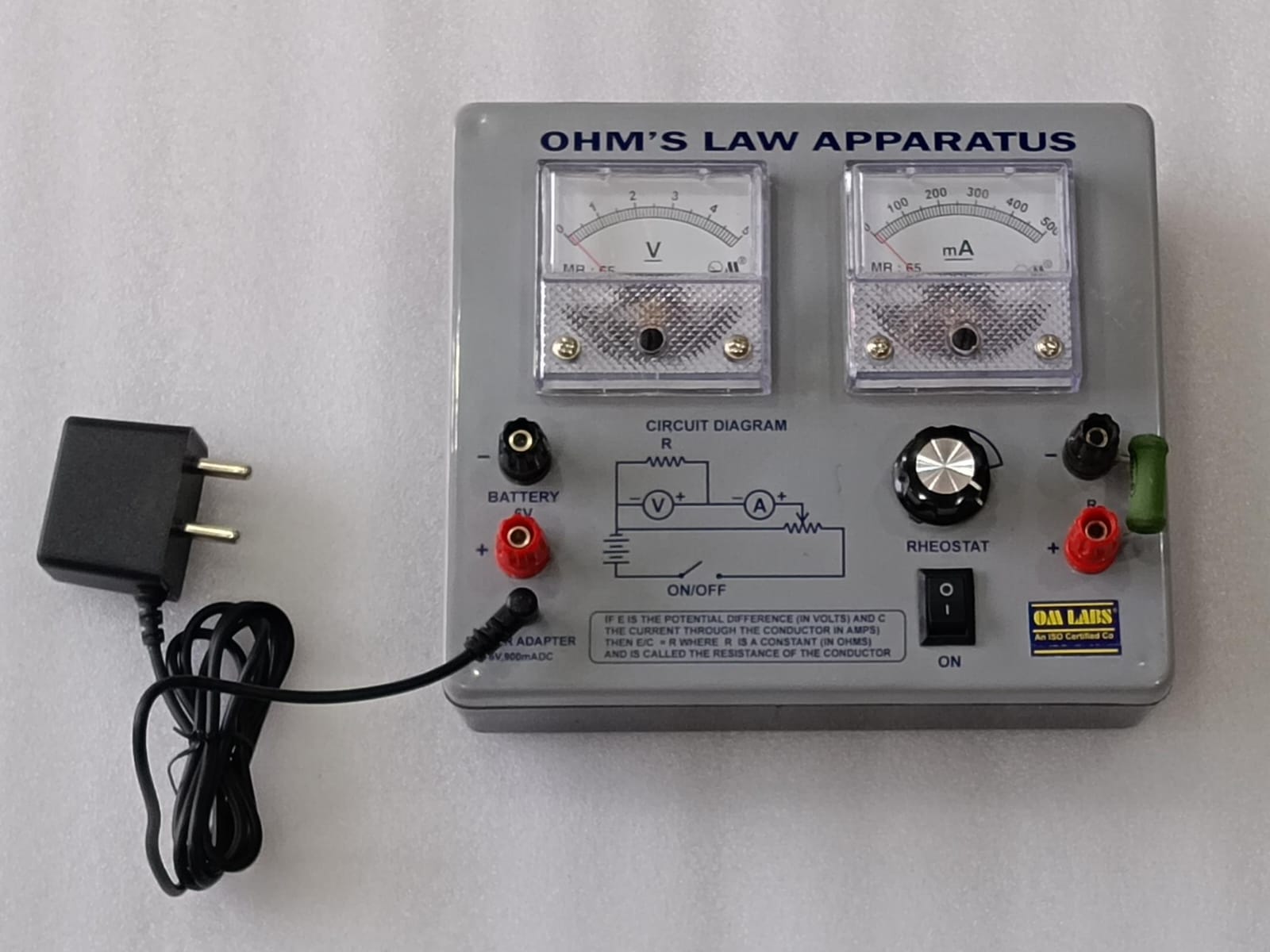

• Two analogue meters are mounted on the front panel to measure voltage & current.
• One Rheostat(Potentiometer) is mount on the front panel to change the value of voltage & current.

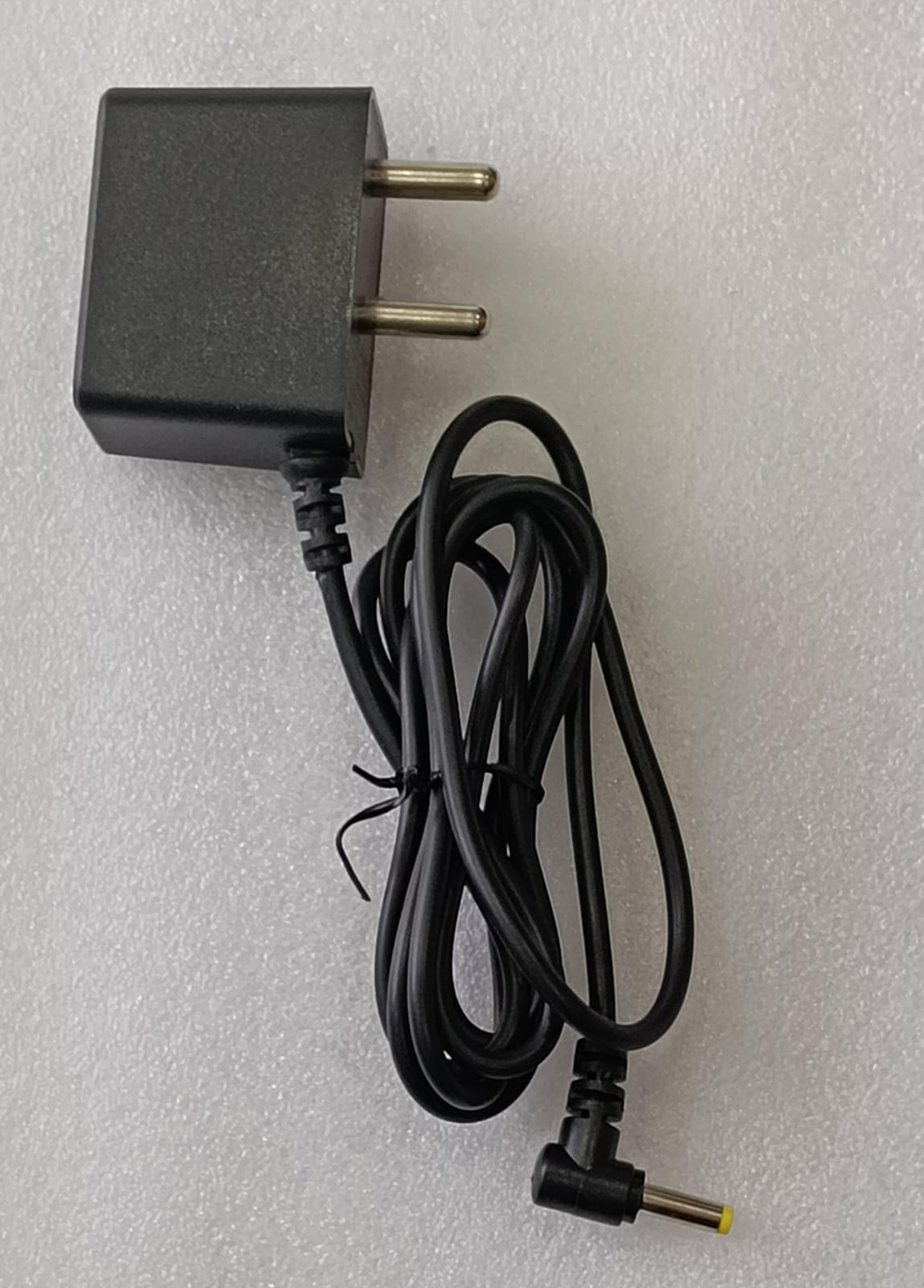

• Two terminals are mounted on the left hand side of the panel to connect the battery of 6V(external) also you can
  use the Adapter to perform the experiment.
• On/Off switch is provided to open or close the circuit.
• Two terminals are mount on the right hand side of the panel to connect the resistance of 10 ohms for measuring the
  values of current, voltages and resistances.
• Packing: In card board Box
• Dimensions: 20.2 cm x 17 cm x 9 cm Approx.
• Weight: 587 gm
• Package: 21x19xx10cm , Weight: 710gm
