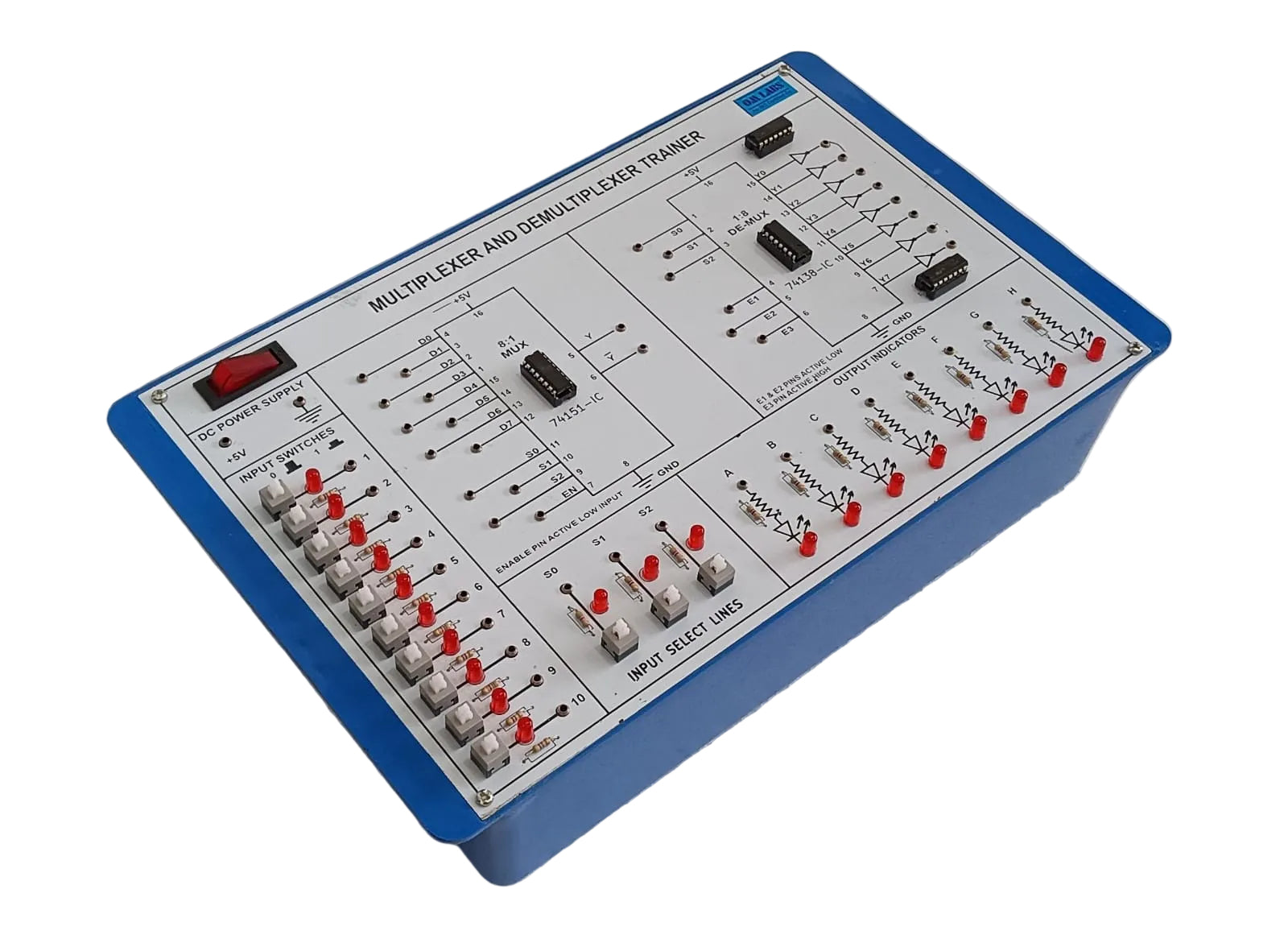

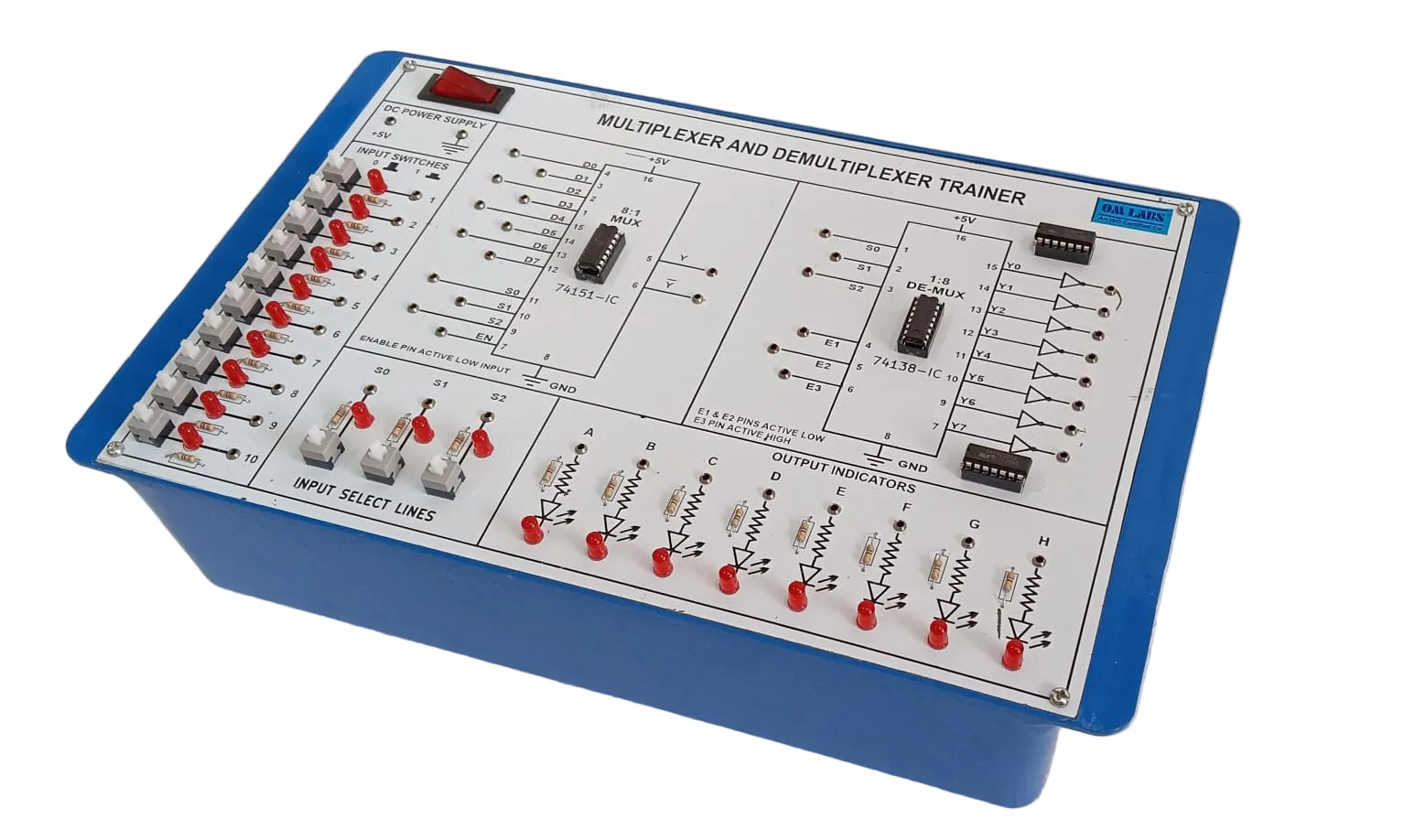

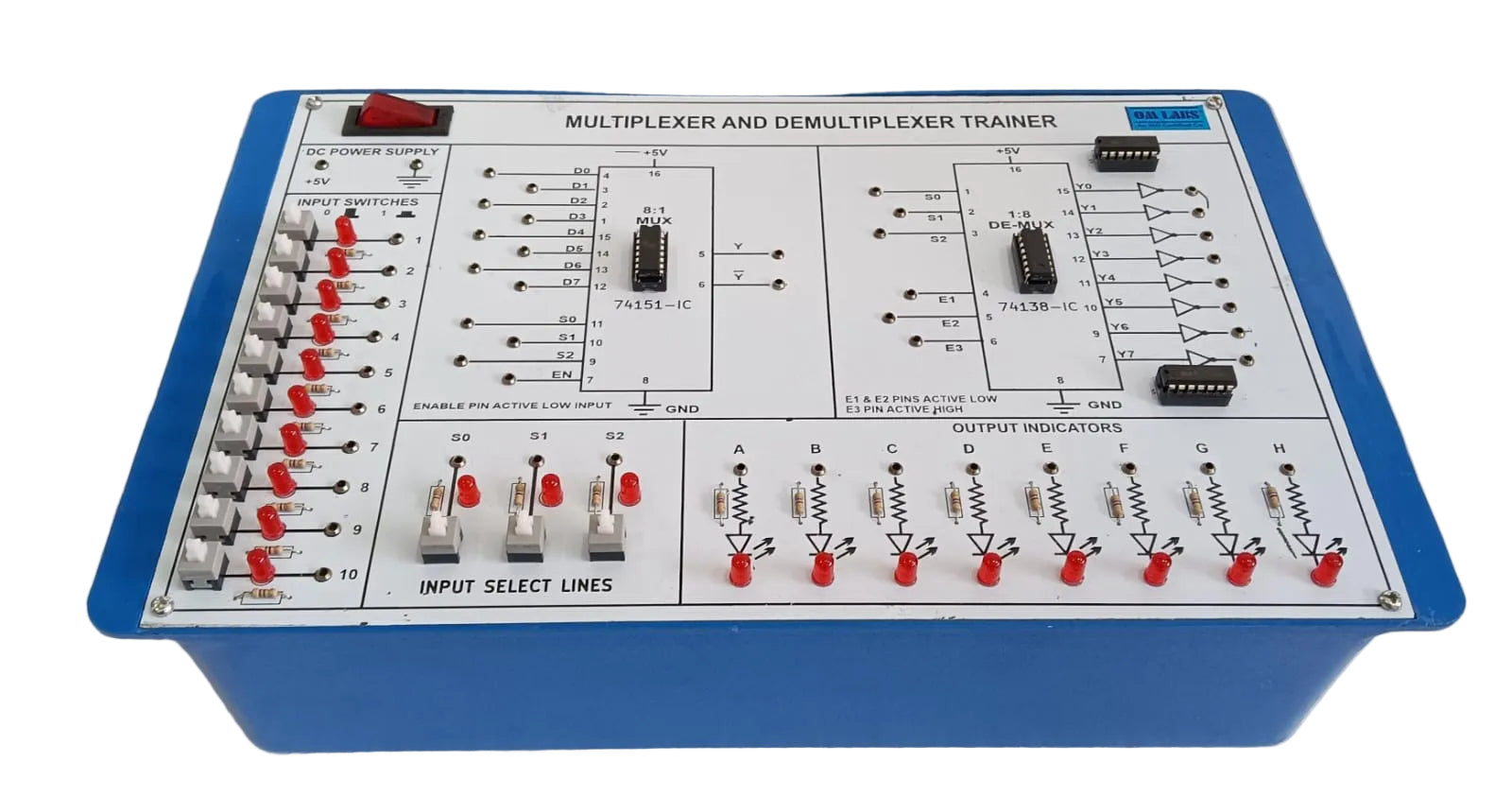

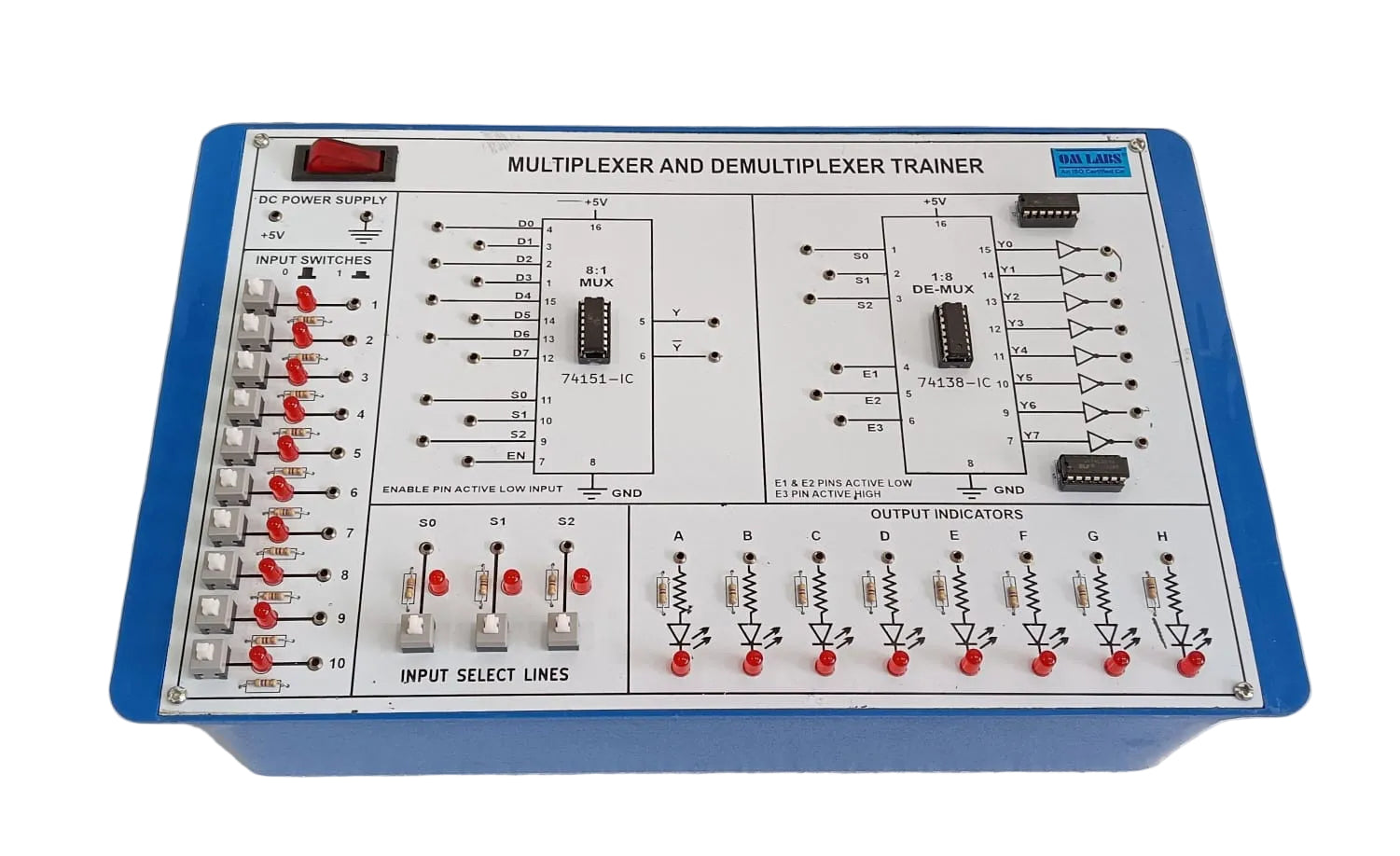

Multiplex & Demultiplex Trainer

Specification:

Ø  Product Type: Multiplexer & Demultiplexer Trainer

Ø  IC Used: 74151 (8:1 Multiplexer), 74138 (1:8 Demultiplexer)

Ø  Power Supply: 5V DC regulated supply

Ø  Input Switches:10 logic input switches with LED indication

Ø  Select Lines:3 Select Inputs (S0, S1, S2)

Ø  Multiplexer Section:8 Data Inputs (D0–D7), Y & Y̅ Outputs

Ø  Demultiplexer Section:1 Data Input routed to 8 Outputs (Y0–Y7)

Ø  Output Indicators:8 LED output indicators (A–H)

Ø  Enable Control: Dedicated Enable Pins for MUX and DEMUX operation

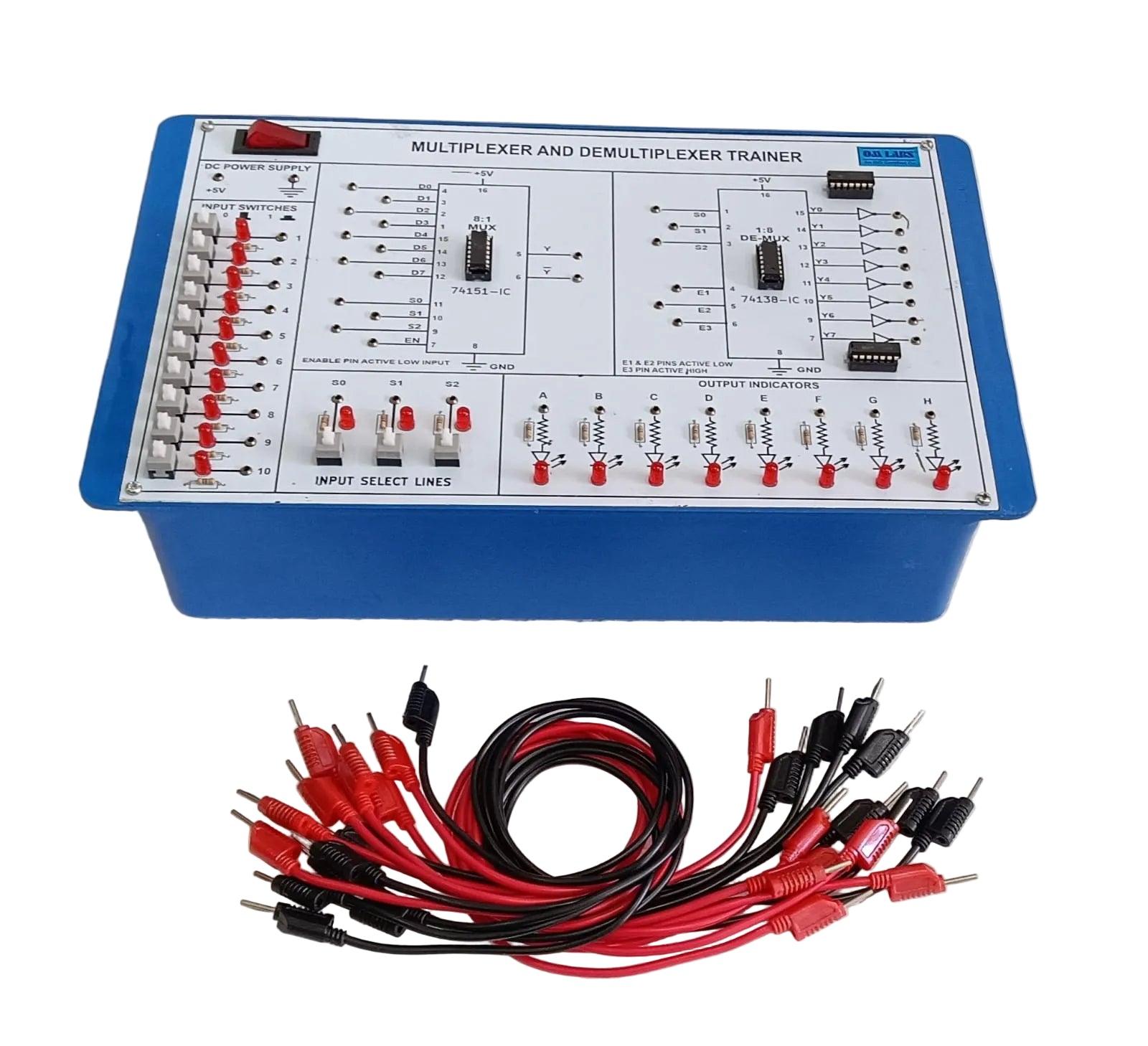

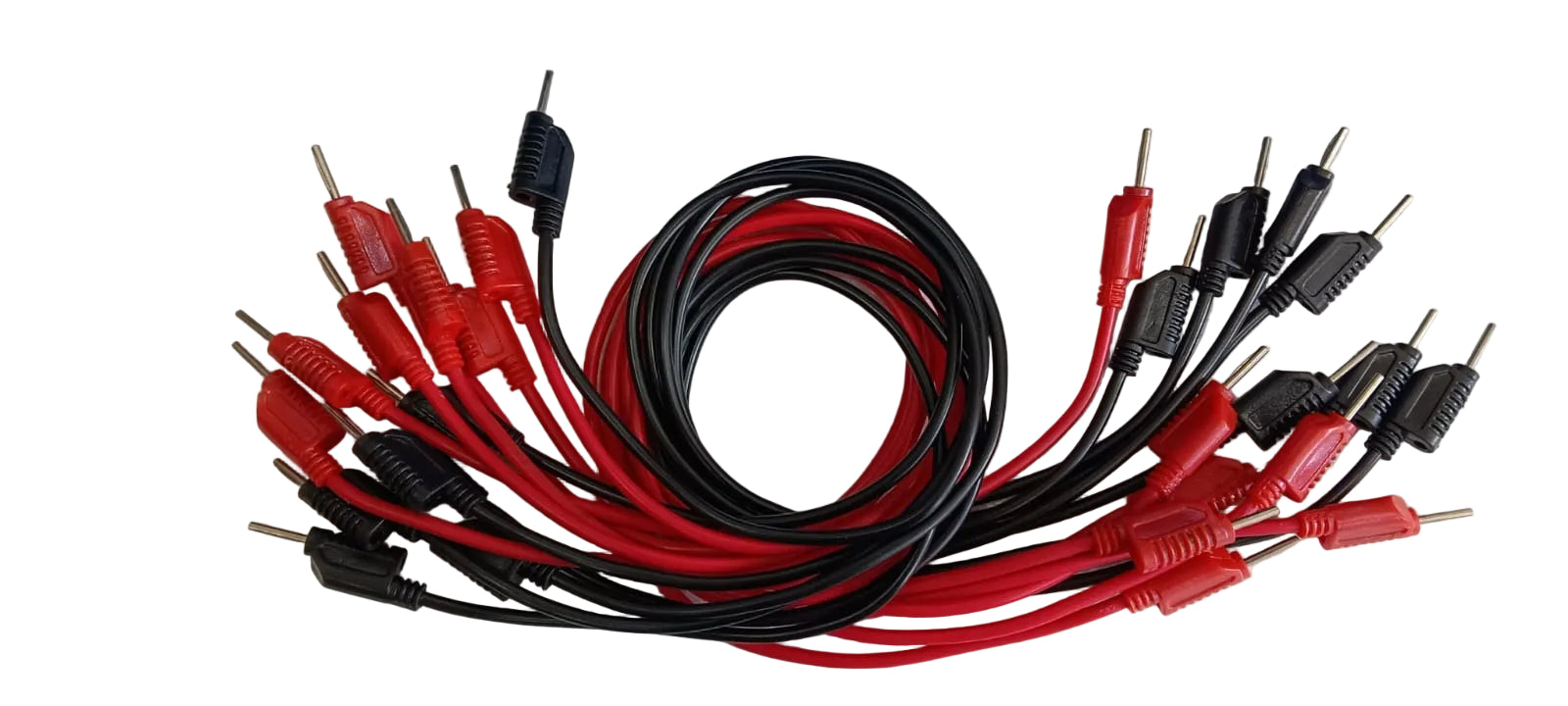

Ø  Patching Facility: Banana socket patch points with connecting leads

Ø  Display: LED status indication for inputs and outputs

Ø  Application: Digital Electronics, Logic Design, Engineering Labs

Ø  Educational Use: Demonstration of Multiplex & Demultiplex truth tables and data routing concepts

Ø  Dimensions: 34x 23 x12 cm Approx.

Ø  Weight:3.1Kg Approx.

Ø  Packing: Card Board Box

Ø  HSN CODE: 9023

Ø  GST: General Standard 18%

Ø  CATAGORIES: Electronics

Ø  BRAND: OM LABS
