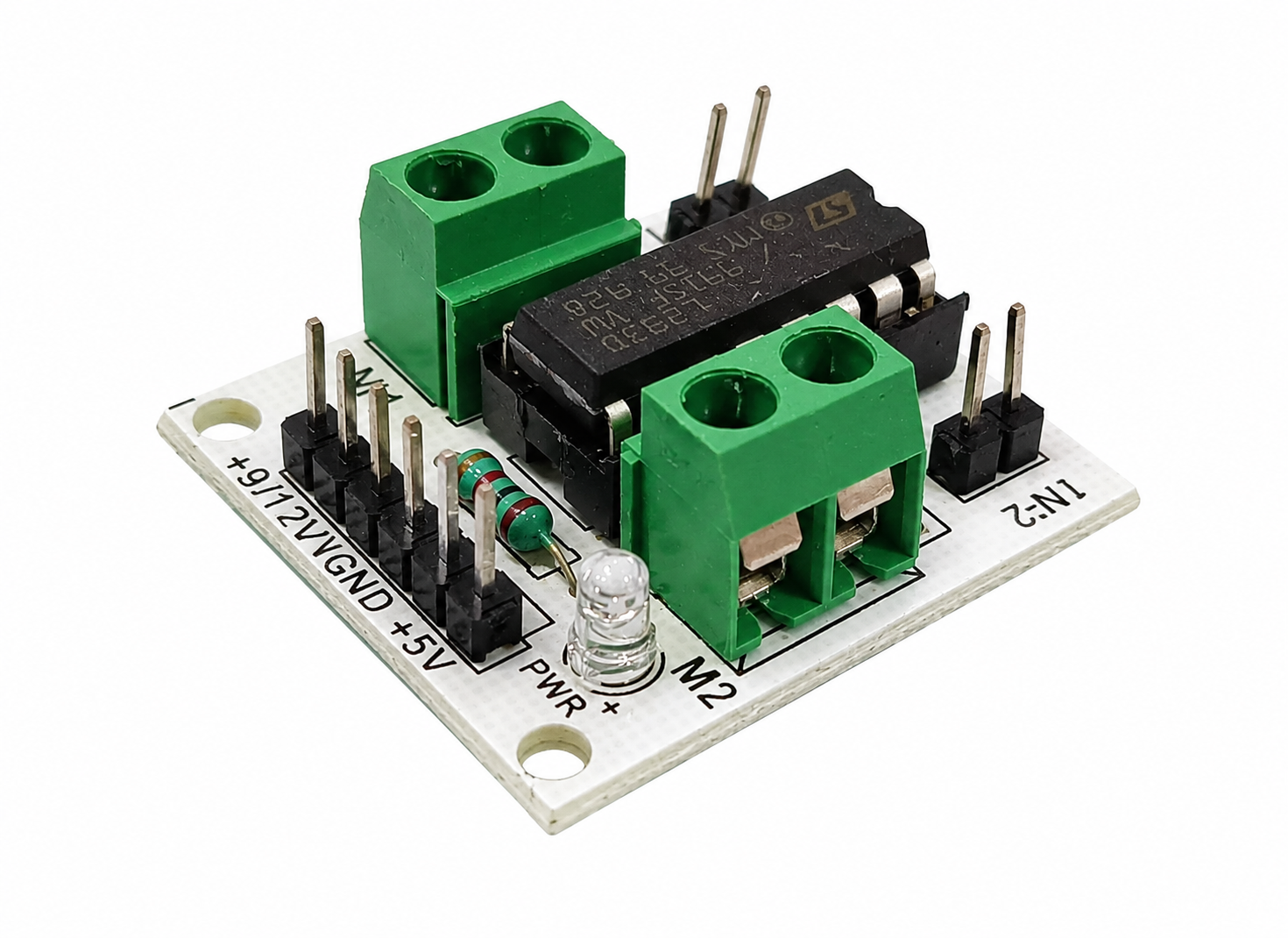

L293D0 MOTOR DRIVER MODULE

Specification:

The L293D Motor Driver Module is a dual H-Bridge motor driver board designed to control the speed and direction of DC motors and stepper motors using microcontrollers such as Arduino, ESP32, Raspberry Pi, PIC, and AVR. It is based on the L293D motor driver IC, which can independently drive two DC motors or one bipolar stepper motor. The module provides a simple interface for motor control while protecting the control circuit from the high currents generated by motors.

Technical Specification

·         Product Type: Dual H-Bridge Motor Driver Module

·         Driver IC: L293D

·         Motor Supply Voltage (motor): 4.5V – 36V DC

·         Logic Supply Voltage: 5V DC

·         Number of Motor Channels: 2 DC Motors or 1 Stepper Motor

·         Continuous Output Current: 600 mA per channel

·         Peak Output Current: 1.2 A per channel (non-continuous)

·         Logic Input Voltage: 3.3V / 5V TTL Compatible

·         Output Type: Dual H-Bridge

·         Control Pins: Enable, Input 1–4

·         Protection: Internal Fly back Diodes, Thermal Shutdown

·         Mounting Type: PCB Module

·         Operating Temperature: 0°C to +70°C

·         Module Dimensions: 32X30mm
