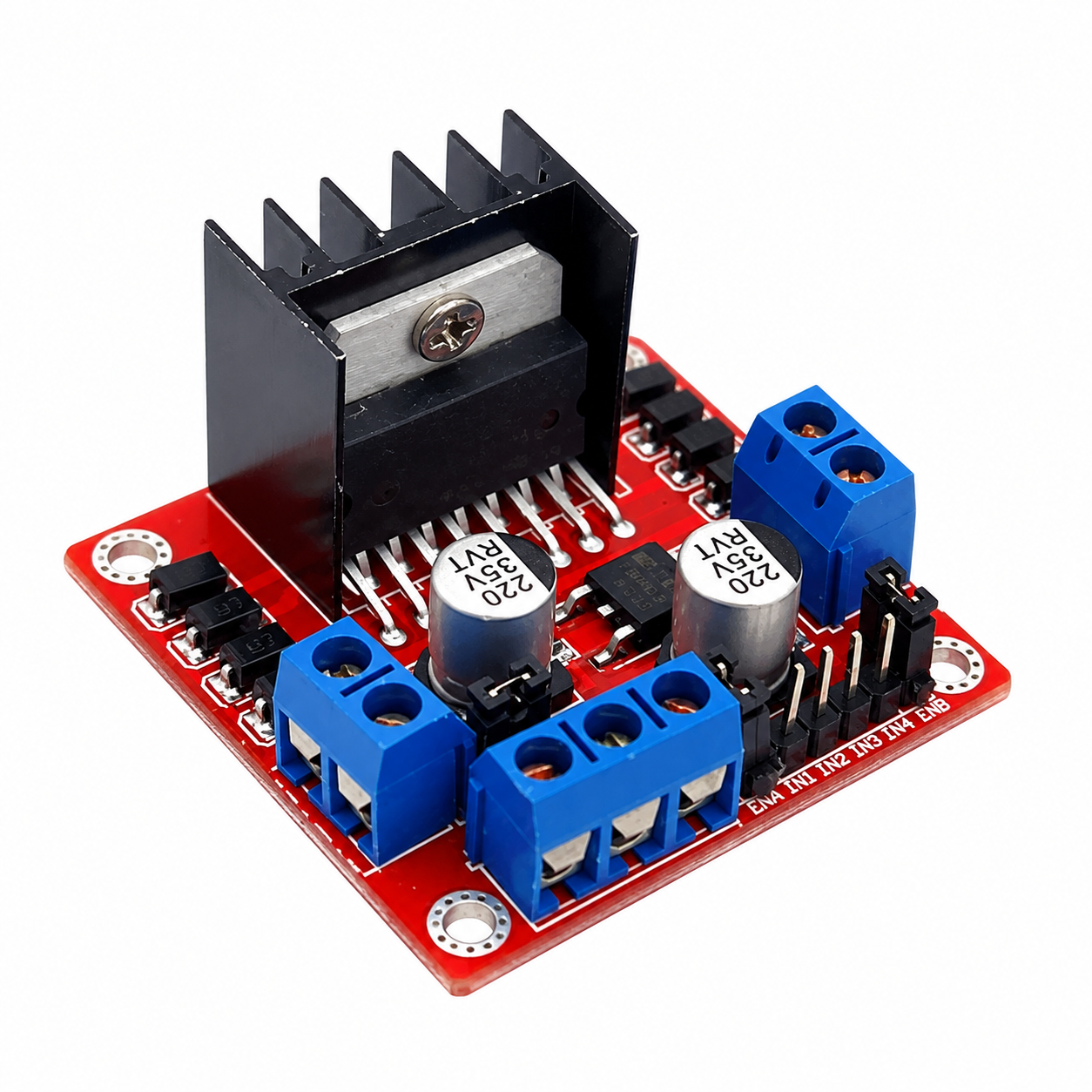

L298 2A Based Motor Driver Shield

Specification: The L298 is a high-voltage, high-current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, and DC or stepper motors. In laboratory settings, it is widely utilized for precision motion control in automated test rigs, robotic prototypes, and instrumentation positioning systems.

Technical Specifications:
* Operating Voltage (Logic): 5V to 7V DC
* Operating Voltage (Motor Supply): Up to 46V DC
* Maximum Current per Channel: 2A
* Total Power Dissipation: 25W (at 75°C)
* Logic Input Voltage (High): 2.3V to 7V
* Logic Input Voltage (Low): -0.3V to 1.5V
* Package Type: Multiwatt15 (15-pin plastic power package)
* Thermal Protection: Internal over-temperature shutdown
* Switching Frequency: Up to 100 kHz
    Product Dimension: 43*43mm
    Weight: 25gm
    Package: 8*7cm @ Weight: 25gm
