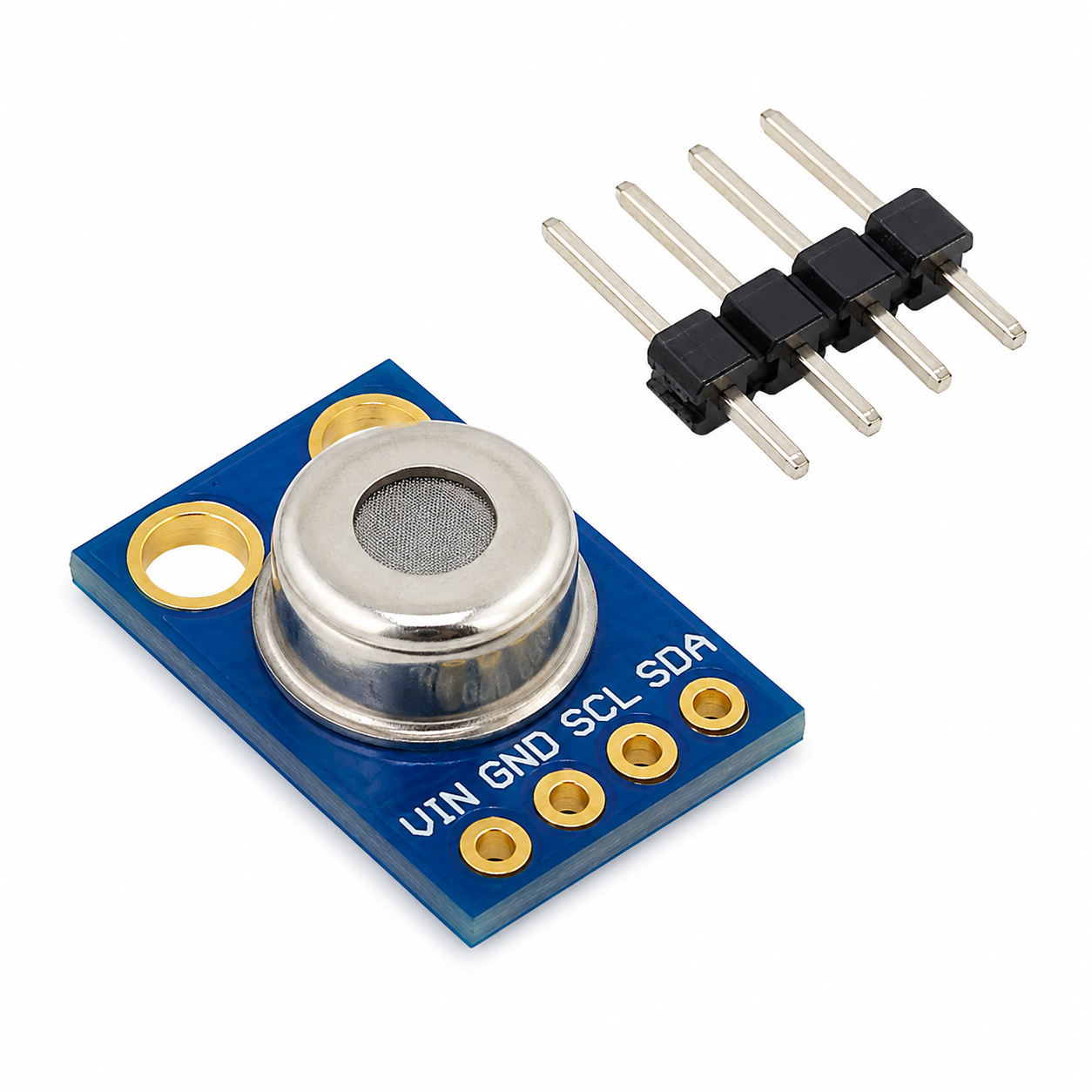

MLX90614 Non-Contact Infrared Temperature Sensor Module

Specification: The MLX90614 is an infrared thermometer module designed for non-contact temperature sensing of objects. In a lab setting, it is widely used for monitoring thermal processes, measuring surface temperatures of sensitive components, or conducting non-invasive heat dissipation studies without physical contact.

Technical Specifications:
* Sensor Type: Infrared (IR) Thermopile
* Temperature Range (Object): -70°C to +380°C
* Temperature Range (Ambient): -40°C to +125°C
* Accuracy: ±0.5°C (in a wide temperature range)
* Resolution: 0.02°C
* Interface: Sambas / I2C compatible
* Field of View (FOV): 90° (Standard) or 35° (Medical version)
* Supply Voltage: 3.3V or 5V DC
* Measurement Mode: Single or Dual zone
Dimension: 1.7 x 1.3 x 1.5 cm
Package: 8x5x1cm
Weight: 2gm
