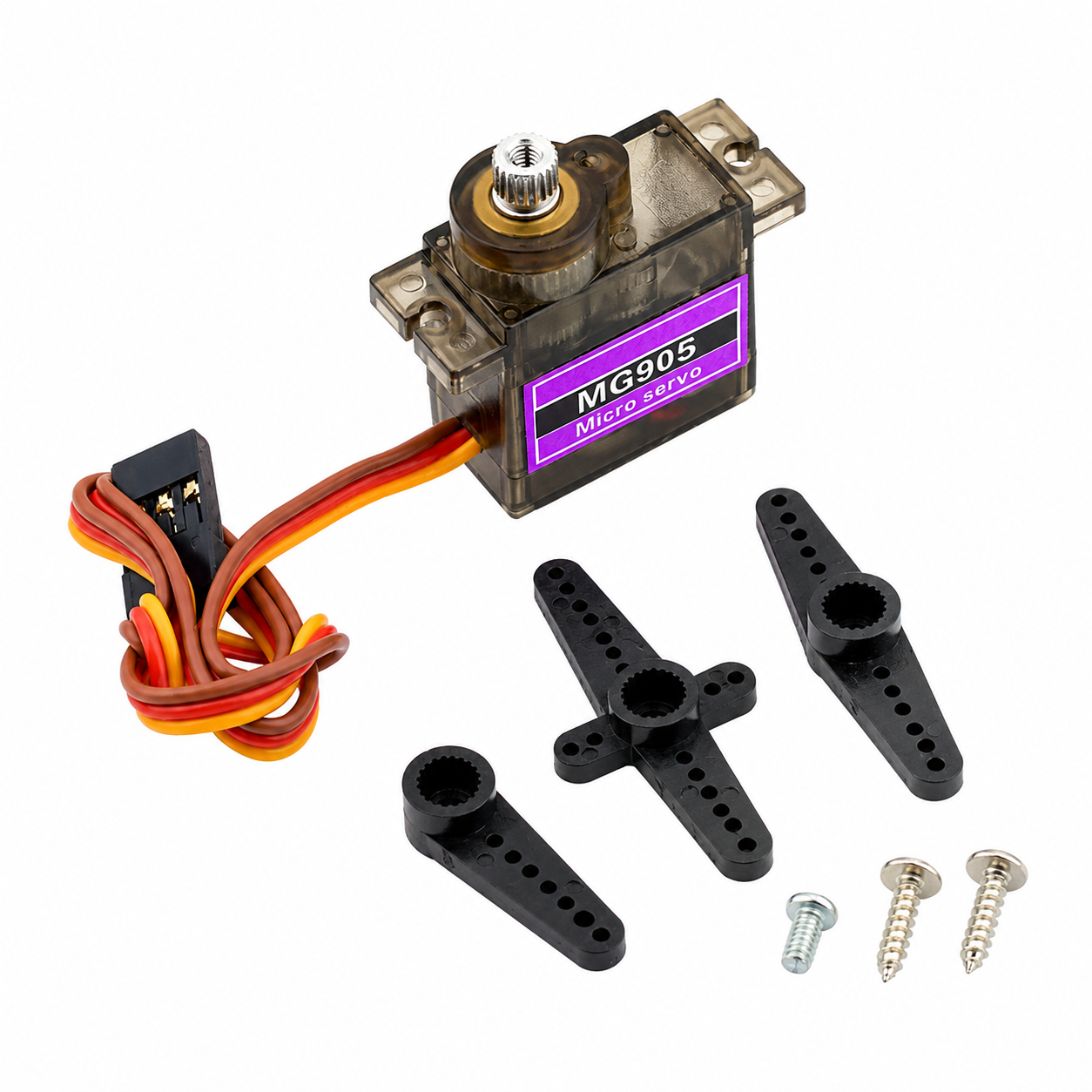

MG90 SERVO MOTOR

Specification: The MG90 is a compact, high-torque micro servo motor frequently used in laboratory automation, prototyping, and small-scale robotic systems. It is ideal for precision control tasks such as actuating valves, adjusting optical components, or positioning microfluidic apparatus.

Technical Specifications:
* Motor Type: Analog micro servo
* Gear Material: Metal gears
* Operating Voltage: 4.8V – 6.0V
* Torque (4.8V): 1.6 kg/cm
* Torque (6.0V): 1.8 kg/cm
* Speed (4.8V): 0.12 sec/60 degrees
* Speed (6.0V): 0.10 sec/60 degrees
* Rotation Angle: 180 degrees (standard)
* Operating Temperature: 0°C to 55°C
* Connector Type: JR/Futaba compatible

Package Box Dimension: 13x 8.5cm @ Weight:59gm
