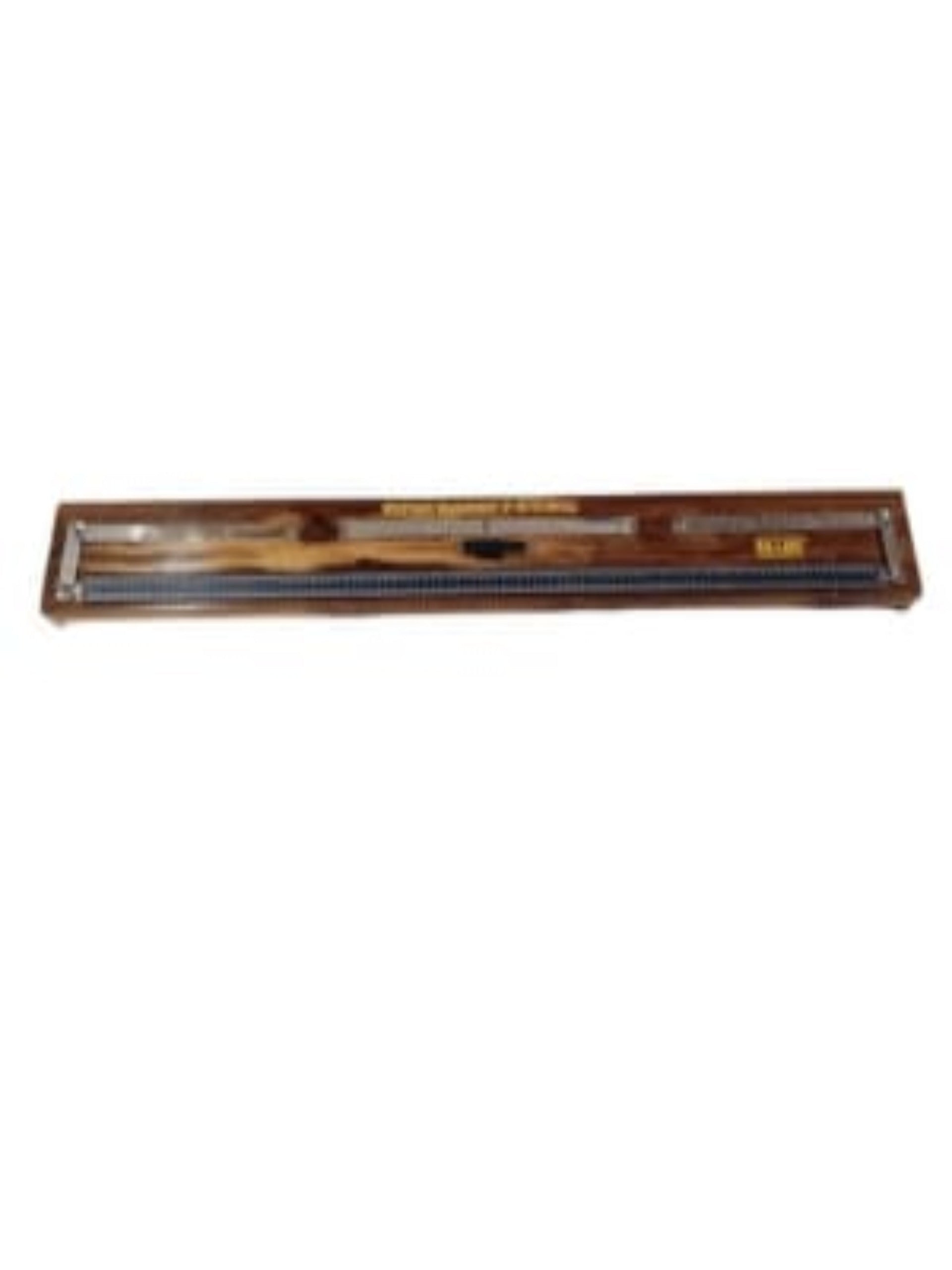

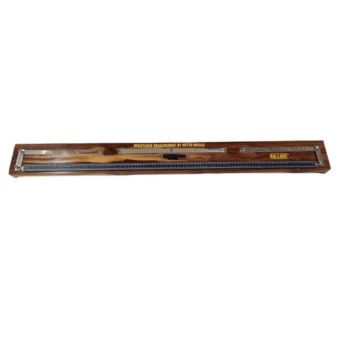

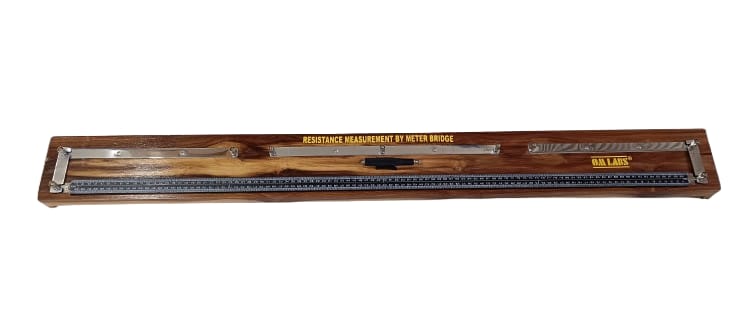

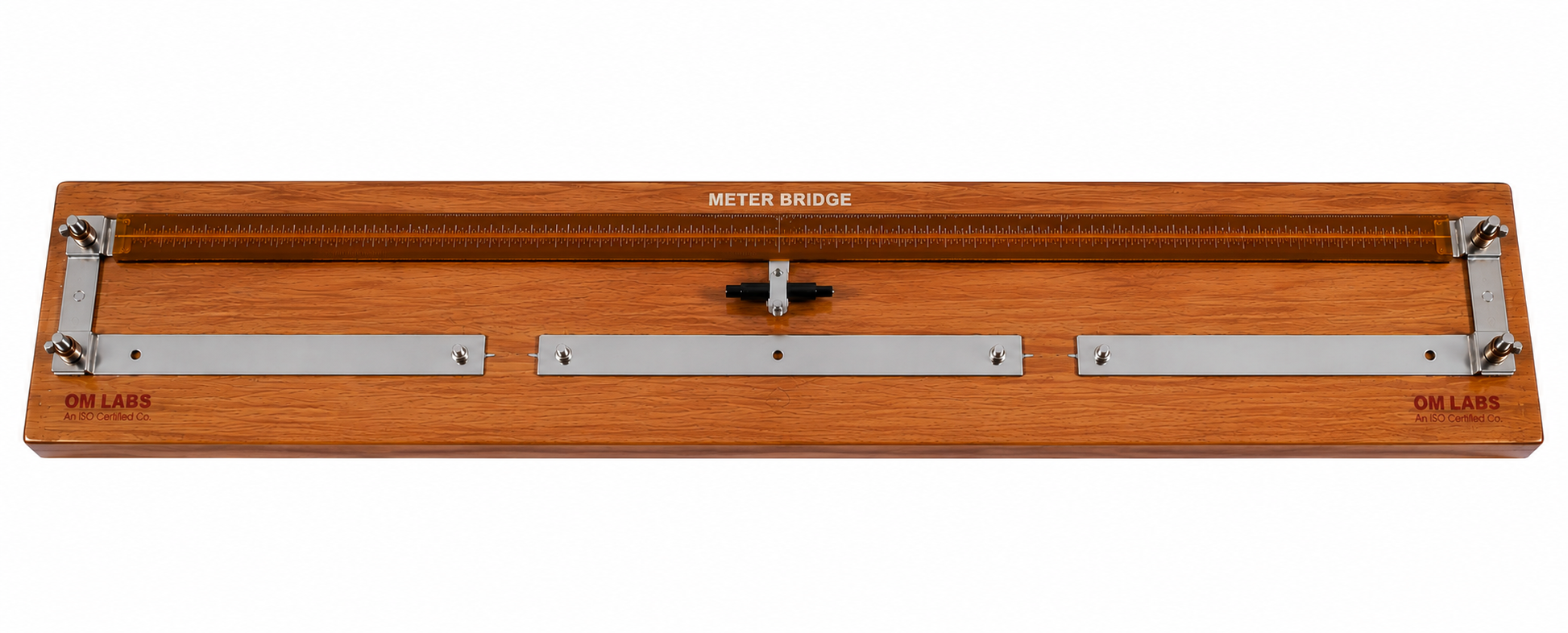

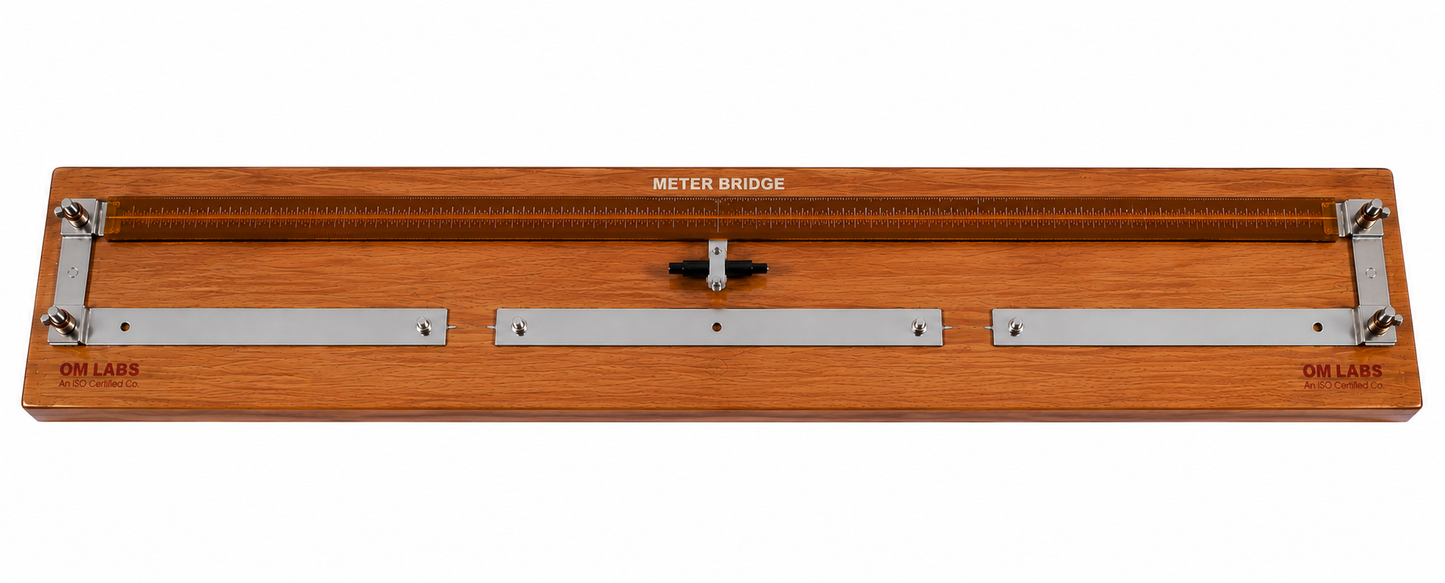

Meter Bridge Teak Wood With Jockey Pencil

Specification: A Meter Bridge is a Practical Application Of Wheatstone Bridge . In This Experiment We Will Find Out The Resistance Of A Given Wire Using Meter Bridge And Hence Determine The Specific Resistance Of that Material.

• Product Name: Meter Bridge – Resistance Measurement Apparatus
• Base Material: teak wood base with a polished finish.
• Length: 45 inch.
• Wire: Constantan wire, 22–24 SWG, mounted on the top.
• Scale: Clearly marked centimeter scale (0–100 cm) along the wire.
• Terminals: terminal strips at both ends for connecting known and unknown resistances.
• Galvanometer Key & Jockey Slot: Includes a central sliding jockey point and provision to connect a galvanometer.
• Metal Strip: Two gap holders (resistance holders) for known and unknown resistances.
• Use: Designed to measure unknown resistance using the Wheatstone bridge principle.
• Used for laboratory experiments in high schools and colleges.
• Application Area:
• Physics practical's in educational institutions
• Electrical circuit analysis experiments

• Dimensions:111.5 x 11 x4 cm
• Weight:2.000 kg Approx.
• Packing: Card Board Box
•  Box Dimensions:113.5 x12 x8cm
• Weight:2.340kg Approx.
• Categories: Physics
• HSN Code: 9027
• GST: General Standard 18%
• Brand: OM LABS
