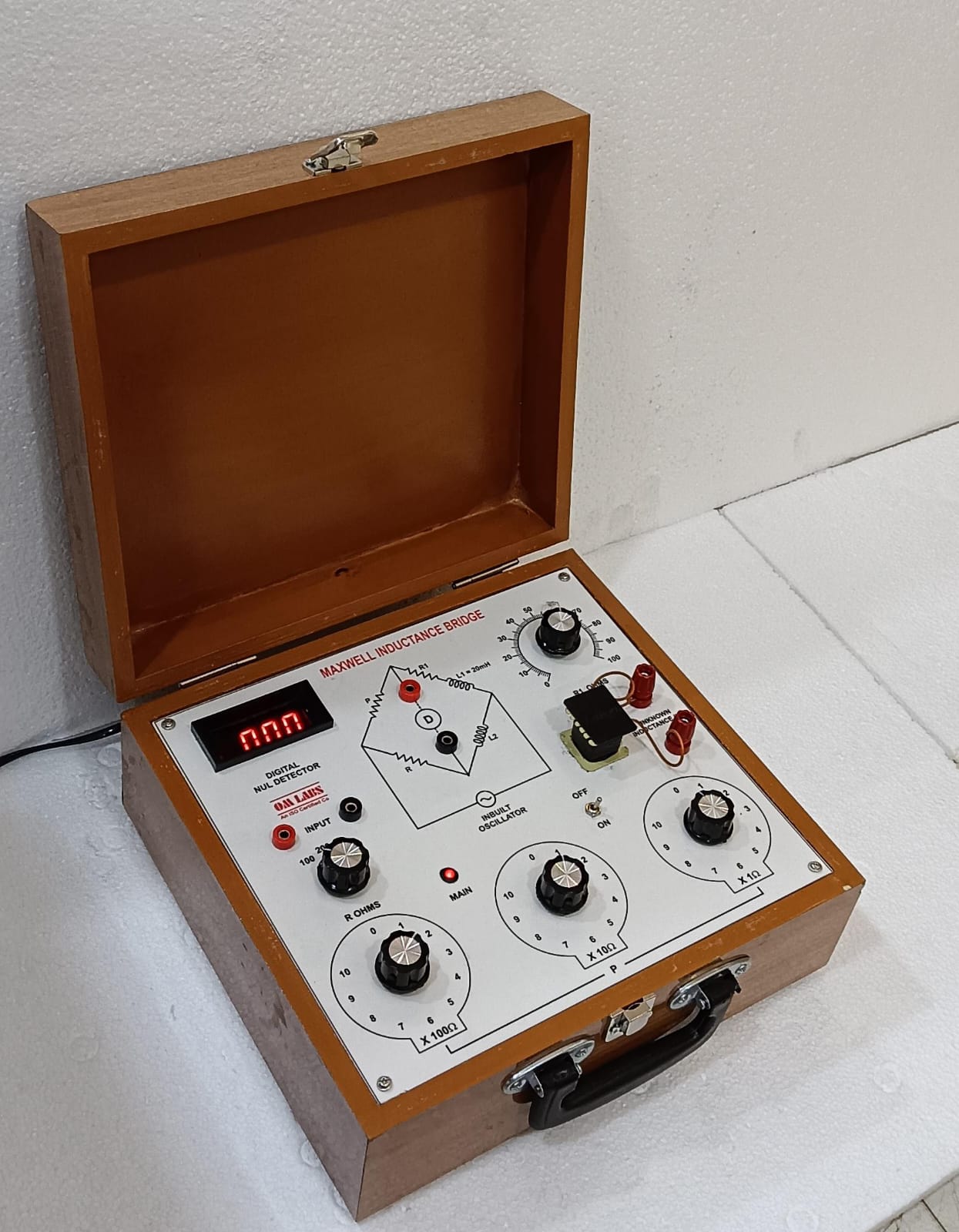

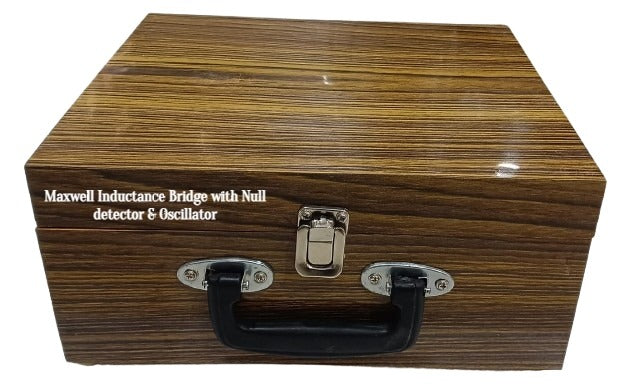

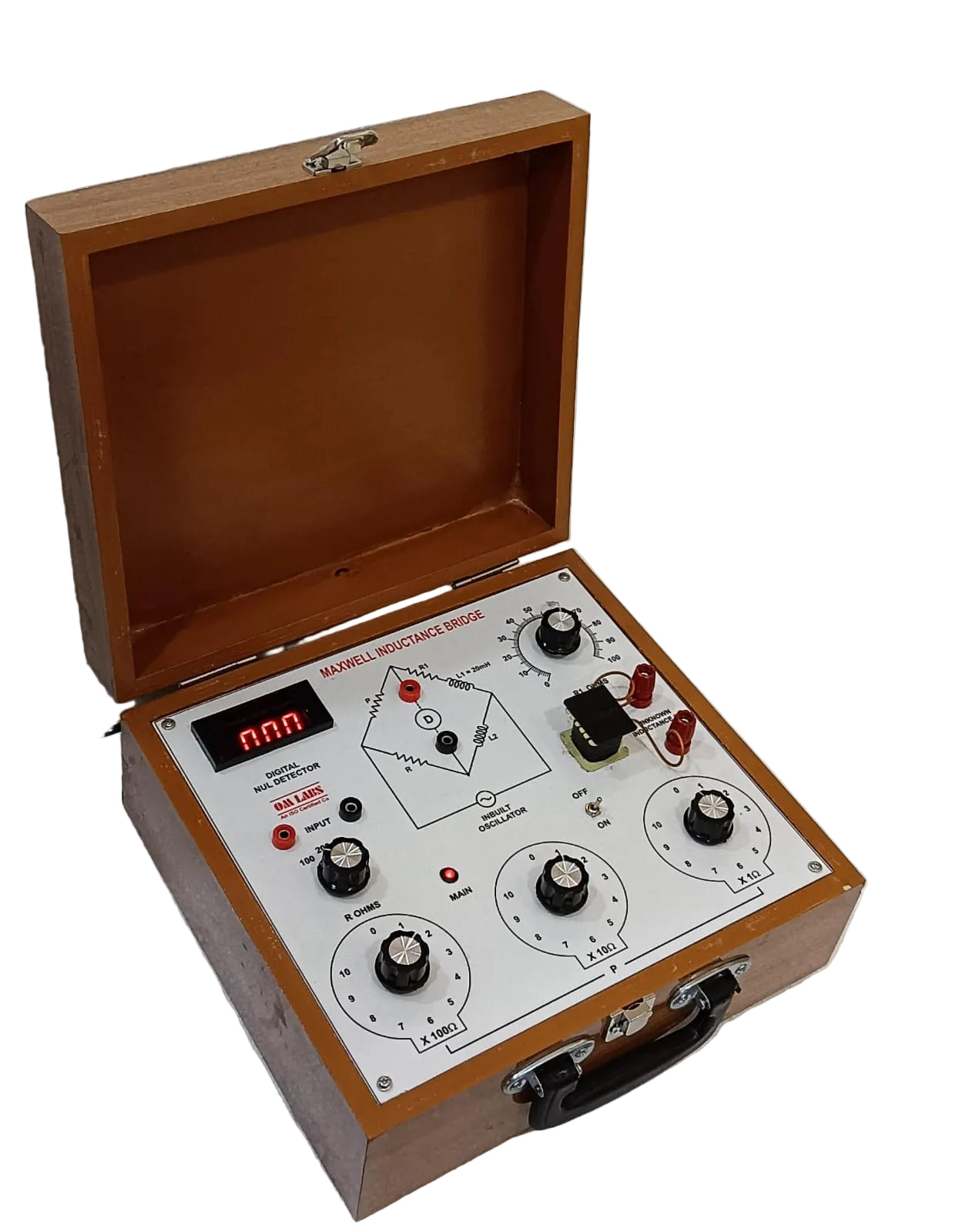

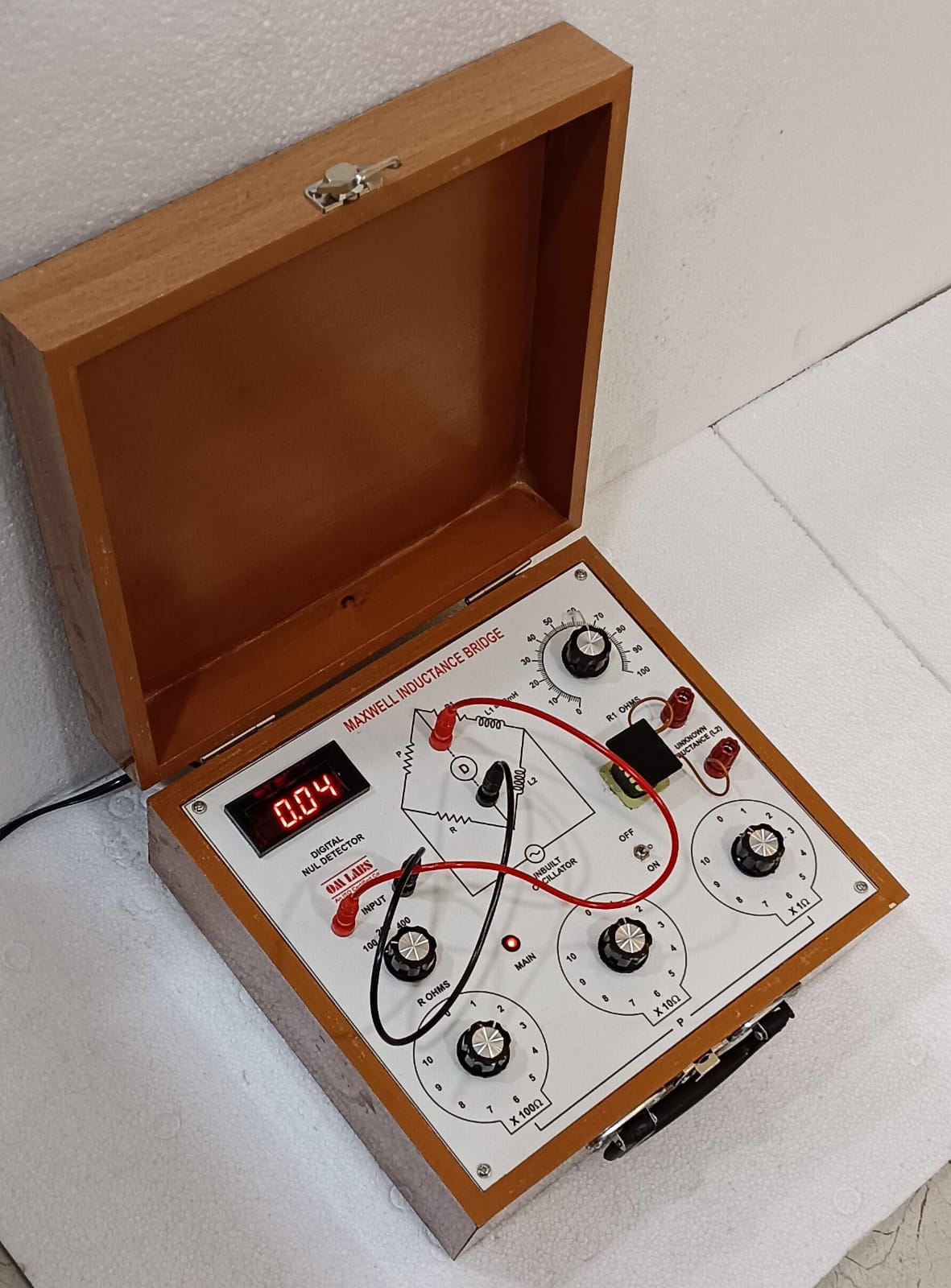

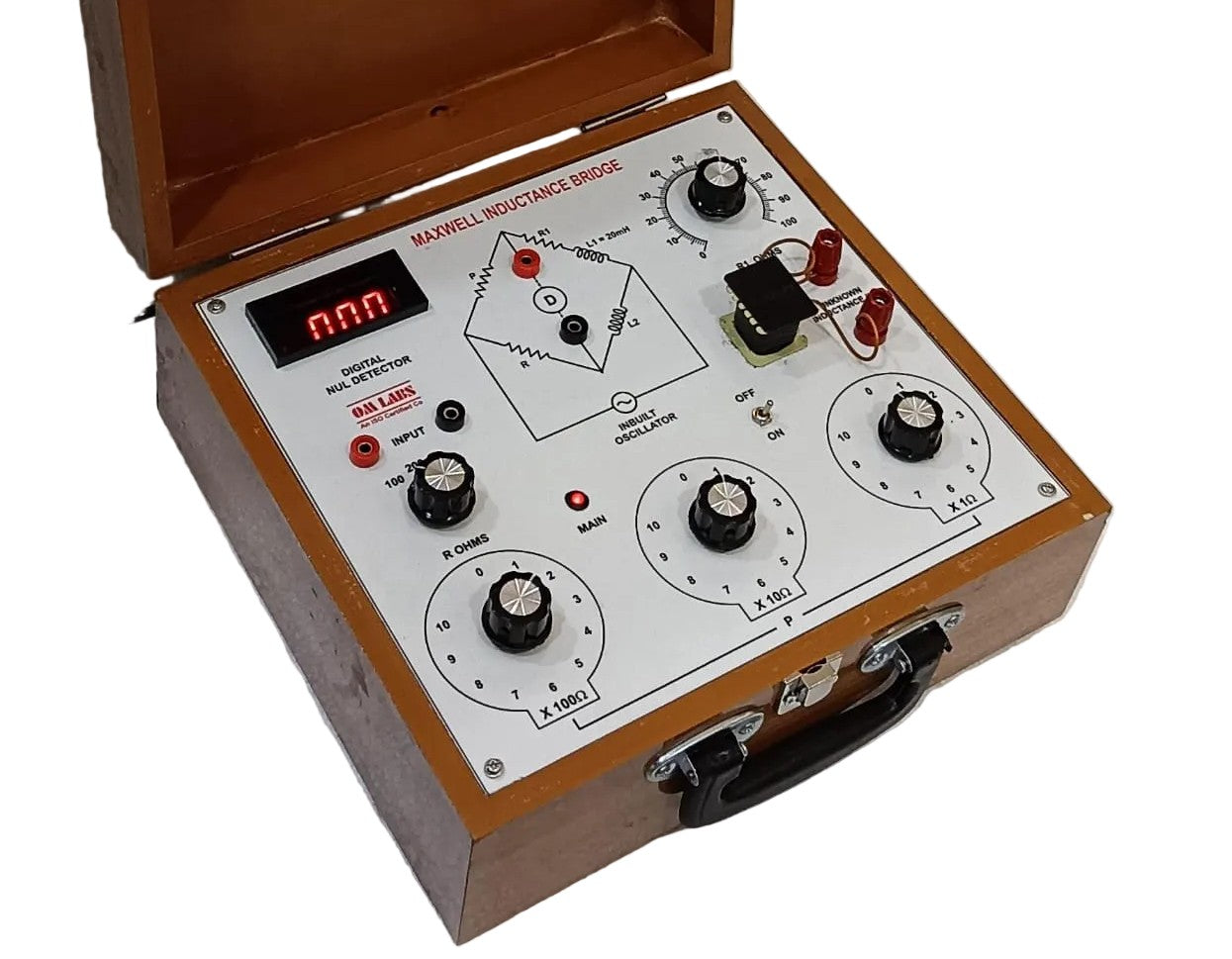

Maxwell Inductance Bridge with Null Detector & Oscillator With Wooden Box

SPECIFICATION:

Ø  EXPERIMENT: Measurement of a unknown self inductance using Maxwell Inductance Bridge

Ø  MAIN FEATURES OF THE BRIDGE:

o   P_…  Three decade resistance dials having value 10x100Ω, 10x10Ω and 10x1Ω

o   R_…  Single decade resistance dial having value 10x100Ω

o   L_1… Fixed standard inductance having value 20 mH

o   L_2… unknown inductance.

o   R_1… Continuously variable resistance 0 to 100 ohm for impedance matching in dc arm.

o   Terminals are provided for external connections to connect unknown inductance, AC supply and head phone.

o   FORMULA USED: L₂= (R/P) L₁

• Dimensions:31 x 28 x 16cm Approx.
• Weight:3.1kg Approx.
• Packing: Card Board Box
• HSN CODE:9023
• GST: General Standard 18%
• CATAGORIES: Electronics
• BRAND: OM LABS
