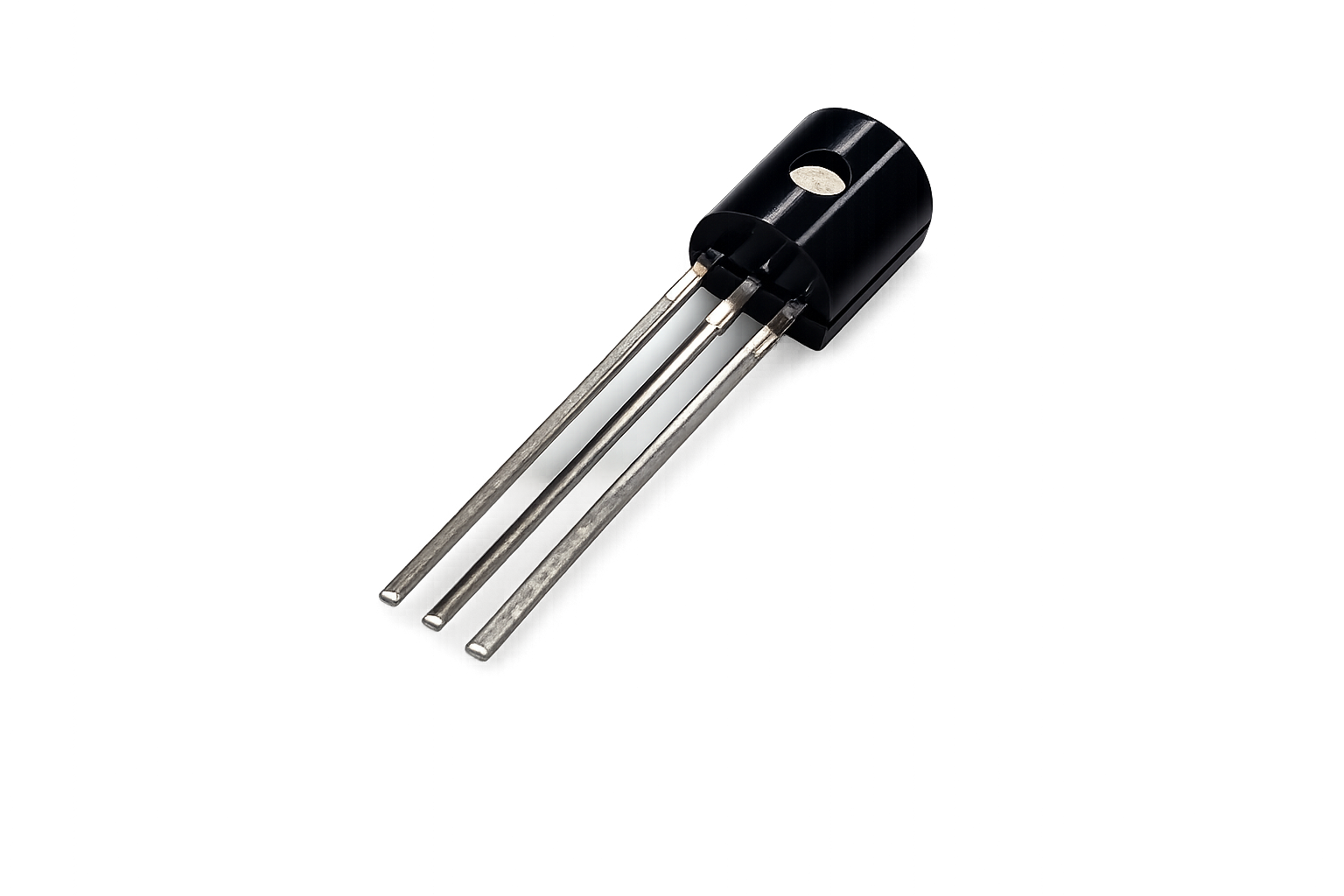

LM35 Analog Temperature Sensor Module

Specification: The LM35 is a precision integrated-circuit temperature sensor with an output voltage linearly proportional to the Celsius temperature. In laboratory settings, it is widely used for accurate environmental monitoring and electronic thermal regulation due to its high calibration accuracy and low self-heating properties.

Technical Specifications:
* Calibrated directly in Celsius (Centigrade)
* Linear + 10 mV/°C scale factor
* 0.5°C accuracy guarantee (at 25°C)
* Rated for full −55°C to +150°C range
* Operates from 4V to 30V supply voltage
* Current drain less than 60 µA
* Low output impedance
* Available in TO-92, SOIC, or TO-220
