LCR Resonance Apparatus (Series & Parallel Resonance)

SPECIFICATIONS:

LCR Circuit resonance has been designed to plot the Resonance curve of L, C & R components when connected in series and parallel. If the value of the frequency of applied signal is adjusted the independence of the circuit becomes minimum. The current flowing through the circuit is maximum. This particular frequency at which the independence of the circuit become minimum and therefore the current becomes maximum is called Resonance Frequency.

This Instrument comprise of the following built in parts:

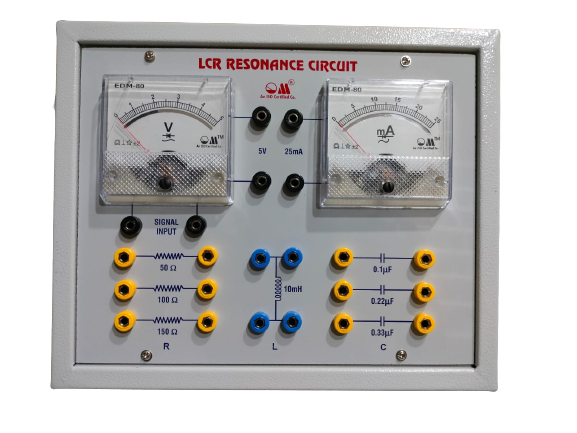

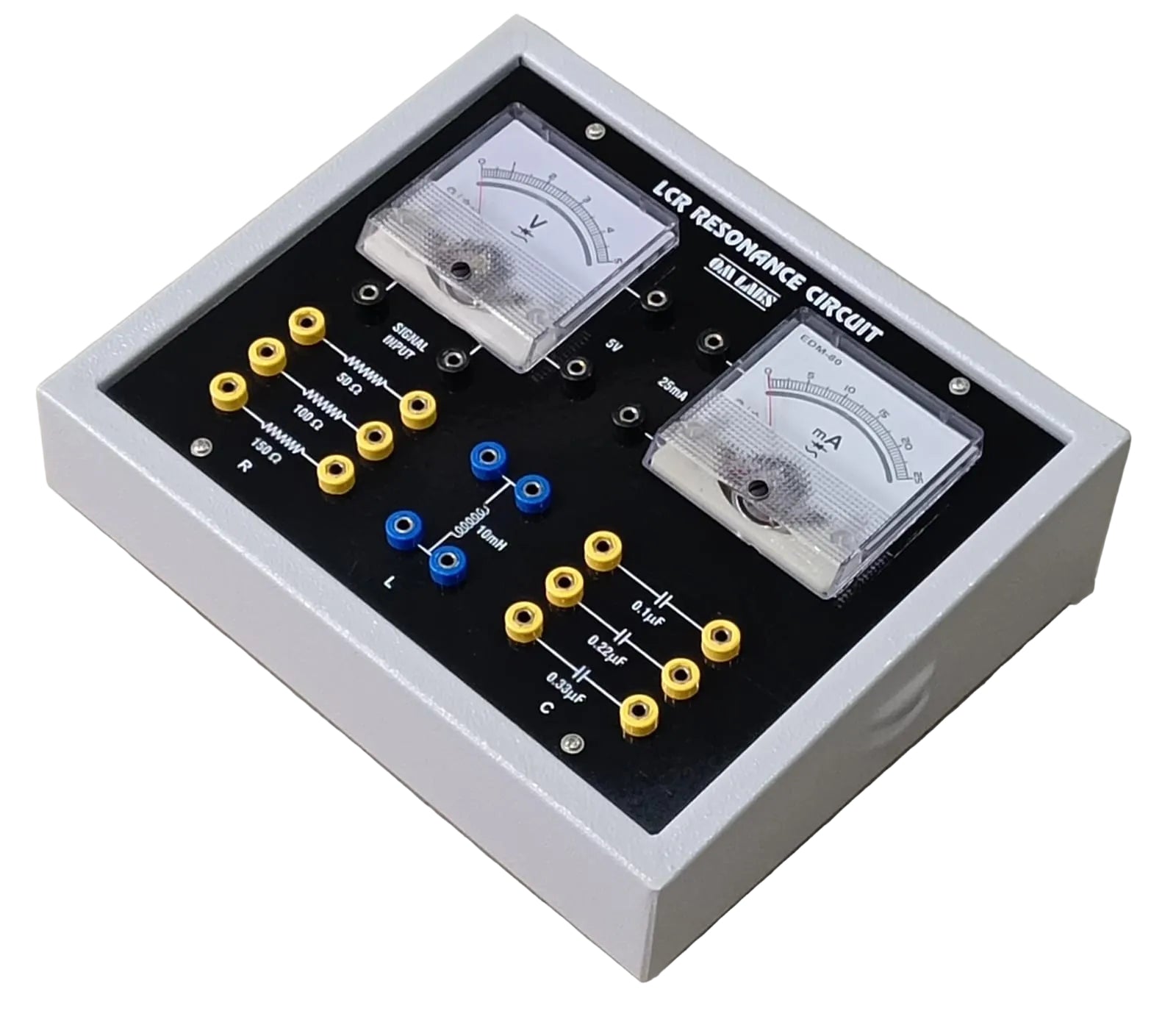

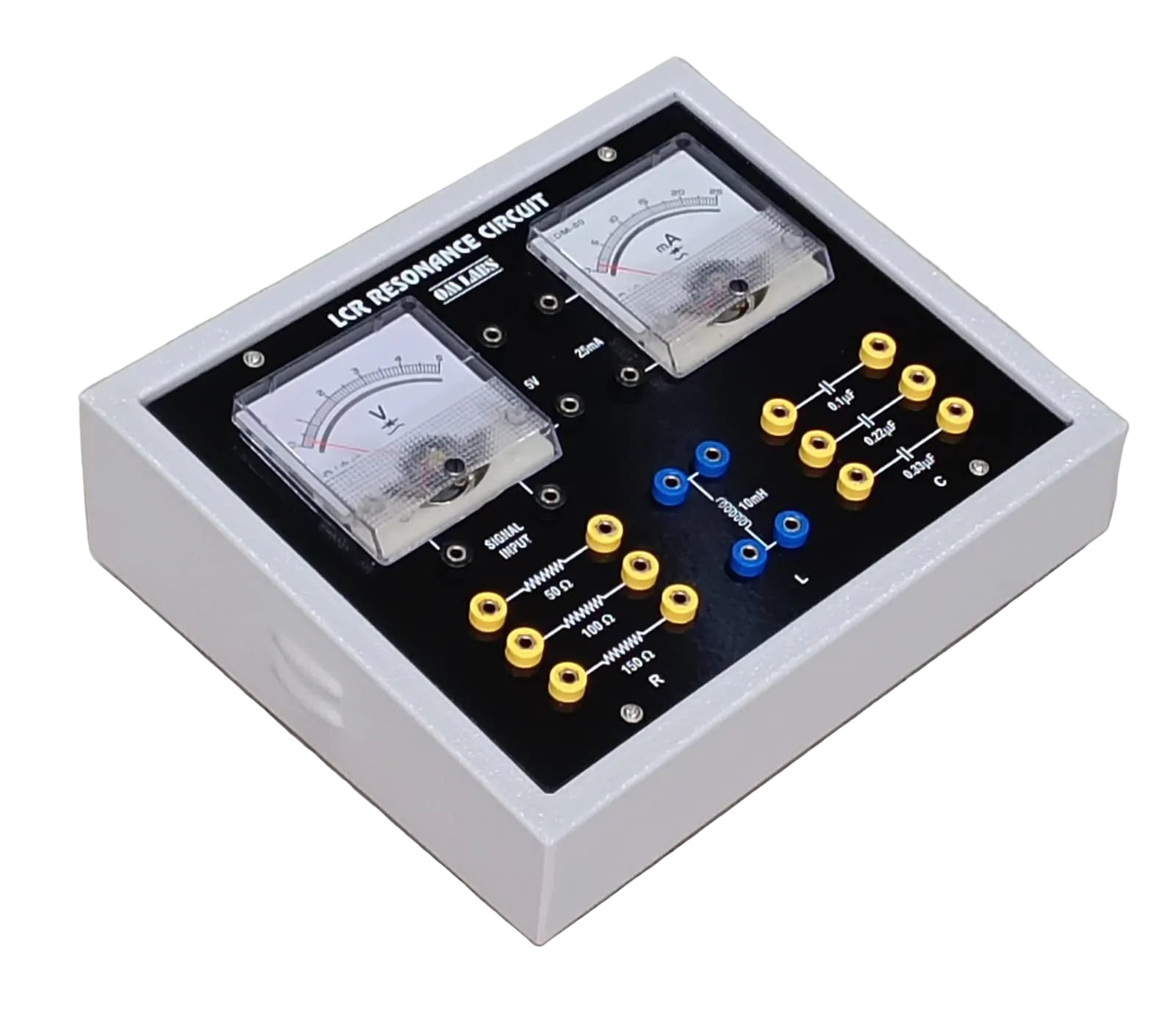

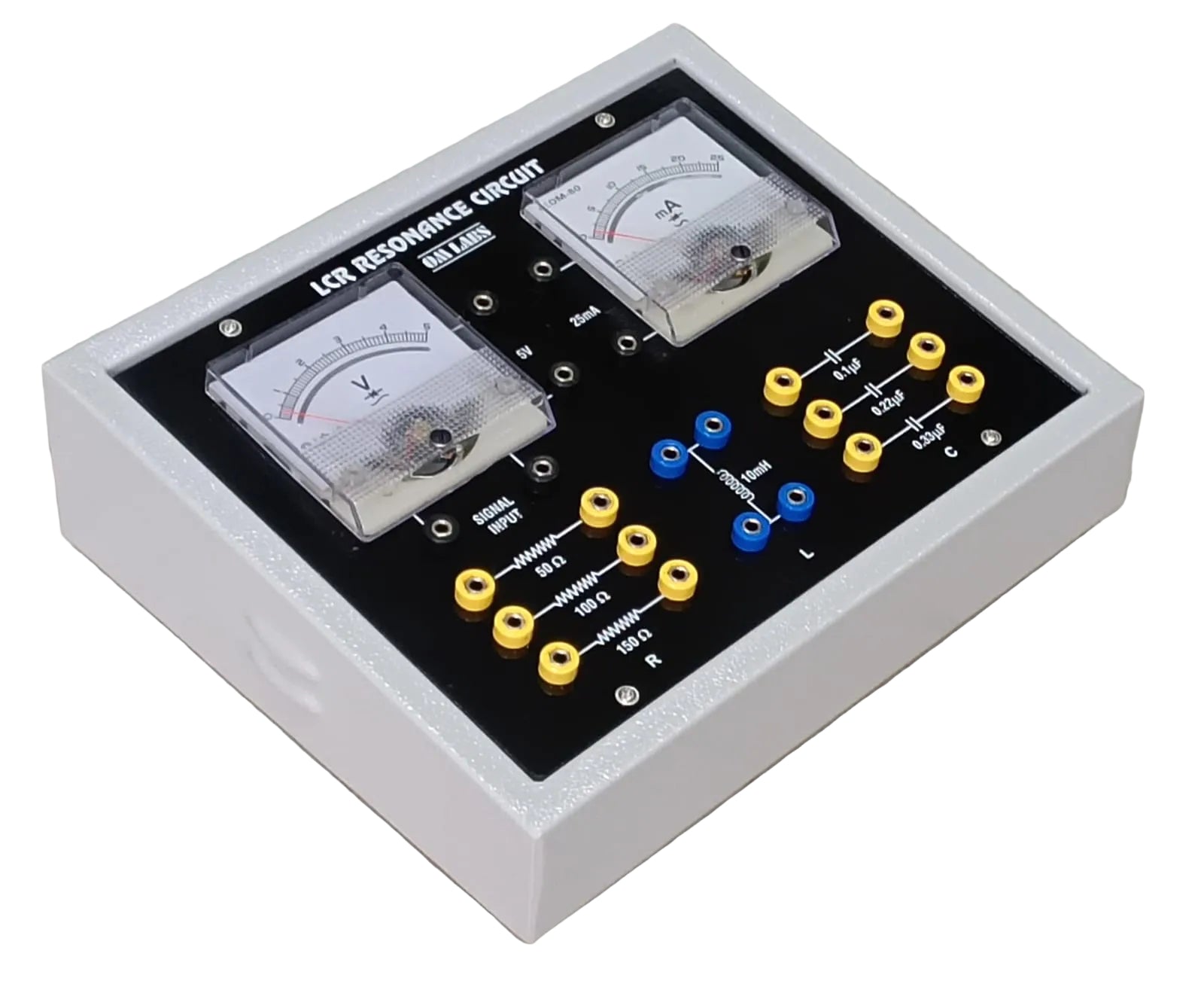

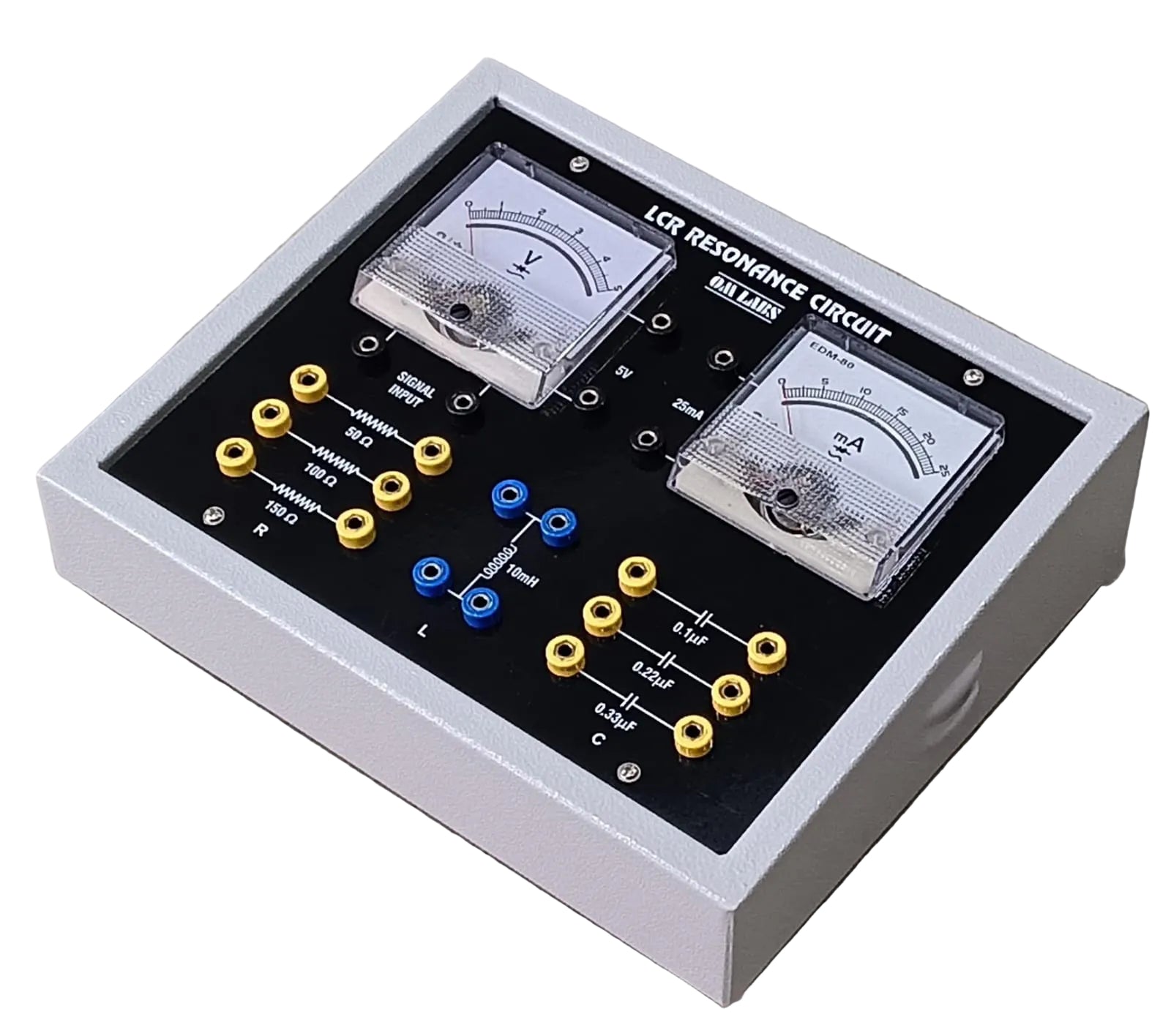

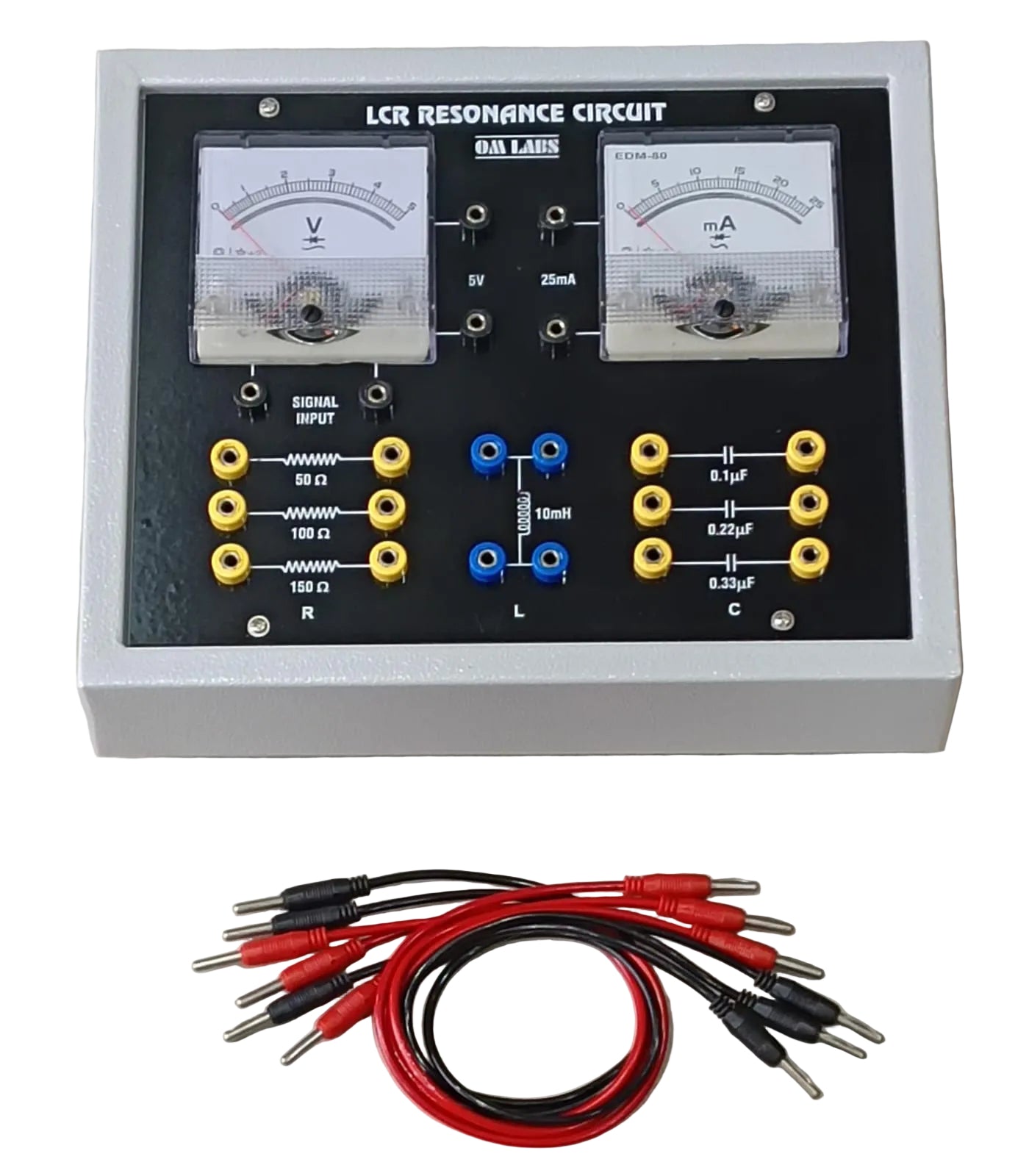

• Three resistance, three capacitors & one inductance are placed inside the cabinet & connection through out on sockets/ terminals.
• Two meters to measure AC Voltage & Current are mounted on the front panel with connections brought out on sockets/ terminals.
• Box: Metal Box
• Packing: Corrugated Box
• Dimensions: 29.5 cm X25 cm X 11 cm Approx.
• Weight: 1.3 kg Approx.
• GST: General Standard 18%
• HSN CODE: 9033
• Brand: OM LABS
