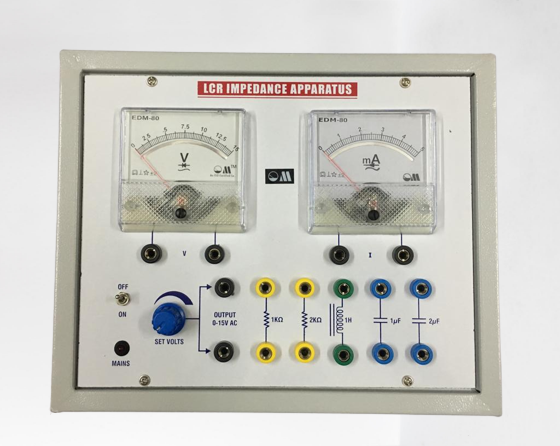

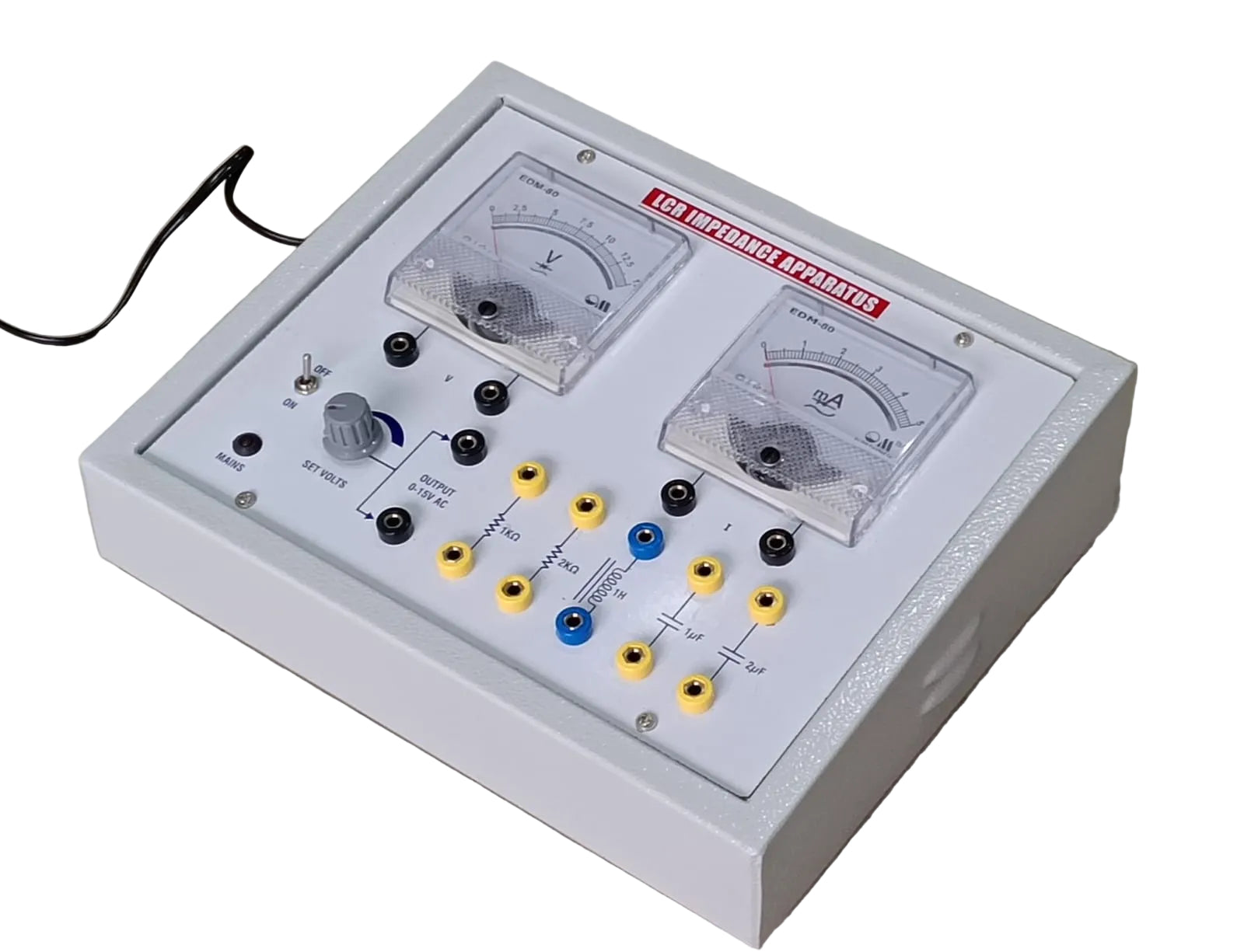

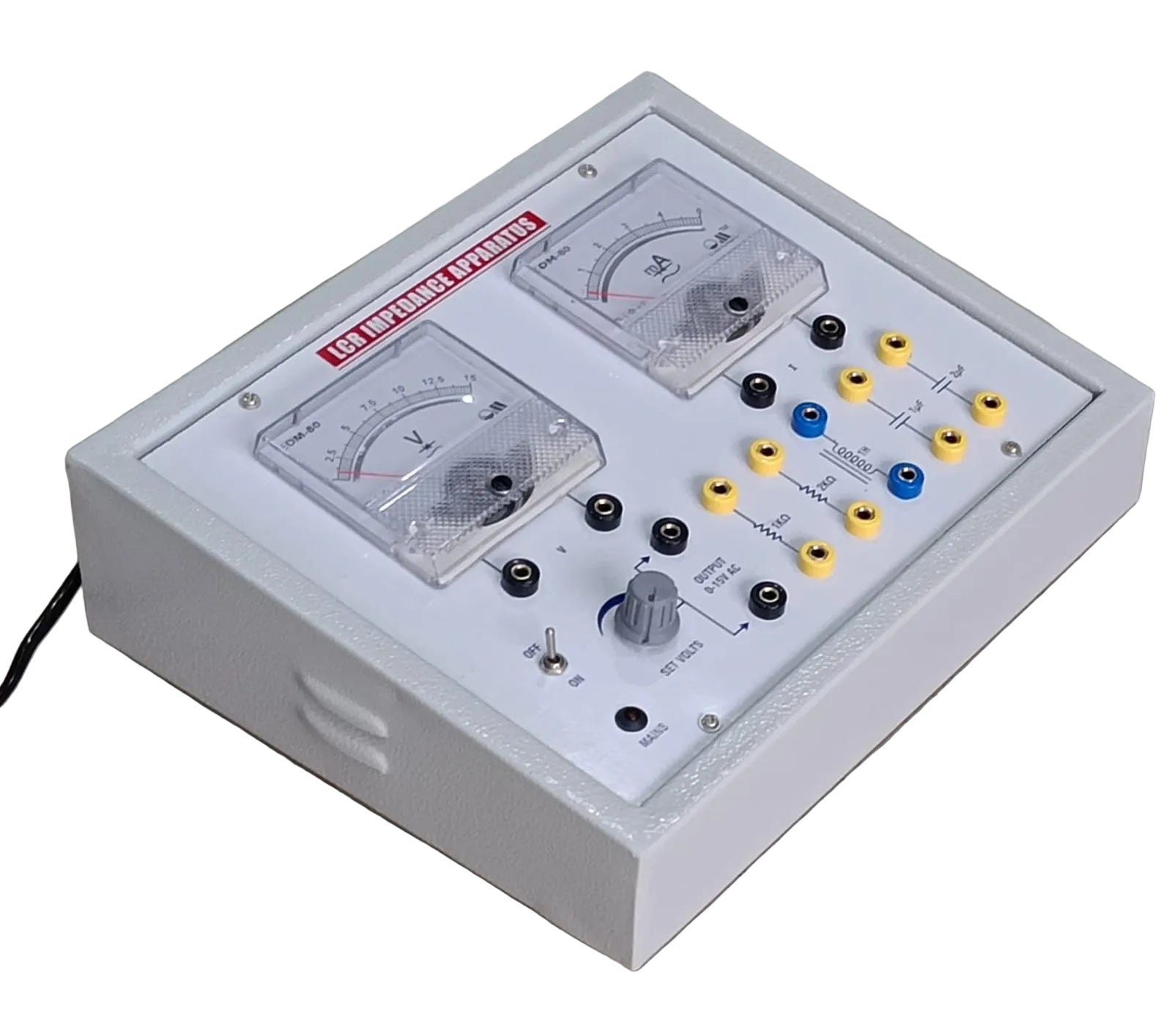

LCR Impedance Circuit Apparatus

Specifications:

The LCR Circuit is defined as the circuit that consists of a Resistor “R” an Inductor “L” and a Capacitor “C”. These three electrical components are either connected in series or in parallel. LCR Circuit is also known as RLC Circuit and this circuit gets its name from the main symbols of the electronic components that are used. The Apparatus we are providing in this R,L and C are connecting in series.

The Instrument comprises of the following built in parts:

• 0V to 15V Step down transformer & output available on sockets.
• Two Resistance R₁=1KΩ, R₂=2KΩ, Two Capacitors C₁=1Uf, C₂=3.3Uf and One Inductance connected inside & connections bought out on sockets.
• Two meters to measure AC voltage & current are mounted on the front panel with connections brought out on sockets/ terminals.

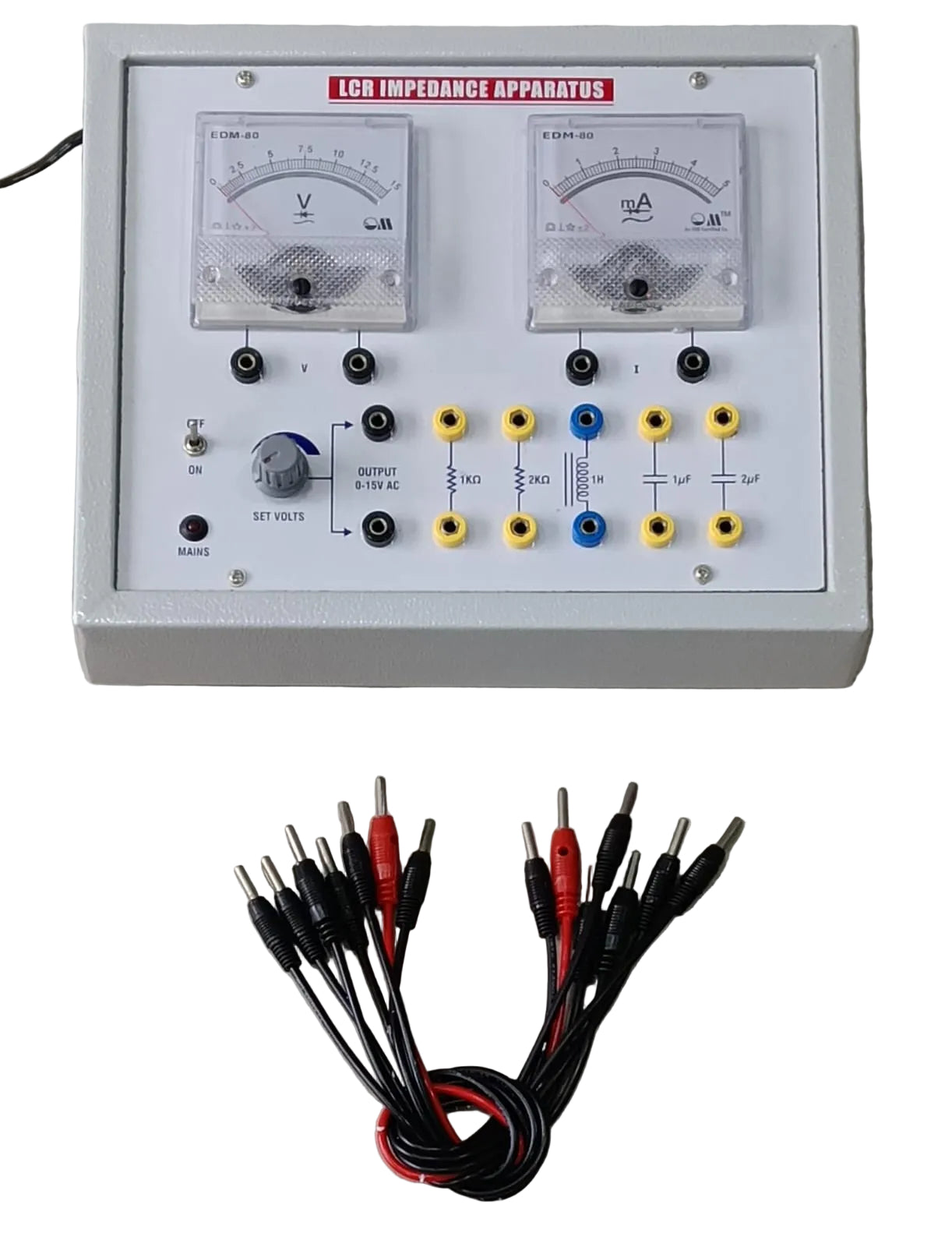

• Five single point & Two interconnectable patch cords for connections.
• Body: Metal/Plastic
• Packing: Corrugated Box
• Weight: 2 kg Approx.
• Dimensions:29.5 cm X 25 cm X 11 cm Approx.
• HSN Code: 8541
• GST: General Standard 18%
• Brand: OM LABS
