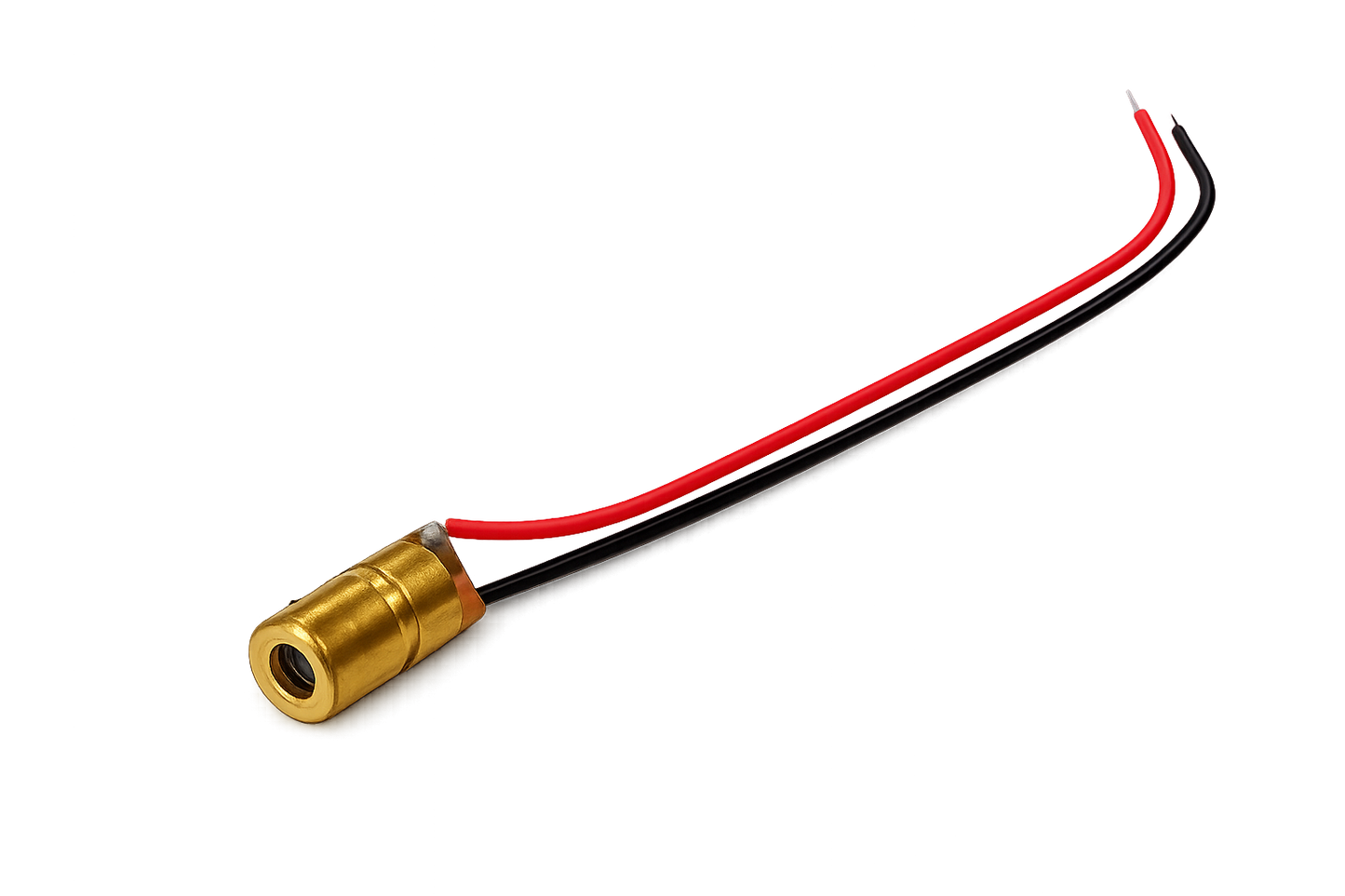

Mini Laser Diode Module with Wire Leads

Specification:

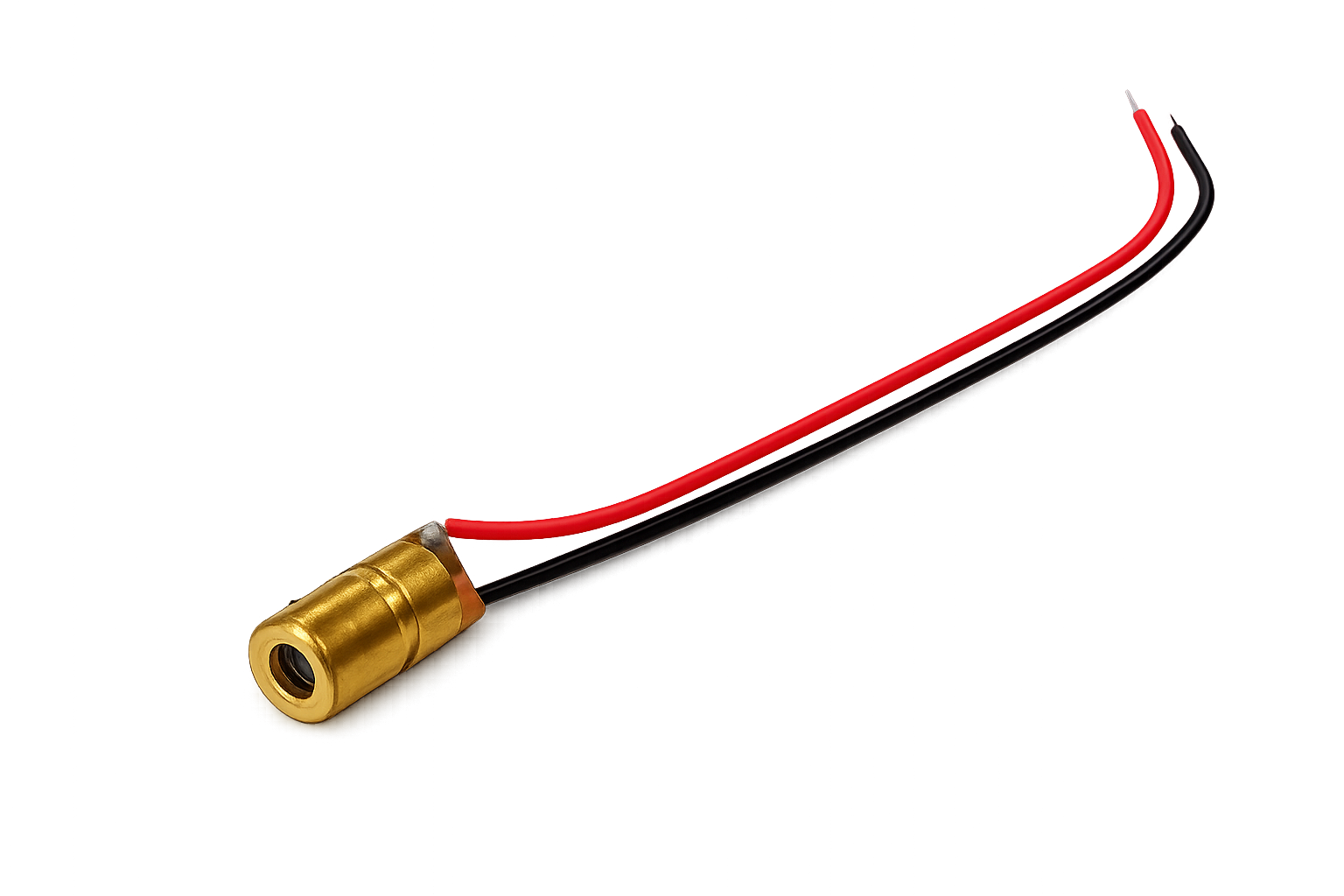

The Laser Diode Module is a compact semiconductor laser device designed to emit a focused, visible red laser beam for alignment, positioning, sensing, and educational applications. It is widely used in Arduino, ESP32, Raspberry Pi, robotics, laser communication experiments, and industrial alignment systems. The module consists of a laser diode enclosed in a durable brass housing with pre-attached power leads, ensuring easy integration into electronic projects.

Operating from a low DC voltage, the laser diode provides a stable and highly visible beam with low power consumption. Its compact size and reliable performance make it suitable for STEM education, DIY electronics, optical experiments, and automation systems.

Technical Specifications

·         Product Type: Laser Diode Module

·         Laser Colour: Red

·         Wavelength: 650 nm (Typical)

·         Output Power: < 5 mW (Class IIIA / Class 3R, model dependent)

·         Operating Voltage: 3V – 5V DC

·         Rated Voltage: 5V DC

·         Operating Current: 20–40 mA (Typical)

·         Beam Type: Continuous Red Laser Beam

·         Housing Material: Brass

·         Lens Type: Fixed Focus

·         Lead Wires: Red (+), Black (–)

·         Module Diameter: Approximately 6 mm

·         Module Length: Approximately 10–13 mm

·         Operating Temperature: -10°C to +50°C

·         Mounting Type: Embedded / Panel Mount
