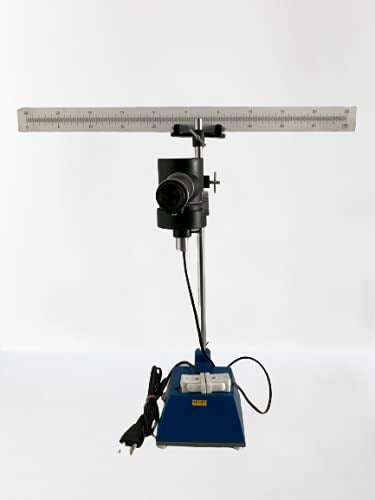

Lamp & Scale Arrangement For Ballistic Galvanometer

SPECIFICATION: A "lamp and scale arrangement" for a ballistic galvanometer is a specialized setup consisting of a focused light source (lamp) and a calibrated scale, designed to accurately measure the deflection of the galvanometers mirror by projecting a bright spot onto the scale, allowing for precise readings of the electrical charge passing through the galvanometer; essentially, it is a system to visually read the galvanometers deflection with high sensitivity.
The Lamp & Scale Arrangement is used in the laboratories of schools and colleges for conducting practicals in the physics lab. This Lamp & Scale setup is suitable for use with the Ballistic Galvanometer. It comes complete with a heavy stand with an adjustable rod and is built with a heavy base containing copper transformer.
Setup details:
• Transformer:
o Input: 220 Vac
o Output: 6 V
• Bulb: 21 Watt
• Scale: 50 cm

• Dimensions:24 x 22 x 52cm Approx.
• Weight:3.5kg Approx.
• Packing: Card Board Box
• HSN CODE: 902790
• GST: General Standard 18%
• CATAGORIES: Physics
• BRAND: OM LABS
