JOY STICK MODULE FOR ARDUINO

Specification:

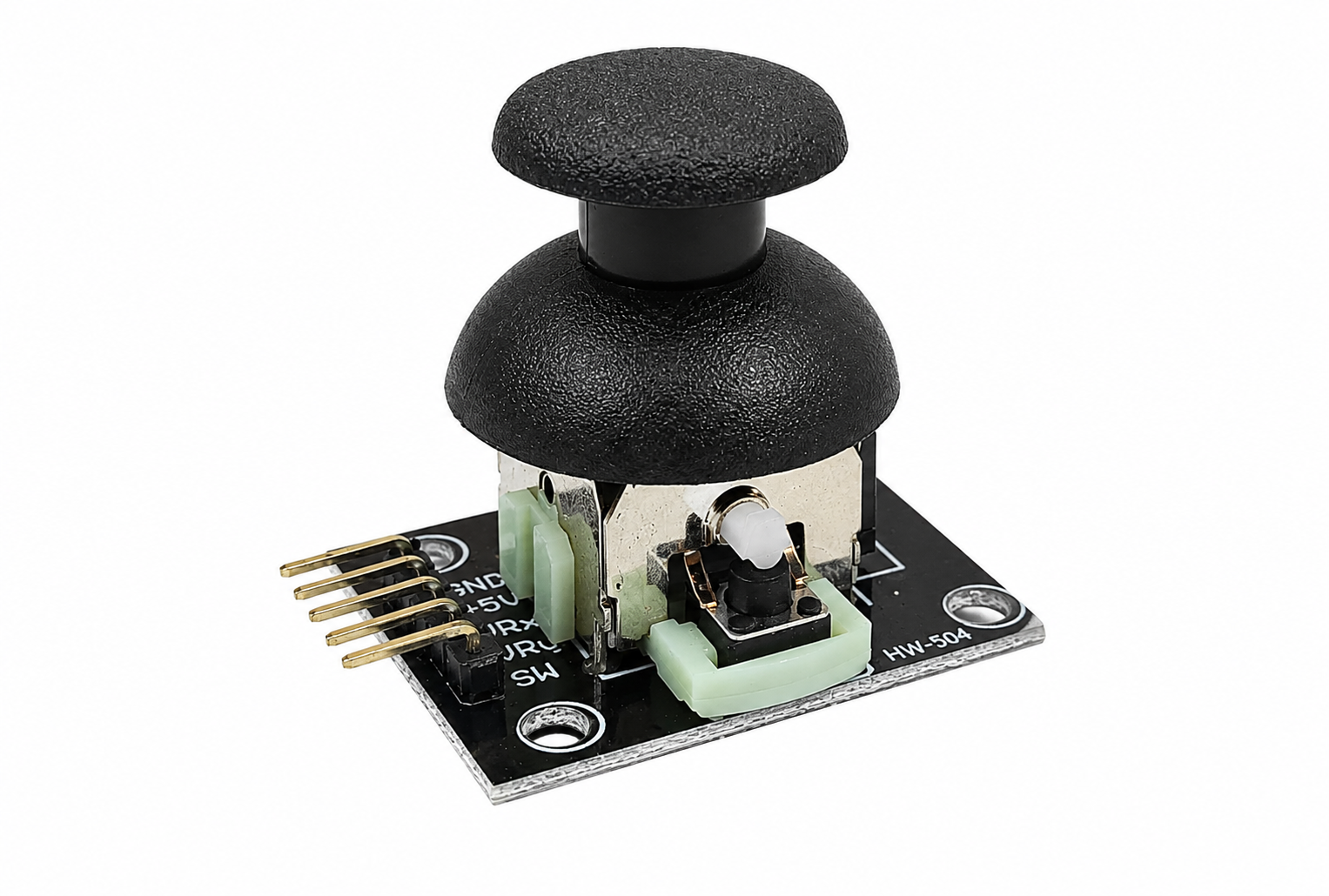

The Joystick Module for Arduino is a compact analog input device that provides two-axis (X and Y) position control along with a built-in push-button switch. Based on dual potentiometers, it converts joystick movement into analog voltage signals, making it ideal for controlling robots, games, RC vehicles, menu navigation, camera movement, and various Arduino, ESP32, Raspberry Pi, and other microcontroller projects. The module is easy to interface and is widely used in educational, DIY, and STEM applications.

Technical Specifications

·         Product Name: Joystick Module for Arduino

·         Operating Voltage: 3.3V – 5V DC

·         Output Type: Analog (X-axis, Y-axis) + Digital (Push Button)

·         X-Axis Output: Analog Voltage

·         Y-Axis Output: Analog Voltage

·         Push Button: Normally Open (Digital Output)

·         Number of Axes: 2 (X and Y)

·         Supply Current: < 20 mA (Typical)

·         Interface: 5-Pin Header

·         Pin Configuration: GND, VCC, VRX, VRY, SW

·         Compatible Logic Level: 3.3V & 5V Systems

·         Module Dimensions: 50 x 20 x 30 mm

·         Weight: 11 g

·         Operating Temperature: -10°C to +60°C

·         Packing: 9x8x2cm
