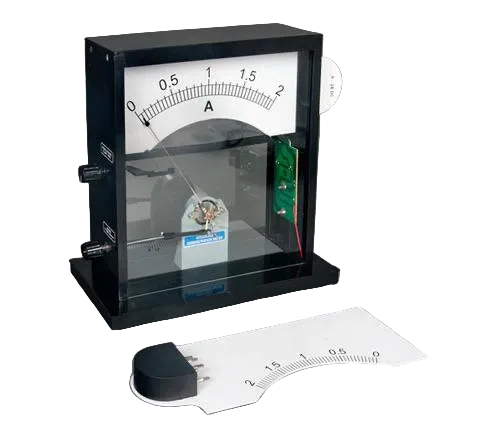

Interscale demonstration meter with one DC scale

Specification

Product Name:  Interscale Demonstration Meter (Single DC Scale)

Instrument Type: Analog Demonstration Meter

Measurement Type: DC Voltage or DC Current (Single Scale)

Scale Type: Single DC Scale with Large Demonstration Dial

Display  Large : Analog Pointer Display

Scale Length: Approx. 150–200 mm

Accuracy: ±2% of Full Scale (Typical)

Movement: Permanent Magnet Moving Coil (PMMC)

Mirror Scale: Provided for Parallax Error Reduction

Pointer : Lightweight Knife-Edge Pointer

Terminal Type: 4 mm Color-Coded Safety Banana Terminals

Body Material: High-Impact ABS Plastic / Powder-Coated Metal Cabinet

Front Panel: Clear Acrylic Window with Printed Scale

Mounting: Bench Top / Wall Mounting Suitable

Applications

• Physics laboratory demonstrations.
• Classroom teaching of DC electrical measurements.
• Educational experiments on current and voltage.
• Engineering and technical institute practical sessions.
• Electronics laboratory training.

• Dimension: 30.5x15x31.5cm
• Weight: 1.948gm
• Package: Card Board Box
• GST: General Standard Tax 18%
• HSN: 9030
• Category: Educational Meter
• Brand: OM LABS
