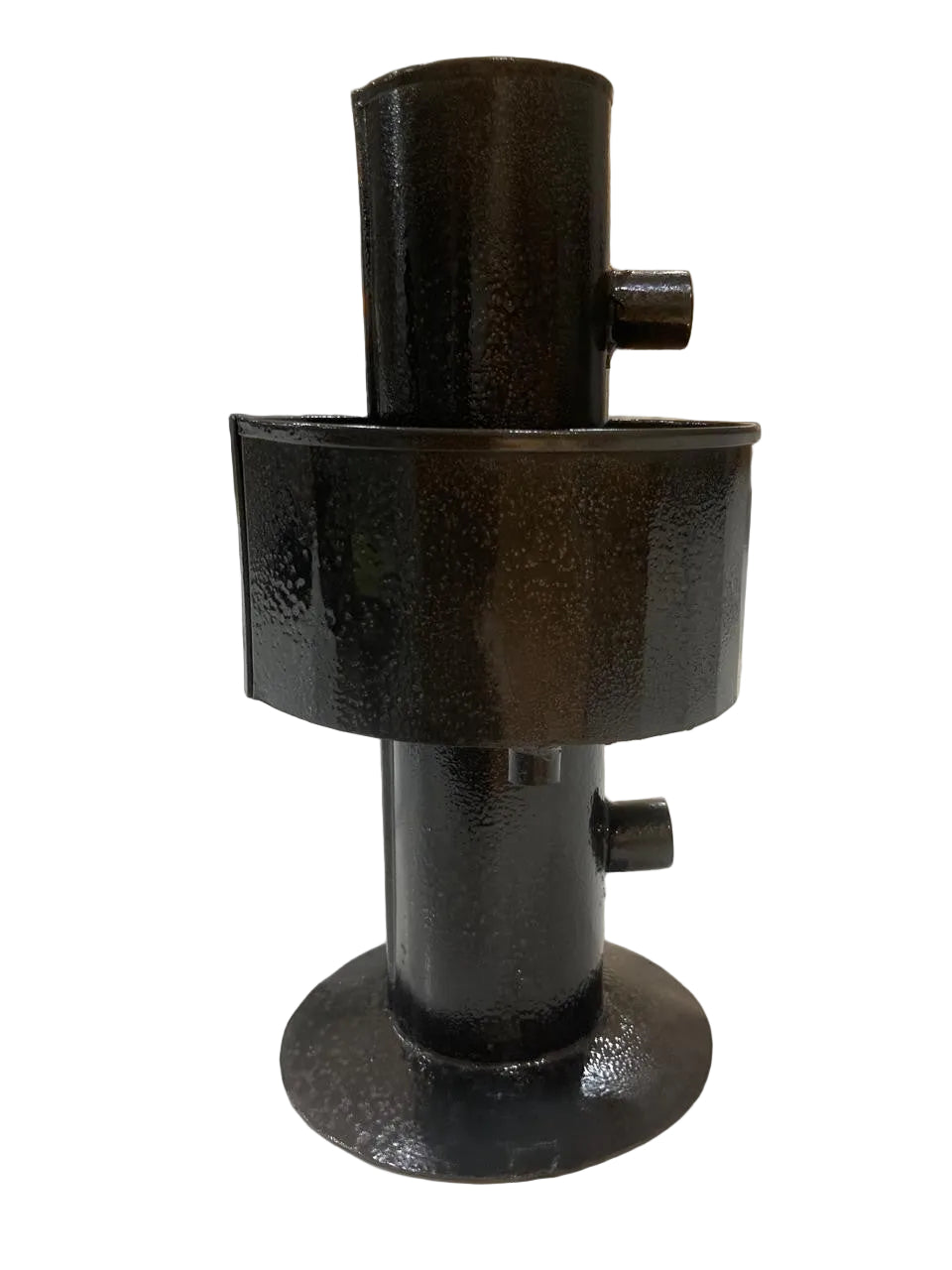

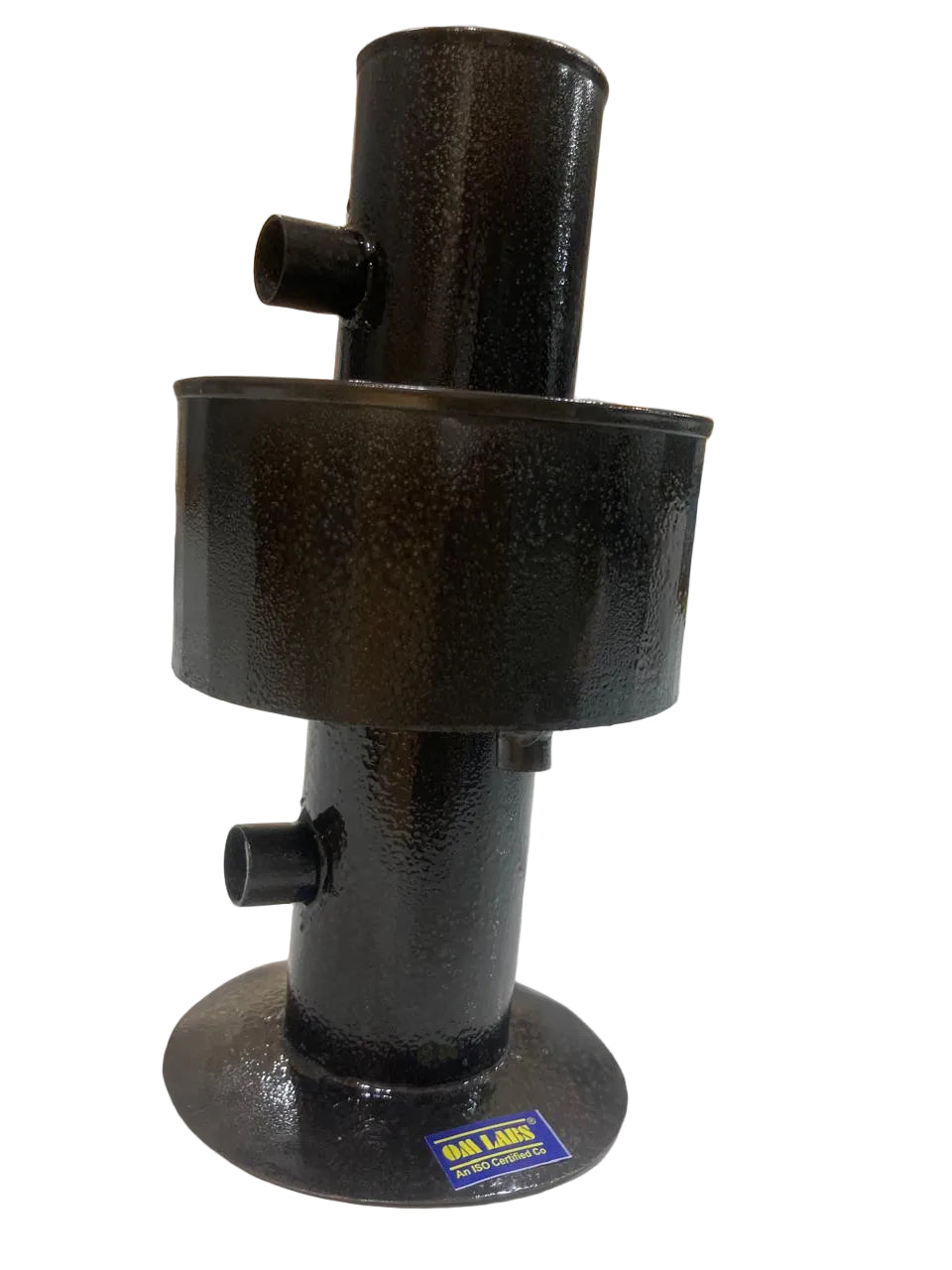

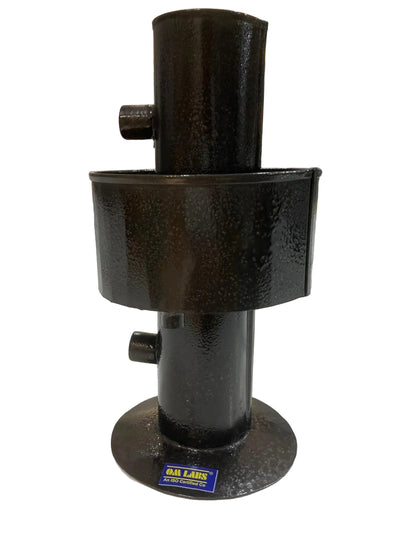

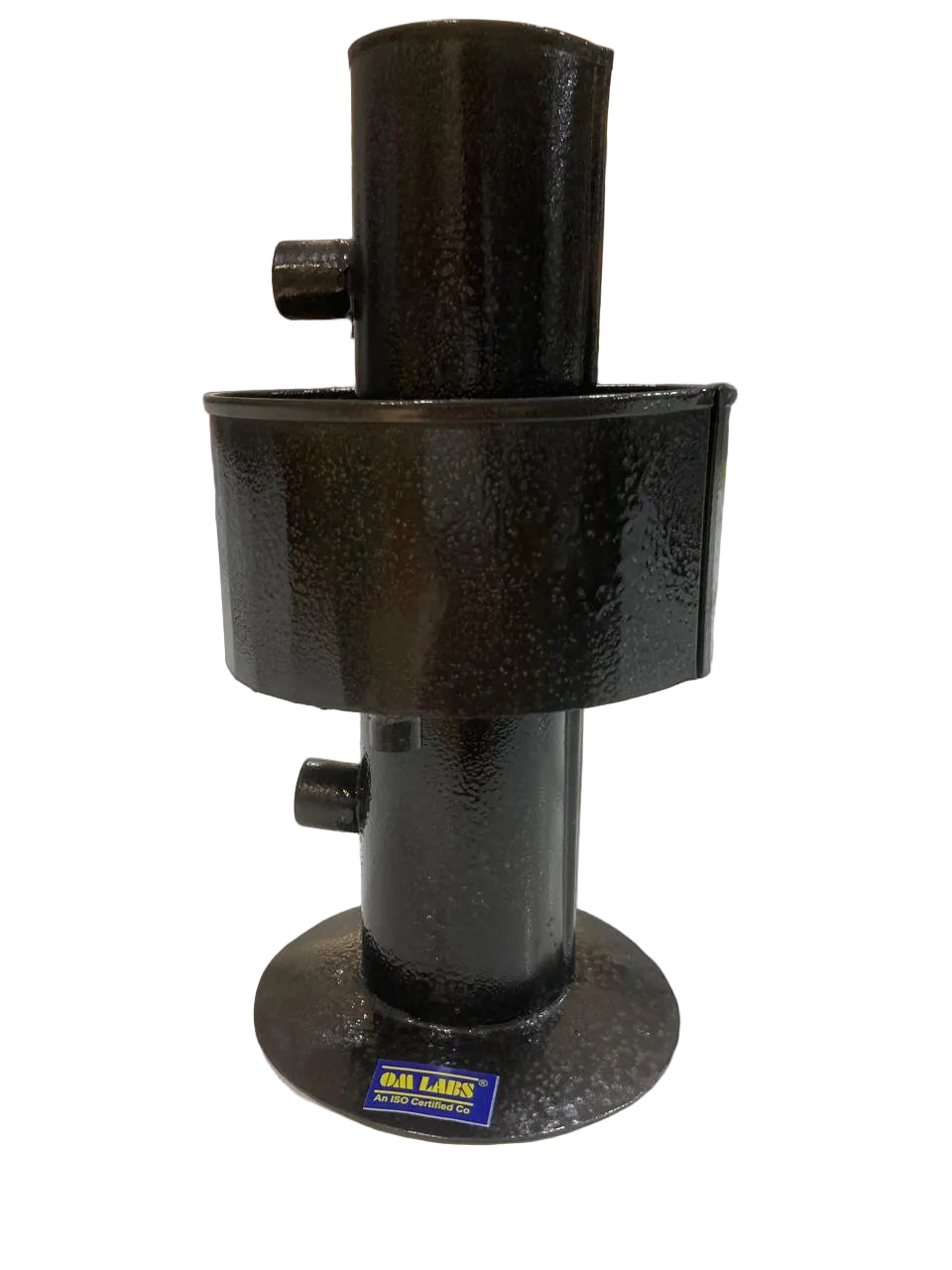

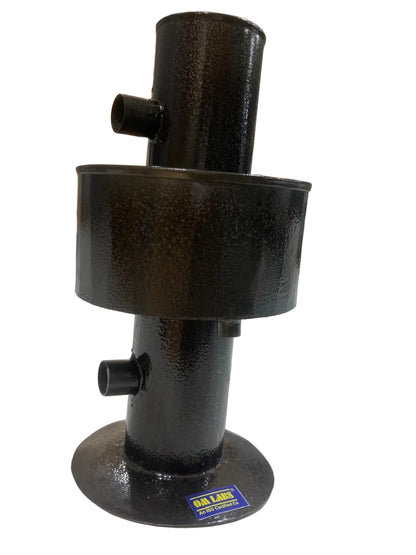

HOPE'S APPARATUS

Specification:

Product Name: Hope’s Apparatus

Application: Determination of the temperature of maximum density of water

Principle: Demonstrates the anomalous expansion of water

Main Apparatus: Hope’s cylindrical metal vessel with central tube

Material: resistant metal construction

Central Tube: Provided for thermometer placement

Thermometer: Two thermometers for measuring temperature at upper and lower portions

Water Jacket: Annular space around the central tube for filling ice-cold water/ice mixture

Thermometer Range: Typically, 0°C to 110°C

Thermometer Graduation: 1°C or better

Insulation: Suitable thermal insulation to minimize heat exchange

Stand: Sturdy laboratory stand with clamps/supports

Observation: Temperature variation at upper and lower levels of water

Temperature of Maximum Density: Approximately 4°C

Use Level: B.Sc. Physics / Undergraduate Physics Laboratory

• Dimensions: 10 x 10 x 21cm.
• Weight:0.220kg
• Packing: Card Board Box
• Box Dimensions:23 x 12.5 x12cm
• Weight: 0.300kg
• GST: General Standard 18%
• HSN CODE: 9027
• CATAGORIES: Physics Lab
• BRAND: OM LABS
