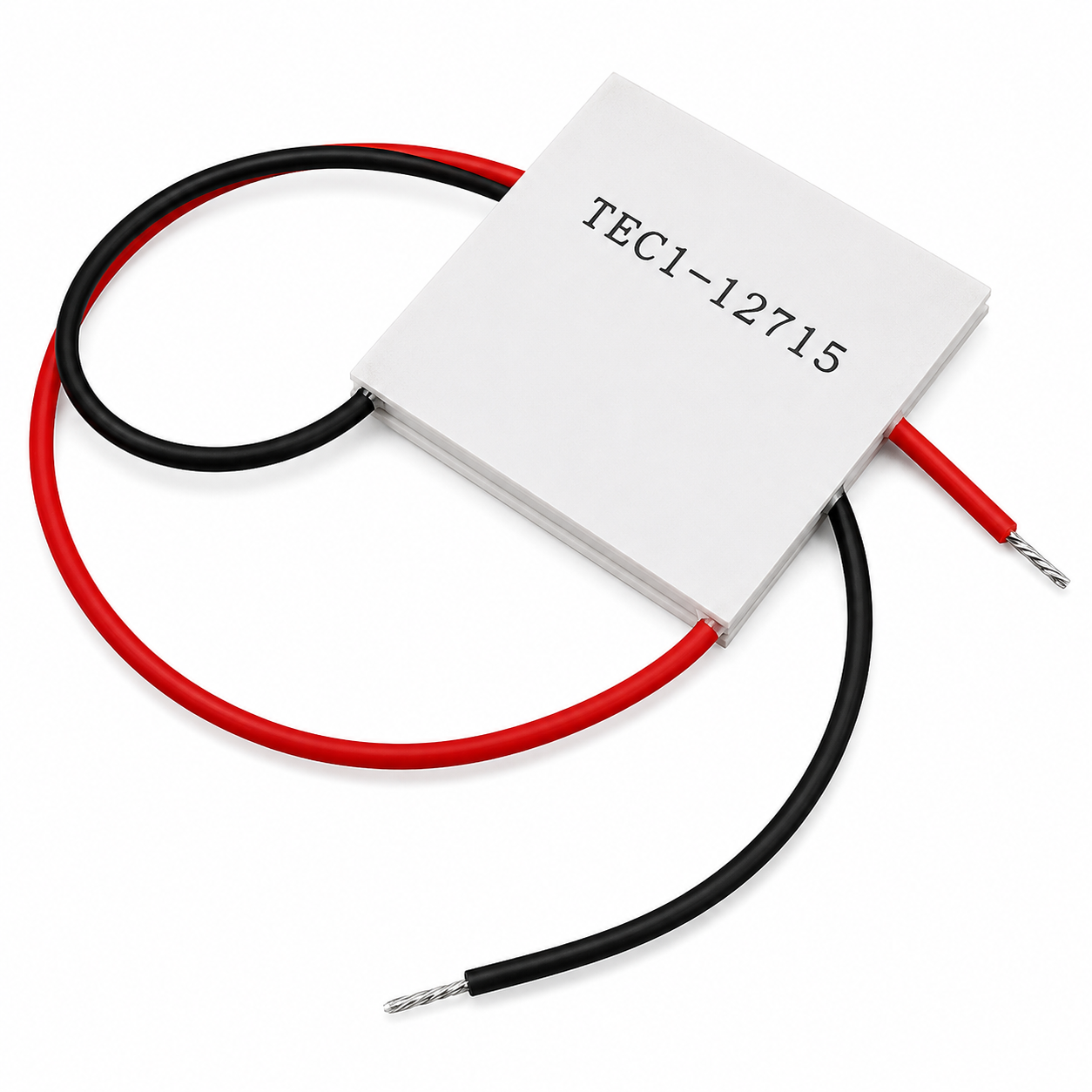

High Current Peltier Refrigeration Module TEC12715

High Current Peltier Refrigeration Module TEC12715

DISPATCHED WITHIN 1-5 days.
24 hours RETURN/EXCHANGE POLICY
Rs. 509.00
Rs. 728.00 Rs. 509.00
Sale Sold out
Shipping calculated at checkout.

SKU: OM-31089
Tags: 12715 Peltier Cooler , 12V Peltier Module , 40x40mm Peltier Module , Arduino Peltier , CPU Cooler Module , DC Cooling Module , DIY Cooling Project , Electronic Cooling Module , Electronics Cooling , Embedded Cooling Solution , Heat Transfer Module , High Power Peltier Module , Incubator Cooling , Industrial Cooling Module , Maker Electronics , Peltier Module , Portable Cooler Module , Raspberry Pi Cooling , Solid State Cooling , TEC Cooling Plate , TEC1-12715 Peltier , Temperature Control Module , Thermal Management Component , Thermoelectric Cooler , Thermoelectric Cooling Module , Water Cooler Project
View full details

Specification: The TEC1-12715 is a high-performance thermoelectric cooler module that utilizes the Peltier effect to create a temperature differential between its two sides. In a laboratory setting, it is primarily used for precision thermal management, such as cooling CCD sensors, stabilizing temperatures for sensitive biological samples, or integration into small-scale refrigeration systems.

Technical Specifications:
* Model: TEC1-12715
* Couples: 127
* Max Voltage: 15.4V
* Max Current: 15A
* Max Cooling Power (Qc max): 130W - 145W
* Temperature Difference (ΔTmax): 68°C - 70°C
* Dimensions: 40mm x 40mm x 3.3mm (Wire: 190mm)
* Operating Temperature Range: -55°C to 83°C
* Seal Type: Silicone rubber insulation
Dimension: 40x40x4mm
Weight: 22gm

Weight

0.025 kg

Dimensions 5 × 5 × 5 cm
