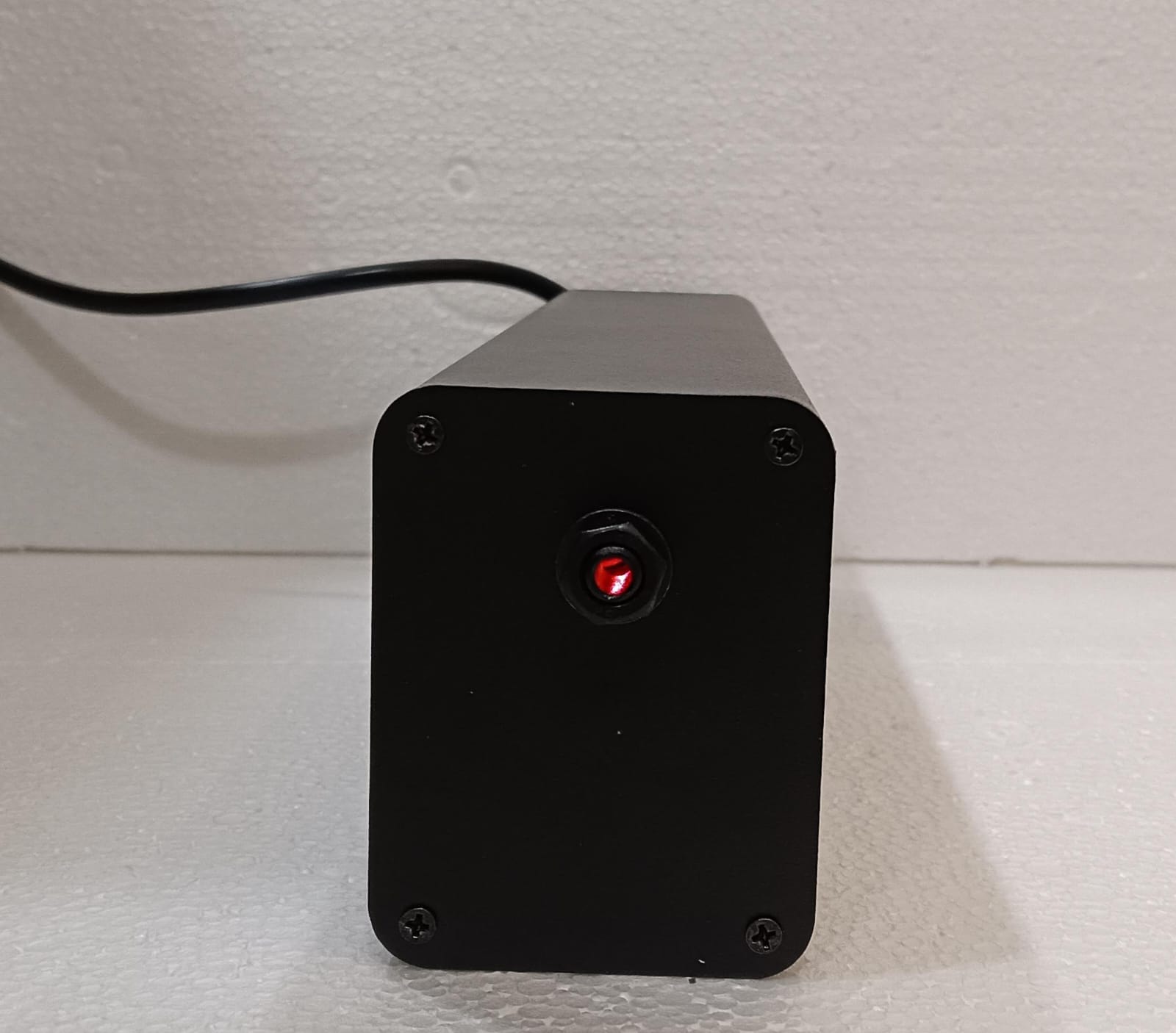

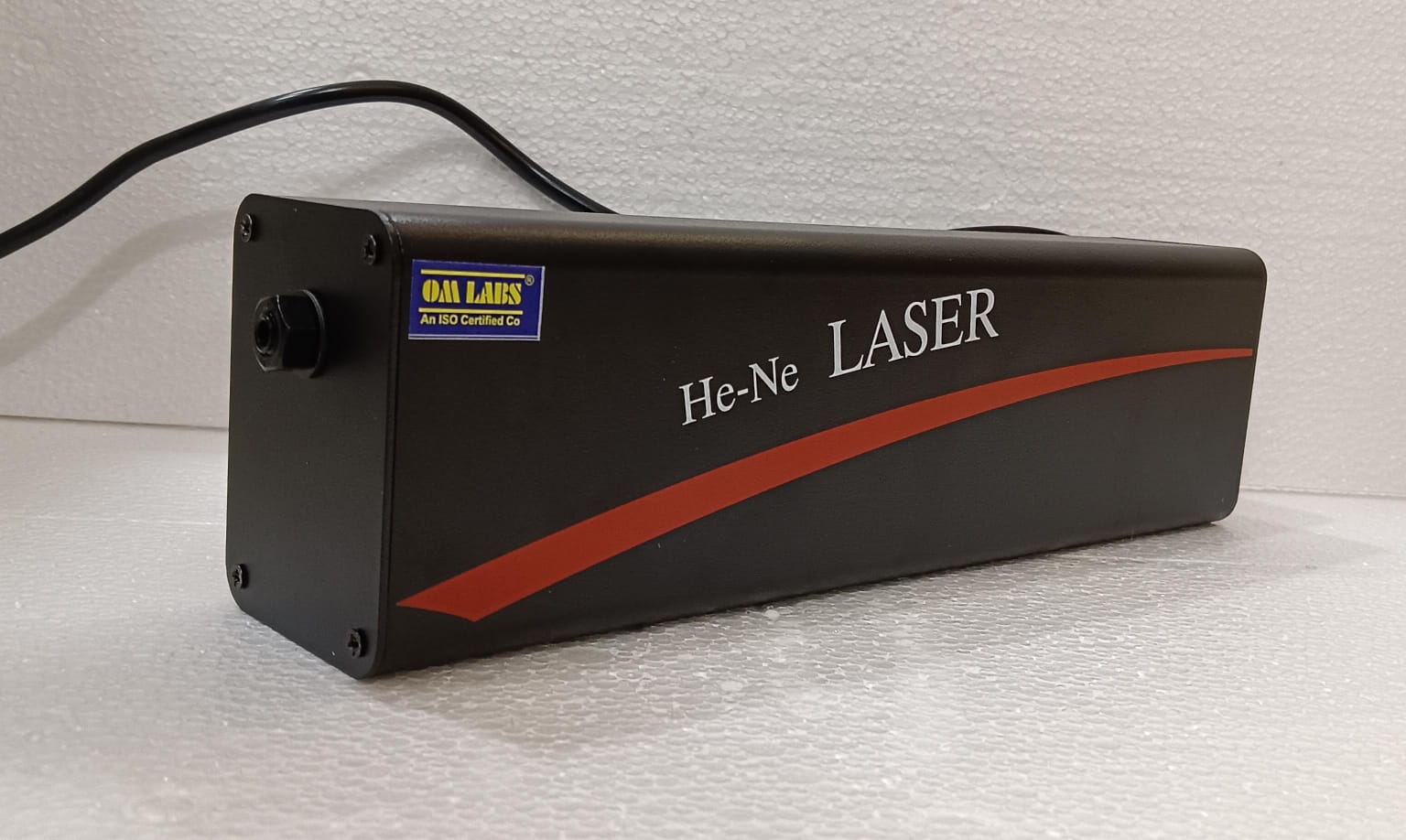

Helium Neon | He-Ne Laser 2mW RED Color

Specification:

The He-Ne LASER is reasonable and fashionable in design, it is characterized by stable and reliable performance , good monochromaticity and directivity, high brightness and good adaption to electric network.. It is widely applied in many fields such as mathematical experiment, precision measurement, laser communication, laser photo type setting, clinical medicine and agriculture breeding.

Ø Technical Specification

Laser Tube

·     Wave length: 632.8nm

·     Working current: 4mA-6mA

·     Output power: > 2Mw

·     Contour dimension (outer diameter X length): Φ40mmX250mm

 Continuously working time: > 8h

 Work power

·     Voltage rating: AC220~240V

·     Frequency rating: 50Hz

·     Input power rating: < 20W

·

Need no ground connection

Ambient condition

·     Ambient temperature: -10℃-40℃

·     Relative Humidity: < 80%

Structure

The structure is showed as Fig1. It is mainly composed of a laser tube, a laser module power, a support base and a outside shell. The tube, module power and support base are installed in the outside shell, so it is very safety.

The electric schematic diagram is showed as Fig2. Take care of the voltage rating of your electric network. It must be AC220V±22V.

• Dimensions: 28.2 x 6 x 8cm.
• Weight:1.3 kg
• Packing: Card Board Box
• HSN CODE: 9013
• Box Dimensions:39 x 11.5 x13cm
• Weight: 1.5 kg
• GST: General Standard 18%
• CATAGORIES: physics Lab
• BRAND: OM LABS
